SCHNEIDER ELECTRIC
Schneider Harmony ZB4BG220 2-Position Key Switch Head – 22 mm
- SKU
- P-ZB-S-7946
$80.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-ZB-S-7946 |
| Weight | 1.5 kg |
Description
Schneider Harmony ZB4BG220 key switch head
Two-position latching key-switch head for a 22 mm cutout. Main reference: ZB4BG220. This is the operator head, not a complete wired switch/contact assembly.
Source specifications
| Brand / series | Schneider Electric / Harmony |
|---|---|
| Cutout diameter | 22 mm |
| Positions | 2 |
| Operation | Latching |
| Key type | 3131A |
| Listed number of keys | 2 |
| Angle of throw | 90° |
| Source IP ratings | IP66, IP67, IP69K |
| Mechanical life | 1000000 cycles, source rating |
| Hazardous-area certification | No, according to the source |
| Source standards / approval entries | GB 14048.5; EN/IEC 60947-5-1; CSA C22.2 No 14; CE; UL 508; EN/IEC 60947-1; EN/IEC 60947-5-5; EN/IEC 60947-5-4 |
| Source Better World Product field | Yes; designation not independently verified |
Additional source references

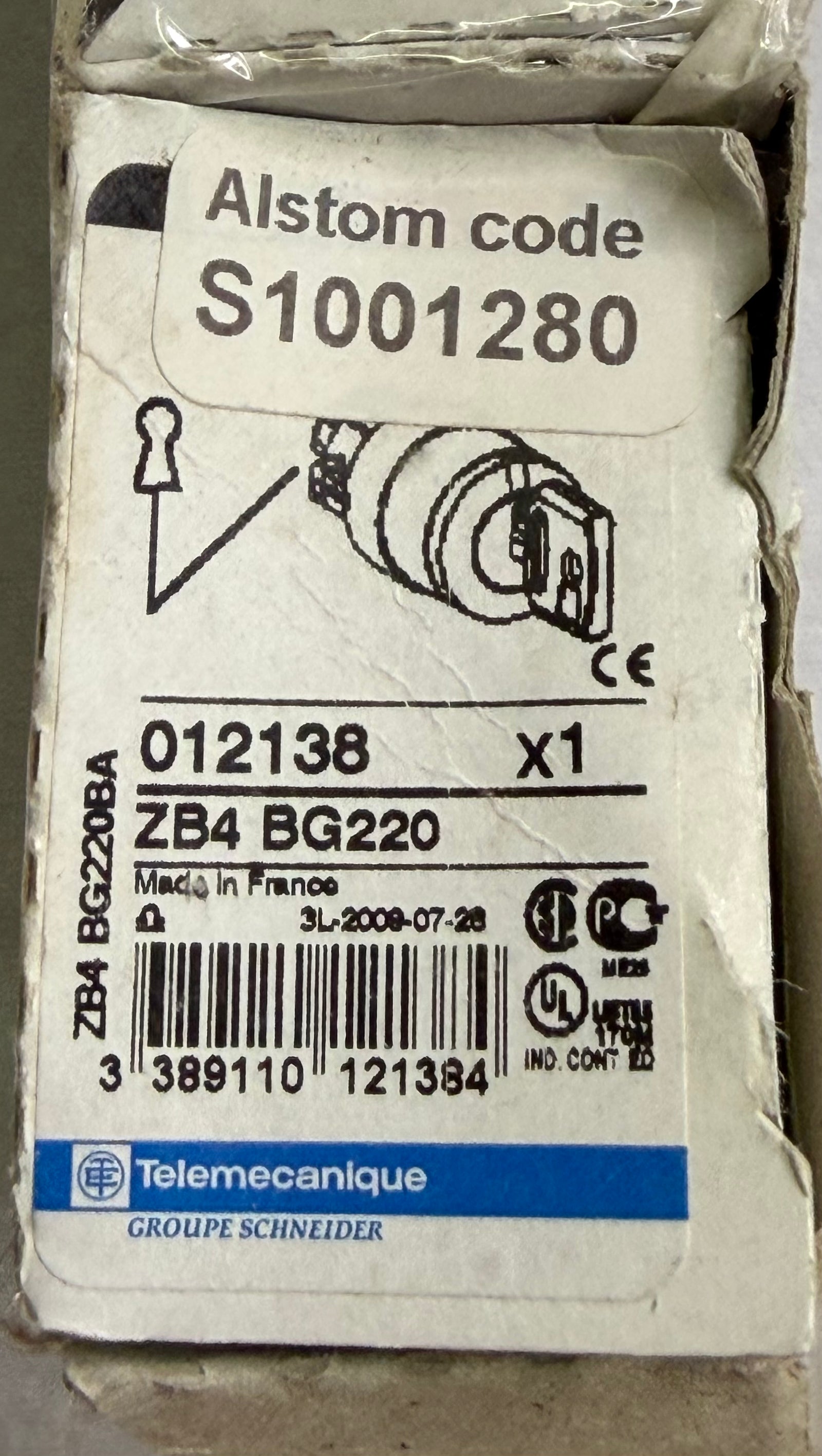

609-2263, 6092263 and ALSTOM S1001280.
Confirm the mounting system, required contact blocks, supplied keys and environmental requirements before ordering. Listed standards/IP ratings are source data, not verification of the completed assembly or current certification; electrical contact ratings and included contact blocks are not specified.
