SCHNEIDER ELECTRIC

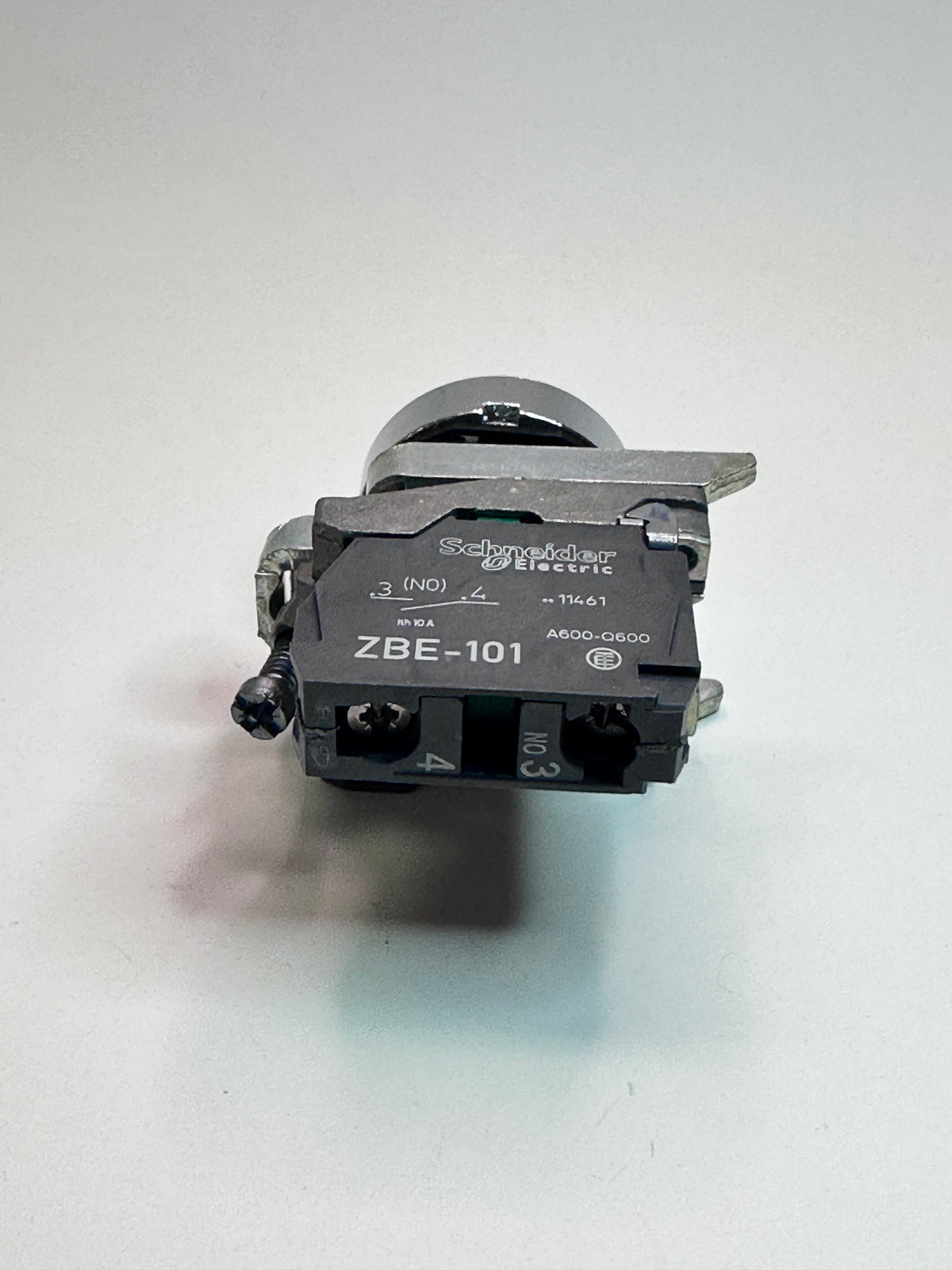

Schneider Harmony XB4BA21 Black Flush Pushbutton, 1NO
- SKU
- P-XB-S-7666
$39.90
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-XB-S-7666 |
| Weight | 1.0 kg |
Description

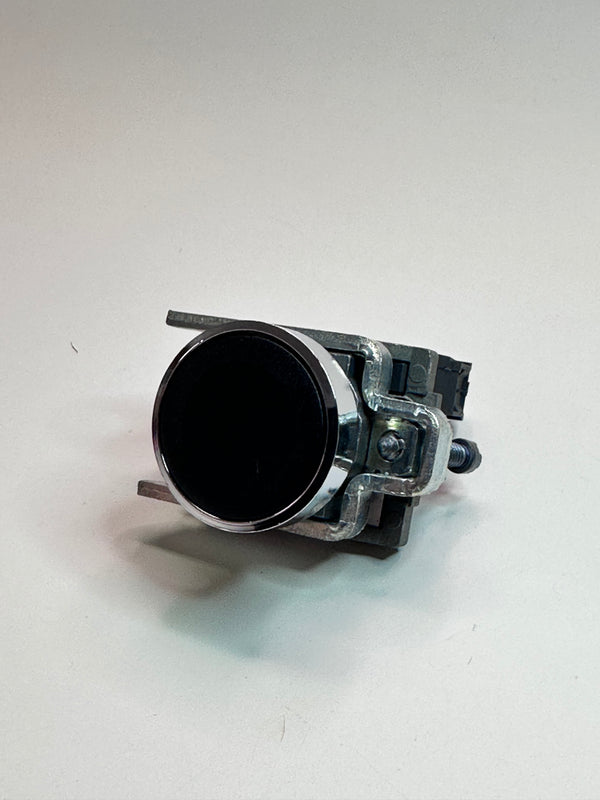

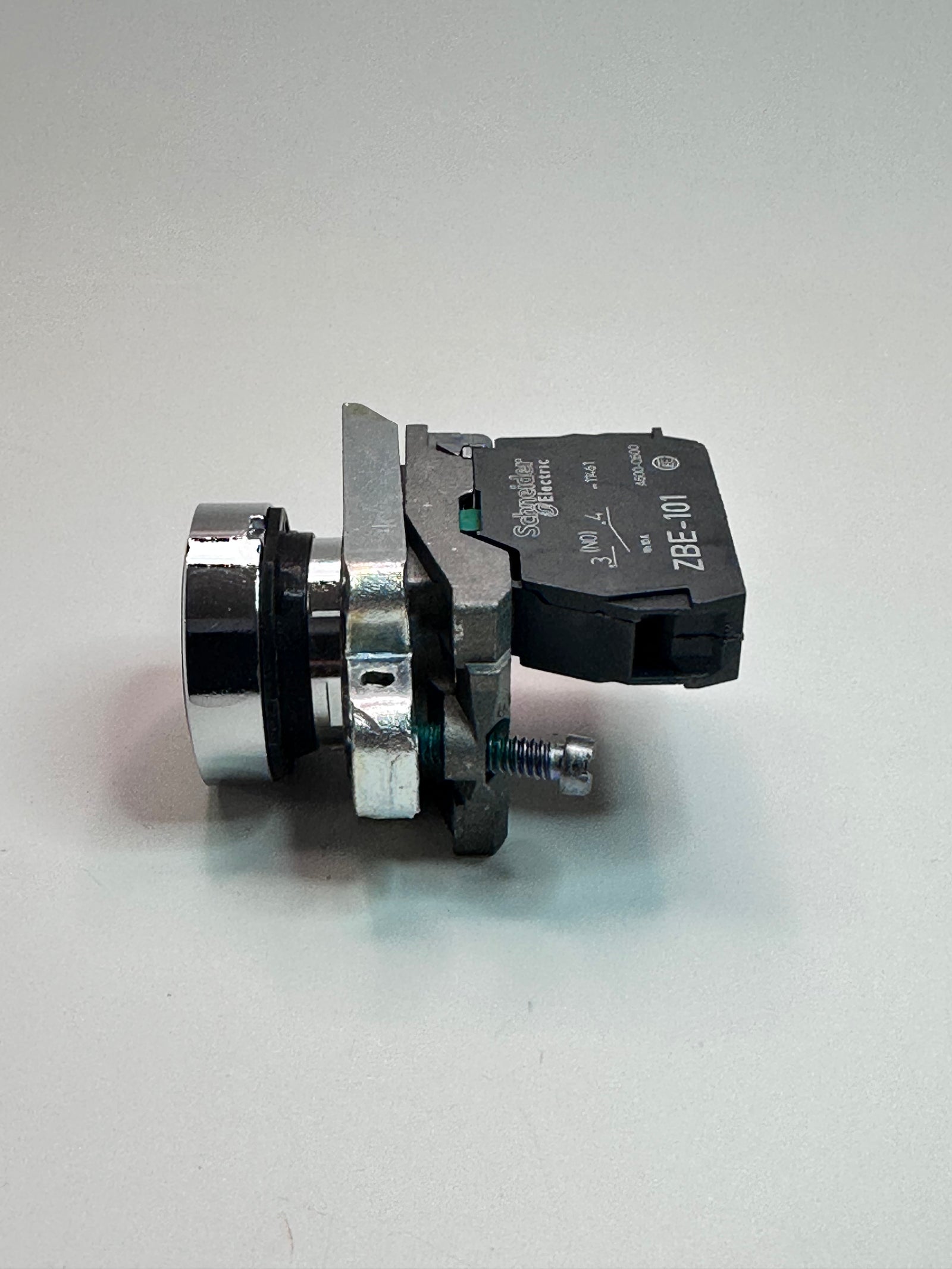

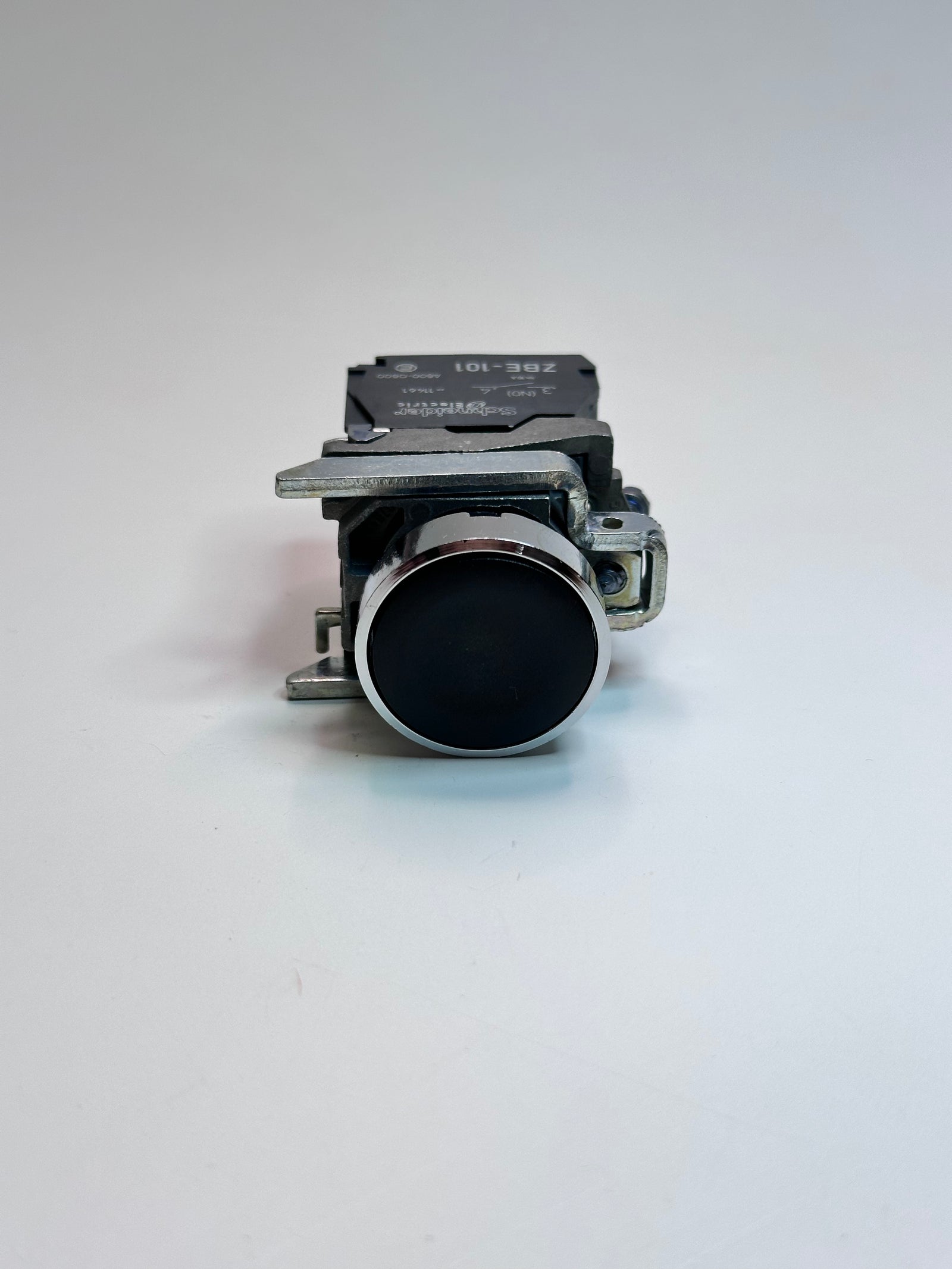

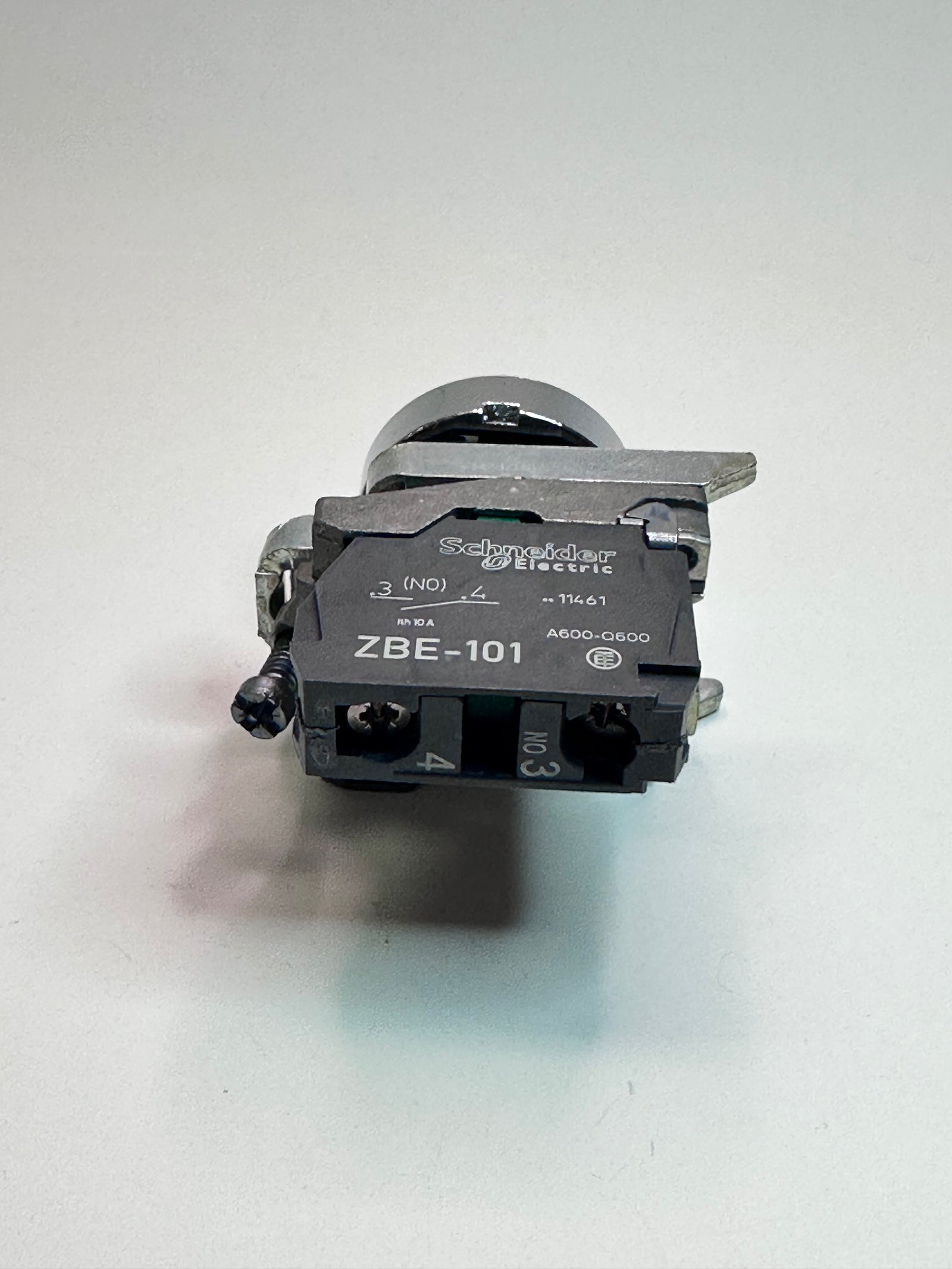

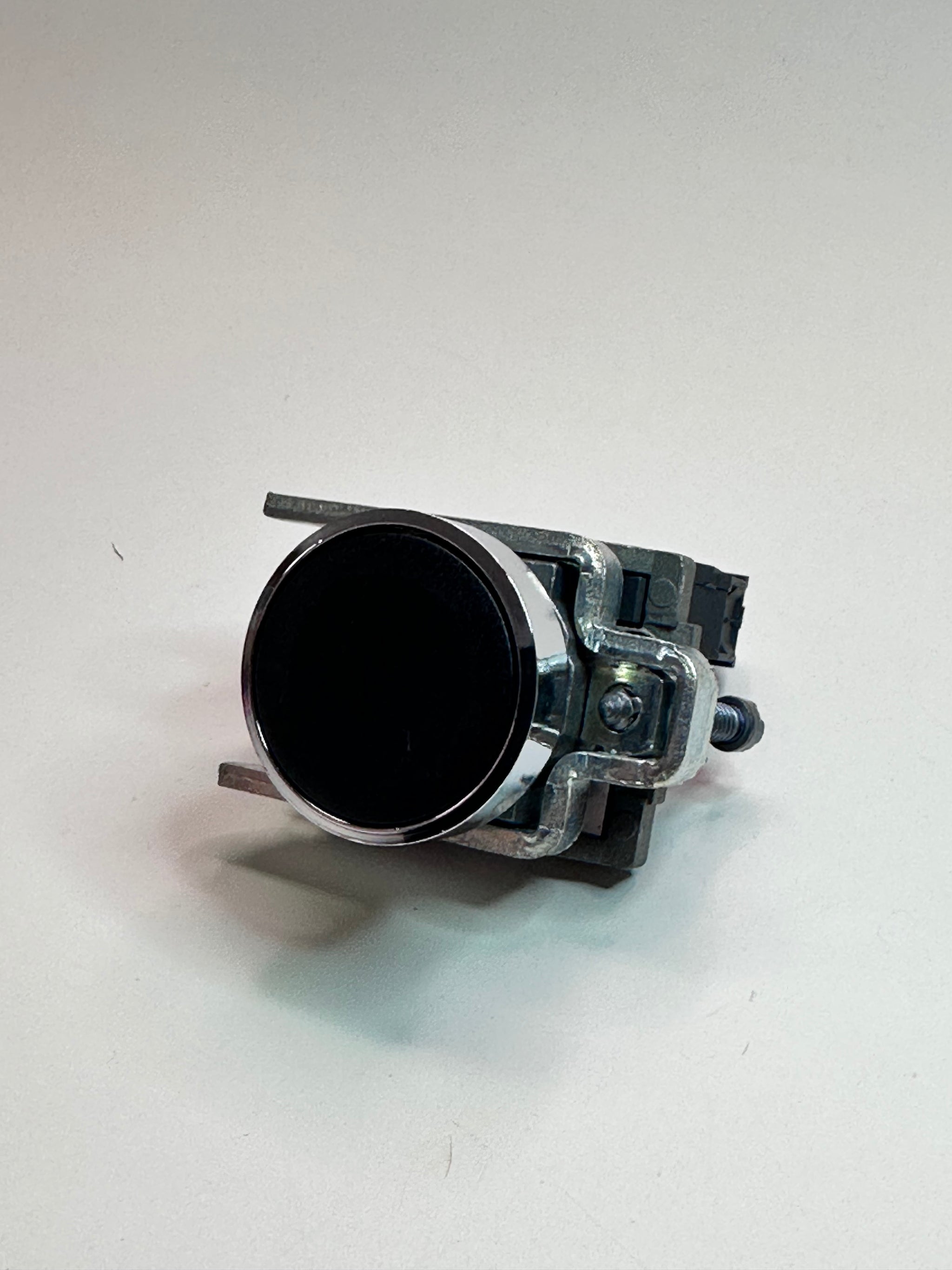

Schneider Electric Harmony XB4BA21 metal pushbutton, black, flush and unmarked, with spring return and one normally open contact.
Source-listed specifications
| Range of product | Harmony XB4 |
|---|---|
| Device short name | XB4 |
| Product or component type | Push-button |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Black flush, unmarked |
| Head type | Standard |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
The original title describes 22mm; the specification table records a 22.5 mm mounting diameter. Use the exact mounting requirement when checking the panel opening. The two terminal-capacity entries distinguish conductors with and without cable ends and are retained separately.
Confirm the required contact arrangement, panel mounting and load rating before ordering. The IEC reference is source wording, not a newly verified compliance certificate; no emergency-stop function is claimed.
