SCHNEIDER ELECTRIC
Schneider Electric XALK01 Harmony 22mm Empty Push-Button Enclosure
- SKU
- P-XA-S-7827
$40.00
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 1.6 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-XA-S-7827 |
| Weight | 1.6 kg |
Description

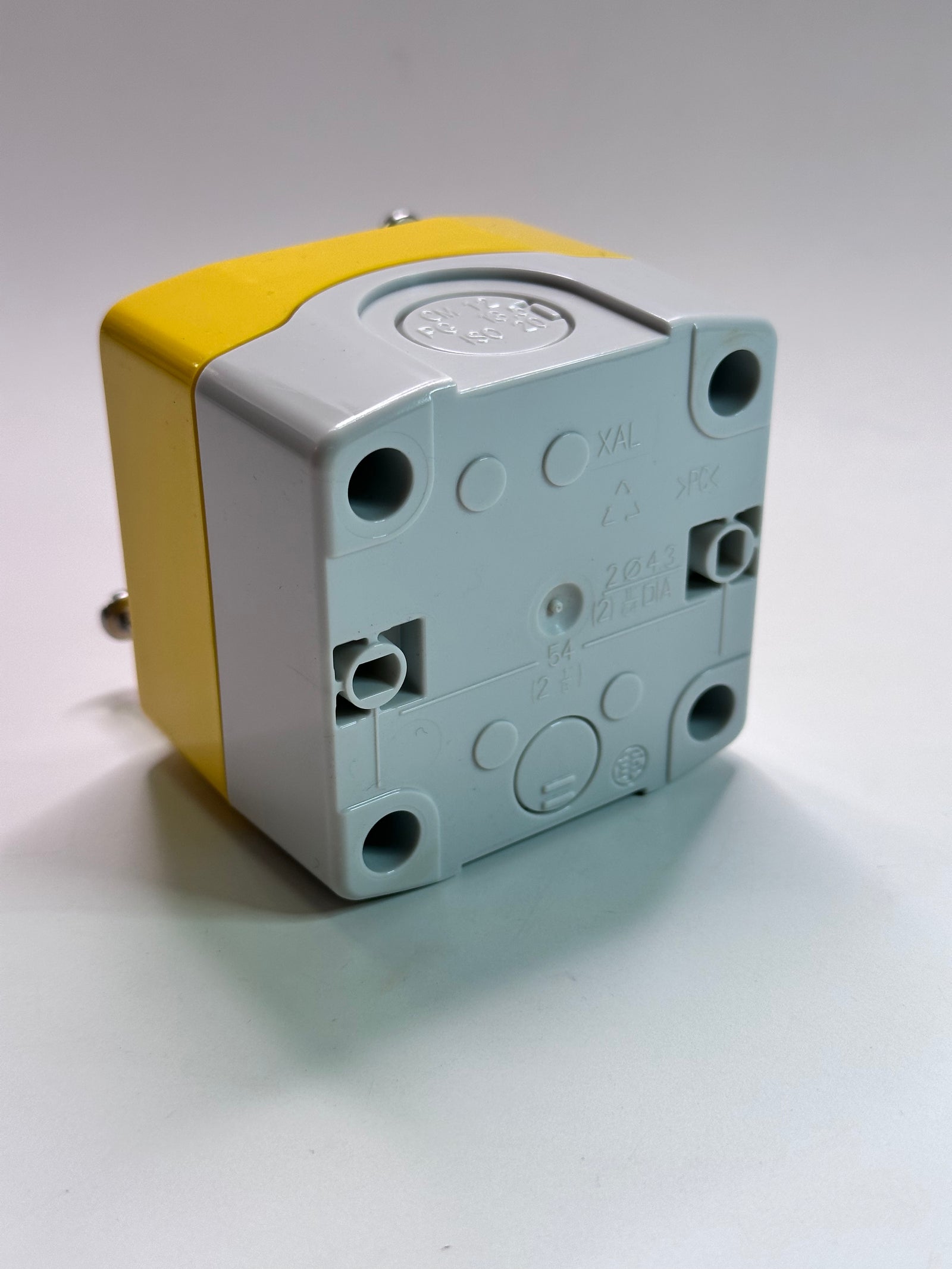

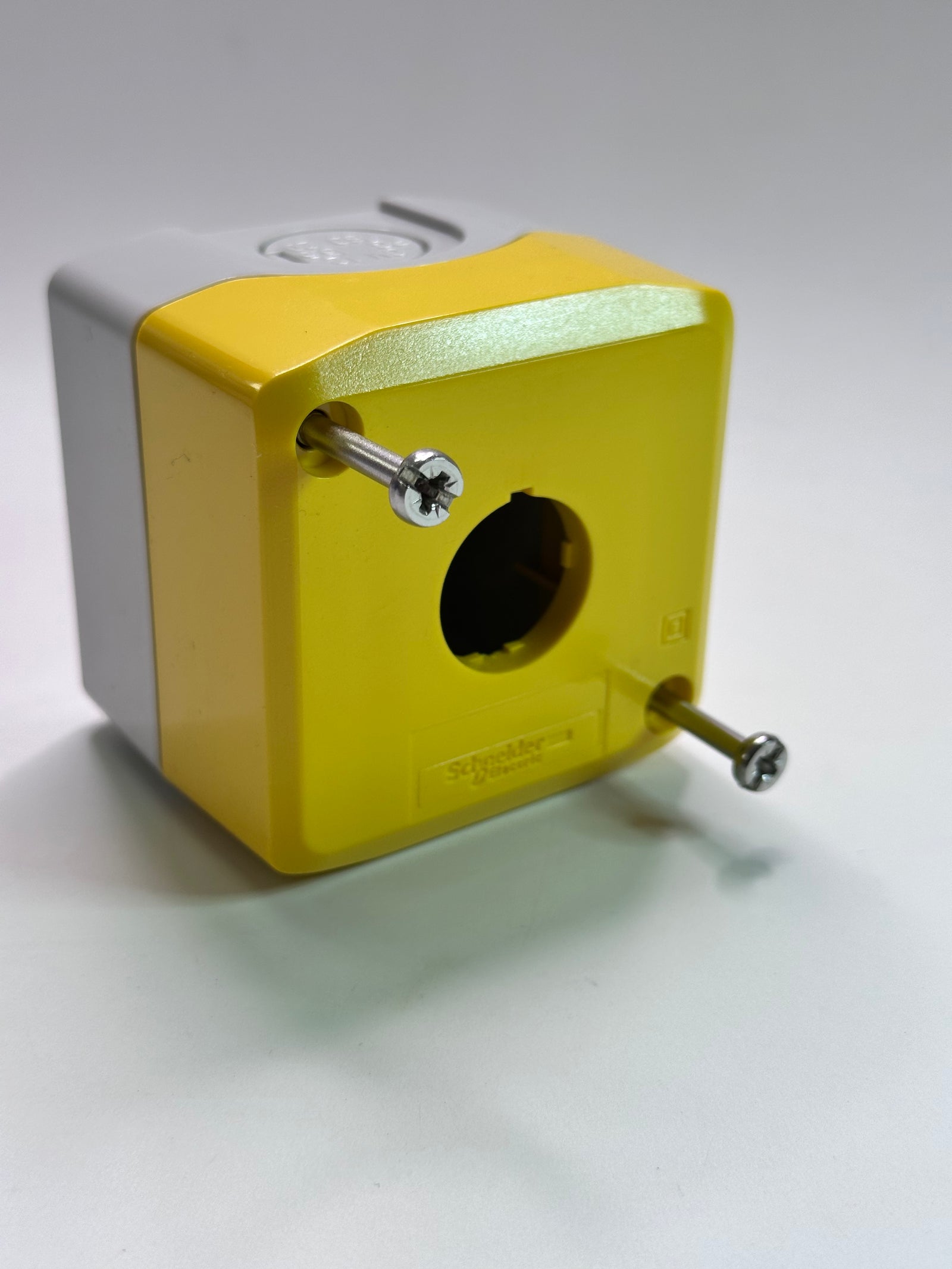

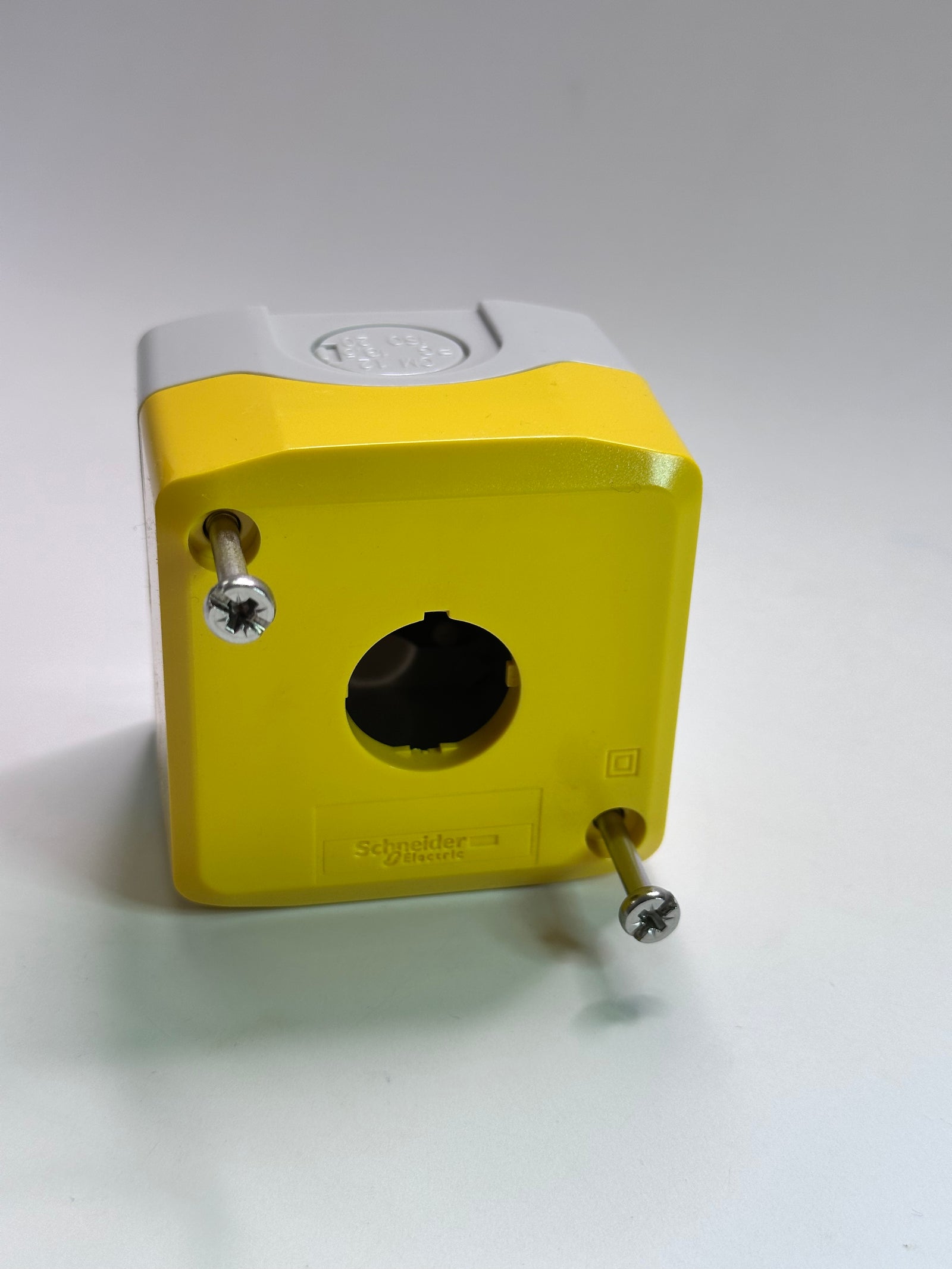

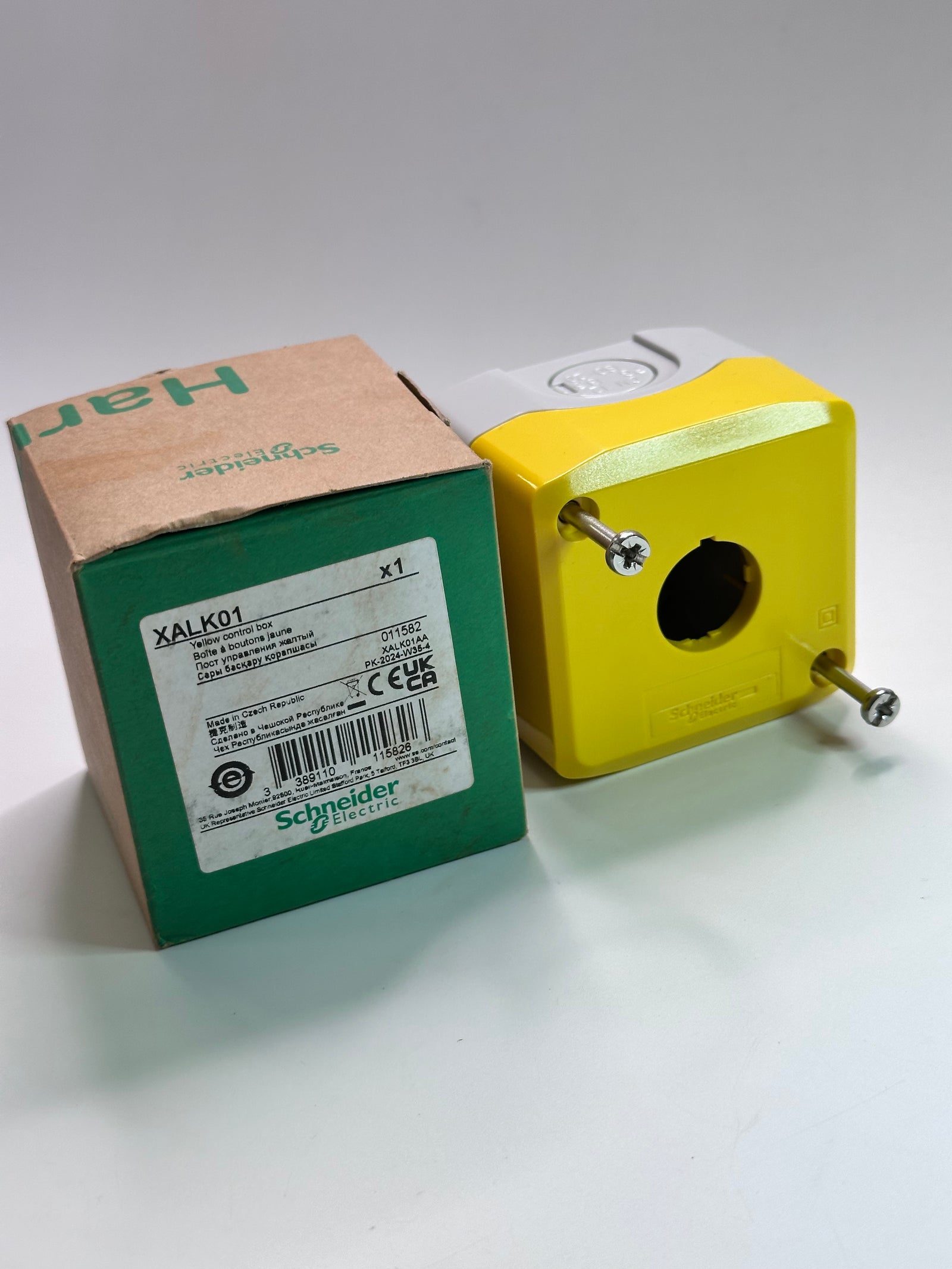

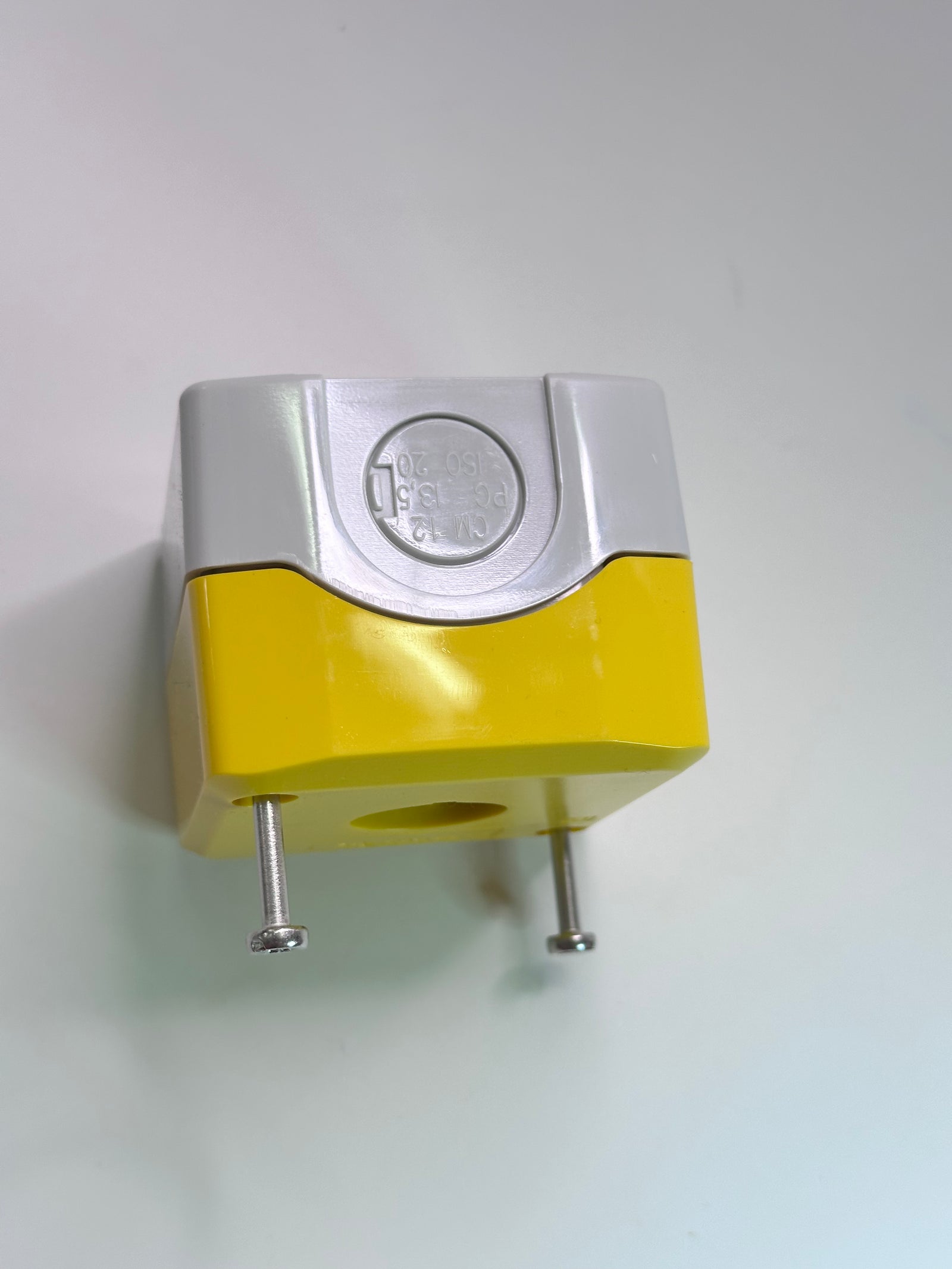

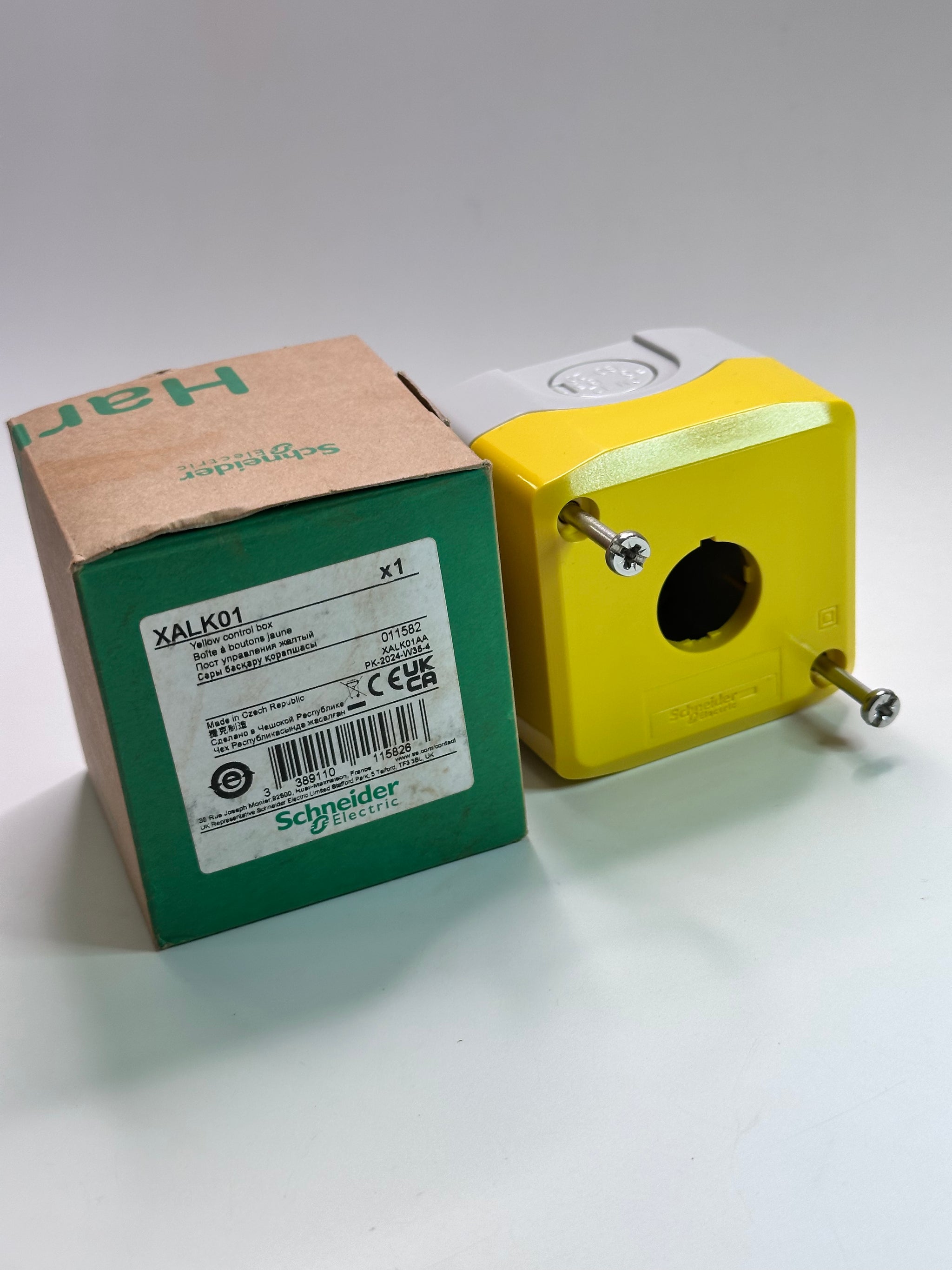

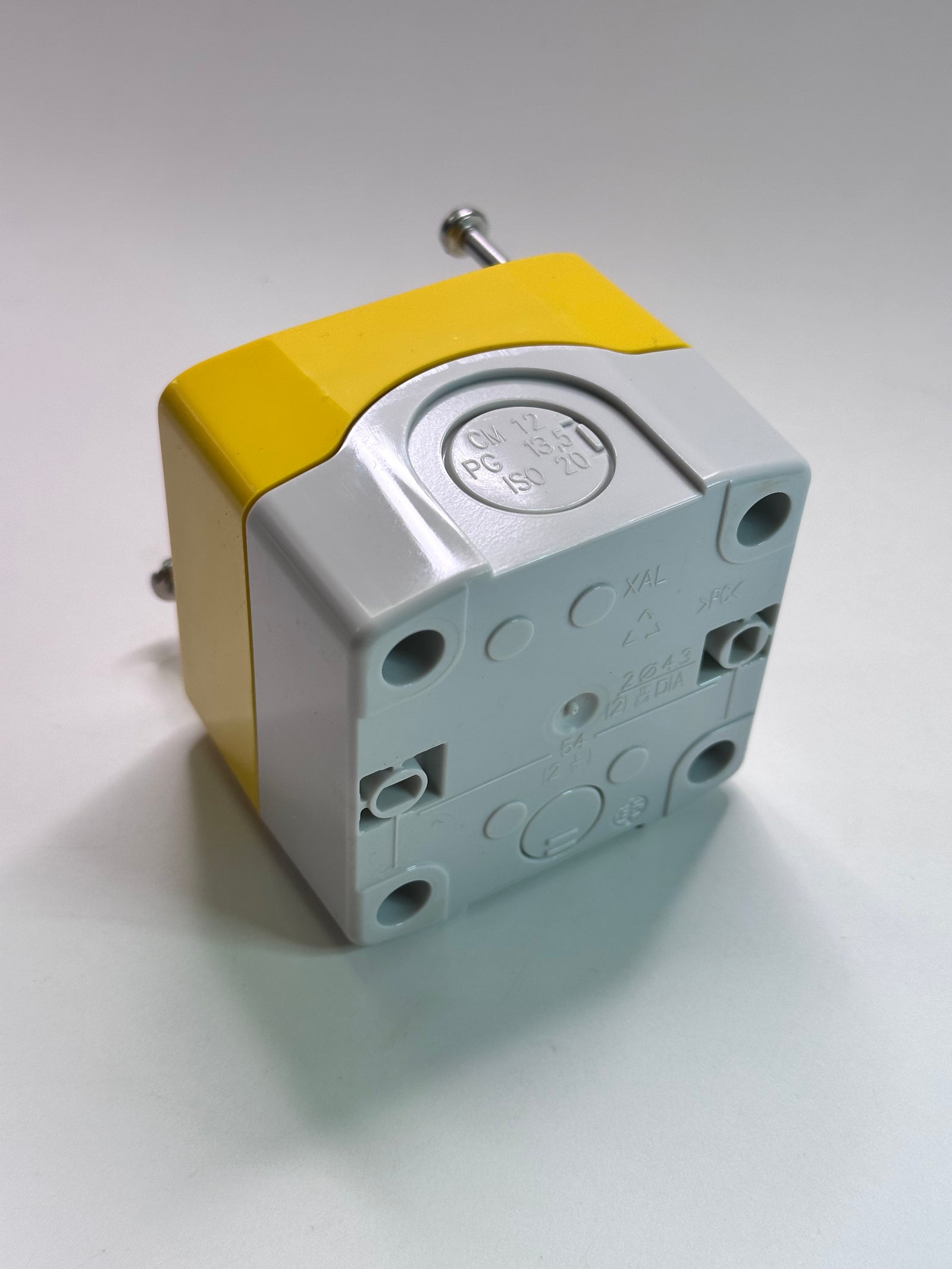

Schneider Electric XALK01 Harmony XALK empty control-station enclosure for XB5 Ø 22 mm control and signalling units. It has one cut-out, a light-grey RAL 7035 base and yellow RAL 1021 polycarbonate cover.
Empty enclosure: no push button, contact block or complete emergency-stop function is included by this description. The source identifies emergency-stop/emergency-switching-off applications for a suitably configured station.
Additional recorded catalogue references: 135-12-367 and 342-2560.
Source specifications
| Range of product | Harmony XALK |
|---|---|
| Product or component type | Empty control station |
| Device short name | XALK |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Emergency stop function Emergency switching off function |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Cable entry | 1 knock-out for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
Protection ratings above are reproduced from the source listing, not a verification of the current assembled installation. Confirm the exact enclosure, compatible components, cable glands and installation requirements before use.
