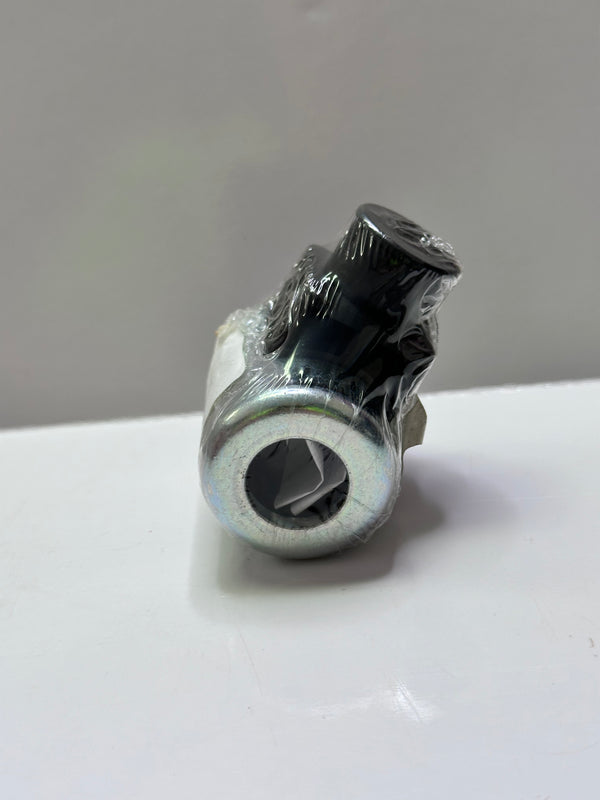

Wirtgen 177823 Directional Valve with Coil, SD2E-A4/H2Y11M2
- SKU
- P-WI-W-5923
- Weight
- 1.0 kg
Specifications
| Manufacturer | WIRTGEN GROUP |
|---|---|
| Product type | EARTHMOVING PARTS |
| SKU | P-WI-W-5923 |
| Weight | 1.0 kg |
Description

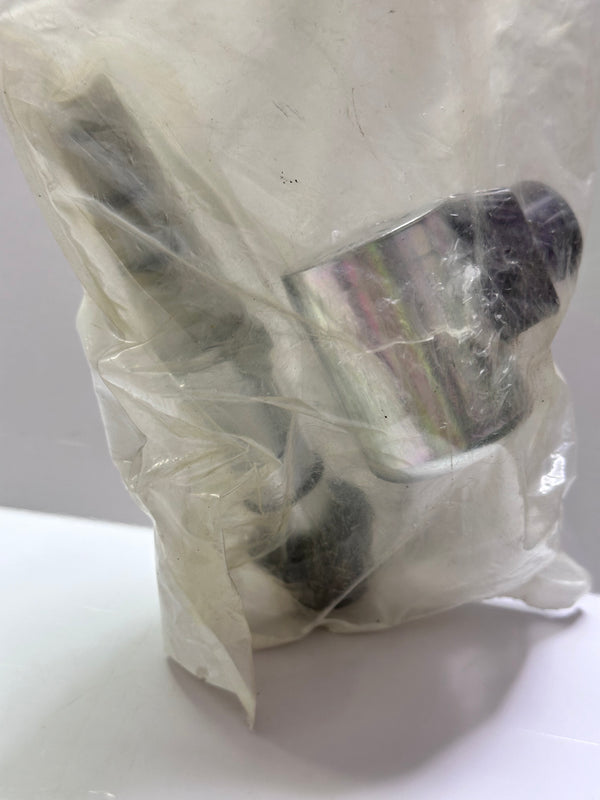

Wirtgen 177823 hydraulic directional valve with solenoid coil. Recorded valve reference: ARGO HYTOS SD2E-A4/H2Y11M2.
Recorded components and ratings

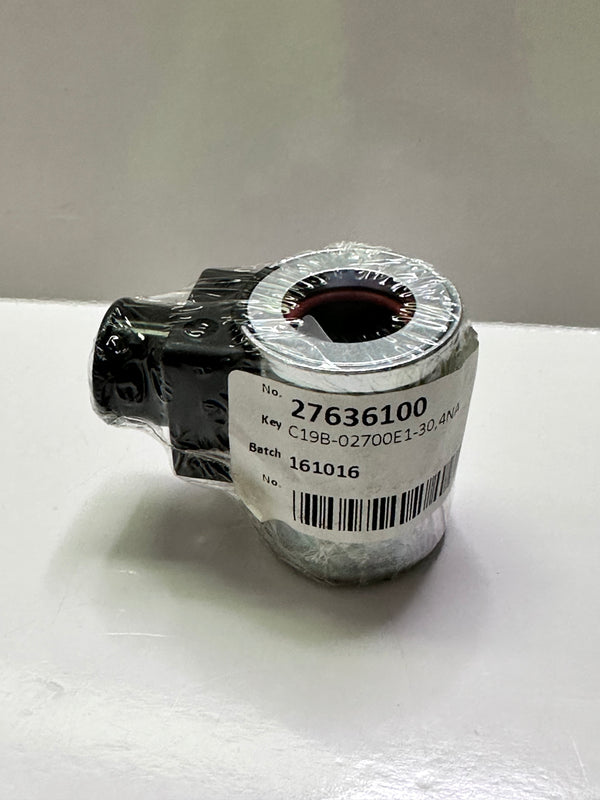

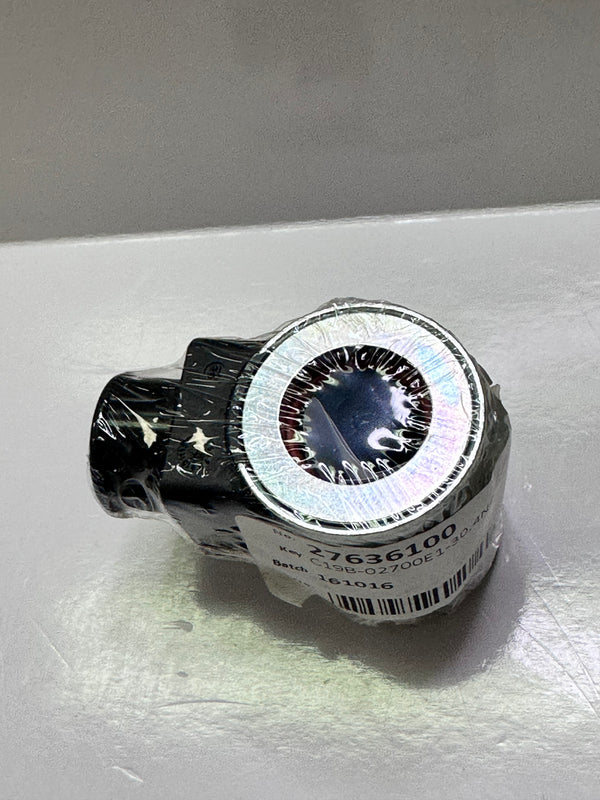

Solenoid coil: 177824 ARGO HYTOS (27636100 C19B-02700E1-30,4NA).

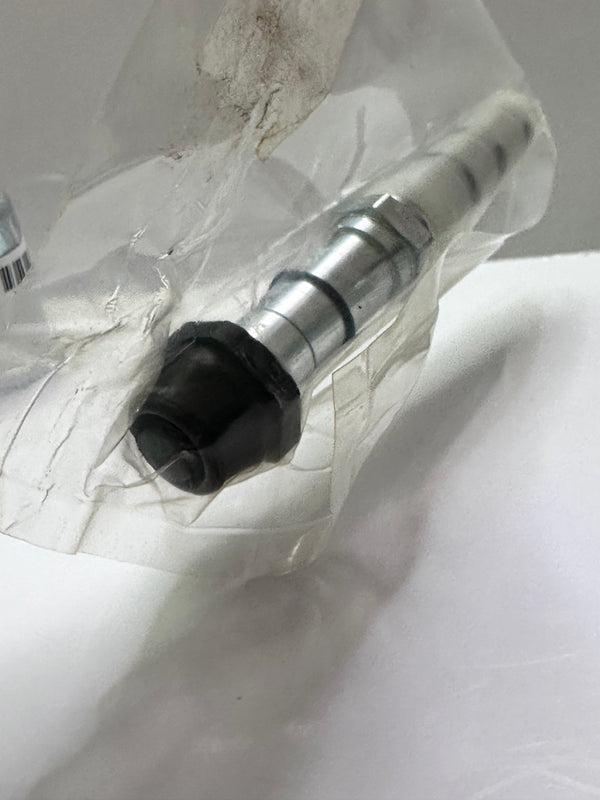

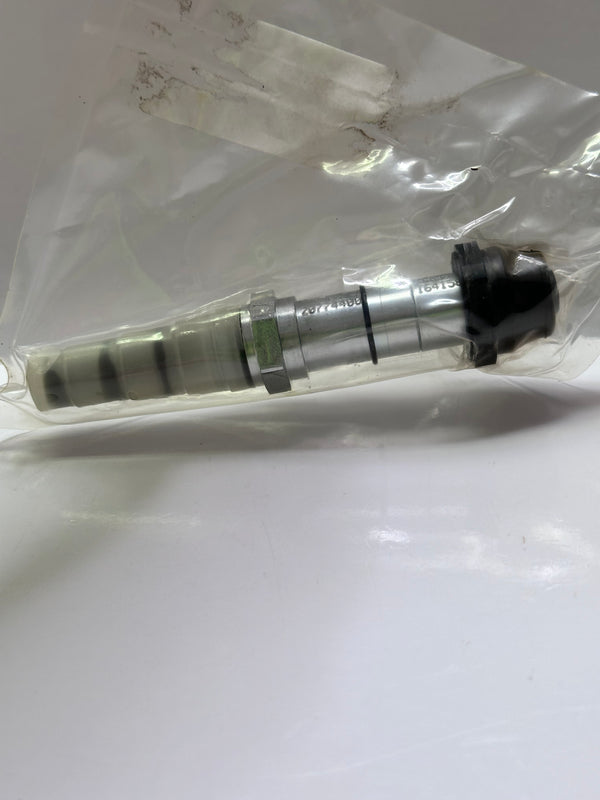

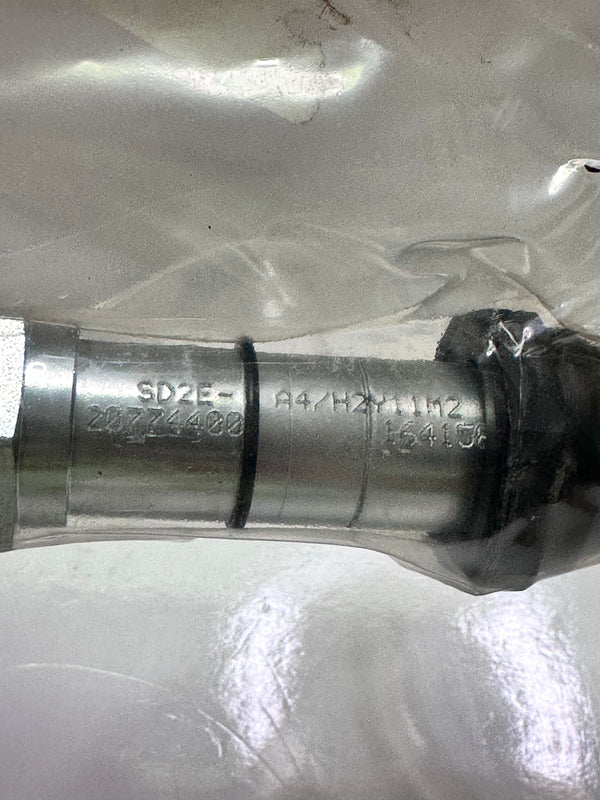

ARGO HYTOS SD2E-A4: 4/2 directional valve, solenoid operated, spool type, direct acting.
Connection: 3/4-16 UNF. Listed Qmax: 30 l/min (8 GPM); pmax: 350 bar (5100 PSI).
Source range information
- Hardened precision parts
- High flow capacity
- High transmitted hydraulic power
- Wide range of manual overrides available
- All ports may be fully pressurized
- Variety of optional spools available
- Coil interchangeability among SD*-A* product line
- Standard version zinc-coated with surface protection acc. to ISO 9227 (240 h salt spray)
- SD2E-A4/H2Y11M2
The range information includes optional spools/manual overrides and a standard-version finish; it does not establish which options are present on this specific item or independently certify its salt-spray performance.
Reference check
Existing tags additionally record 177284 and 27667700. Their relationship to the described 177823 valve and 177824 coil is not established; none of these numbers has been substituted for another. Cold milling is recorded as source application context without a machine model.
Confirm the full valve/coil references, coil electrical rating, hydraulic circuit and fitted options before ordering.
