WIKA 213.53 Pressure Gauge – 9312727, R 1/4
- SKU
- P-WI-W-7538
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 2.0 kg
Specifications
| Manufacturer | WIKA |
|---|---|
| Product type | GAUGES |
| SKU | P-WI-W-7538 |
| Weight | 2.0 kg |
Description

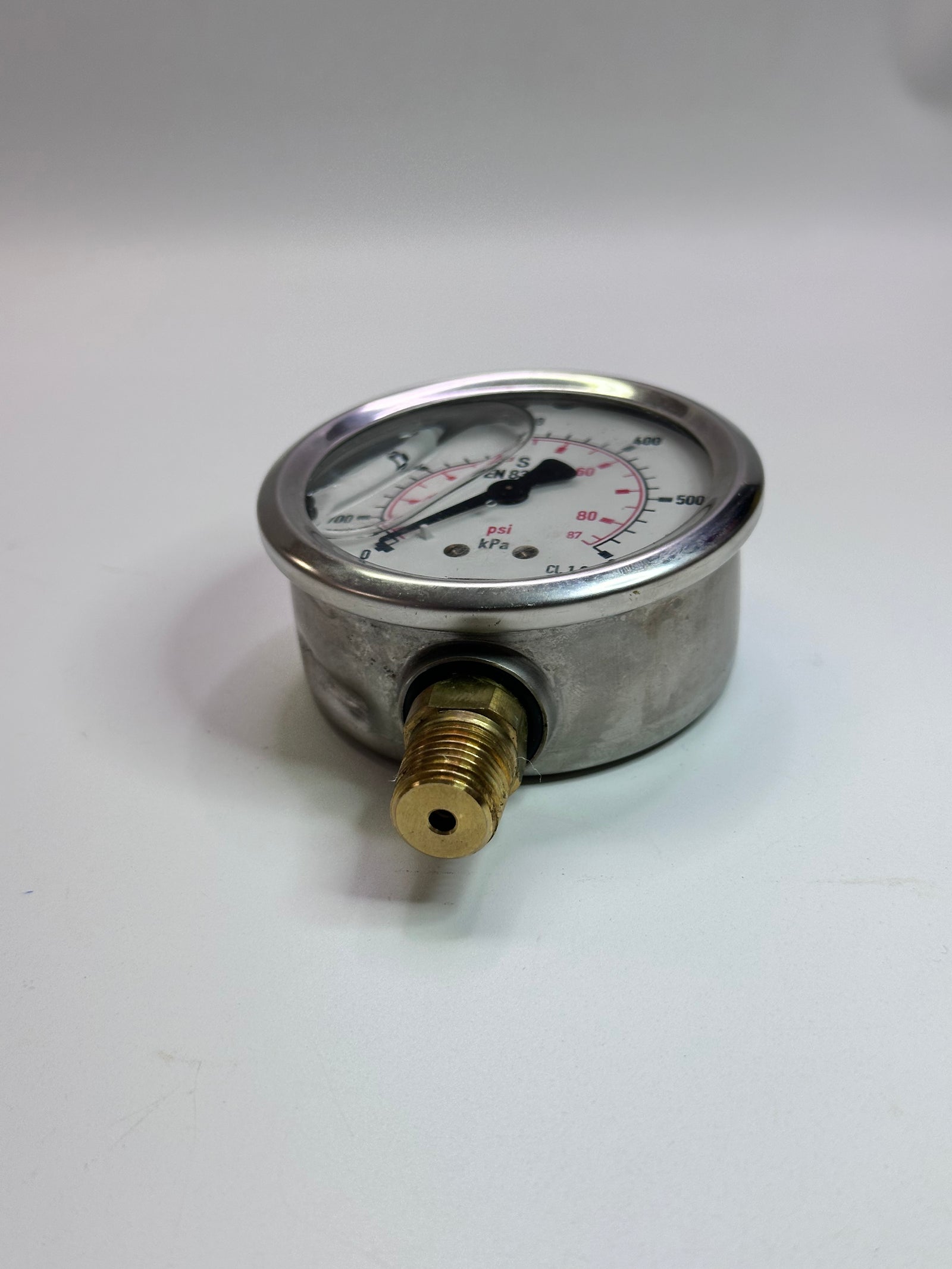

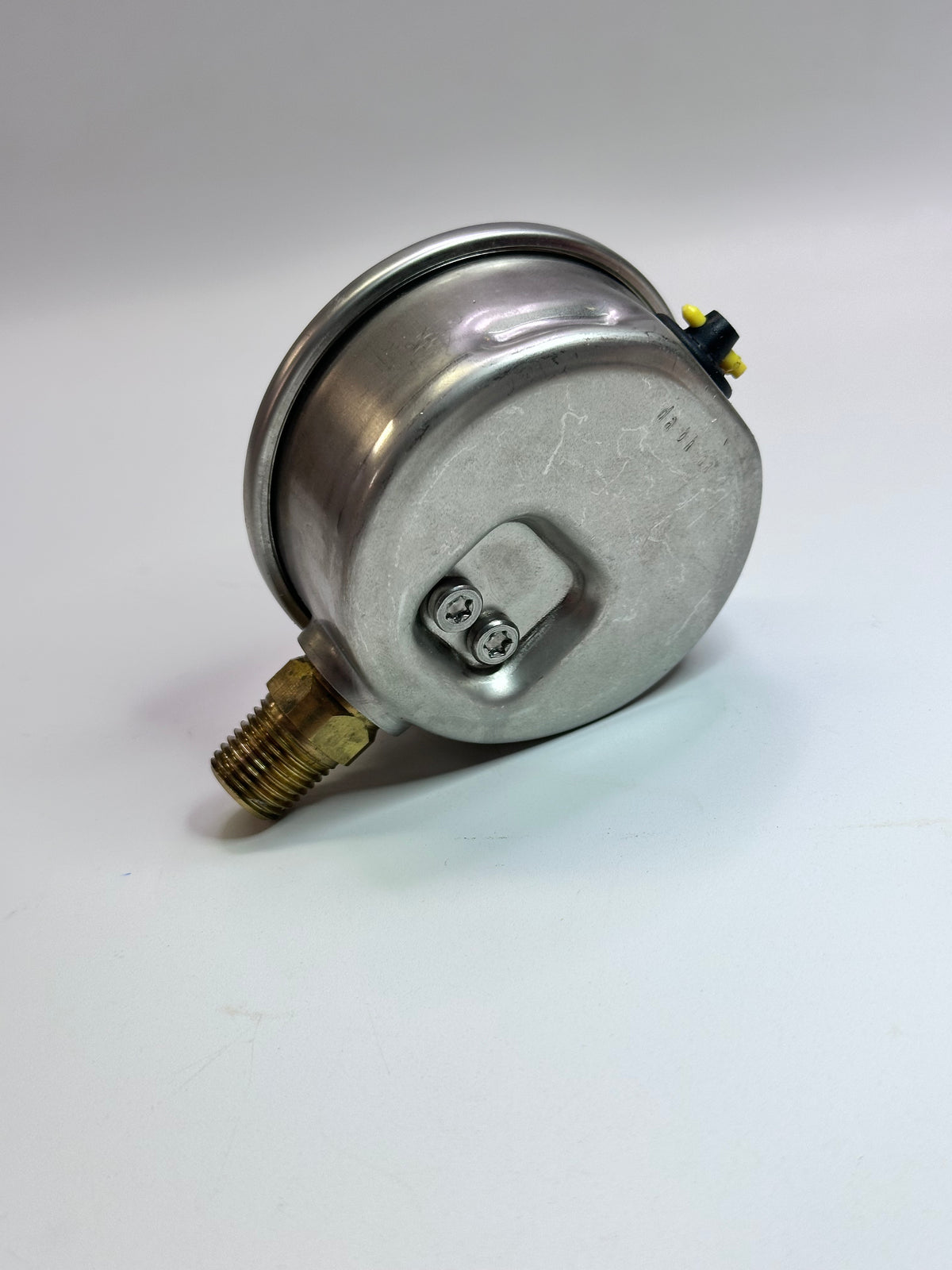

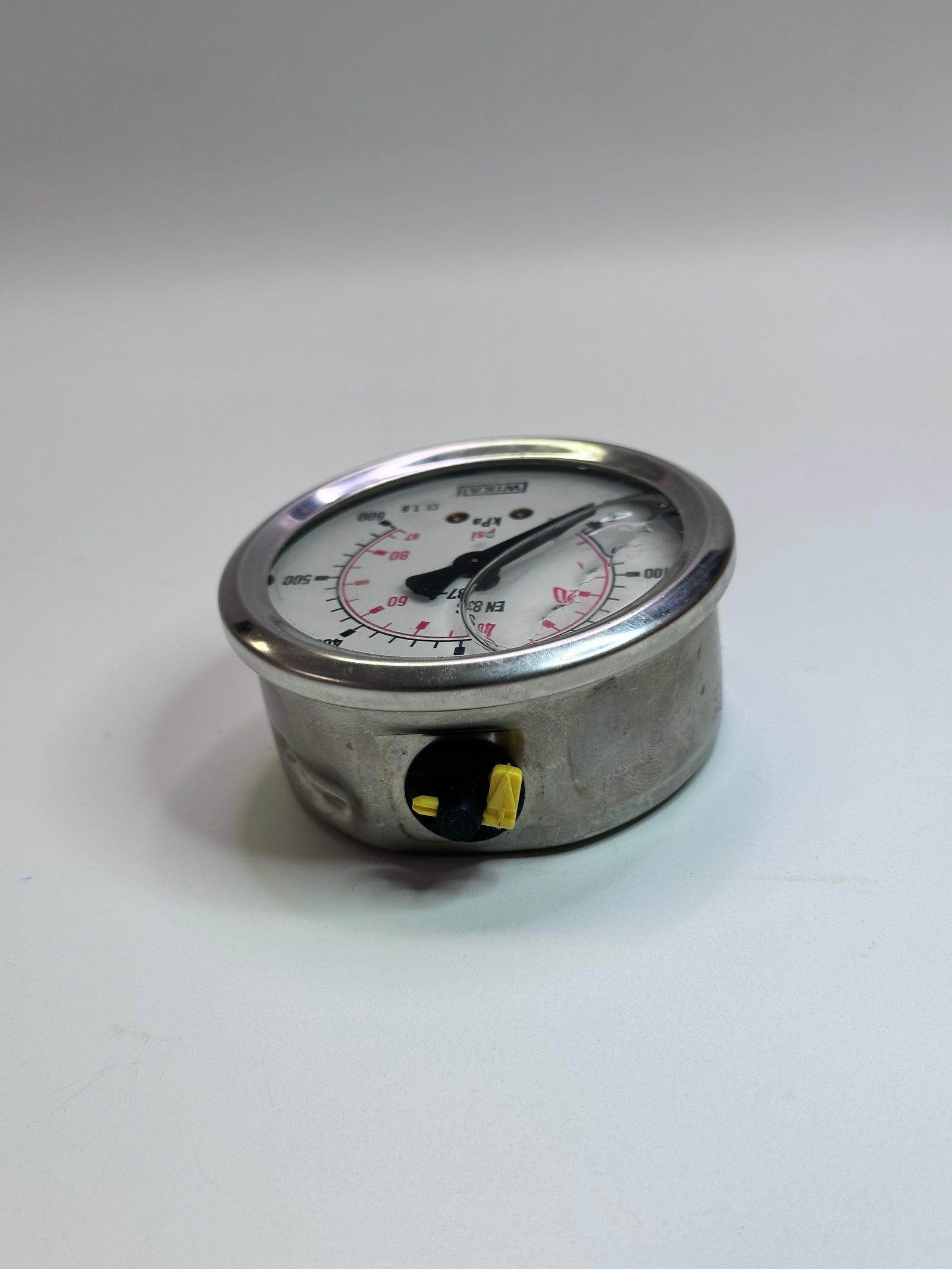

WIKA 213.53 liquid-filled Bourdon-tube pressure gauge, reference 9312727, with source-listed 63 mm nominal size and direct-bottom R 1/4 connection.
Not suitable for oxygen service.
Scale discrepancy to confirm

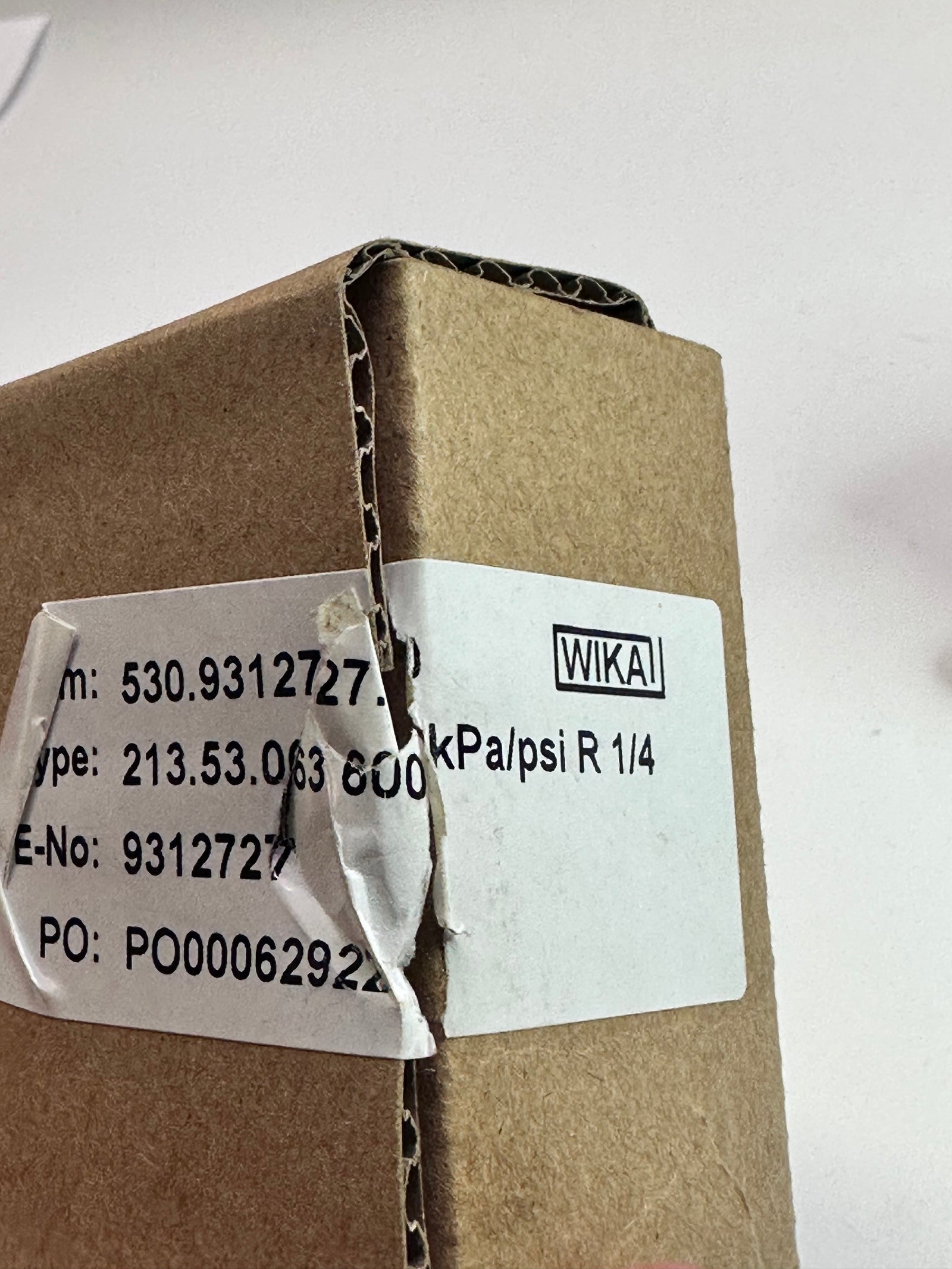

The title and specification describe a 0...600kPa/psi scale with psi as the second scale. The original tag 0-600psi conflicts with that description. Confirm the actual dial range and both units before selection; 600 kPa is not 600 psi. The tag designation 213.53.063 600kpa/psi R 1/4 is retained here for identification.
Original application and specification record
Applications
• For measuring locations with high dynamic pressure loads and vibrations
• For gaseous and liquid media that are not highly viscous or crystallizing and will not attack copper alloy parts
• Hydraulics
• Compressors, shipbuilding
• Not suitable for Oxygen Service
Specifications
• Bourdon tube pressure gauges, liquid filled, stainless steel case, model 213.53.050/063
• Model: 213.53
• Specifications according to data sheet: PM 02.12
• Measuring system: copper alloy
• Case: stainless steel 1.4301
• Case: Crimp ring case (version 53)
• Nominal size: 063 mm
• Scale range: 0...600kPa/psi
• 2nd Scale or Special Scale: 2nd scale psi
• Process connection: R 1/4 - IS07 (DIN2999)
• Connector location: Direct Bottom
• Restrictor: Brass, D 0.5
• Accuracy class: class 1.6
• Overpressure safe: standard
• Case filling fluid: glycerin
• Pointer: plastic, black (double division)
• Window: plastic, clear
• Packaging: standard packing
• Dial: plastic, white, with stop-pin

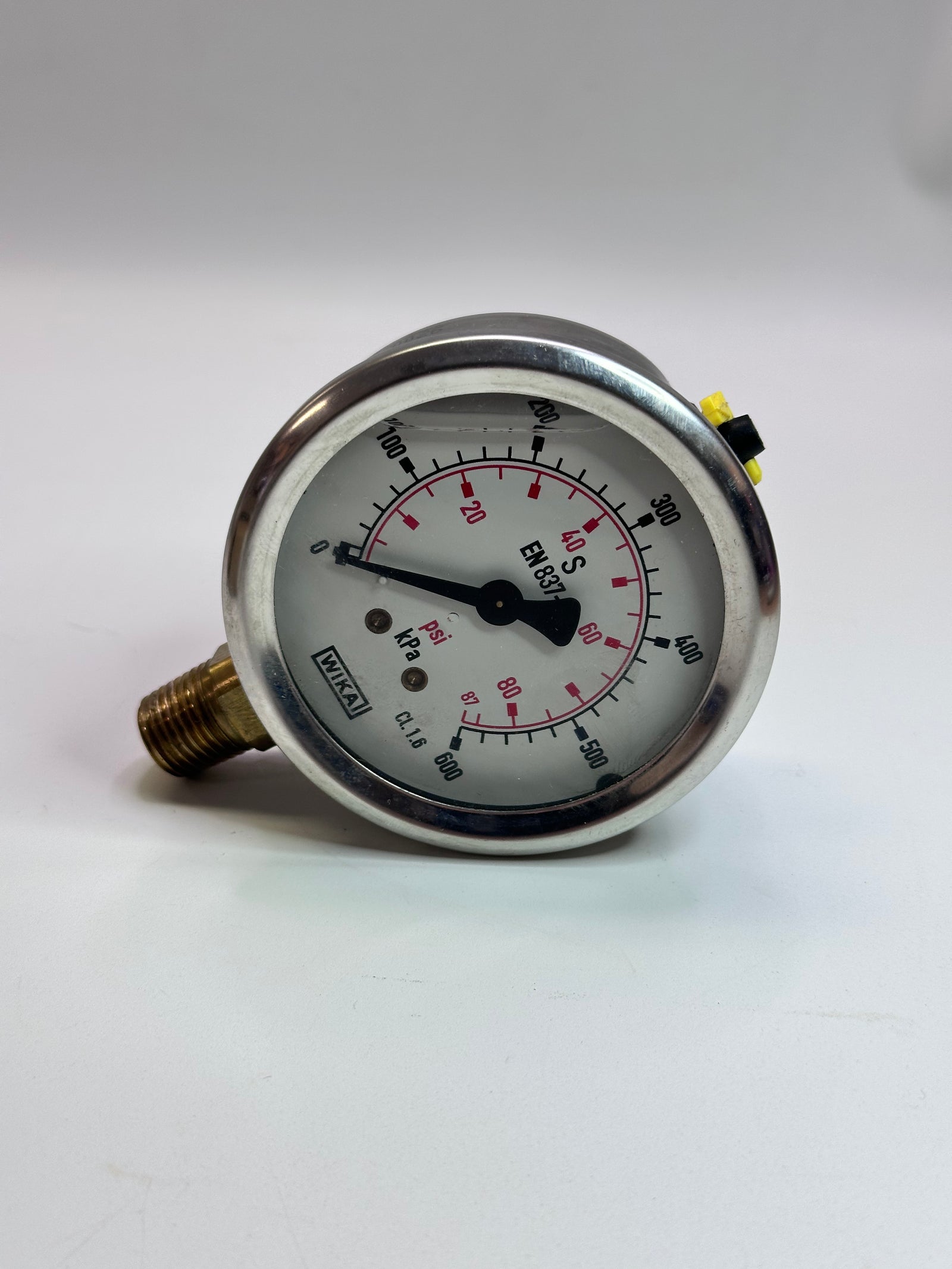

• Dial description:
• Pressure Gauge Standard: International (standard Europe)
• color for 1. scale (outside): black
• color for 2. scale (inside): red RAL 3020
• dial background: White
• Manufacturer logo: *WIKA*
• stop pin on dial: at zero
• norm-mark on dial: *EN 837-1*
• safety mark on dial: *S*
• accuracy class on dial: *Cl.1.6*
• Not suitable for Oxygen Service
The measuring system is described as copper alloy despite the stainless-steel case. Respect the source media restrictions. The “IS07 (DIN2999)” connection text, D 0.5 restrictor and dial marks are preserved as recorded, not silently decoded or certified. Standard overpressure safety is not a numeric pressure limit or oxygen-service approval.
