WeighSafe 805 Hydraulic Forklift Scales

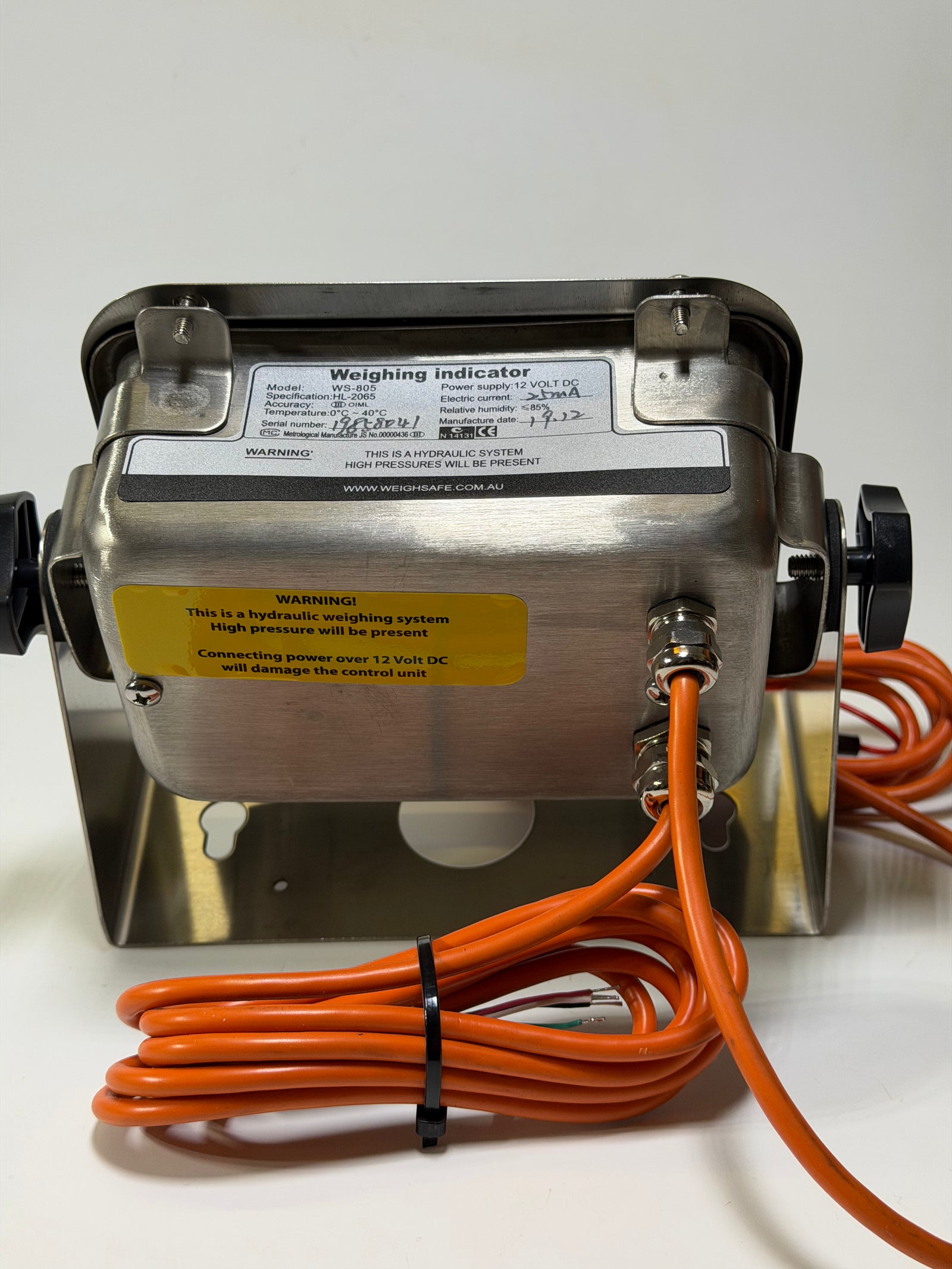

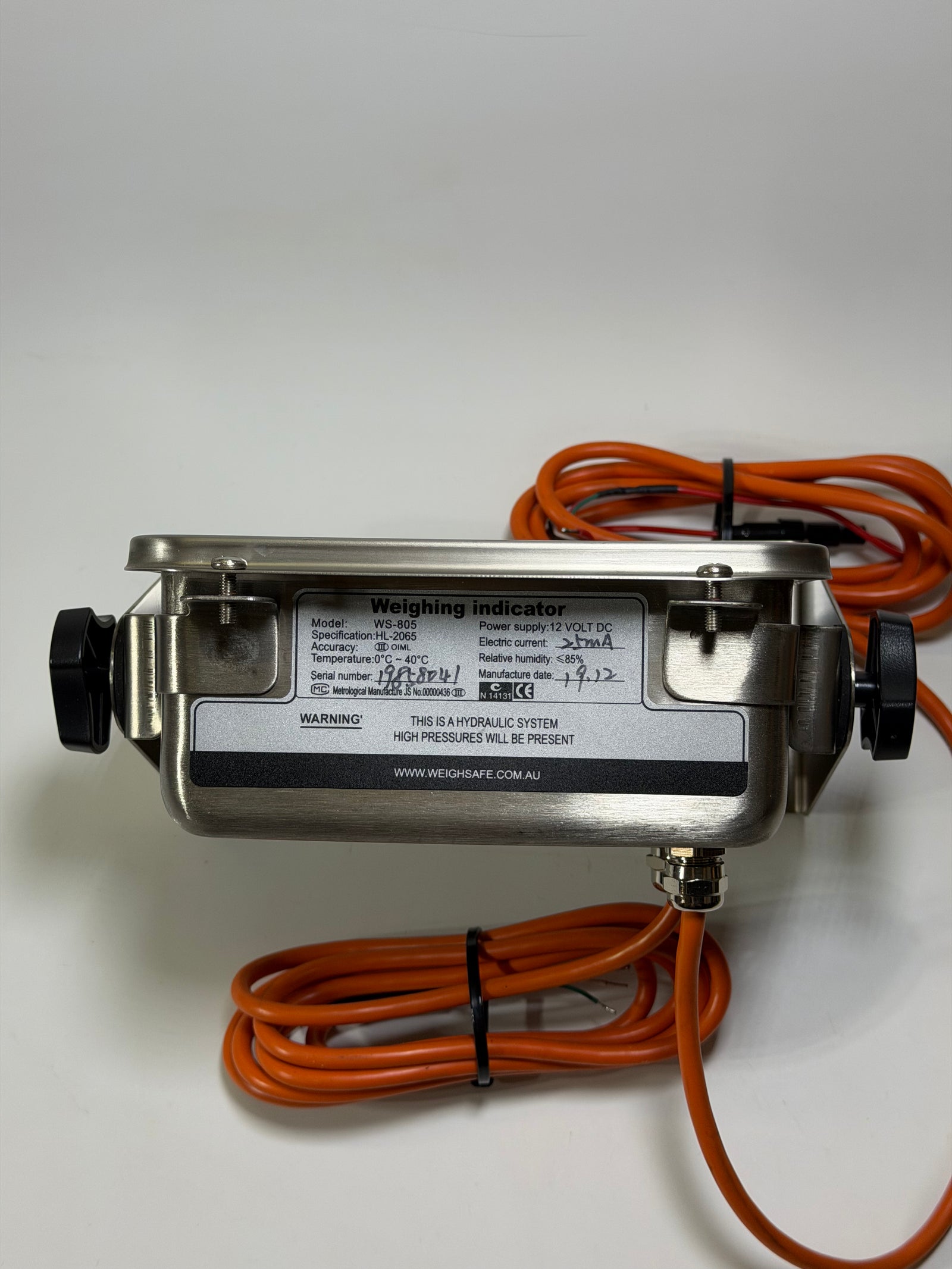

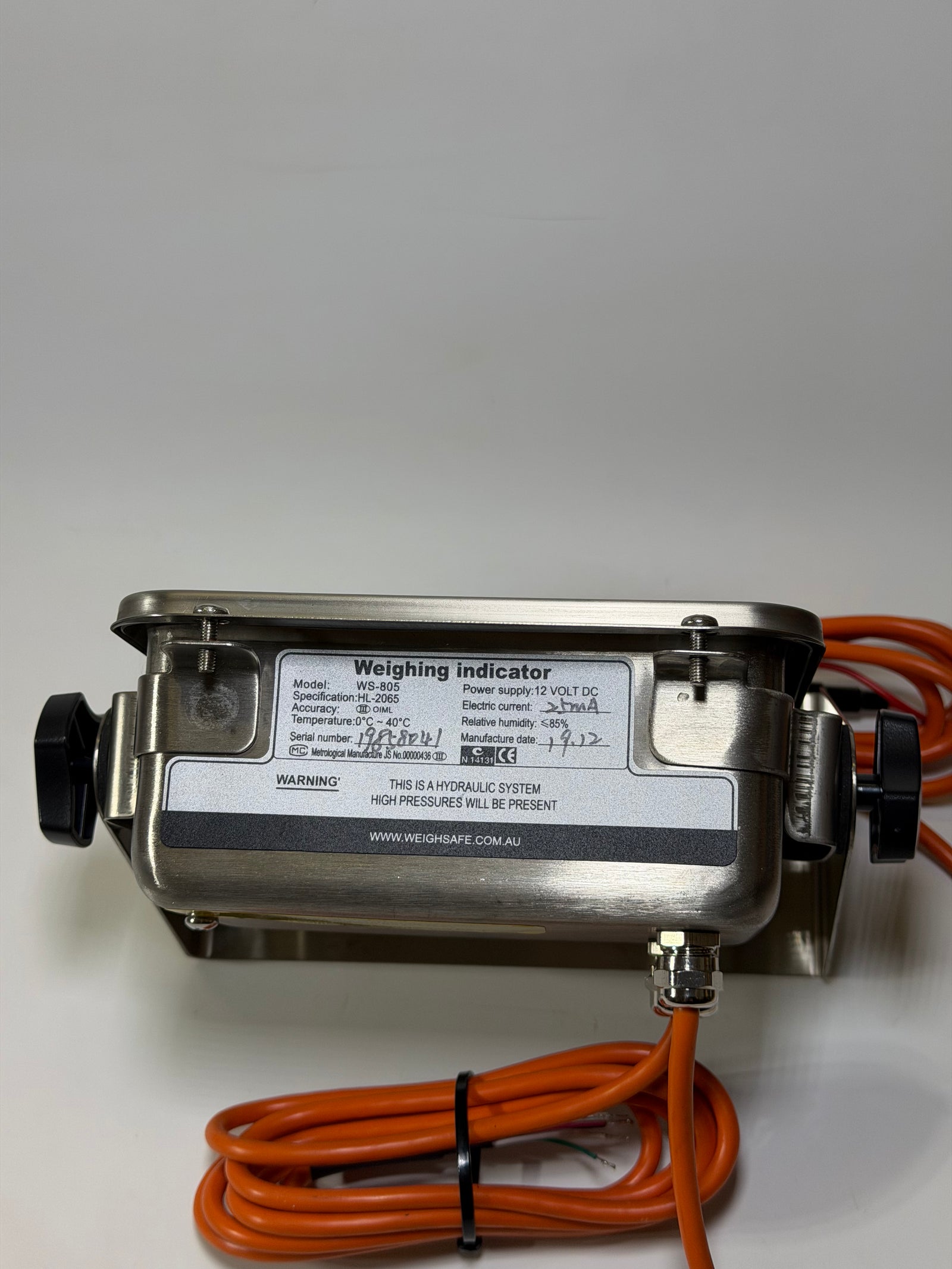

MODEL : WS-805

SPECIFICATION: HL-2065

POWER SUPPLY: 12 VOLT DC

ELECTRICAL CURRENT: >5mA

The WEIGHSAFE 805 incorporates a micro-processor based unit connected to the hydraulic lifting system found on lift trucks or similar machines.

A load is placed on the forks and is then accurately weighed by measuring the hydraulic pressure required to raise the load. An electronic sensor measures this pressure. An accuracy of +/- 1 to 2% of the lift truck capacity is typically achieved. Designed for heavy industrial use, the lift truck can weigh a load in less than 5 seconds. This will ensure your shipments will not exceed trailer/truck capacity. Individual weight is displayed as a fixed reading, for up to 6 - 8 seconds when the "WEIGH" key is pressed, using the unique "DIGI-LOCK" software.

The WEIGHSAFE 805 will also totalise both weight and number of lifts performed, which are also available on simple recall.

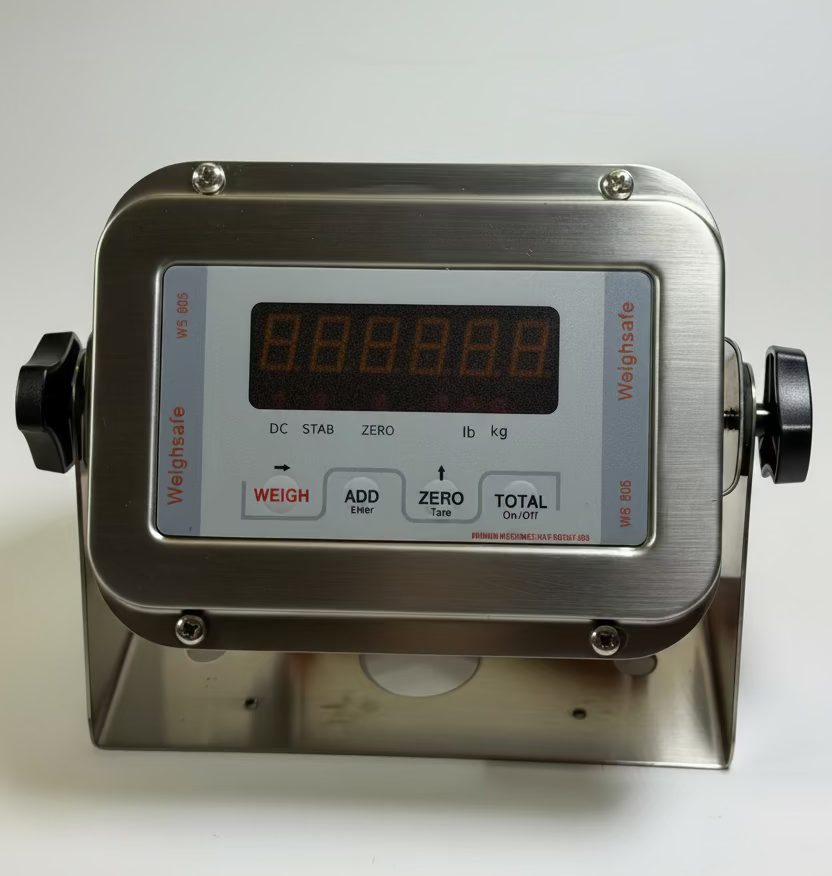

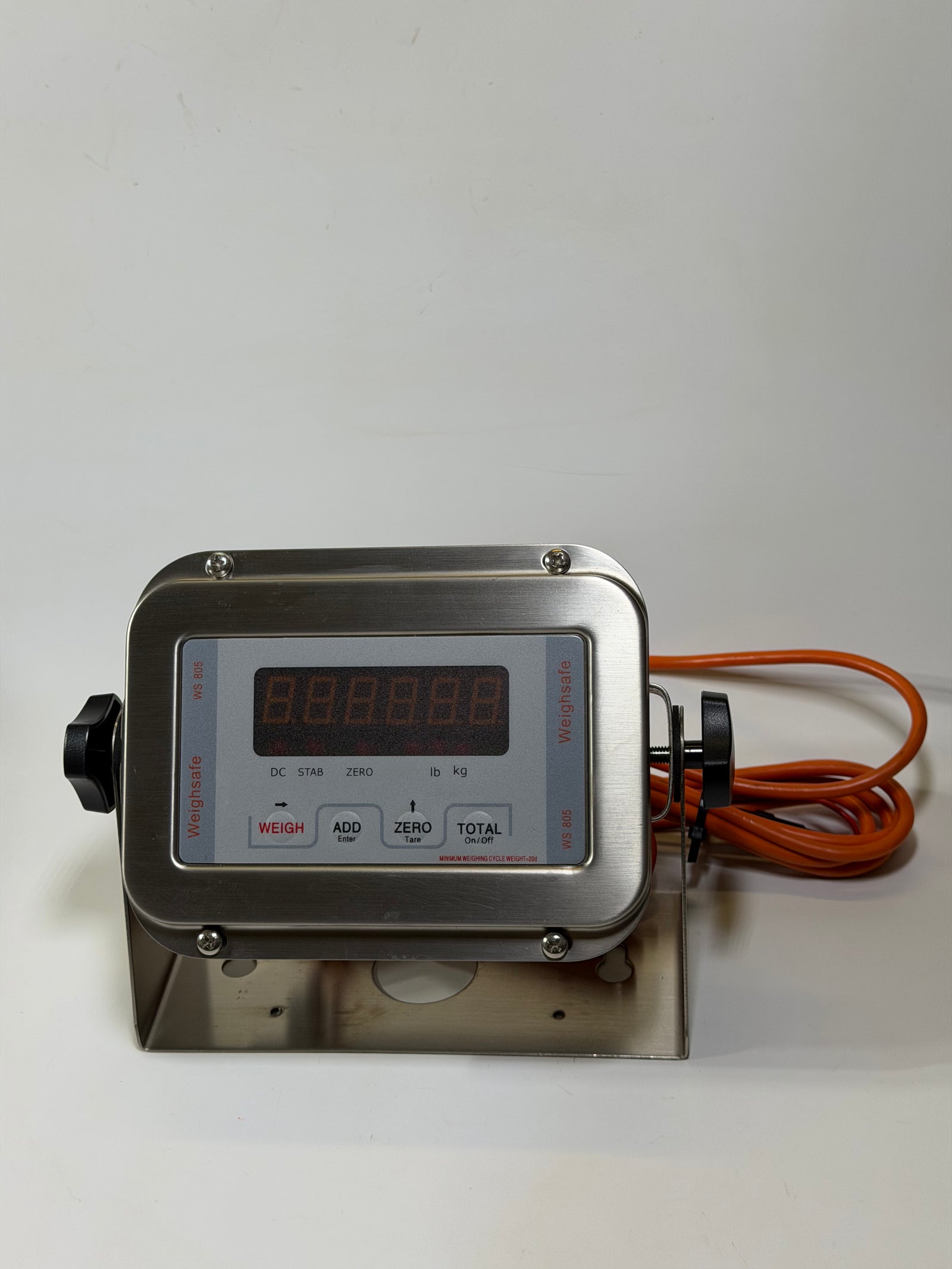

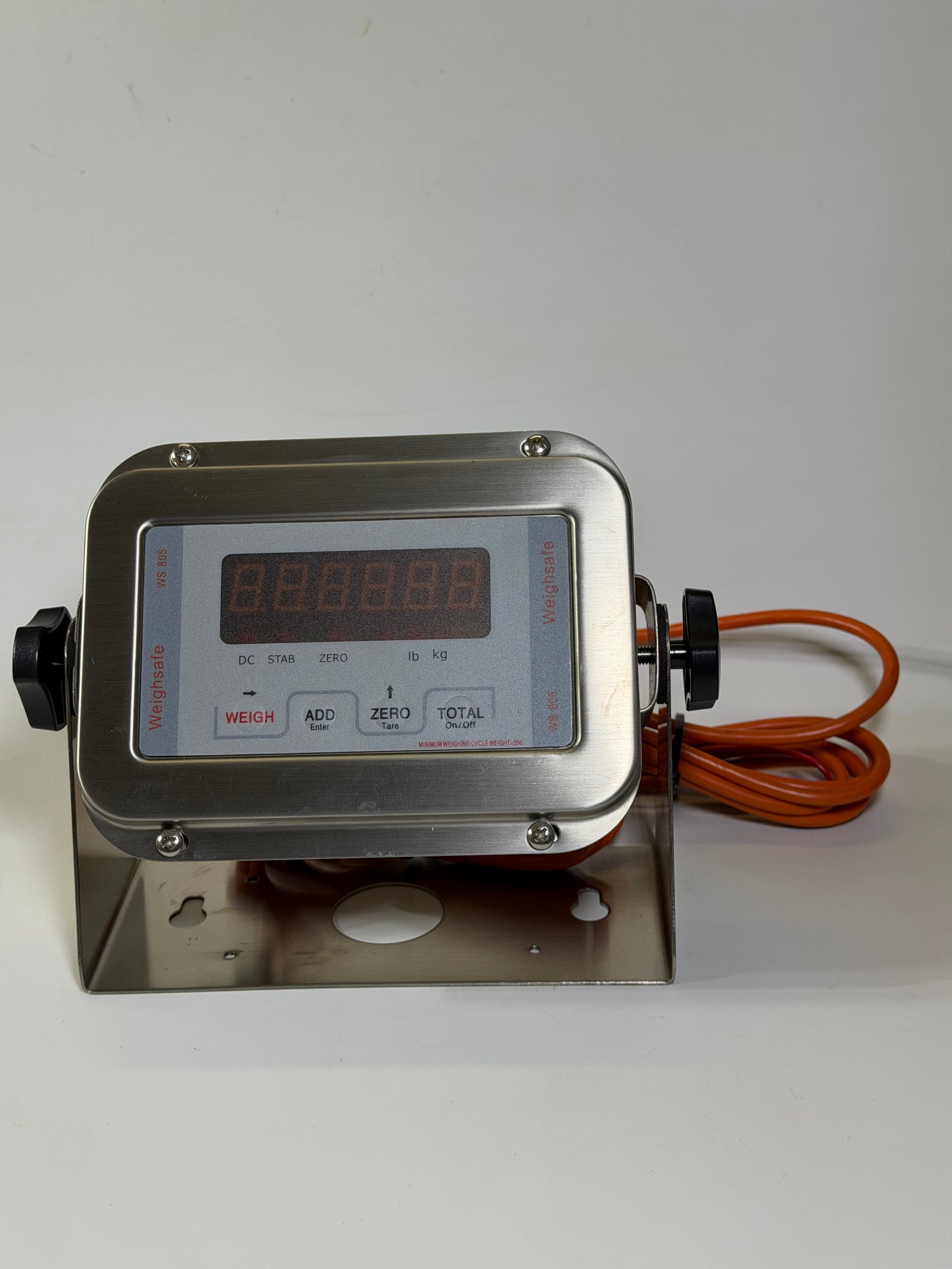

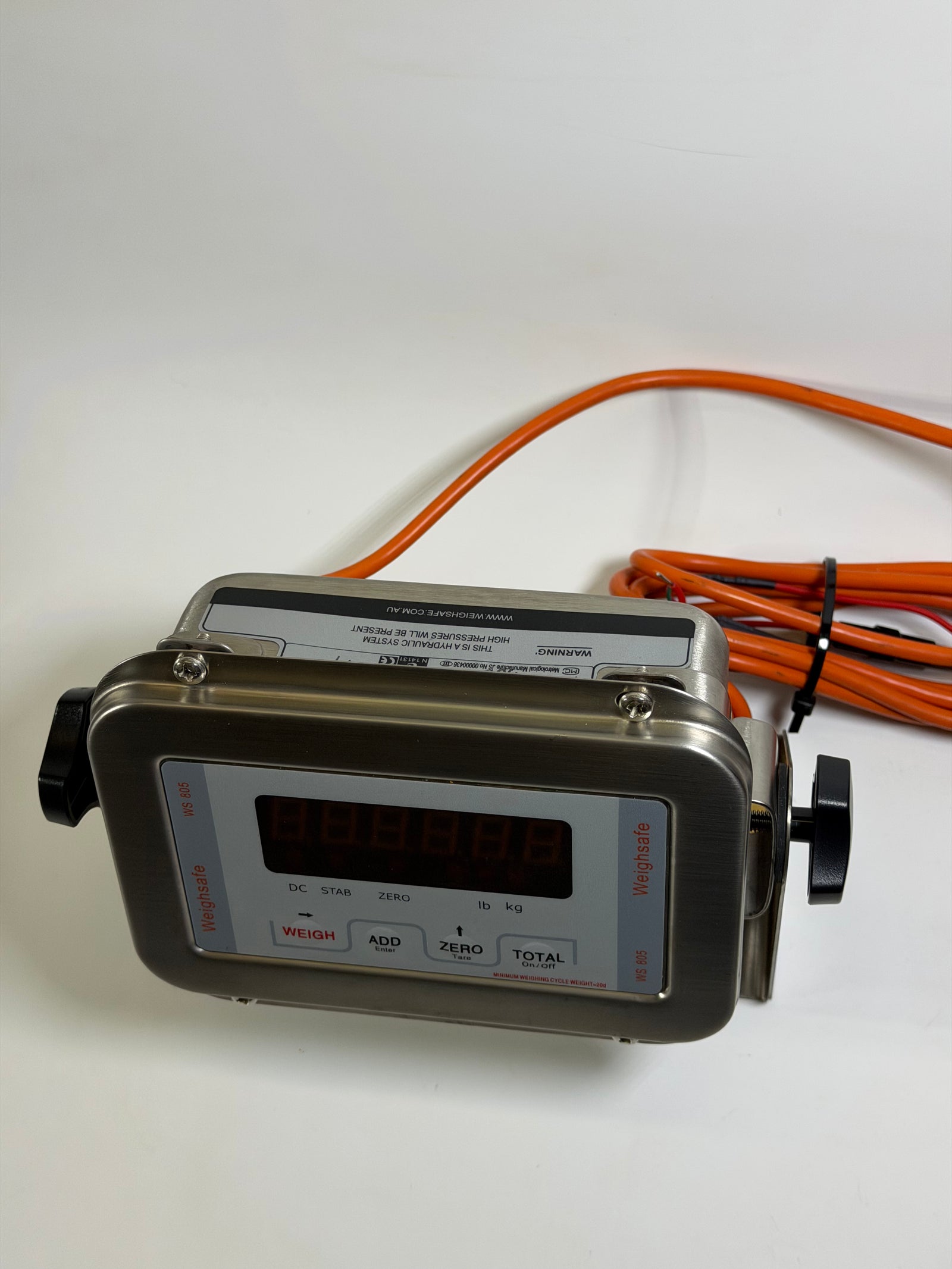

It is an ultra slim, weatherproof, micro-processor based digital weight indicator with a 15mm LED display featuring rare weight, lock and hold, accumulative weight, number of lifts and printing functions. It uses specifically designed "DIGI-LOCK" forkift weighing software.

Features

• Easy to read/user friendly
• Selectable digital filter
• Selectable capacity and division sizes
• Totalling function for weight accumulation
• Display total number of weighings performed
• 3000psi sensor
• Clear and stable LED display
• Automatic zero tracking
• Splash-proof case
• Zero/Tare function keys
• Full digital calibration and function setting method
• 12 volt dc operation
• External Dimension (220mm L x 160mm H x 85mm D)
• inludes mounting bracket
