WEIDMULLER

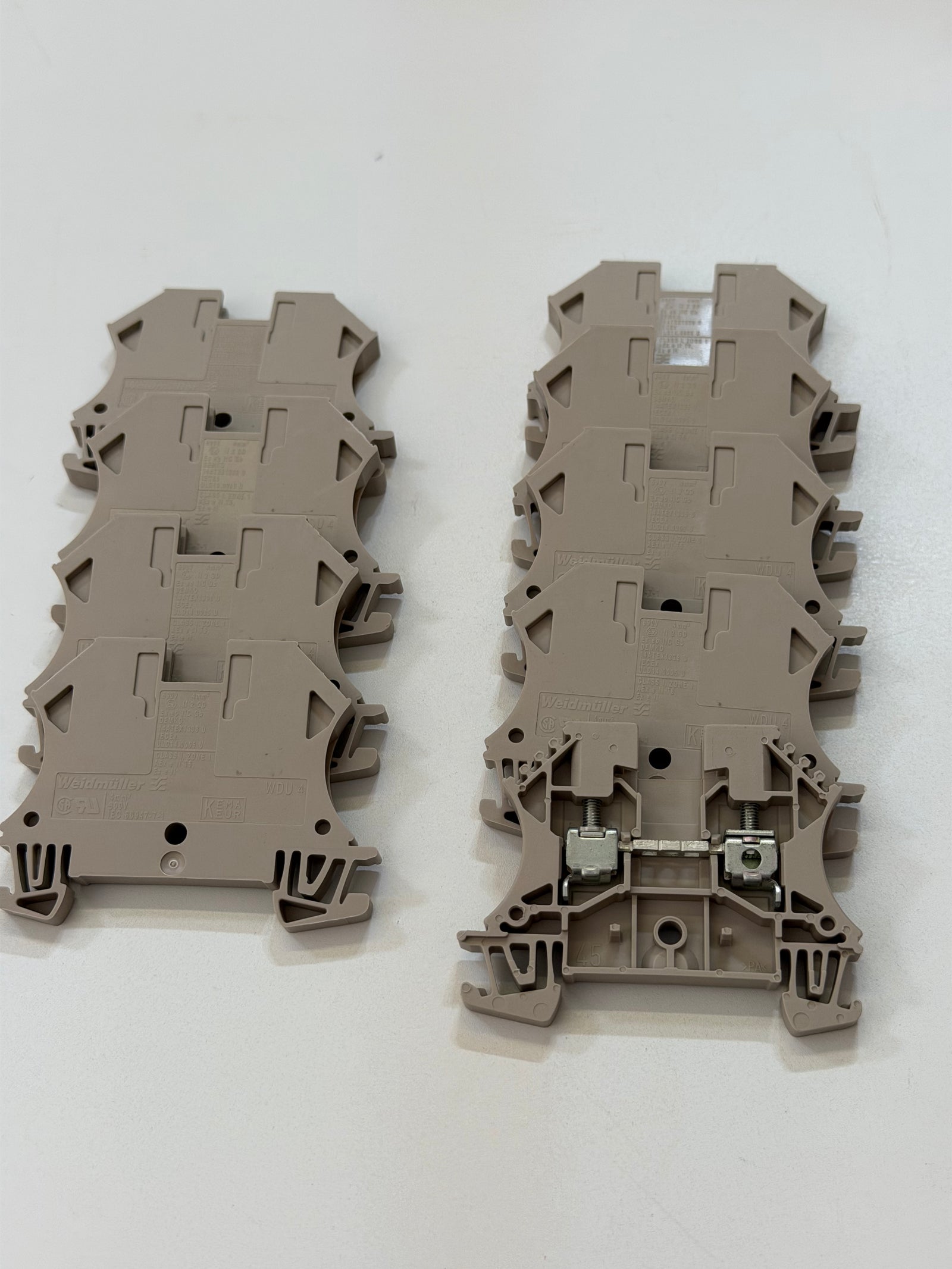

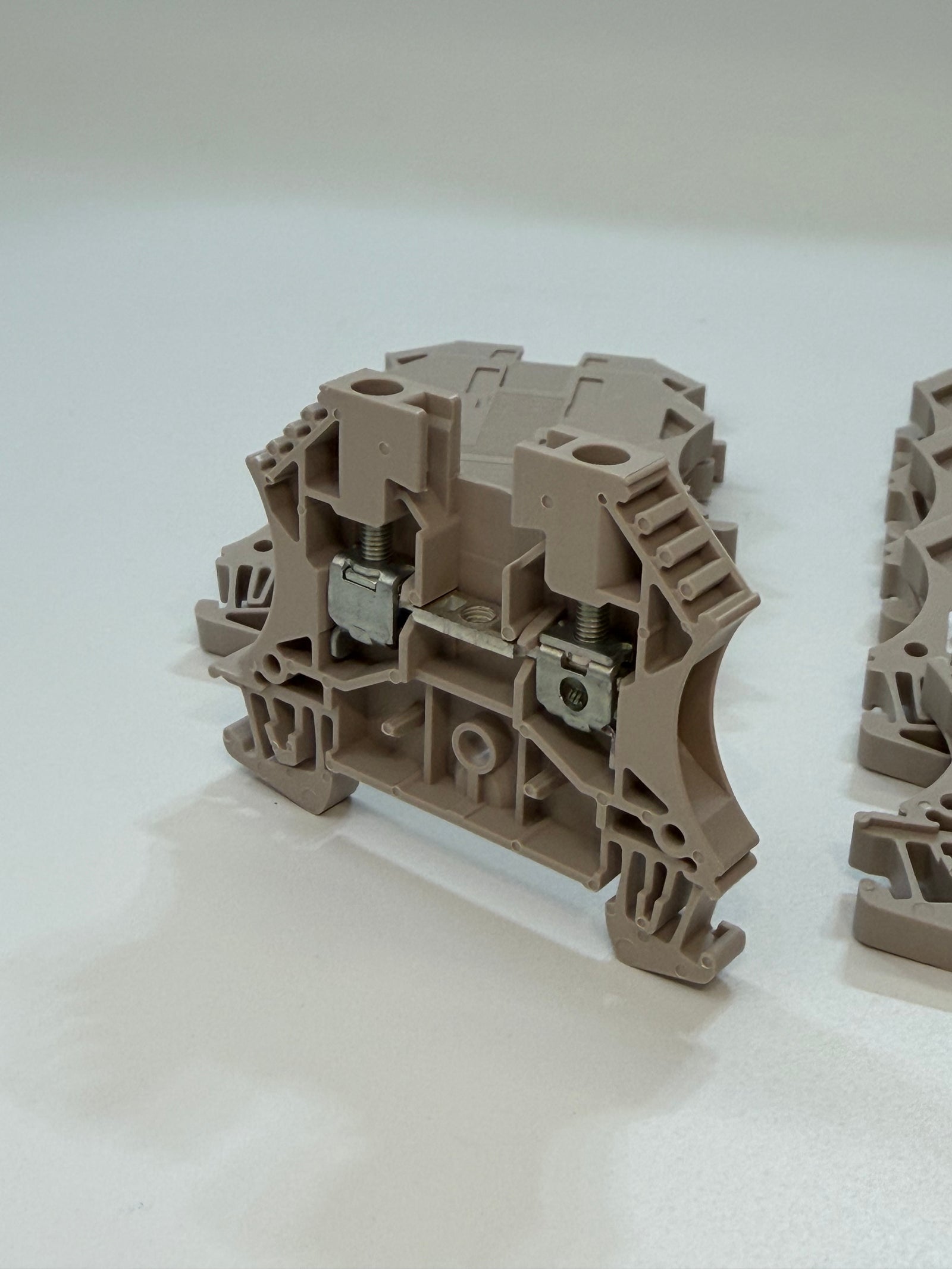

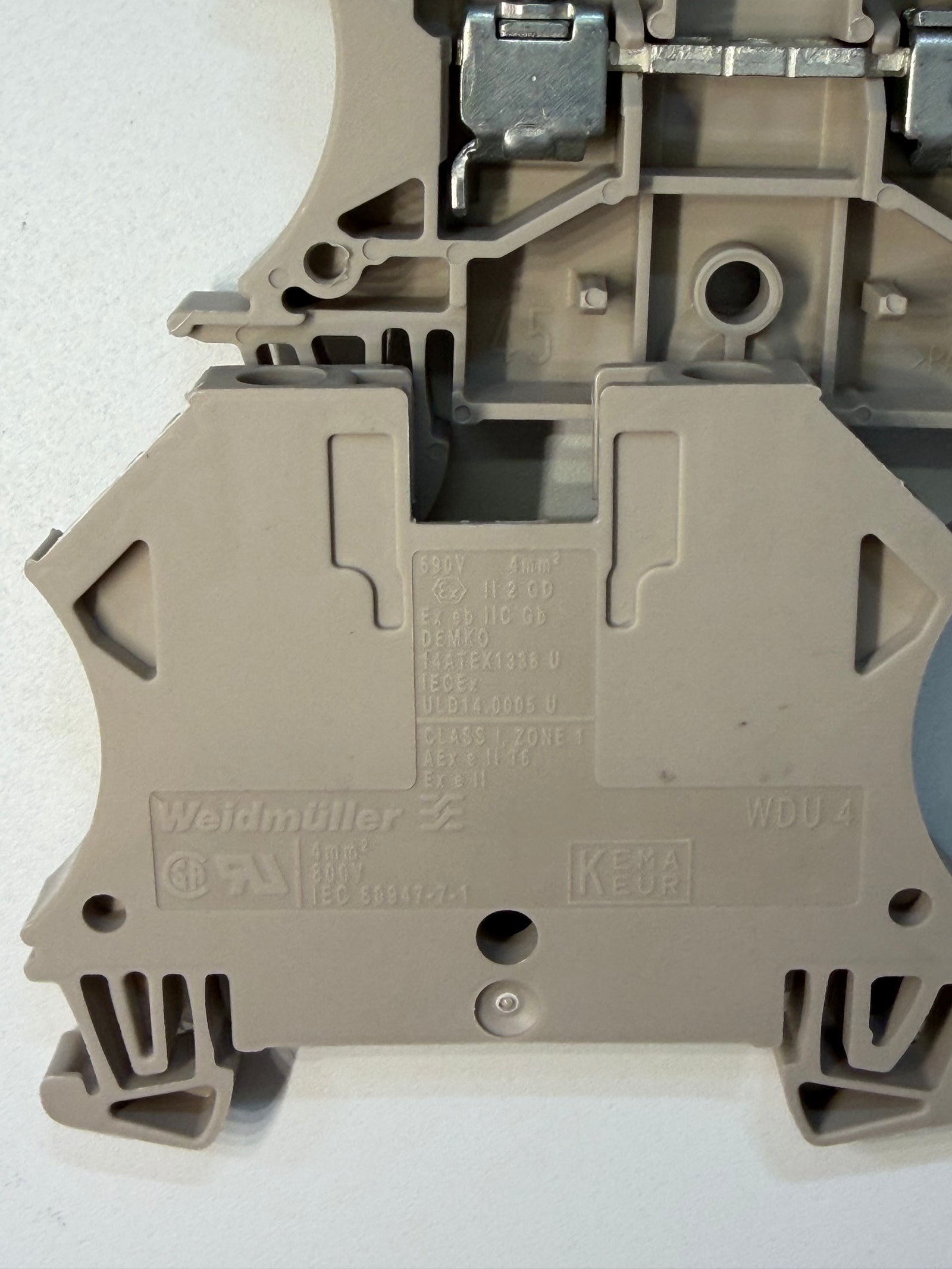

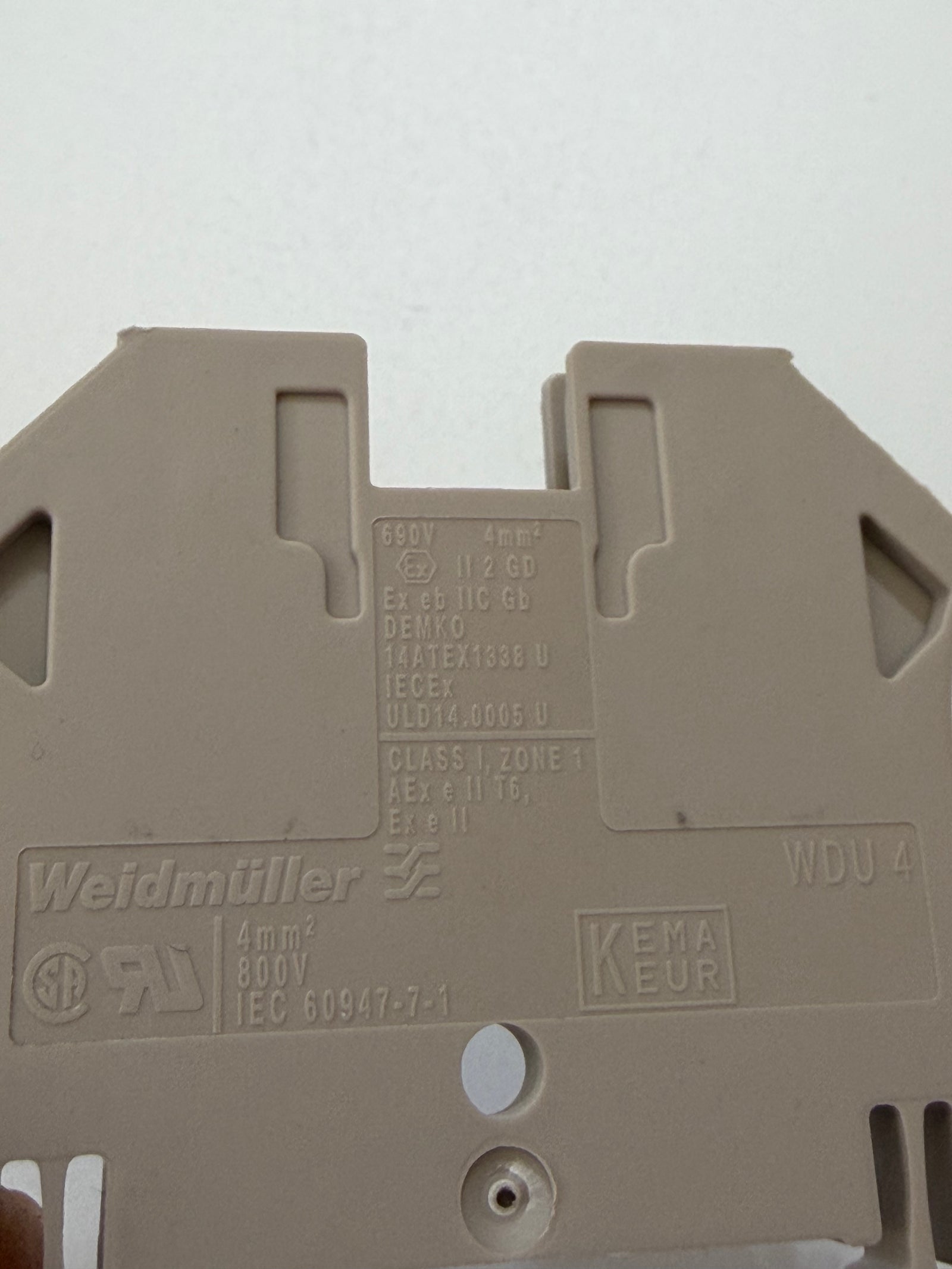

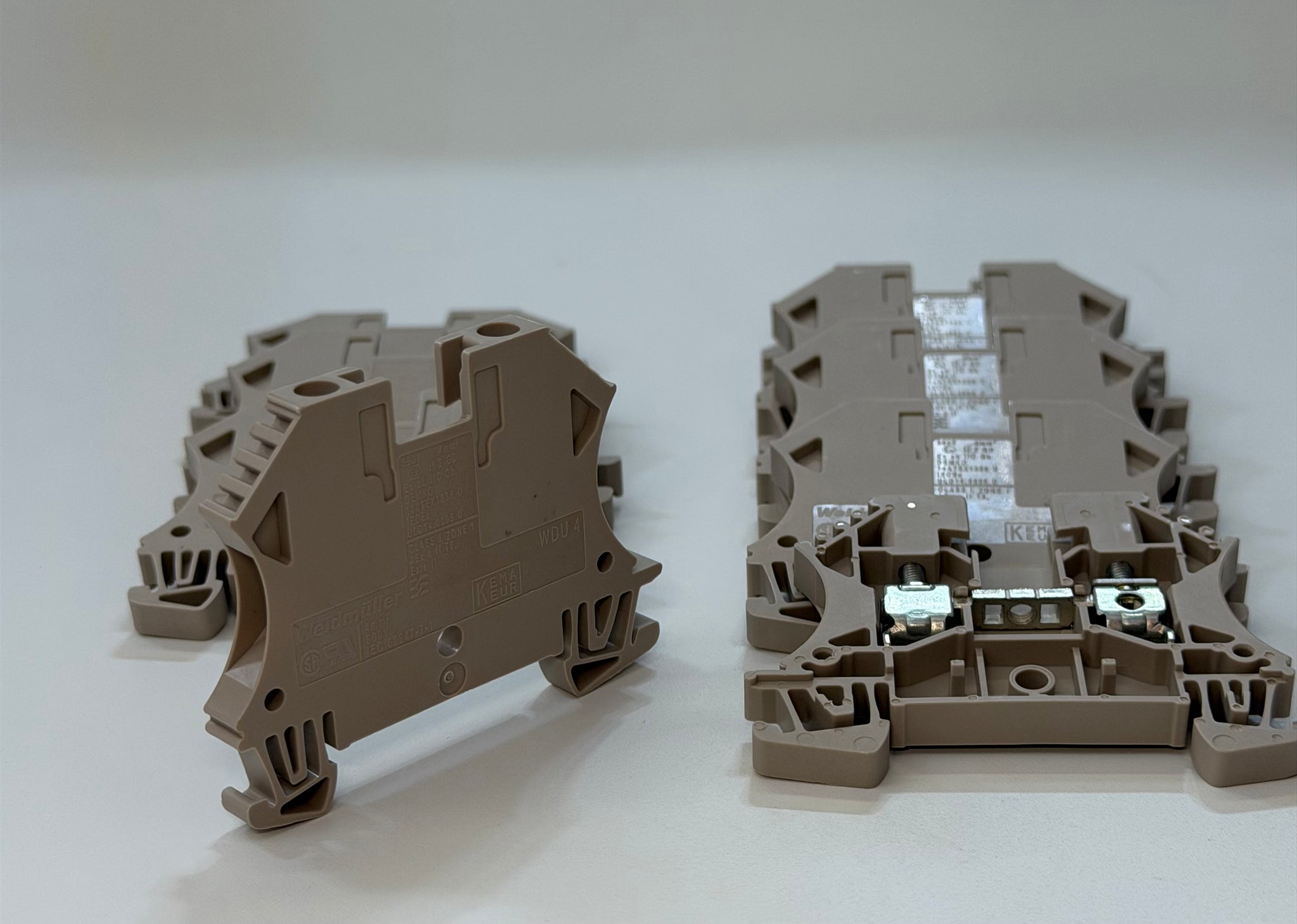

Weidmuller 1020100000-1 WDU4 Feed Through Terminal Block, bag of 9
- SKU
- P-WE-W-8272
$12.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.2 kg
Specifications
| Manufacturer | WEIDMULLER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-WE-W-8272 |
| Weight | 0.2 kg |
Description
| Category | Feed-Through Terminal Block |
| Standard | IEC 60947-7-1, CE, CSA, ATEX SIRA, IECEx SIRA, KEMA KEUR EAC, RoHS |
| Colour | Dark Beige |
| Conductor size | 26 to 10AWG (Factory Wiring)-22 to 10AWG (Field Wiring) |
| Torque Rating | 0.5 to 1Nm |
| Connection Type | Screw |
| Voltage | 800V |
| UNSPCS | 39121410 |
| Height | 60mm |
| Open Sides | Right |
| Blade Size | 0.6x3.5mm |
| Width | 6.1mm |
| barcode | 4008190150617 |
| Number of Connection | 2 |
| Operating Temperature Range | -60 to 130°C |
| Material | Wemid |
| Mounting Type | DIN Rail |
| Range | WDU 4 |
| Clamping Screw Size | M3 |
| Weight | 9.57g |
| Standards | CCC-CE-CSA-CSAEX-CURUSEX-ATEX-DNV-EXi-IECEx-INMETRO-KEMA-KEUR-KOSHAEX-Lloyds Register Certificate-N Certificate-UKCA-UR Certificate-RoHS-UL |
| Insulation Material | Thermoplastic |
| Brand Name | Weidmuller |
| Item Name | Feed-Through Terminal |
| UOM | Metric |
| Length | 46.5mm |
| UNSPSC | 39121410 |
| Current | 32A |
| PE Connection (Y/N) | No |
