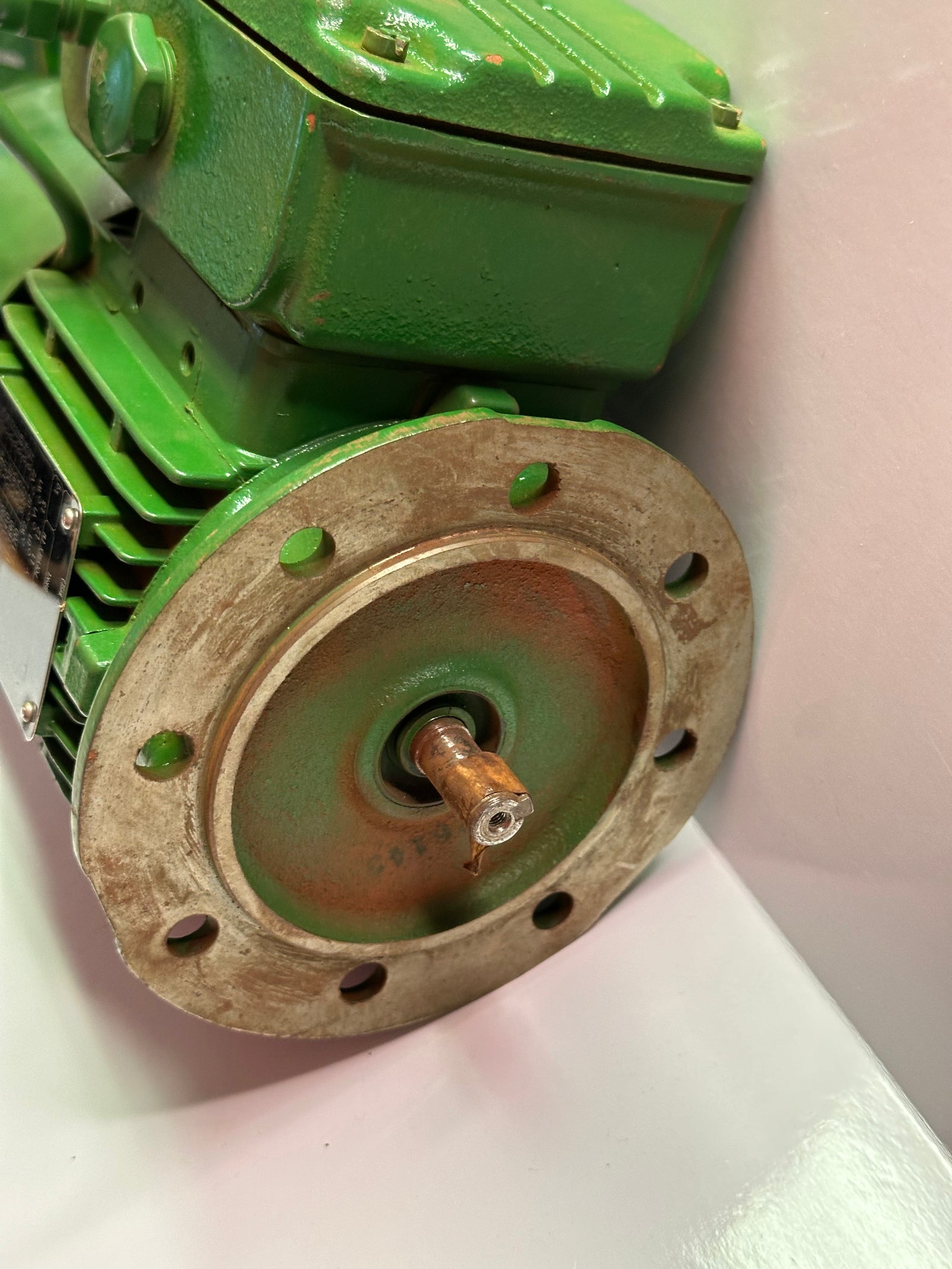

Model: M08 ALBRKL
Electric Motors
| Frame | 63 |
|---|---|
| Output | 0.18 kW (0.25 HP) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1380 rpm |
| Slip | 8.00 % |
| Rated voltage | 220/380 V |
| Rated current | 0.986/0.571 A |
| L. R. Amperes | 4.04/2.34 A |
| LRC | 4.1 |
| No load current | 0.777/0.450 A |
| Rated torque | 0.127 kgfm |
| Locked rotor torque | 200 % |
| Breakdown torque | 200 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 0.0005 kgm² |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B5T |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 44.0 dB(A) |
| Approx. weight³ | 6.0 kg |
