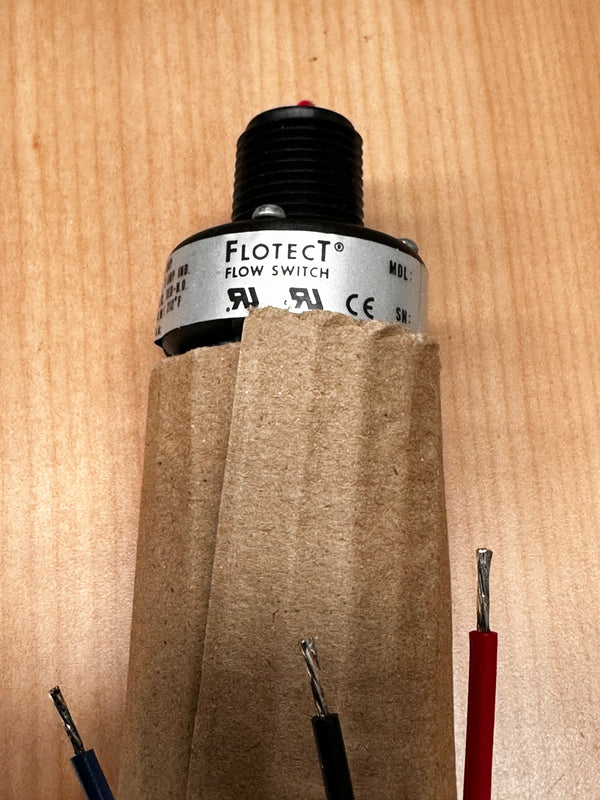

W.E. Anderson Series V8 Flotect Flow Switch

W.E. ANDERSON SKU: P-W.-M-2018

$100.00

Tax included

Only 2 left!

V8 A51N

 Vane Operated Flow Switch

Compatible gases or liquids.Wetted

Materials:Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8

.Temperature Limit:212°F (100°C)

.Pressure Limit:150 psig (10 bar)

.Enclosure Rating:General purpose; WP/WP2 option is weatherproof.

Switch Type:SPDT snap switch; MV option: SPDT gold contact snap switch.

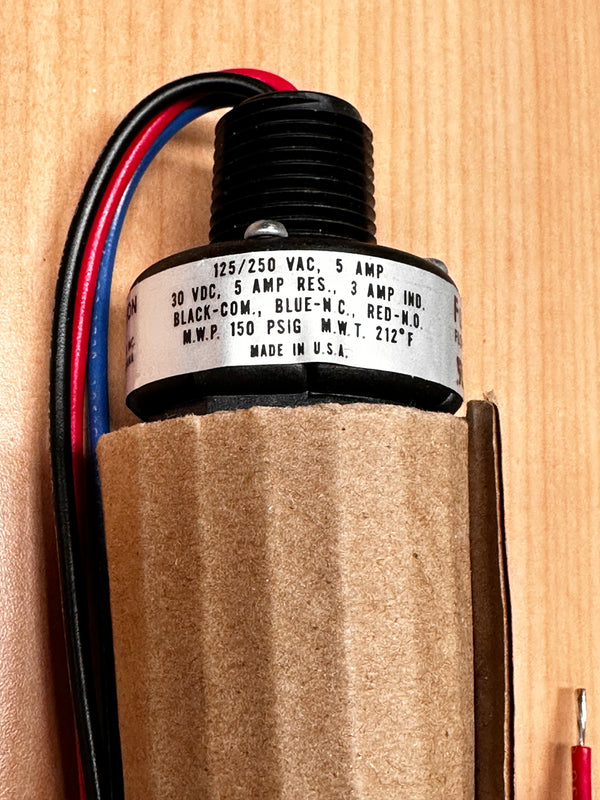

Electrical Rating:5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC.

MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC.Electrical Connections:18 AWG 18" (460 mm) long.

Conduit Connection:1/2" male NPT, 1/2" female NPT on WP and WP2.

Process Connection:1" male NPT.Mounting Orientation:Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values.

Unit cannot be used with vertical down flow.

Set Point Adjustment:Vane is trimmable.Weight:4.5 oz (0.13 kg).
