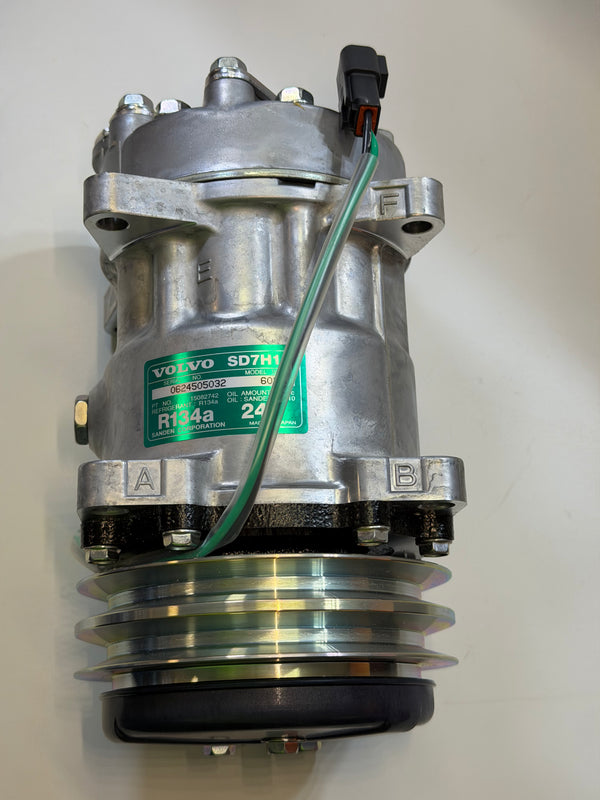

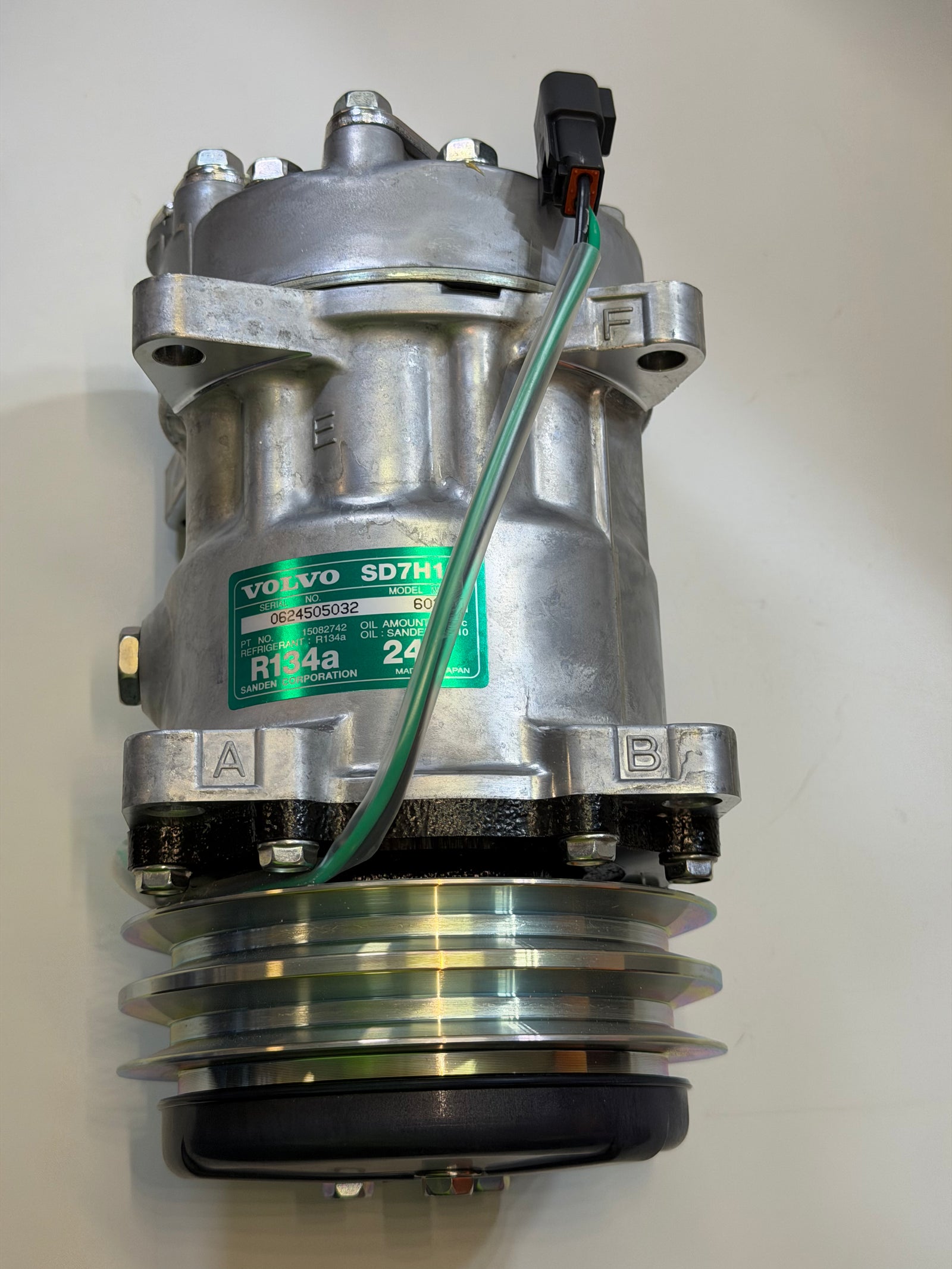

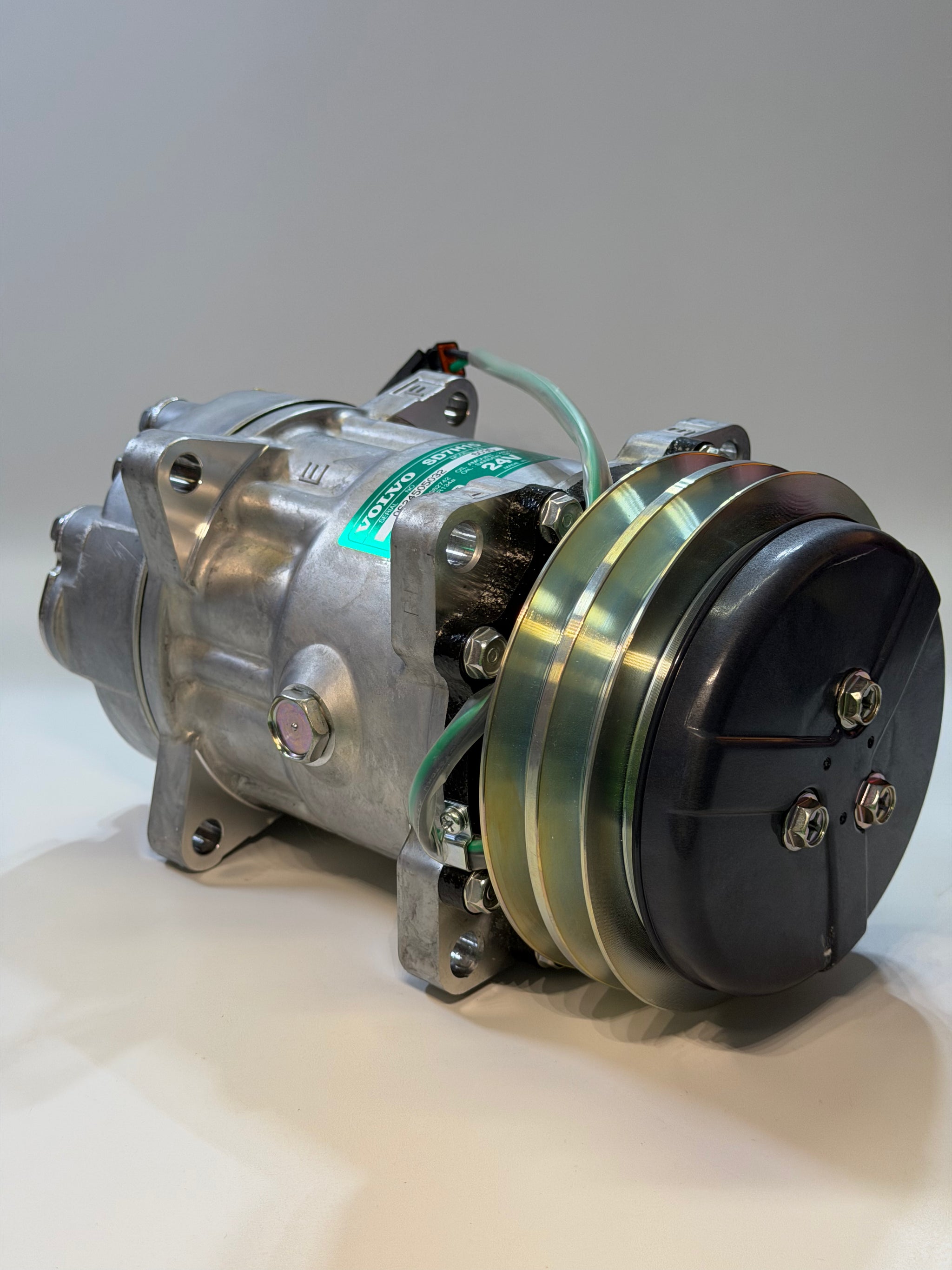

Volvo 15082742 Genuine A/C Compressor – Sanden 8243 SD7H15, 24V
- SKU
- P-VO-V-8259
$400.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 8.0 kg
Specifications
| Manufacturer | VOLVO |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-VO-V-8259 |
| Weight | 8.0 kg |
Description
Volvo 15082742 air-conditioning compressor

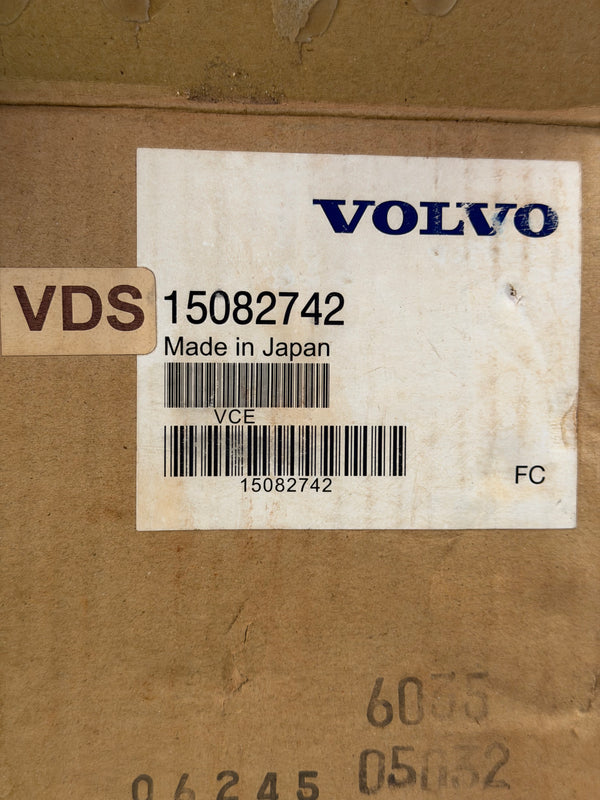

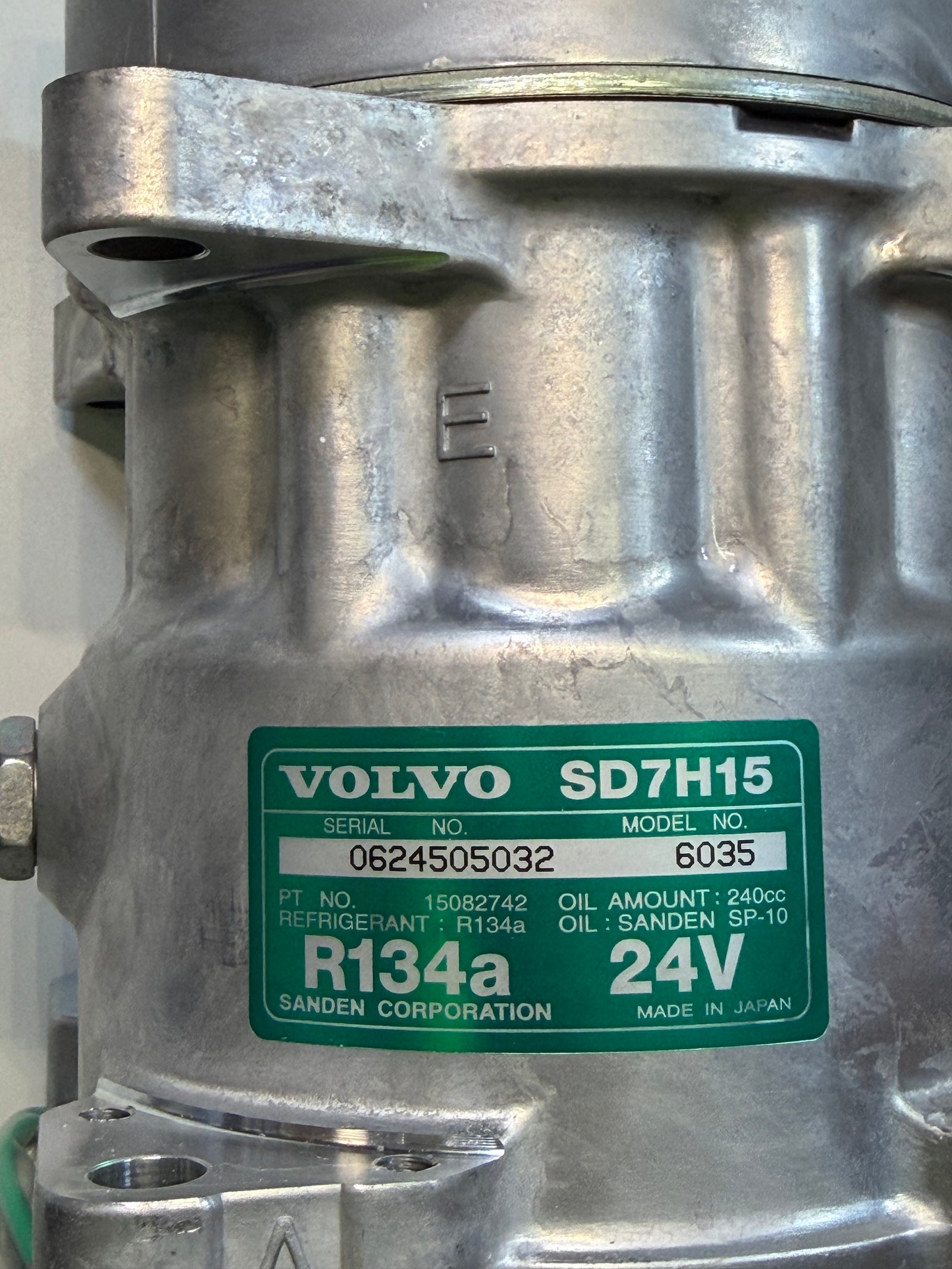

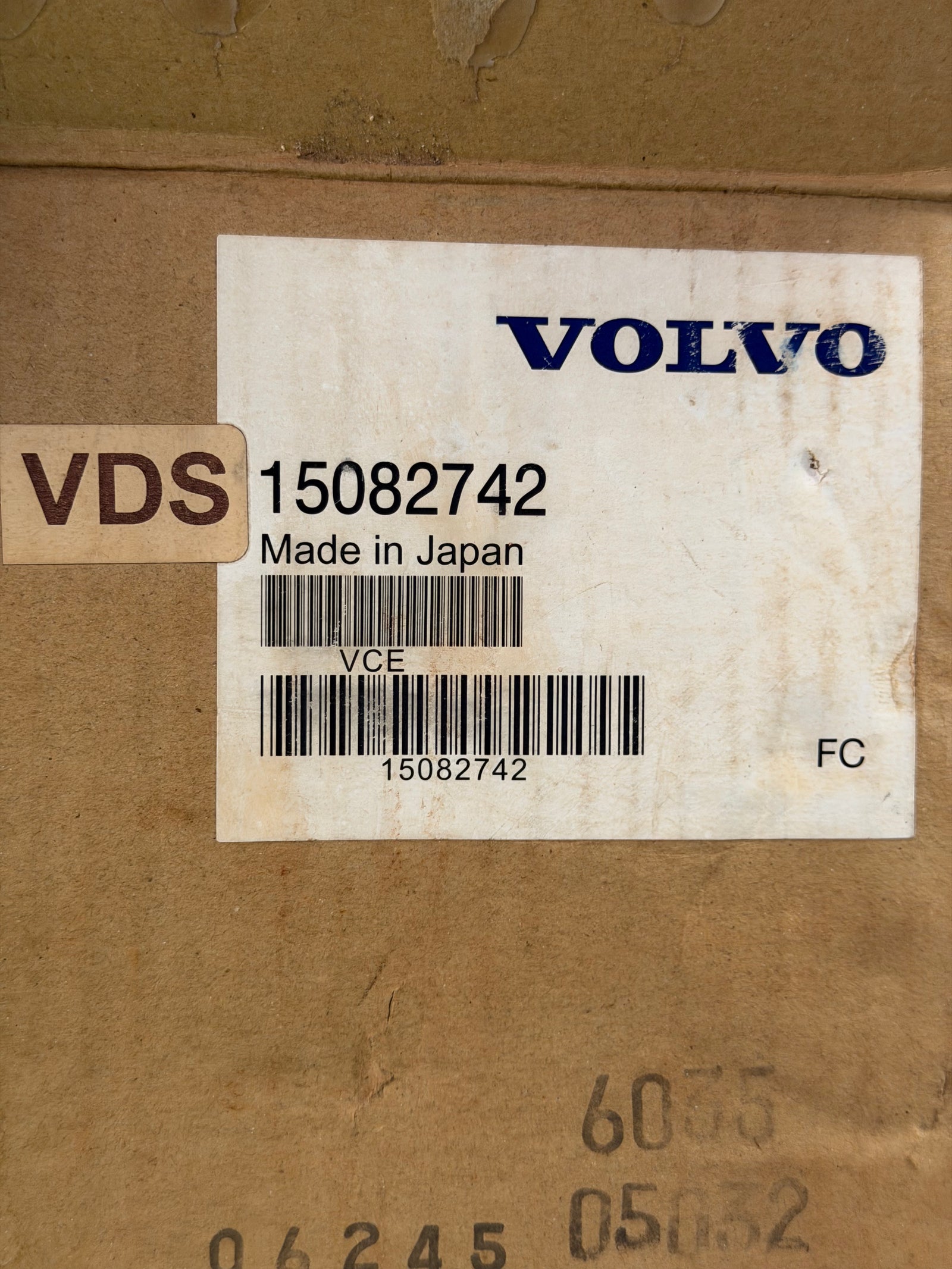

Genuine Volvo A/C compressor identified as Sanden 8243, family SD7H15. Source Volvo references: 15082742, VOE 15082742 and VOE15082742.
Source-listed applications
- Volvo excavators: EC140B, EC140C, EC140D, EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EC210B, EC210C and EC220D
- Volvo trucks: FH12 and FH16
Source specifications
| Manufacturer / family | Sanden / SD7H15 |
|---|---|
| Style | Sealed heavy-duty compressor |
| Mounting | Ear mount |
| Rotation | CW |
| Cylinder head | WZ |

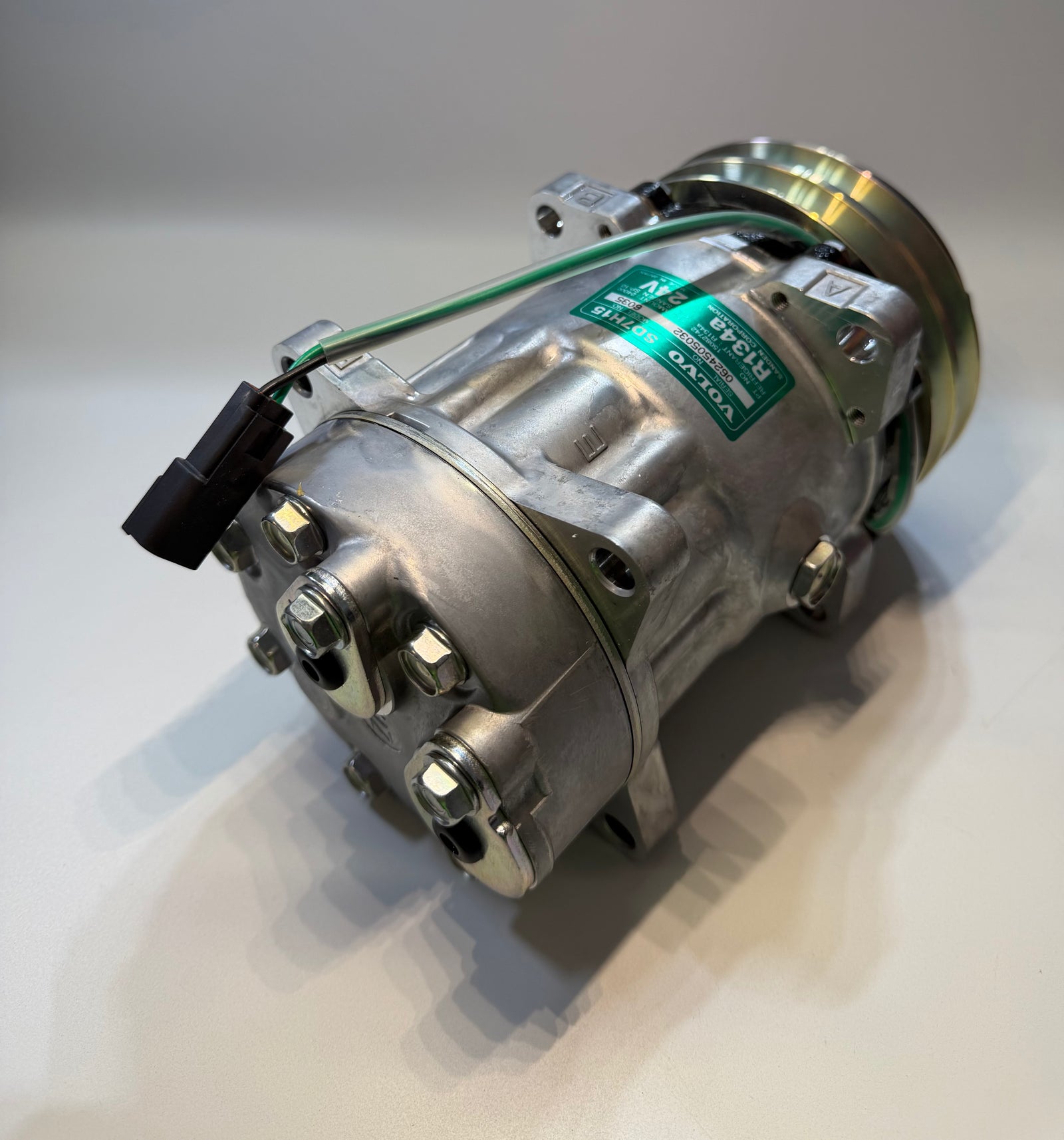

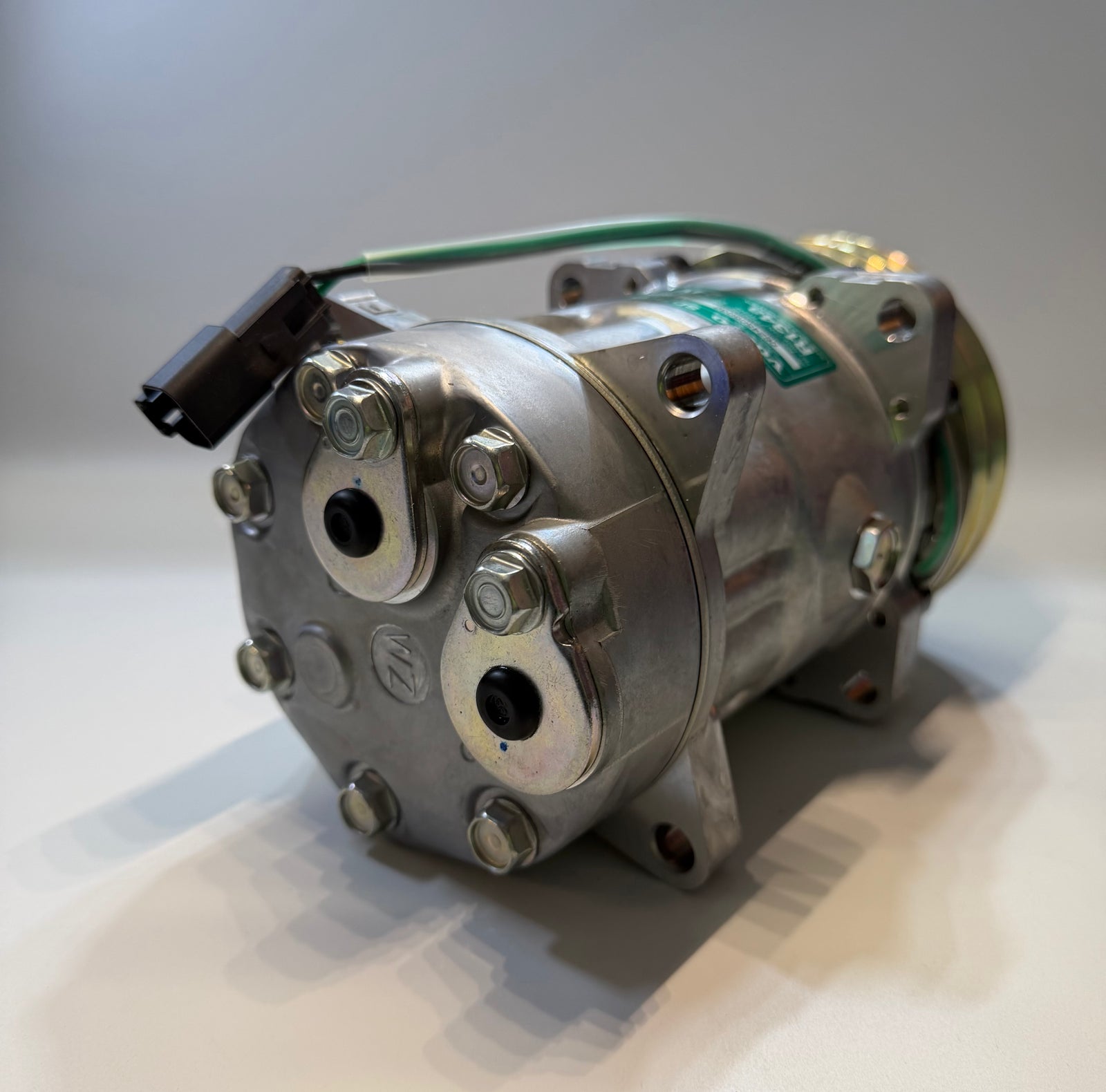

| Port angle / style | Horizontal-pad head / O-ring |

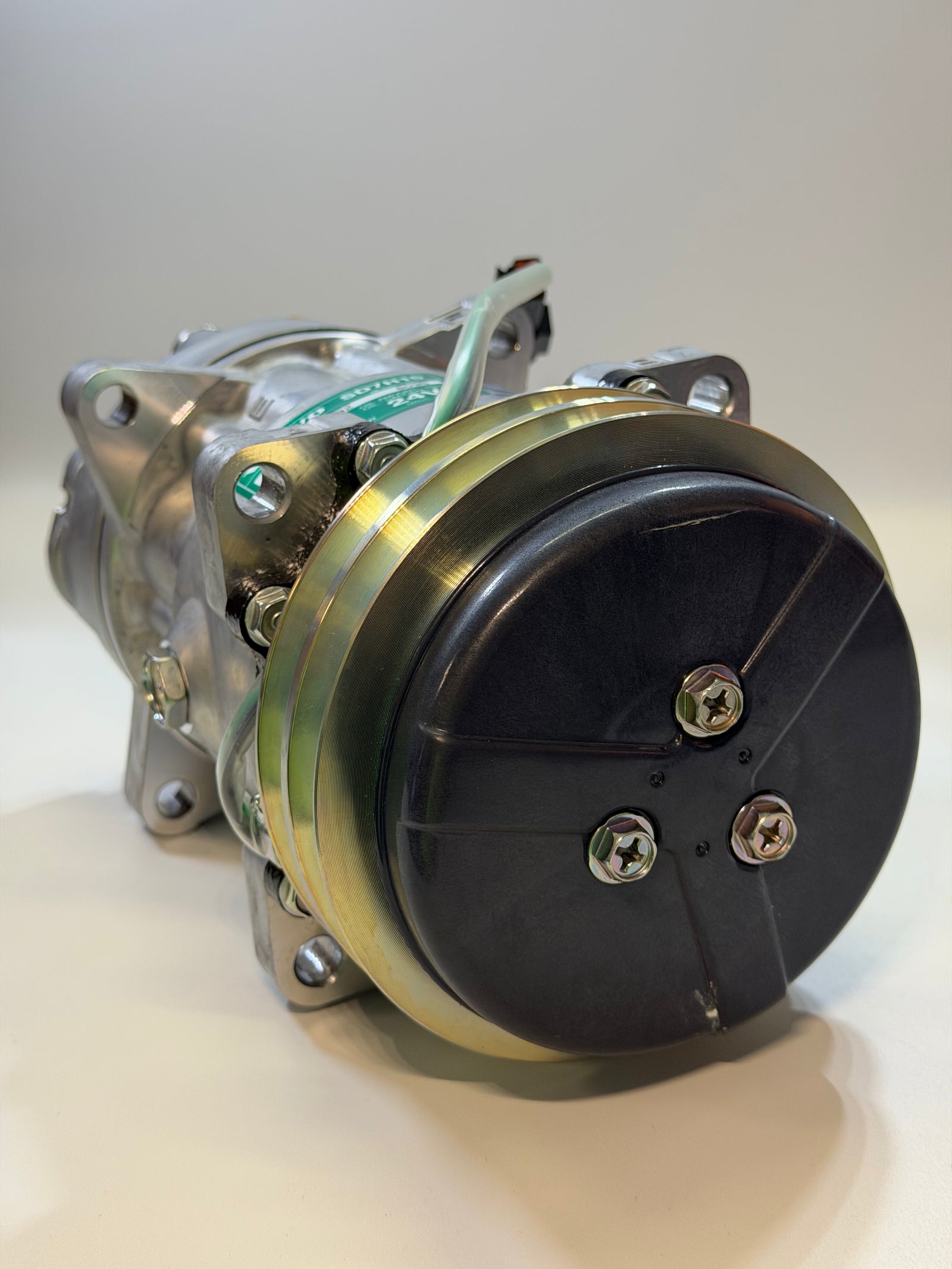

| Clutch diameter | 132 mm, approximately 5 and 3/16 inches |
| Clutch type | Dust cover |
| Belt / grooves | V-belt / 2 grooves |
| Coil voltage | 24 V; original tags specify DC |
| Coil connector | 2 WIRE CAT #DT04-2P-E |
| Coil position | 12 o'clock |
| Listed oil types | SP10 or PAG 100 |
| Source oil quantity | 240 cc |
| Refrigerant | R134a |
Confirm the exact machine/vehicle, mounting, ports, pulley and electrical connection before ordering. The oil entry is source compressor information, not a complete-system fill instruction or confirmation of current oil charge. The original Volvo Penta tag does not identify a specific additional application. This is an air-conditioning compressor, not a general compressed-air pump.
