VICKERS

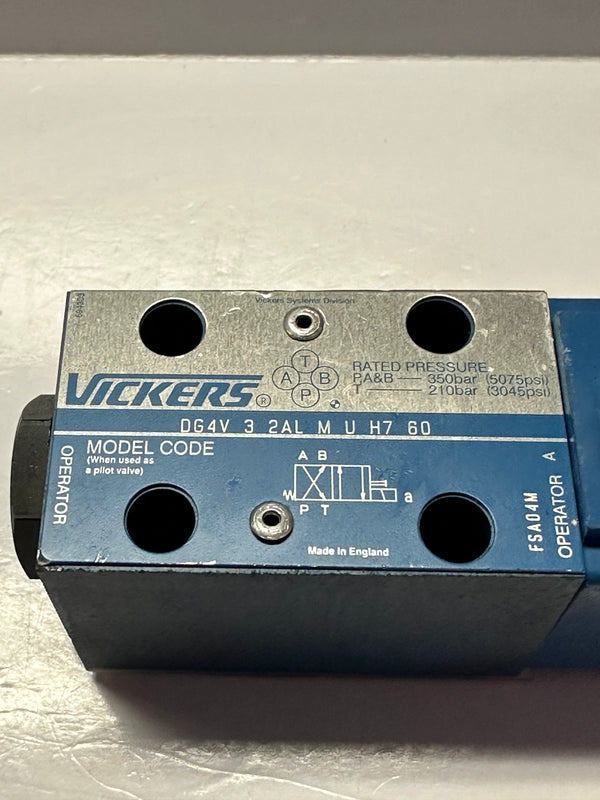

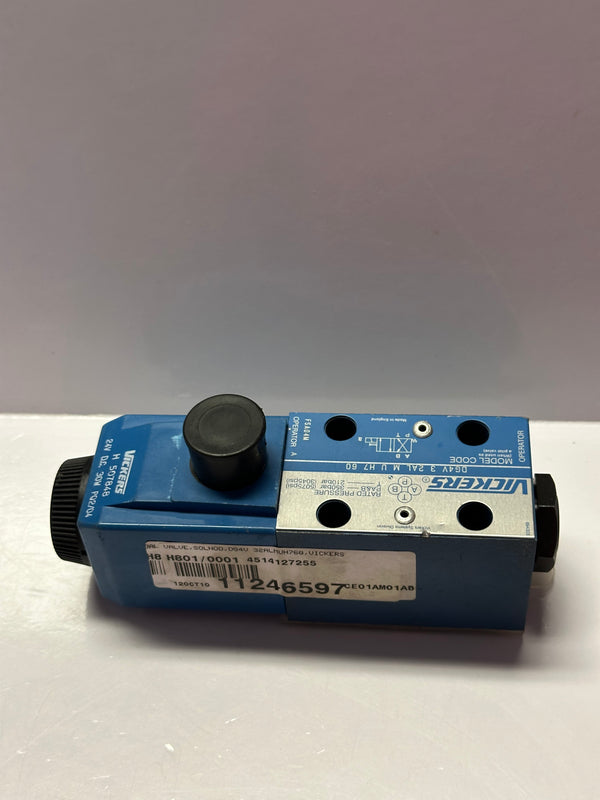

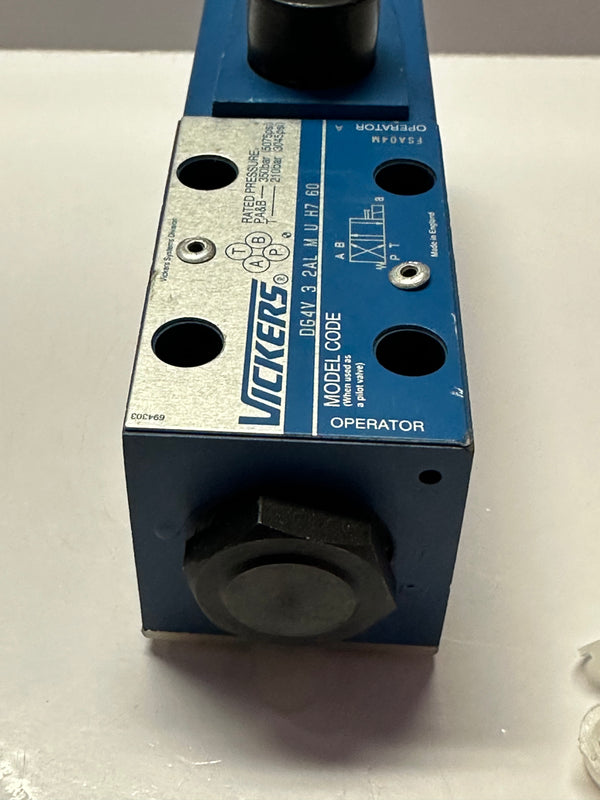

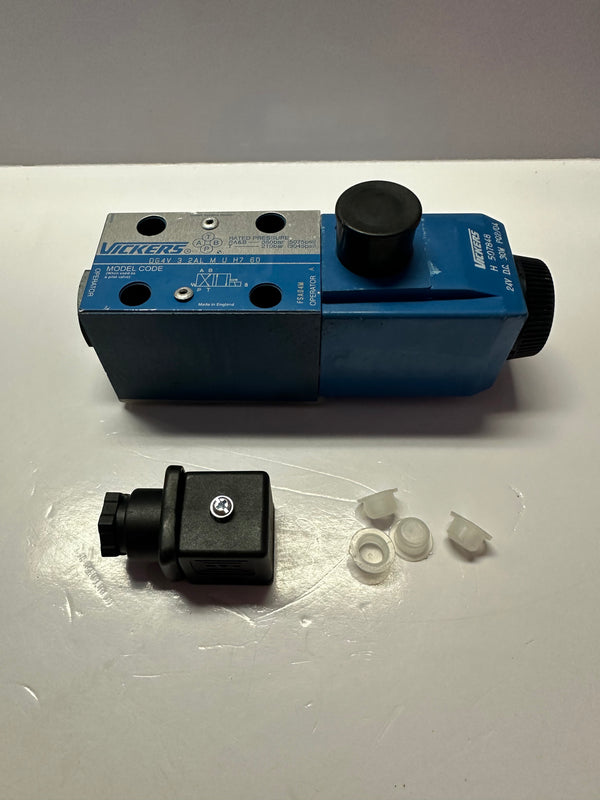

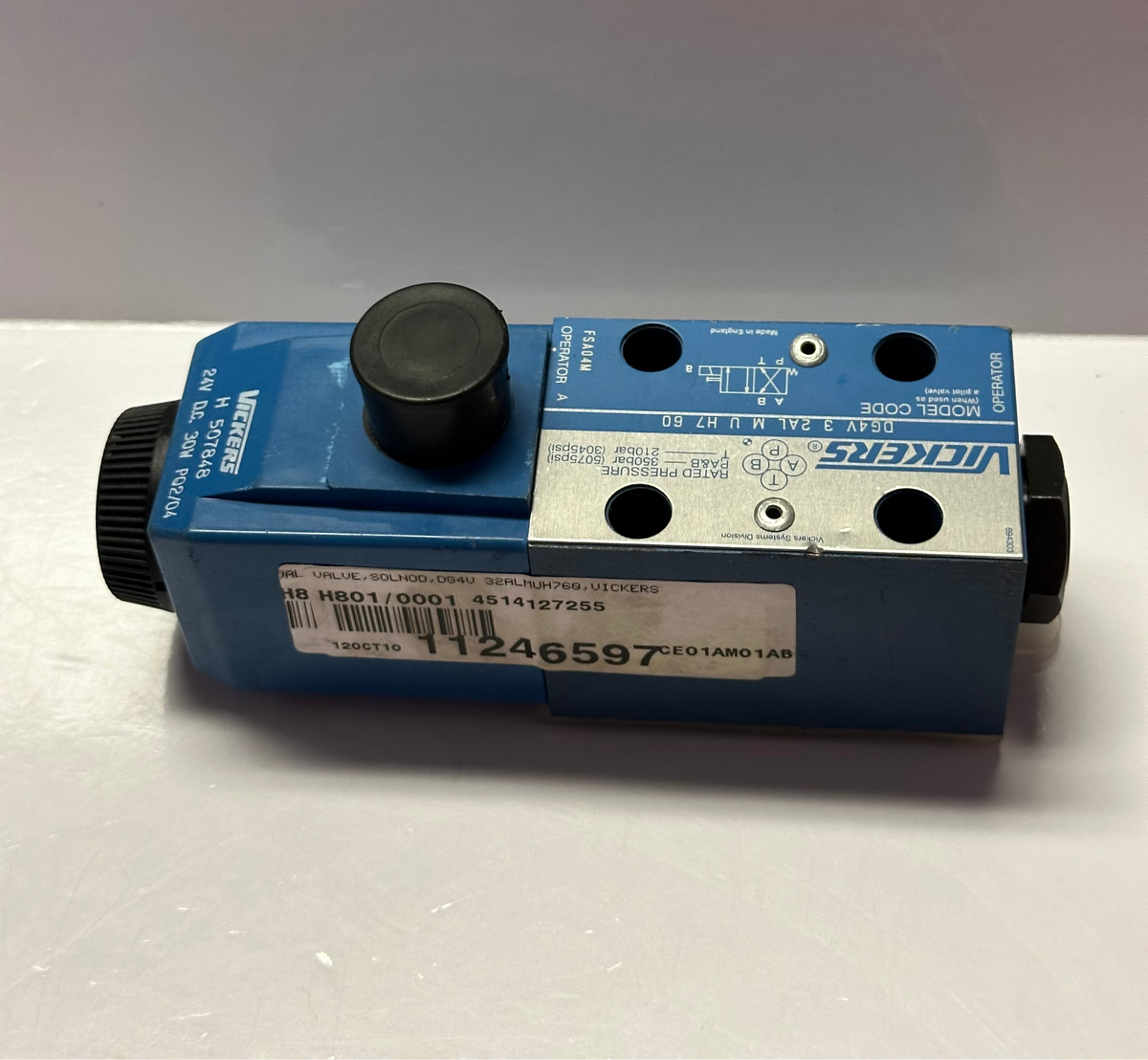

Vickers DG4V-3-2AL-M-U-H7-60 Directional Valve 859211
- SKU
- P-VI-V-4414
$195.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | VICKERS |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-VI-V-4414 |
| Weight | 3.0 kg |
Description
| Feature | Code | Description |
|---|---|---|
| SEAL TYPE | _ | (0) VITON |
| VALVE TYPE | DG4V | (DG4V) SOL. OPERATED SUB PLATE MOUNTED DCV, 350 BAR AT PORTS A, B & P |
| INTERFACE | -3 | (3) ISO/DIN 4401-AB-03, SIZE 3 INTERFACE |
| PERFORMANCE | _ | (0) HIGH PERFORMANCE |
| SPOOL TYPE | -2 | (2) P,A,B,T BLOCKED |
| SPRING ARRANGEMENT | A | (A) SPRING OFFSET, END TO END. SINGLE END. |
| BUILD ORIENTATION | L | THIS FEATURE IS PROPRIETARY OR UNPUBLISHED. PLEASE CONTACT YOUR DANFOSS REPRESENTATIVE OR A LOCAL DISTRIBUTOR FOR ASSISTANCE |
| MANUAL OVERRIDE | _ | (0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY |
| SOLENOID IDENTIFICATION | -M | (M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9 |
| SPOOL MONITORING SWITCH | _ | (0) NO SPOOL POSITION MONITORING SWITCH |

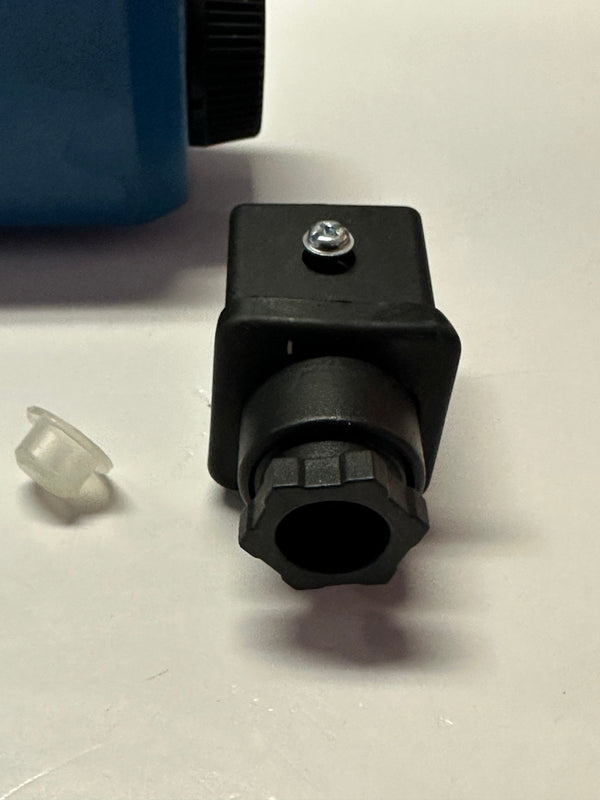

| COIL TYPE | -U | (U) ISO4400, DIN43650 CONNECTOR |
| SOLENOID INDICATOR LIGHT | _ | (0) NO SOLENOID INDICATOR LIGHT |
| DIODE | _ | (0) NO DIODE |

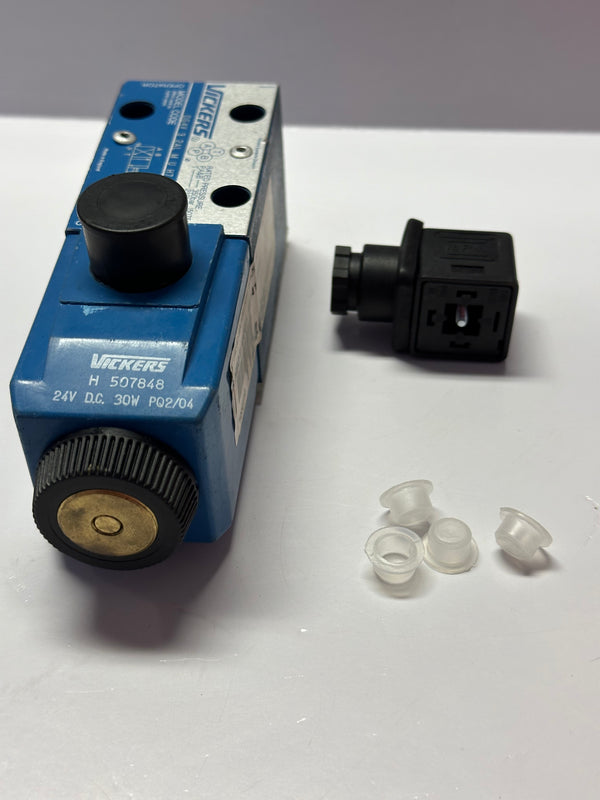

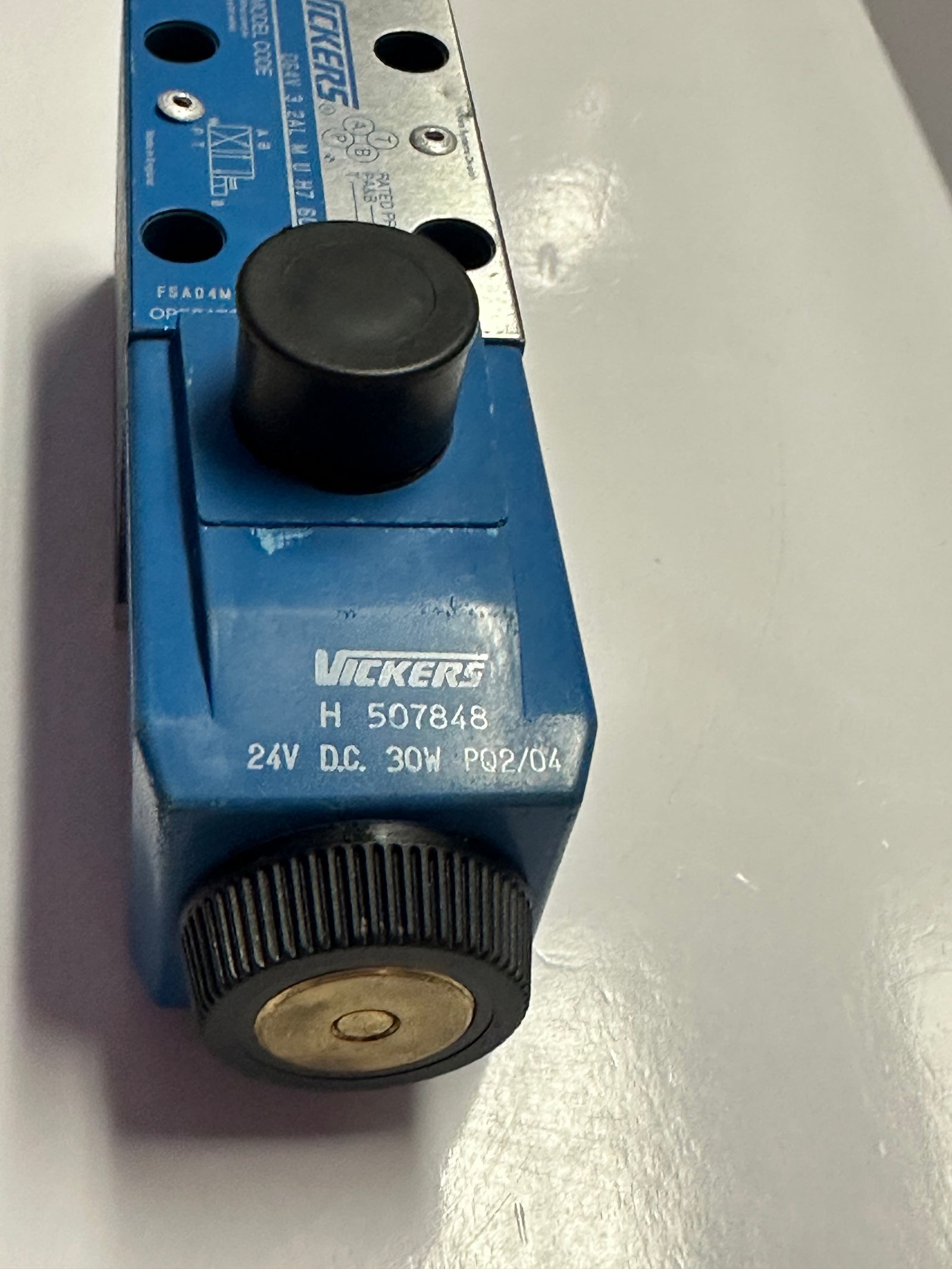

| COIL VOLTAGE | -H | (H) 24V DC 30 WATT |
| TANK PORT RATING | 7 | (7) 210 BAR (3000 PSI) FOR DC HIGH PERFORMANCE MODELS |
| DESIGN CODE | -60 | (60) DESIGN NUMBER |
