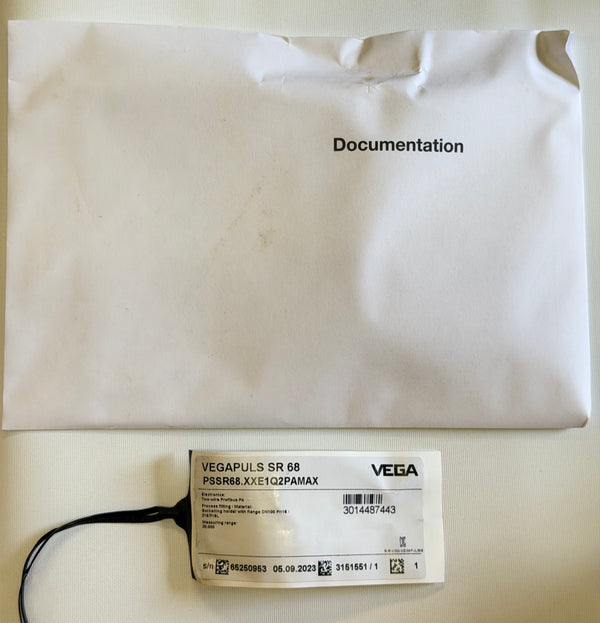

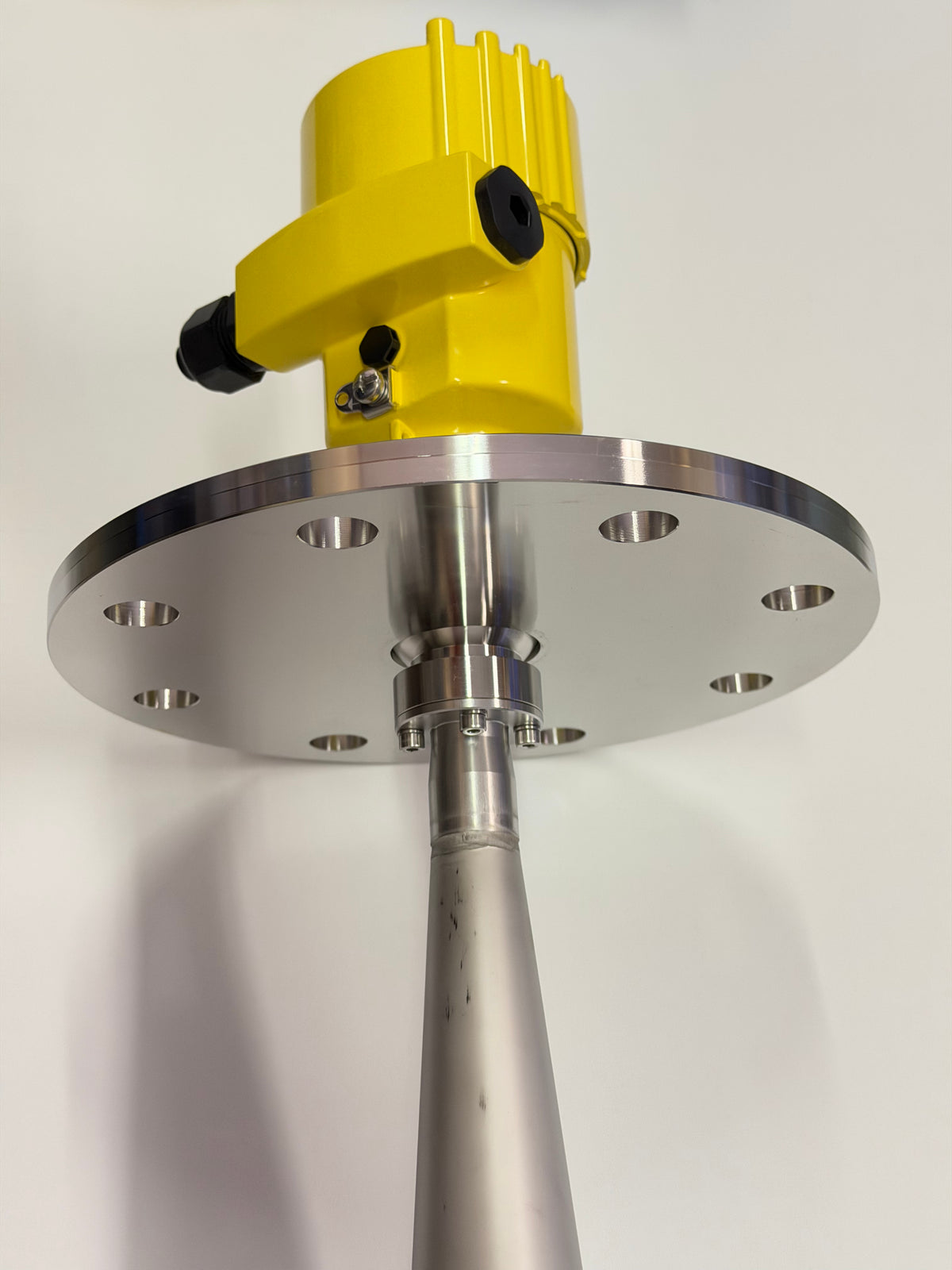

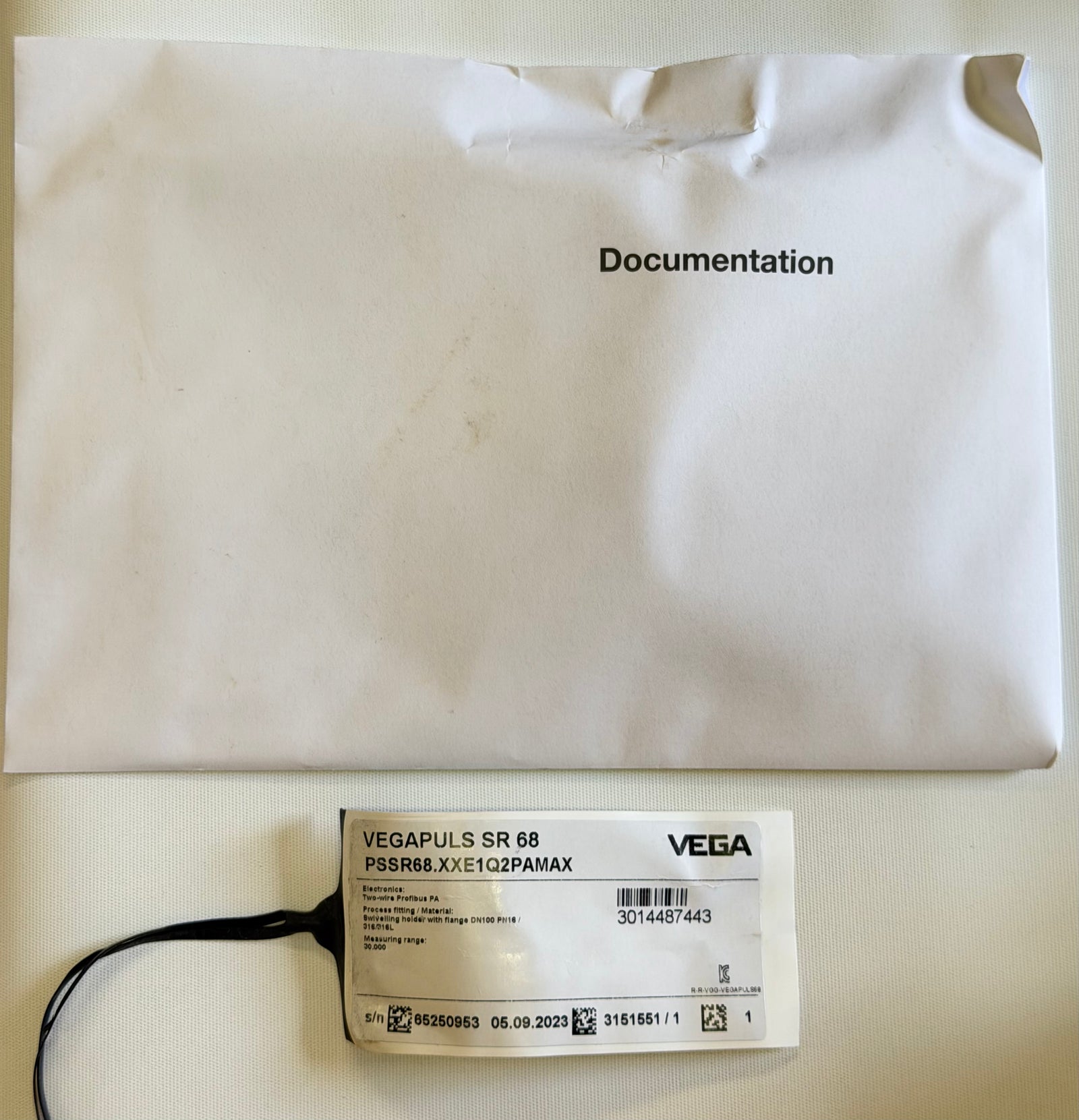

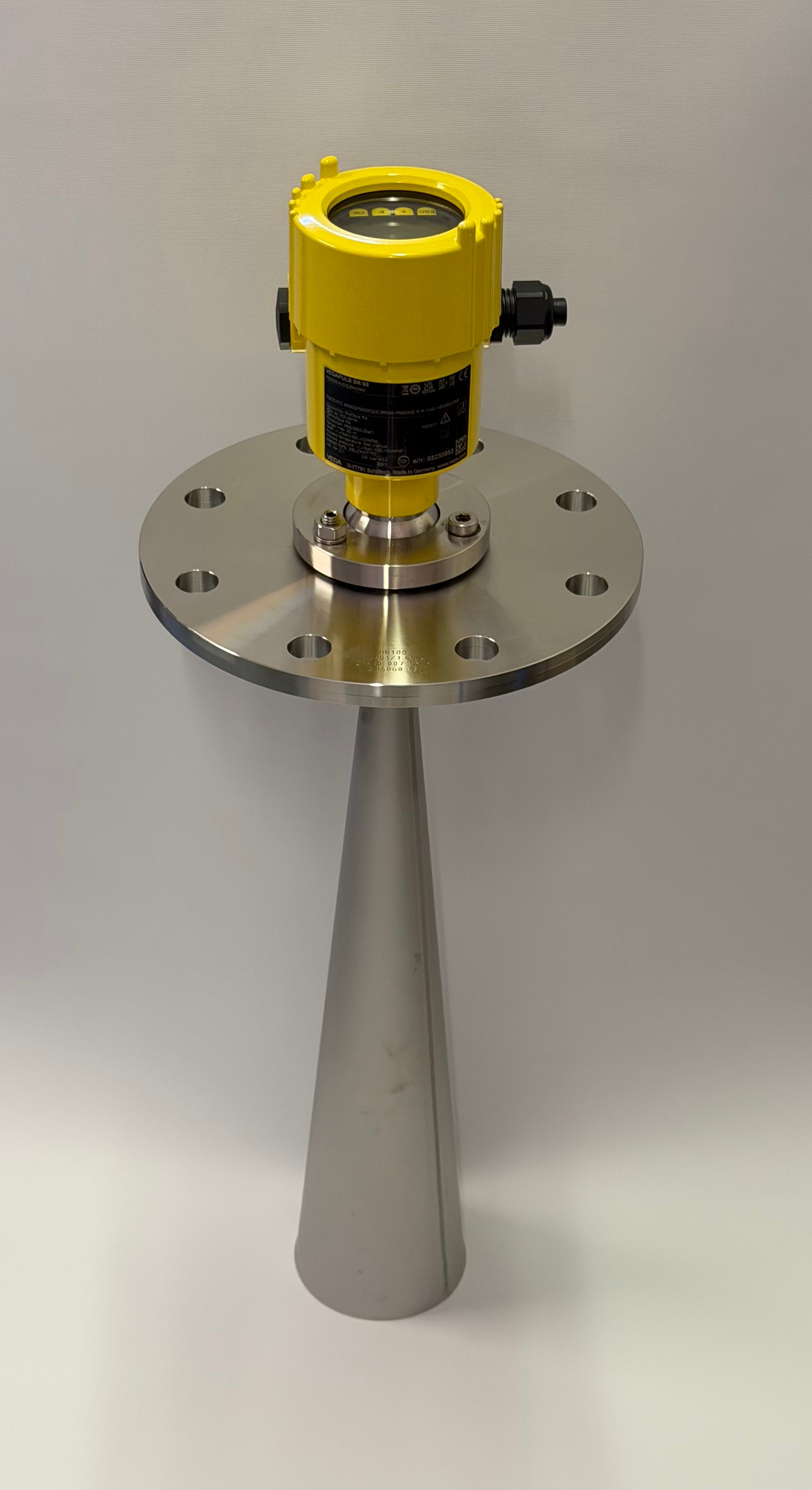

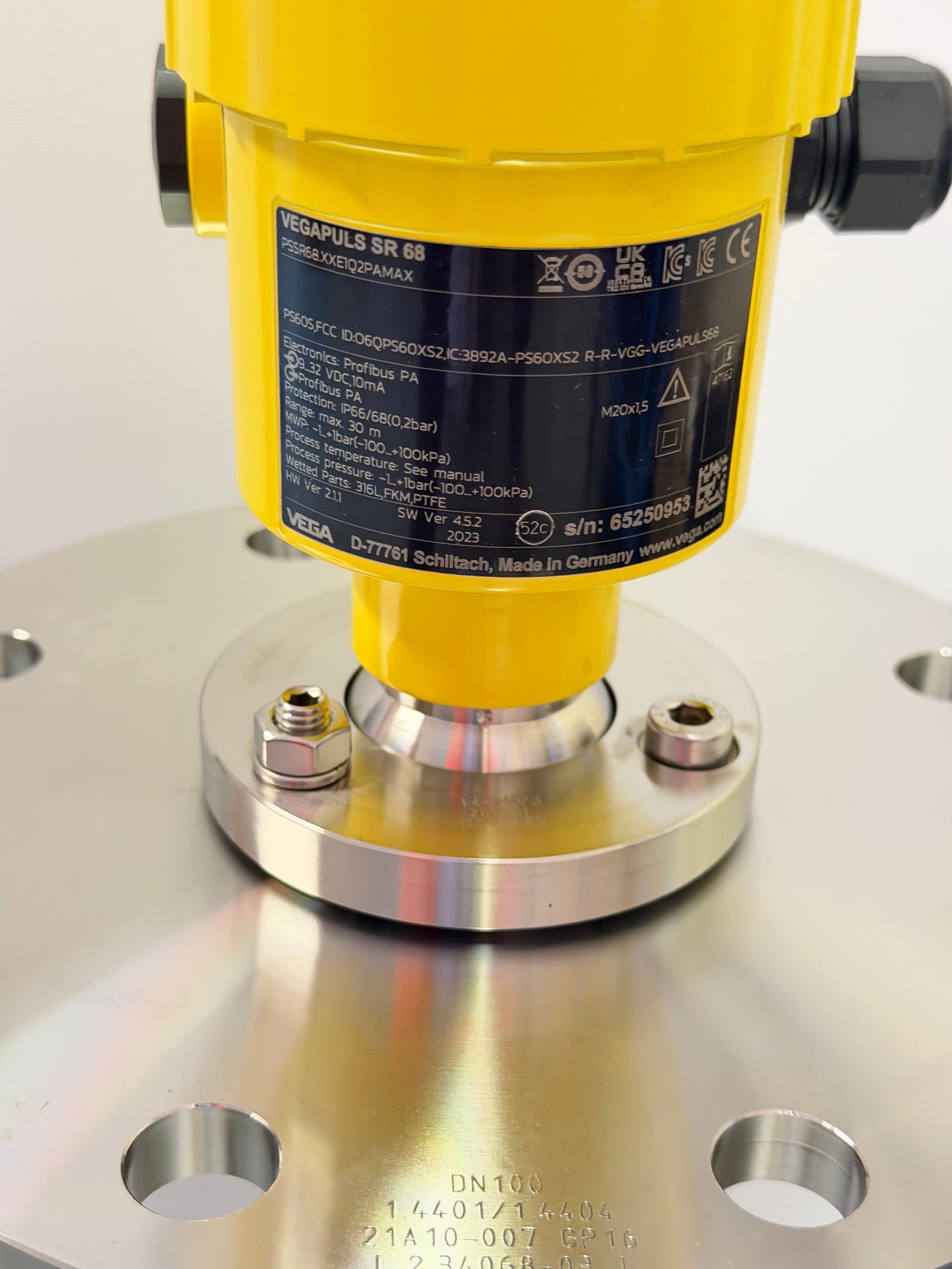

VEGAPULS SR 68 Radar Sensor for Continuous Level Measurement of Bulk Solids, PSSR68.XXE1Q2PAMAX

Electronics: two-wire Profibus PA

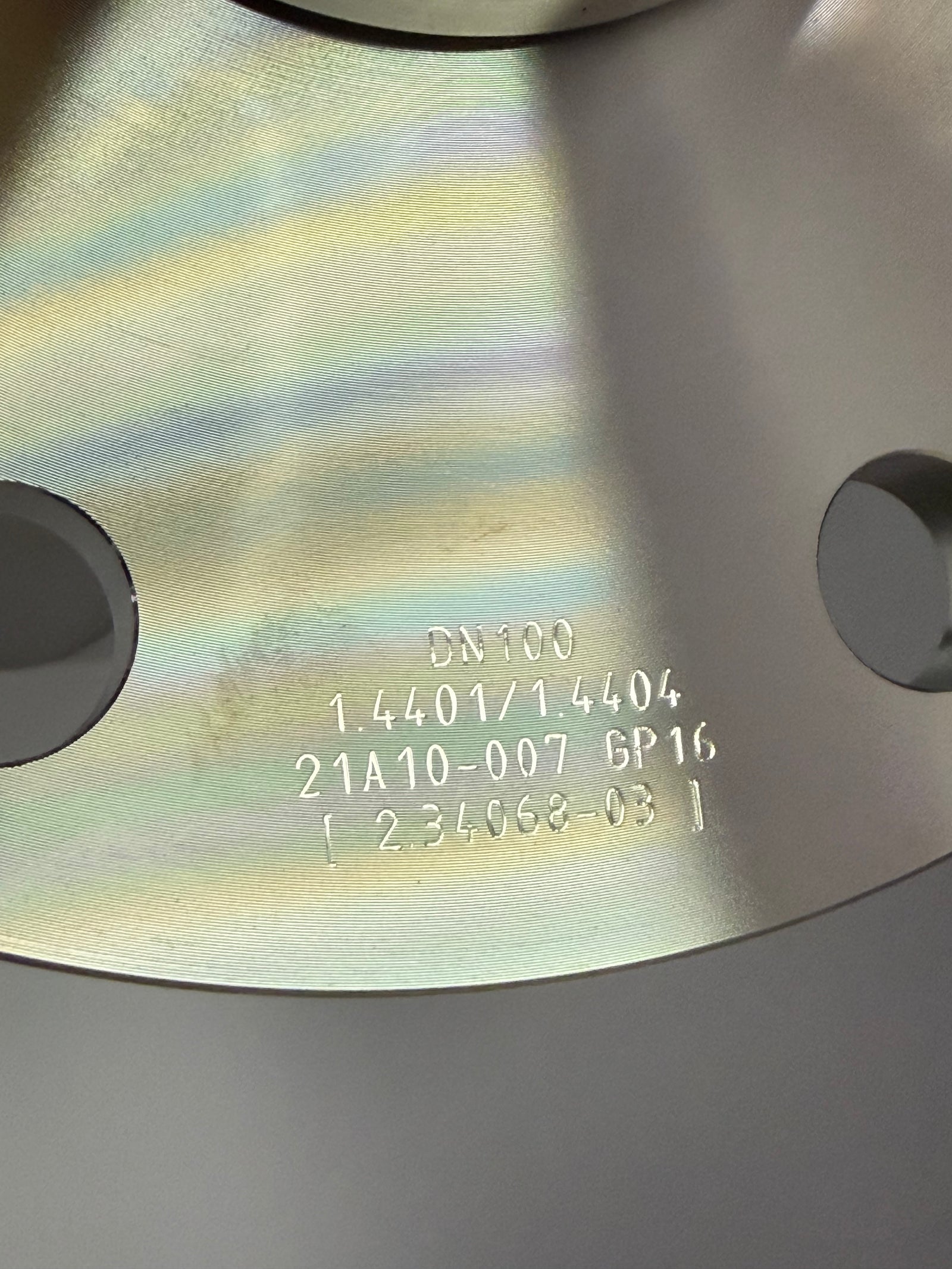

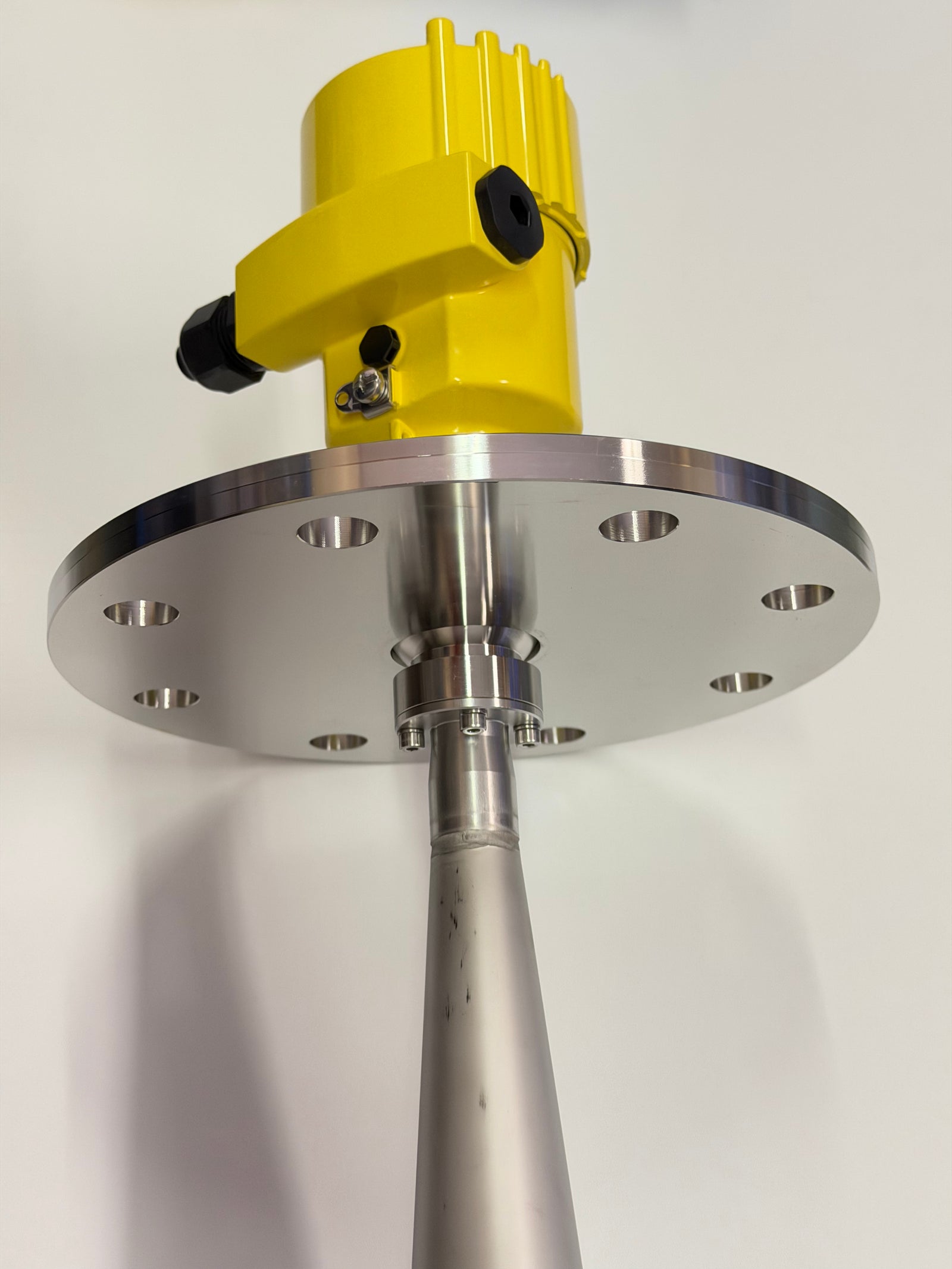

Process fitting/Material: Swiveling Holder with Flange DN100 PN16/316/316L

Measuring Range: 30,000

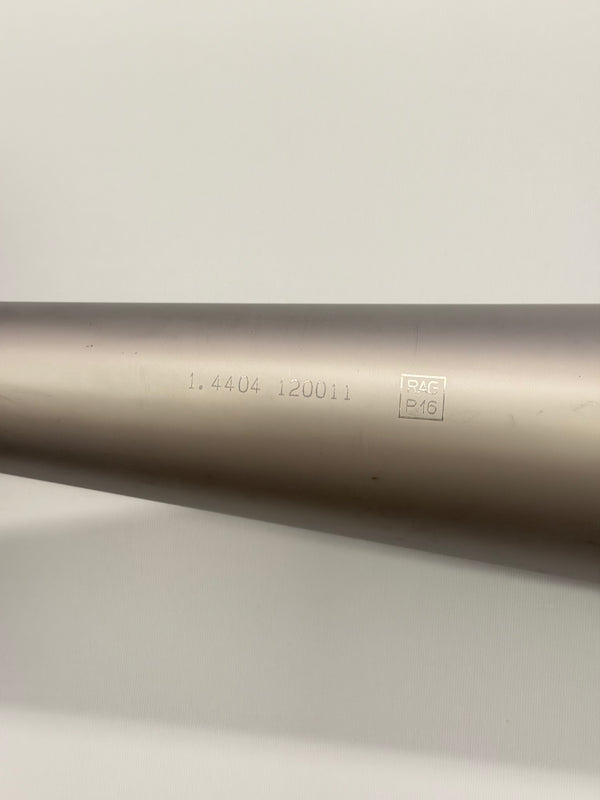

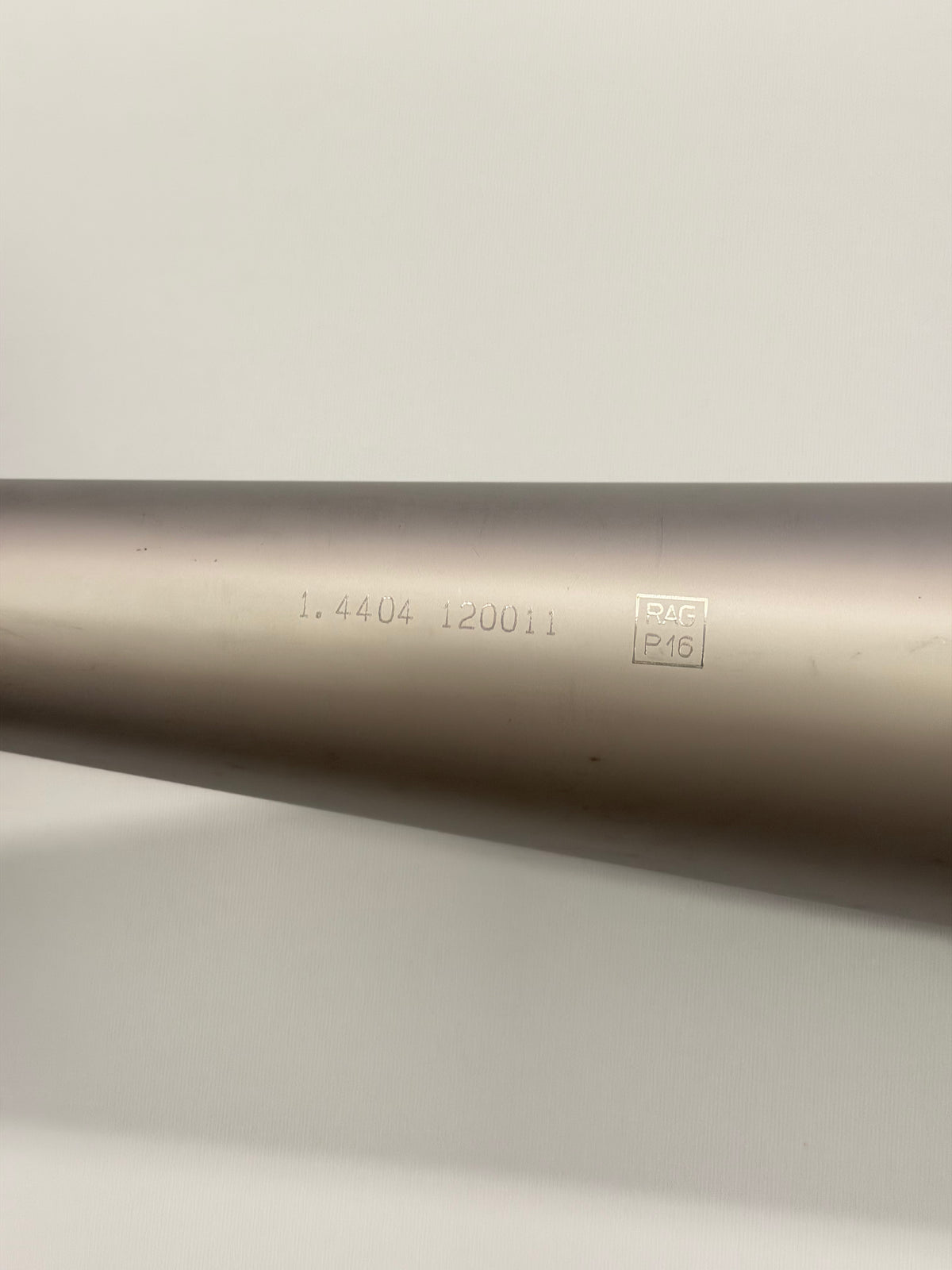

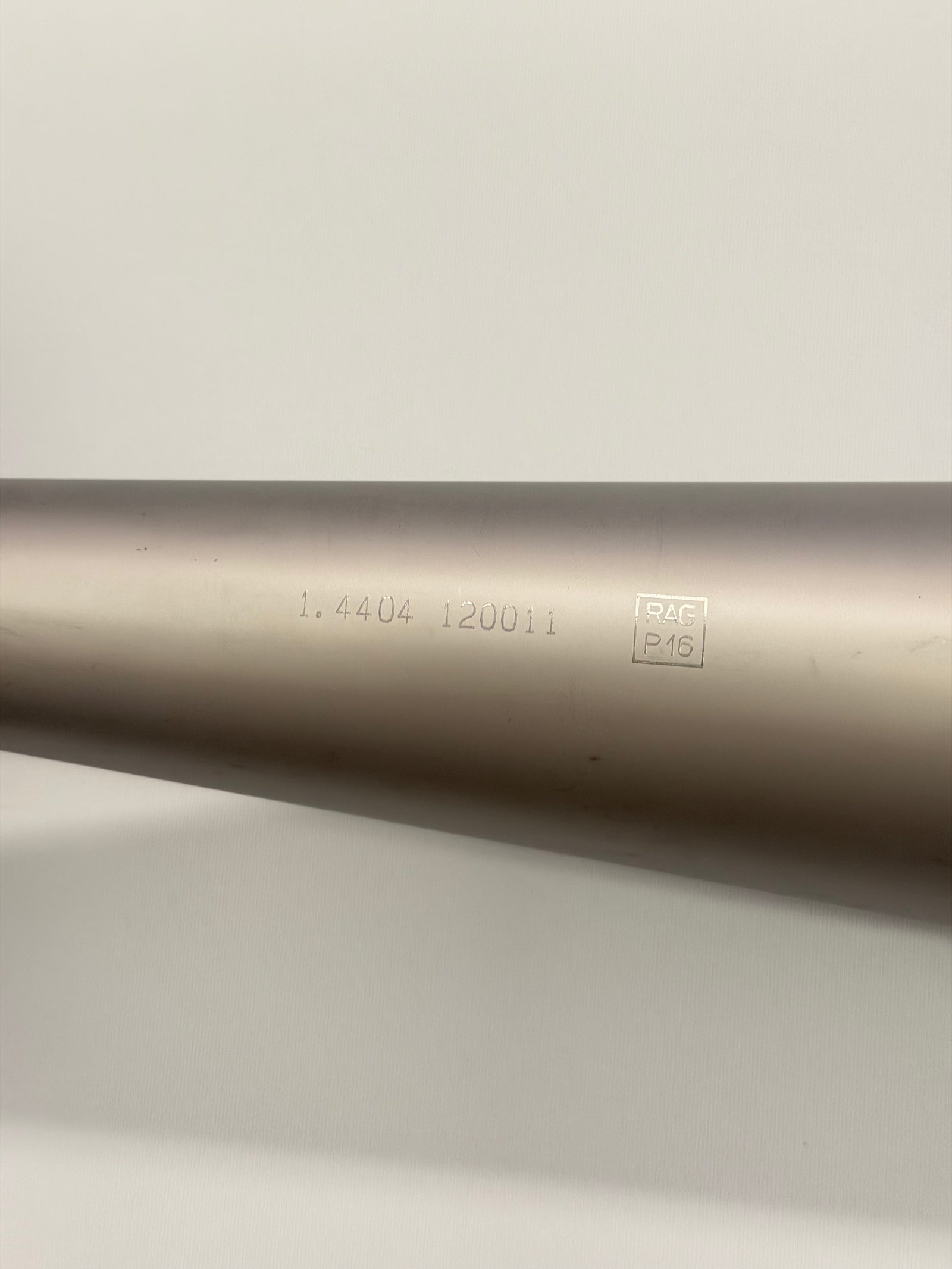

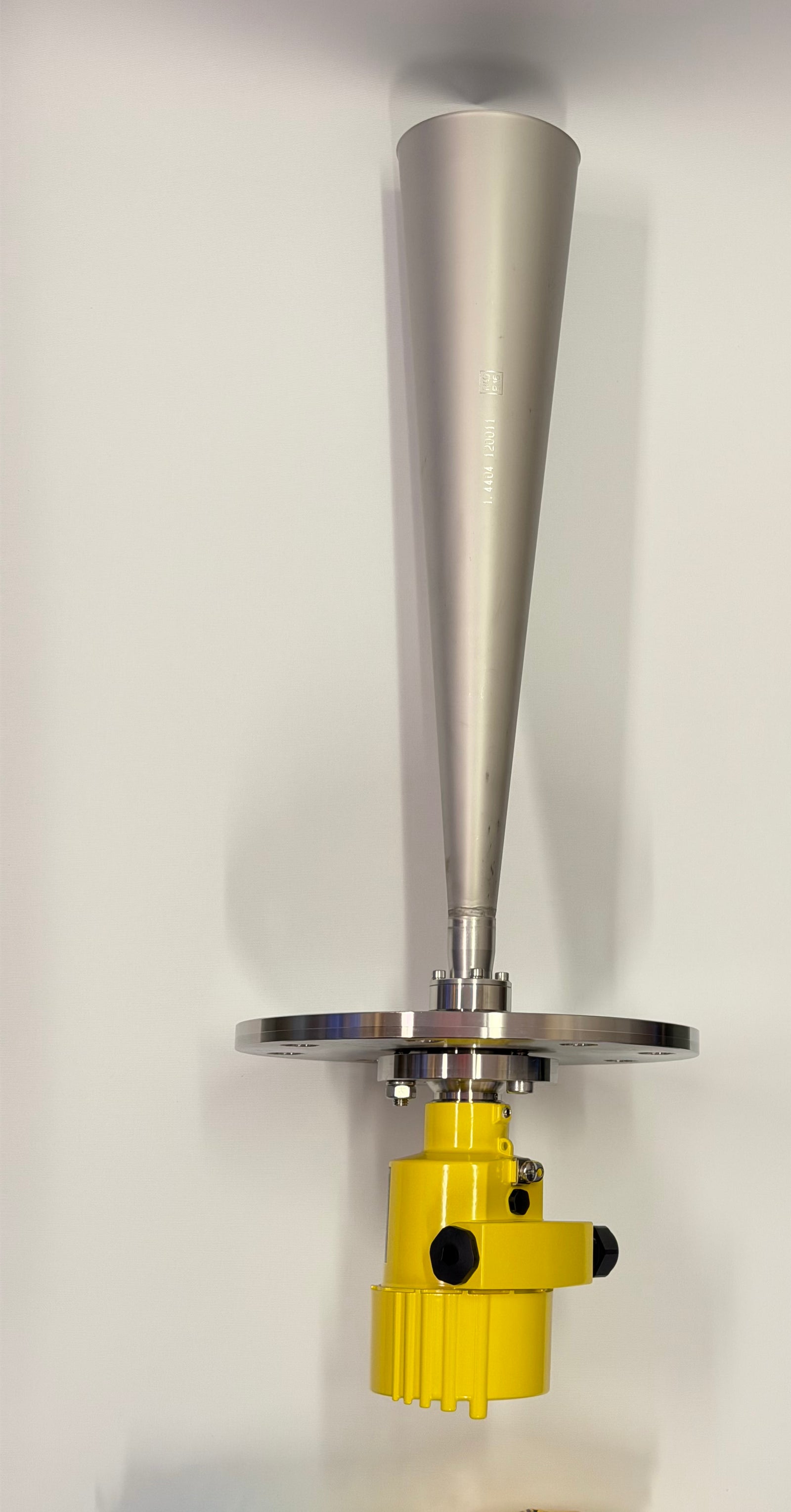

With Horn Antenna (Ø95mm)

FKM (SHS Fpm 70C3 GLT) & PTFE, -40°C TO 130°C

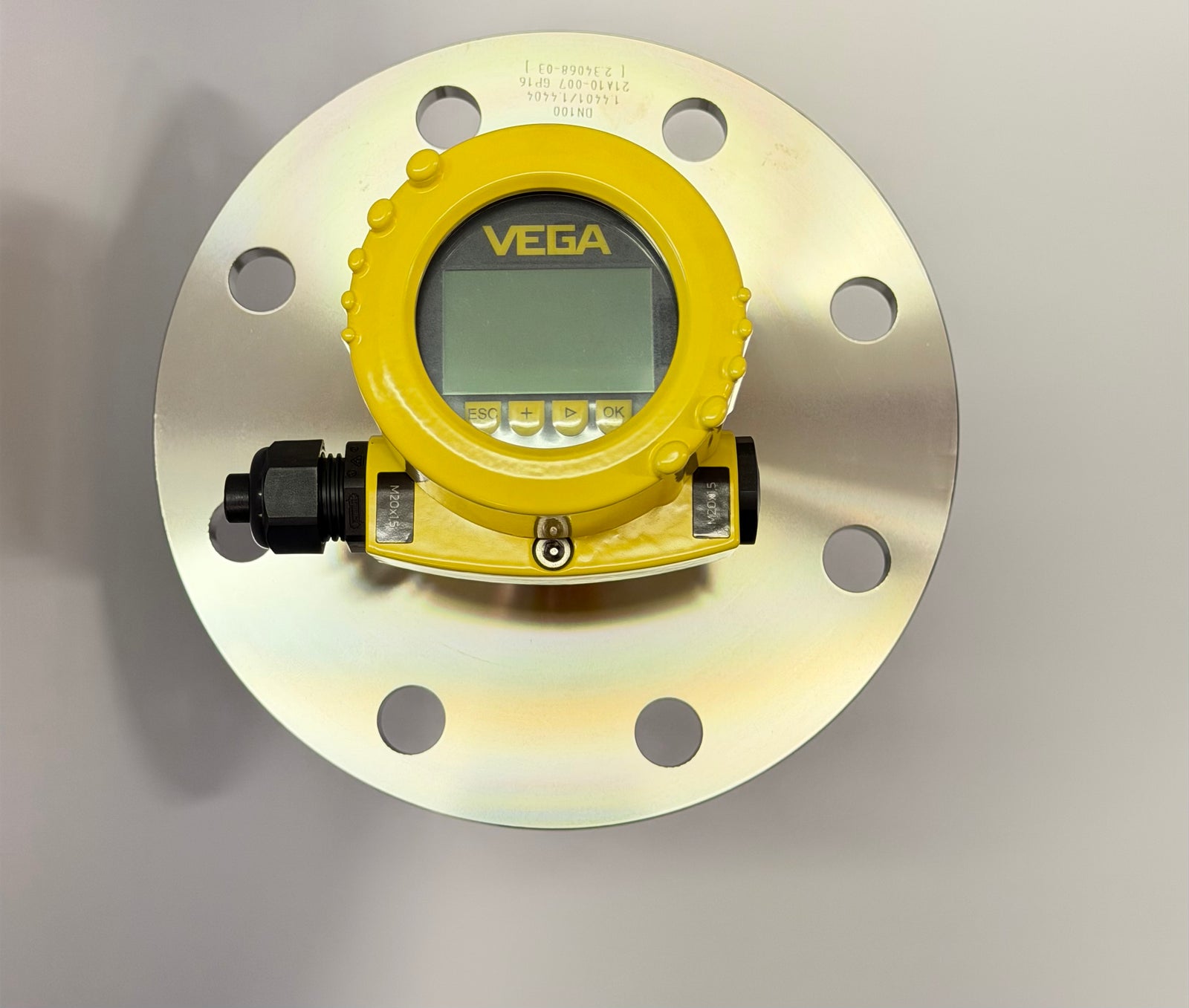

Aluminium Single Chamber /ip66 / ip68 (0.2 bar)

M20 x 1.5 / with / without

Mounted

without additional equipment.

Applications
 • The VEGAPULS 68 is a radar sensor used for continuous measurement of bulk solids also under difficult process conditions and large measuring ranges
 • The sensor is ideal for level measurement in high silos, large bunkers, stone crushers and in the furnace The VEGAPULS 68 with different antenna versions and materials is the optimum solution used for
 • virtually all applications and processes
 • Through the wide temperature and pressure range, the sensor can be used universally and enables a
 • simple planning

Benefits:

• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle
• Reliable measurement independent of vapour, dust and noise.
