VEGA

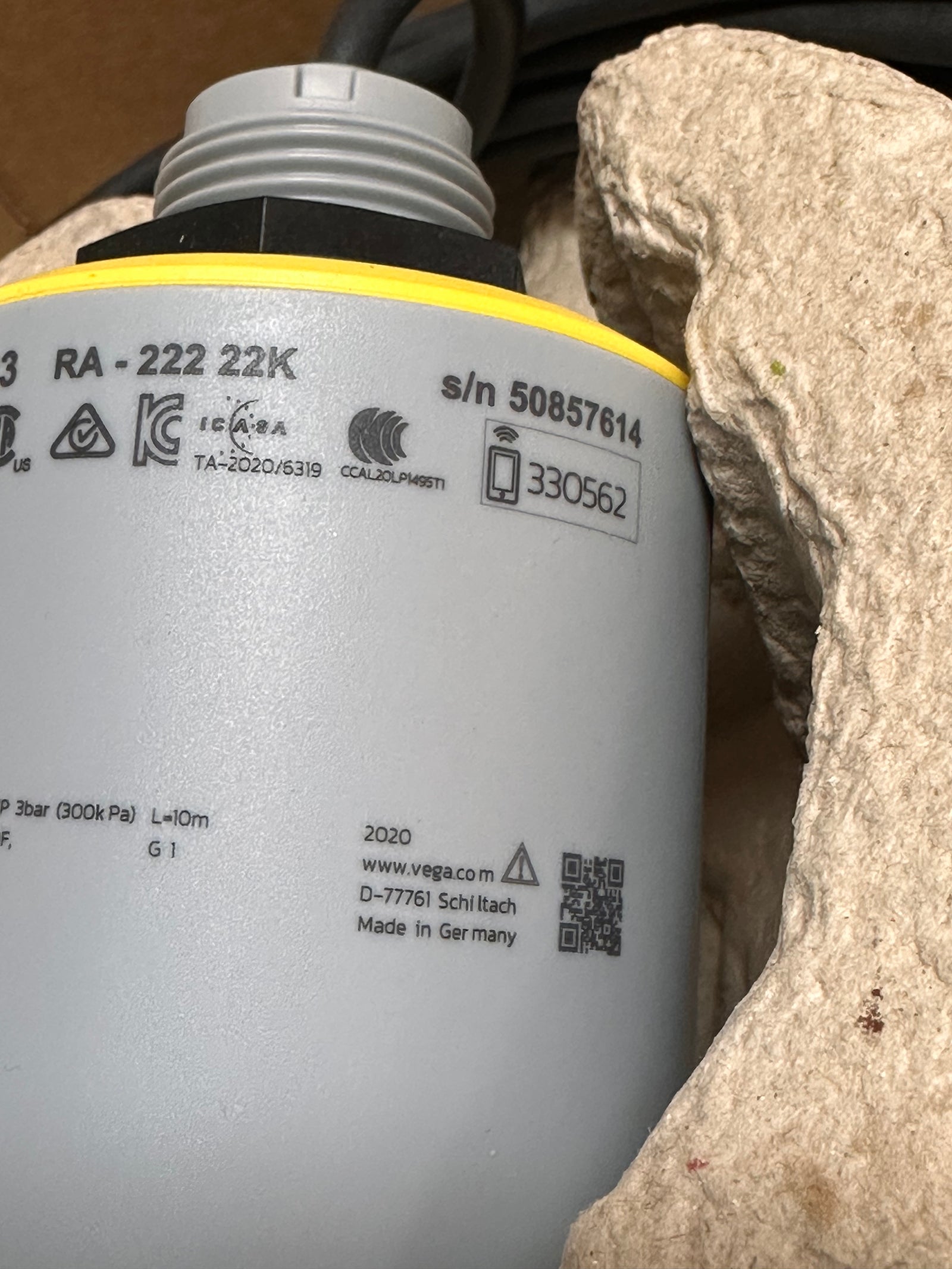

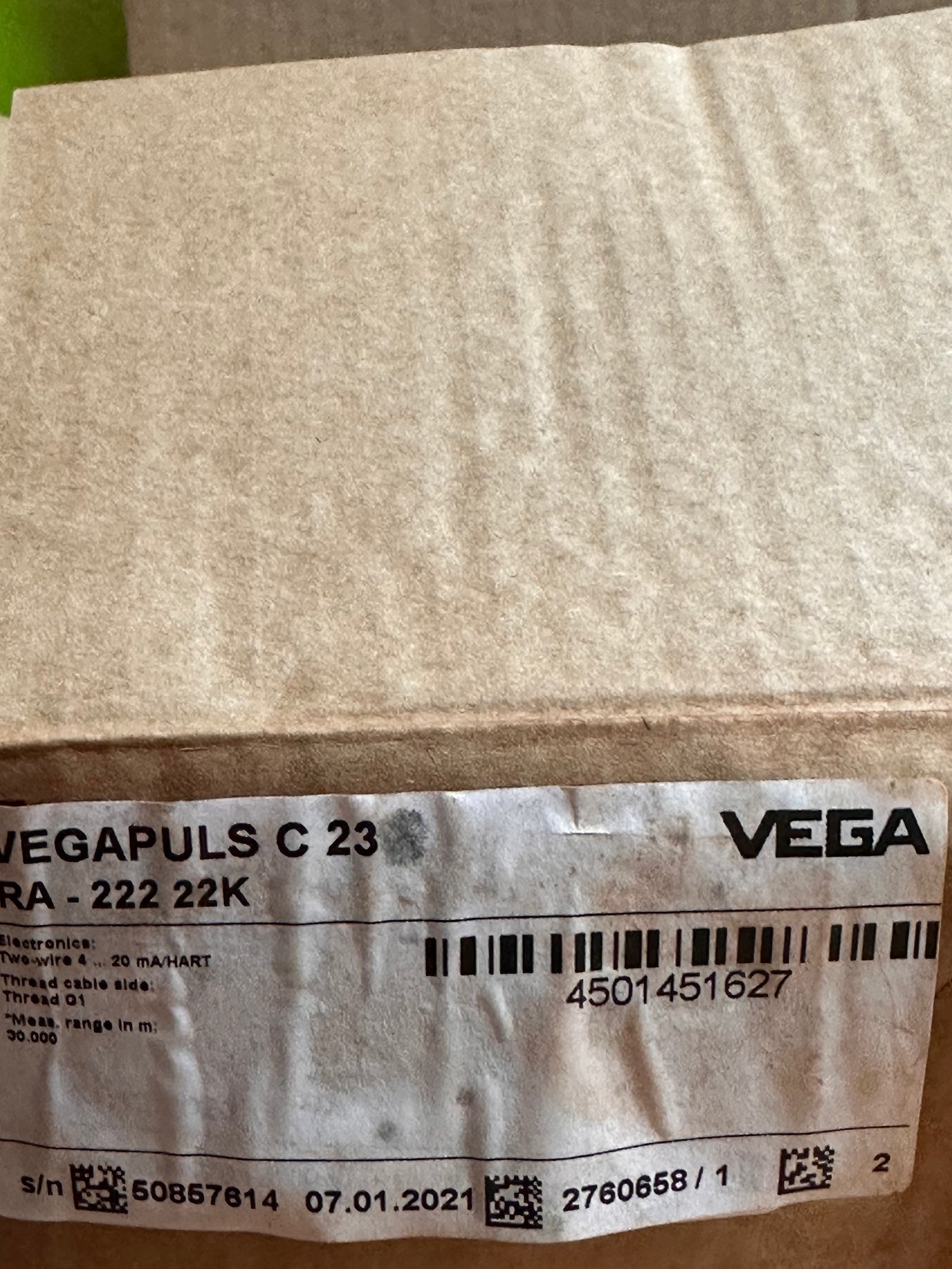

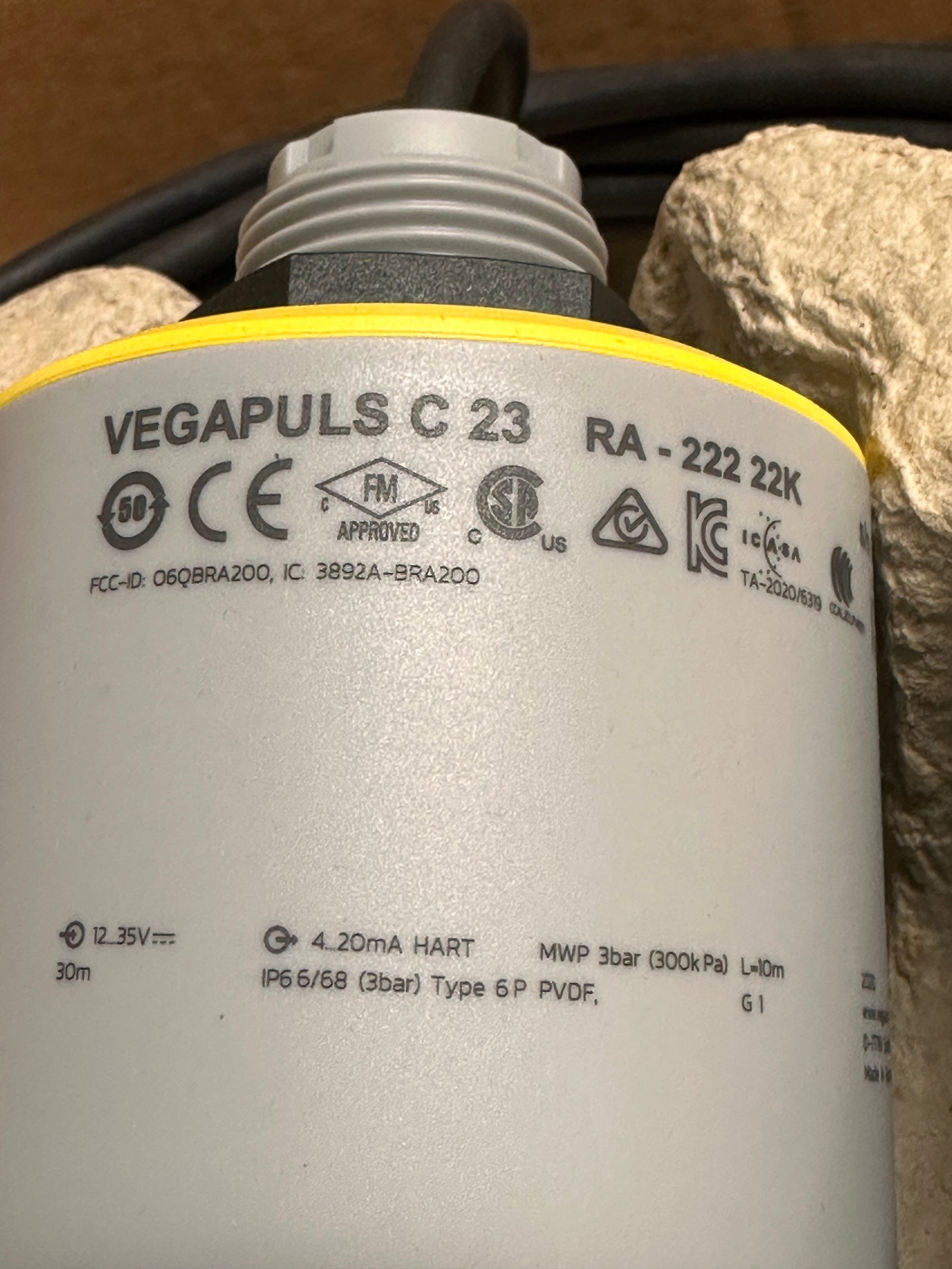

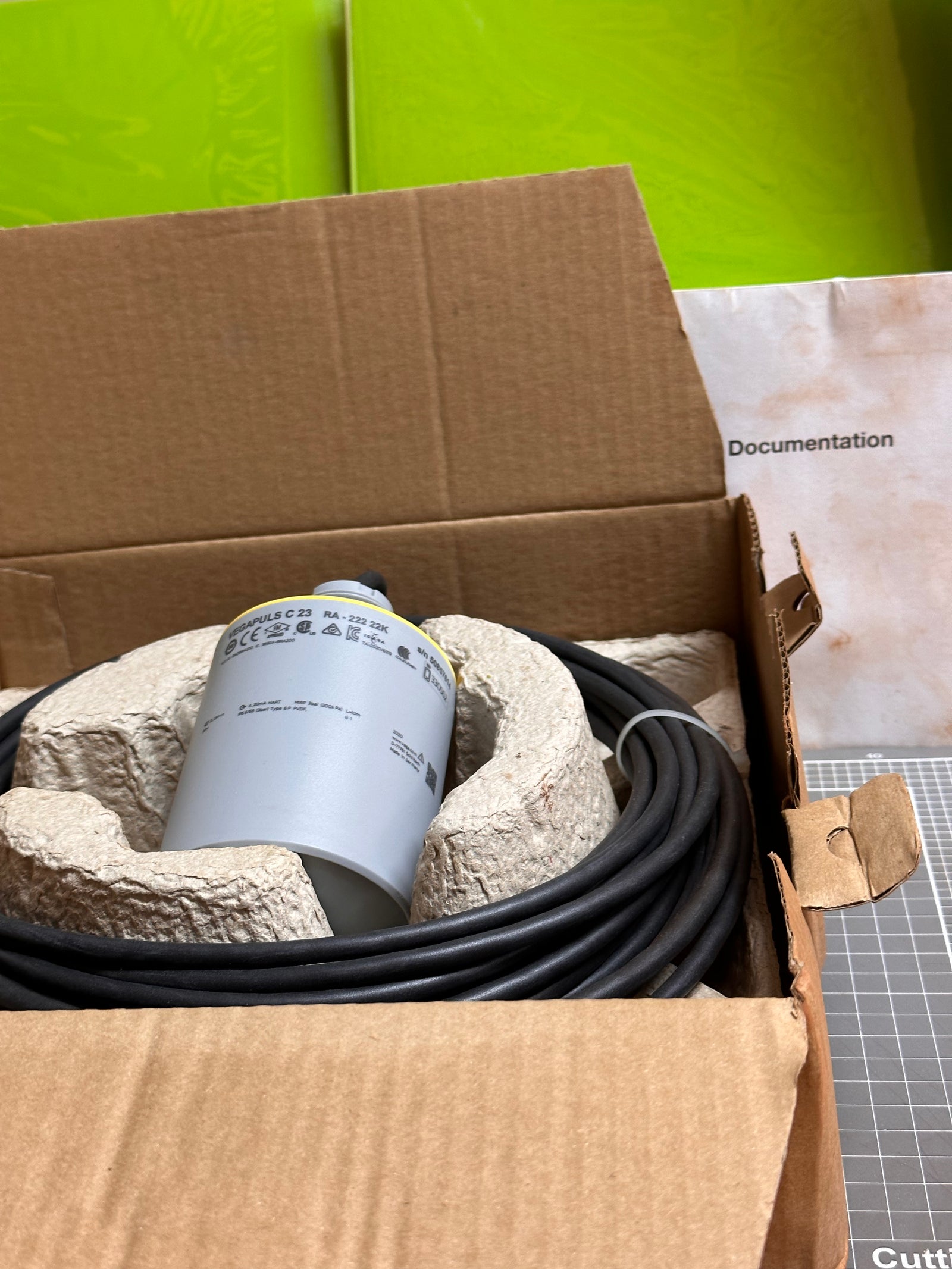

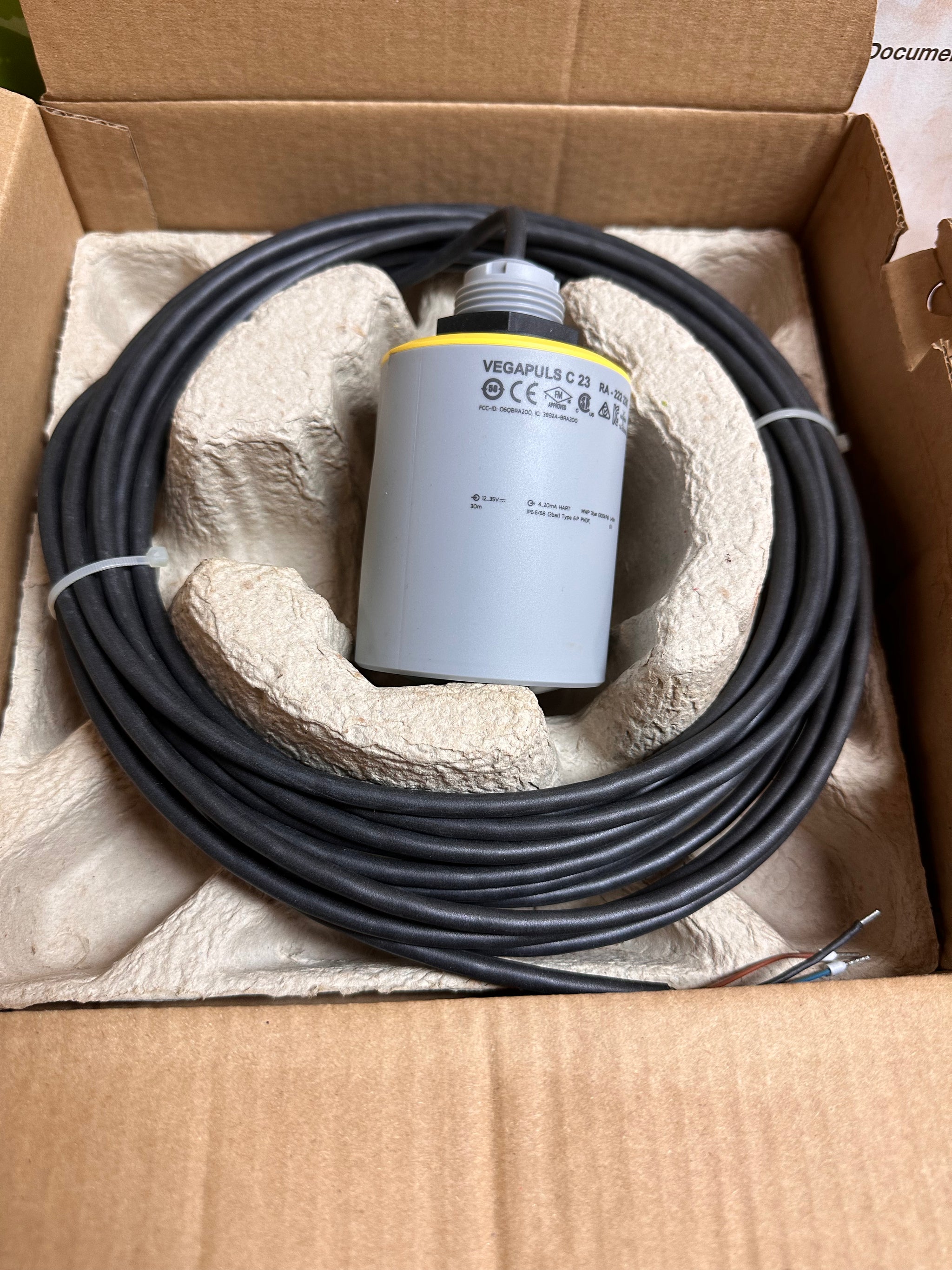

VEGA VEGAPULS C23 Series Radar Level Sensor RA 222 22K
- SKU
- P-VE-V-2807
$1,200.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 4.0 kg
Specifications
| Manufacturer | VEGA |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-VE-V-2807 |
| Weight | 4.0 kg |
Description
Measuring range up to 30 m (98.43 ft) Deviation ≤ 2 mm Beam angle 4° Measuring frequency W-band (80 GHz technology) Output signal 4 … 20 mA/HART Mounting connection Thread G1, 1 NPT, R1 Process pressure -1 … +3 bar (-100 … +300 kPa/- 14.5 … +43.51 psig) Process temperature -40 … +80 °C (-40 … +176 °F) Ambient temperature -40 … +80 °C (-40 … +176 °F) Bluetooth standard Bluetooth 5.0 Bluetooth range typically 25 m (82 ft) Operating voltage 12 … 35 V DC Protection rating IP66/IP68 (3 bar, 24 h) acc. to IEC 60529, Type 4X/6P acc. to UL 50
