VDO
VDO 310040003 / 310 040 003K 24V Oil Temperature Gauge — No Sender
- SKU
- P-VD-V-7225
$30.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | VDO |
|---|---|
| Product type | GAUGES |
| SKU | P-VD-V-7225 |
| Weight | 1.5 kg |
Description
VDO Cockpit International engine oil temperature gauge, references 310040003 / 310 040 003 / 310 040 003K / 310 040 003 K. Supplied without a sender.
Listed specifications
- Nominal system: 24 V; operating supply: 21.5–30 V DC.

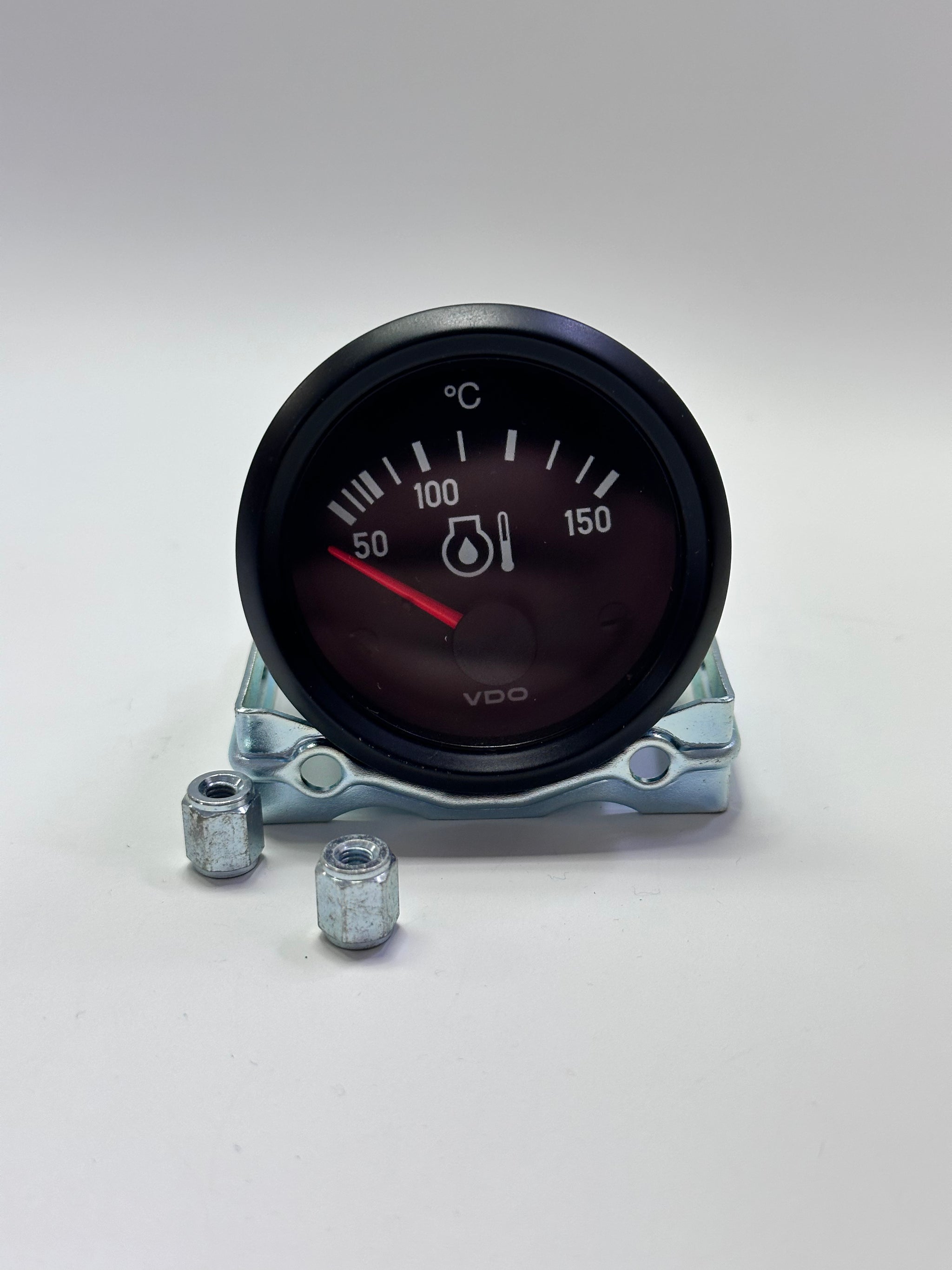

- Temperature range: 50–150°C.

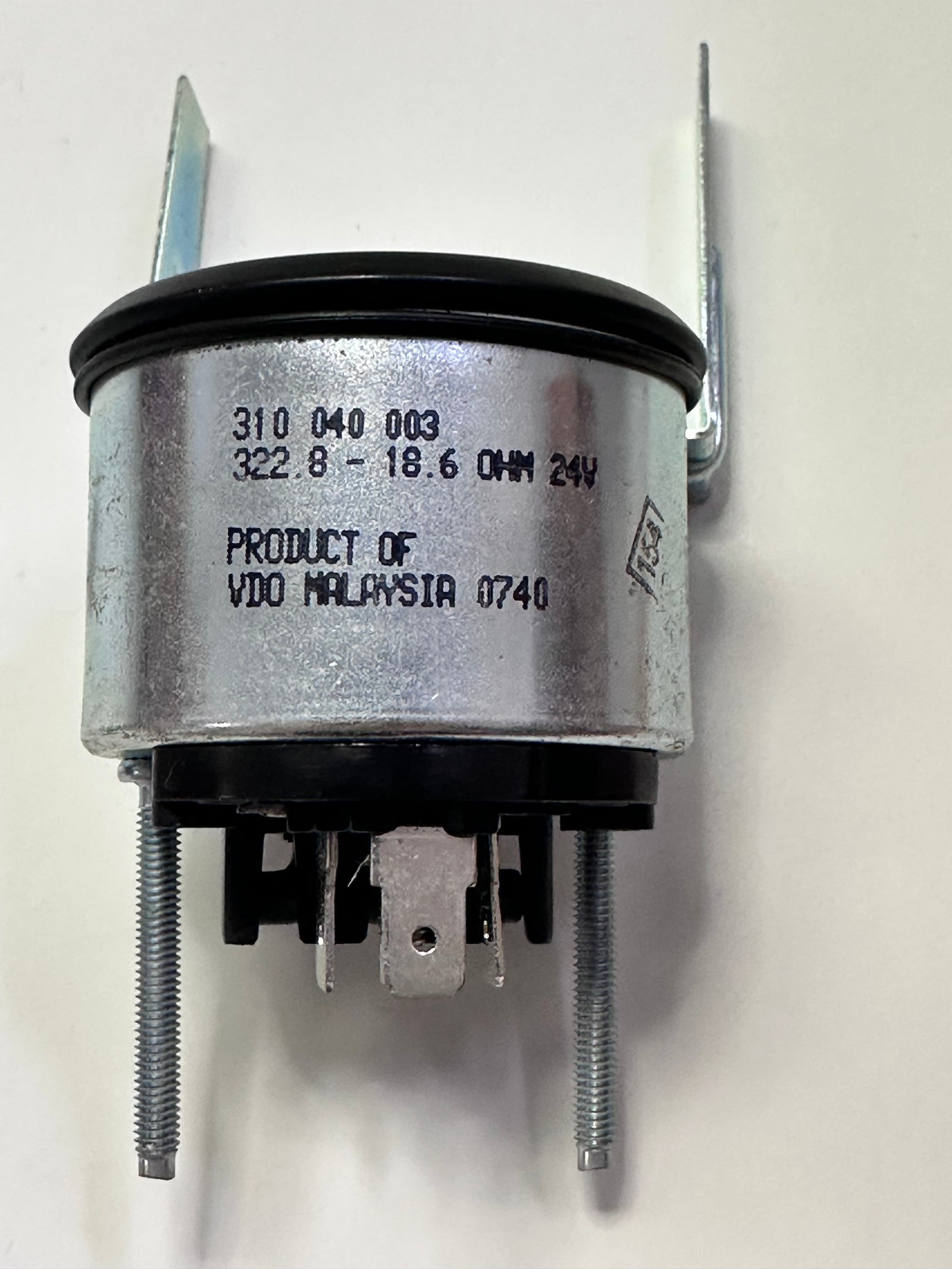

- Analogue signal: 322.8–18.6 ohms.
- Installation dimension: 52 mm / 2 1/16 inches.
- No warning light.
- Single non-reflective plastic lens.
- Black colour; black triangle bezel.
- Interchangeable bezel, requiring a special tool.
- Front protection: source-listed IP64 under DIN 40050; not a whole-unit ingress rating.
- Packaging recorded as VDO instrument retail.
- Country of origin recorded as Malaysia (“Maleisië”).
An existing tag says “6 ohm”, which does not match the source signal range above and remains unverified. Confirm the required sender curve and wiring before installation. A sender or bezel-changing tool is not specified as included.
