UNIMEASURE

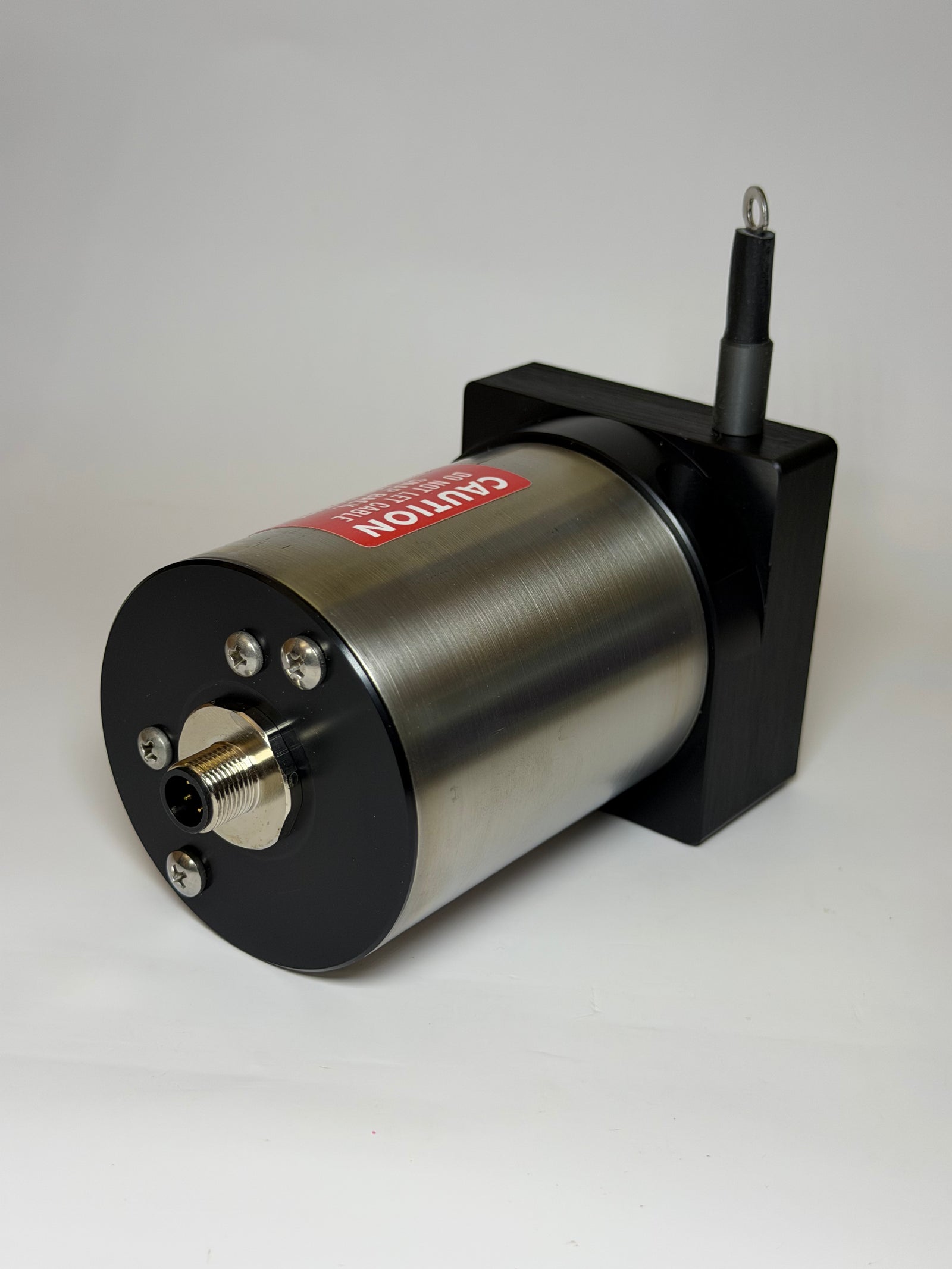

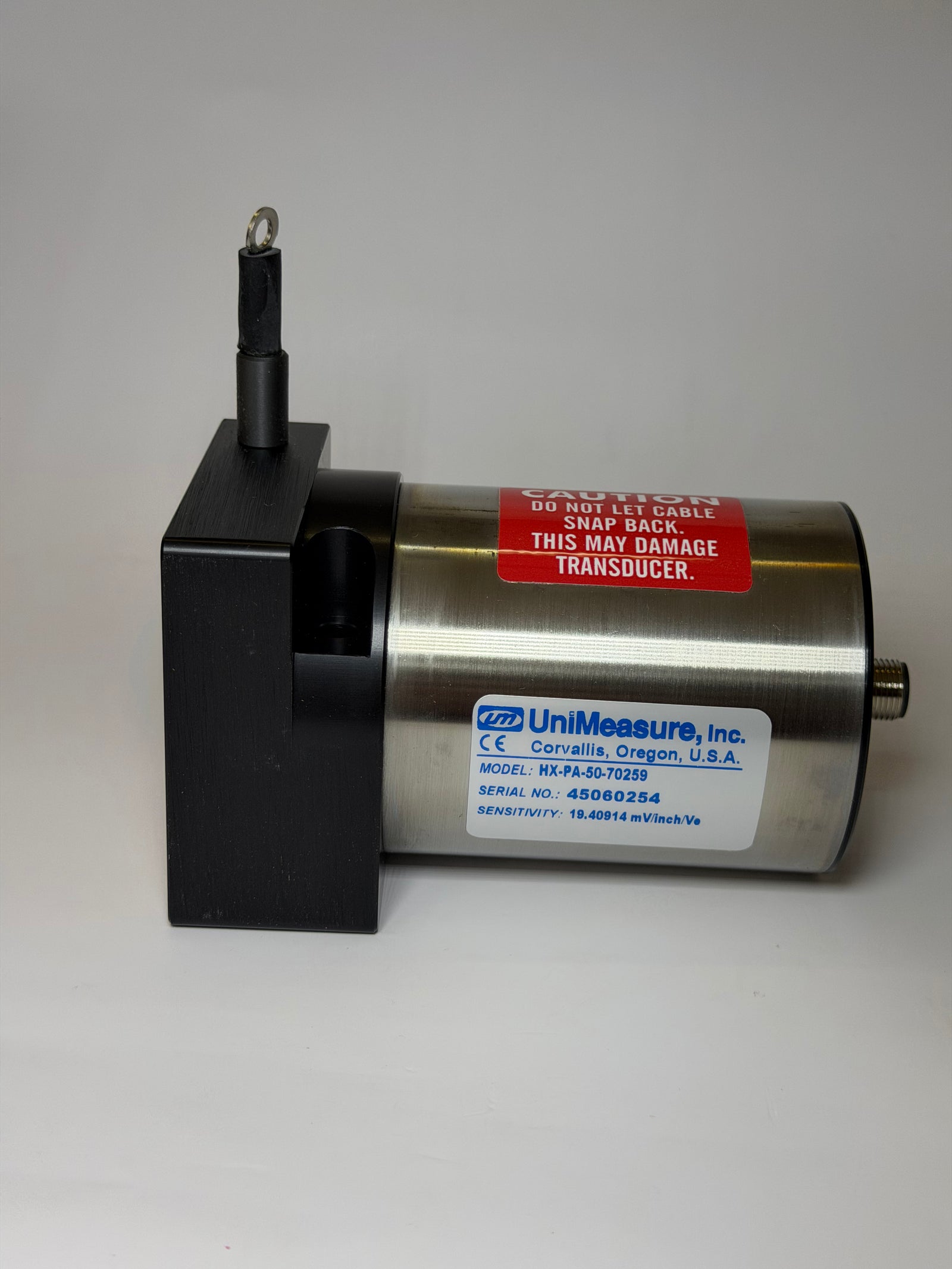

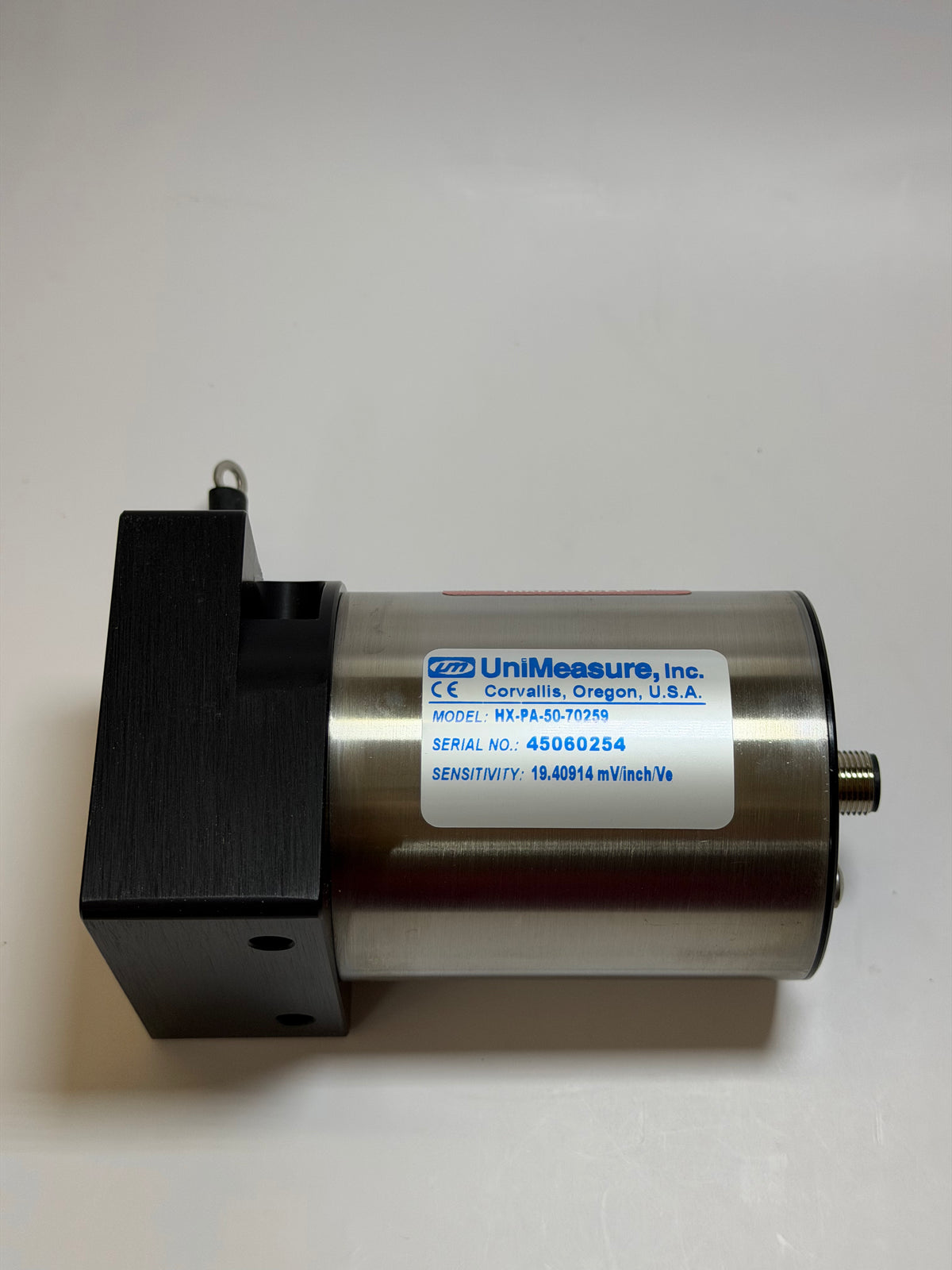

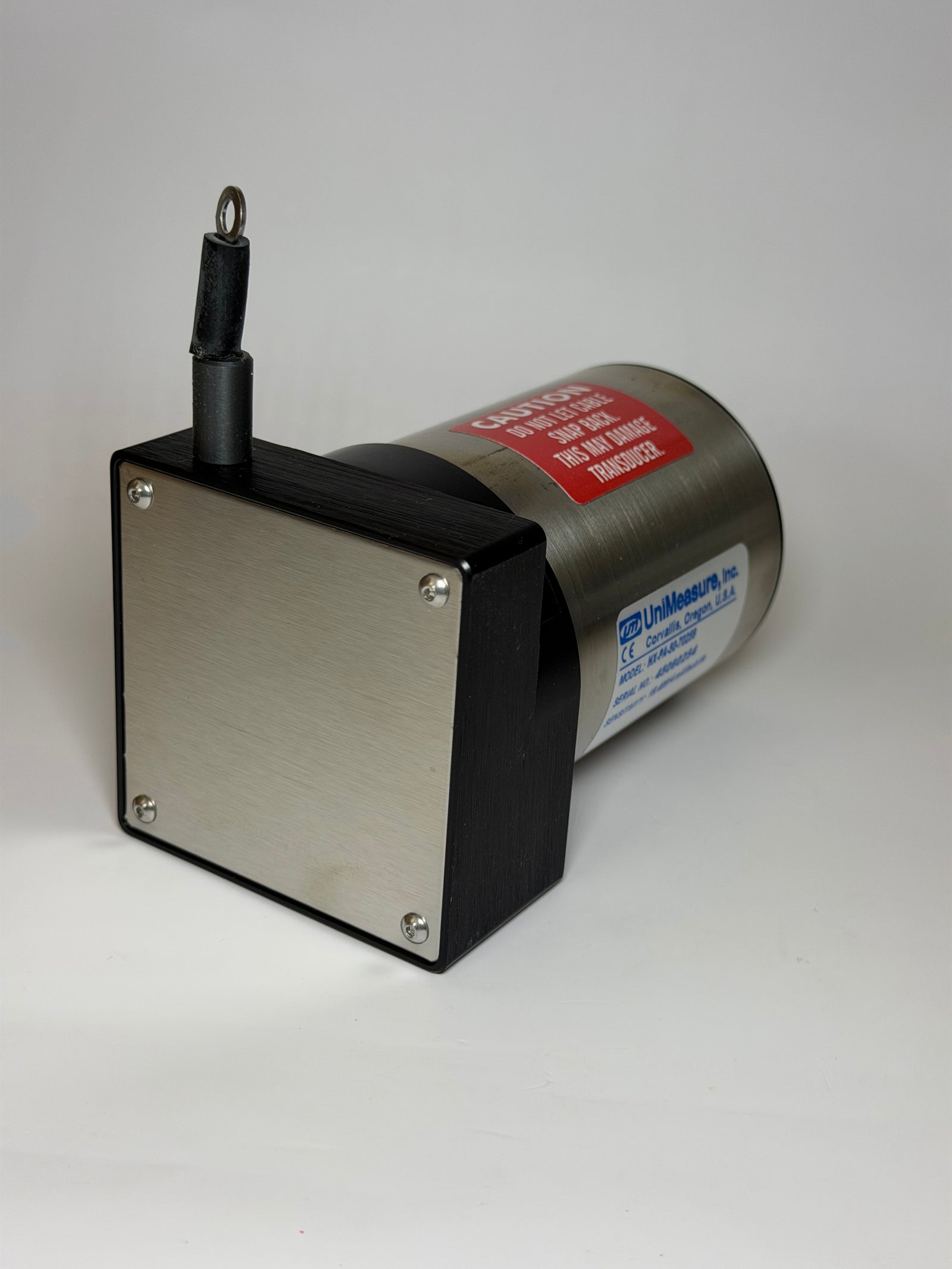

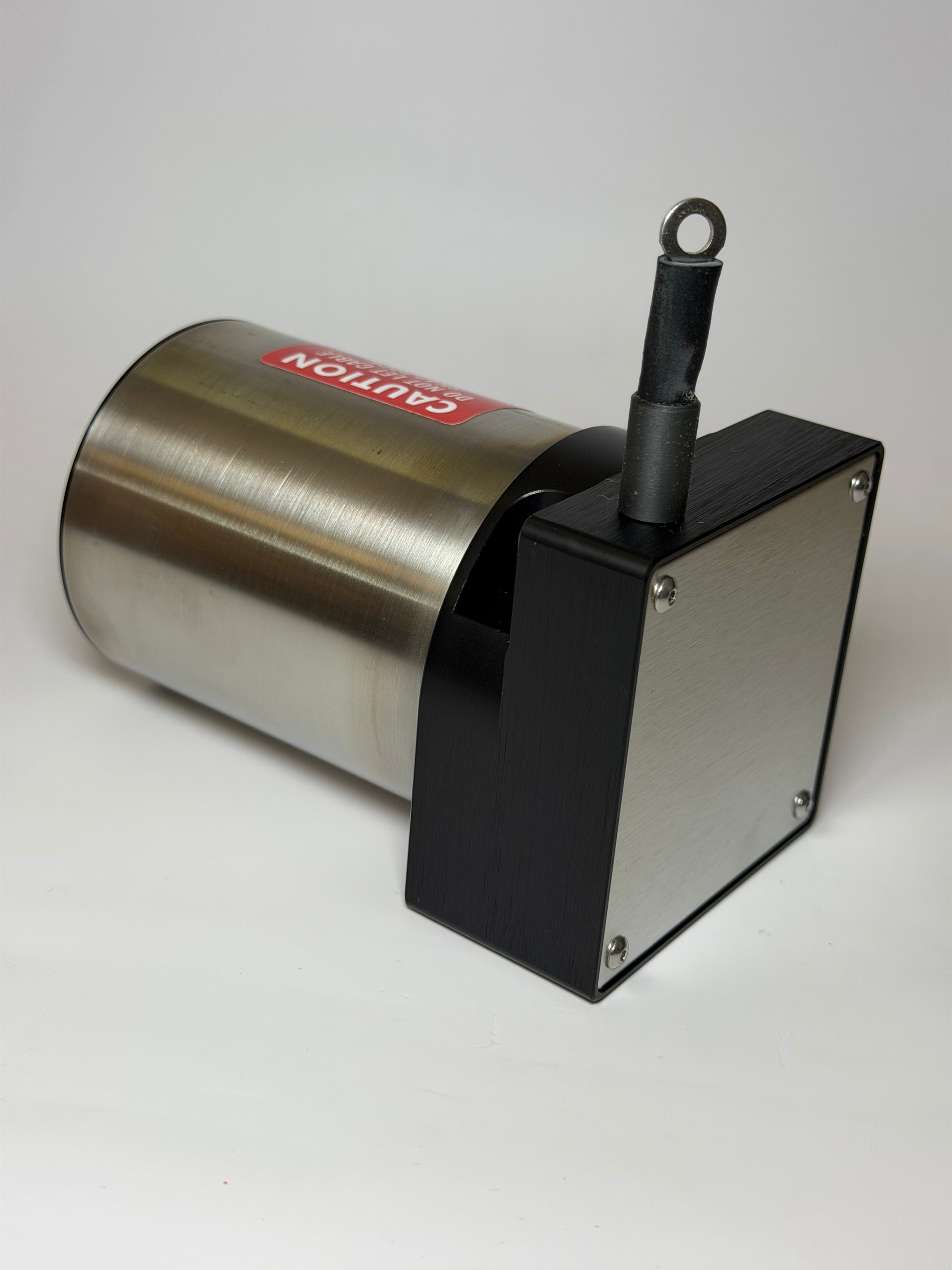

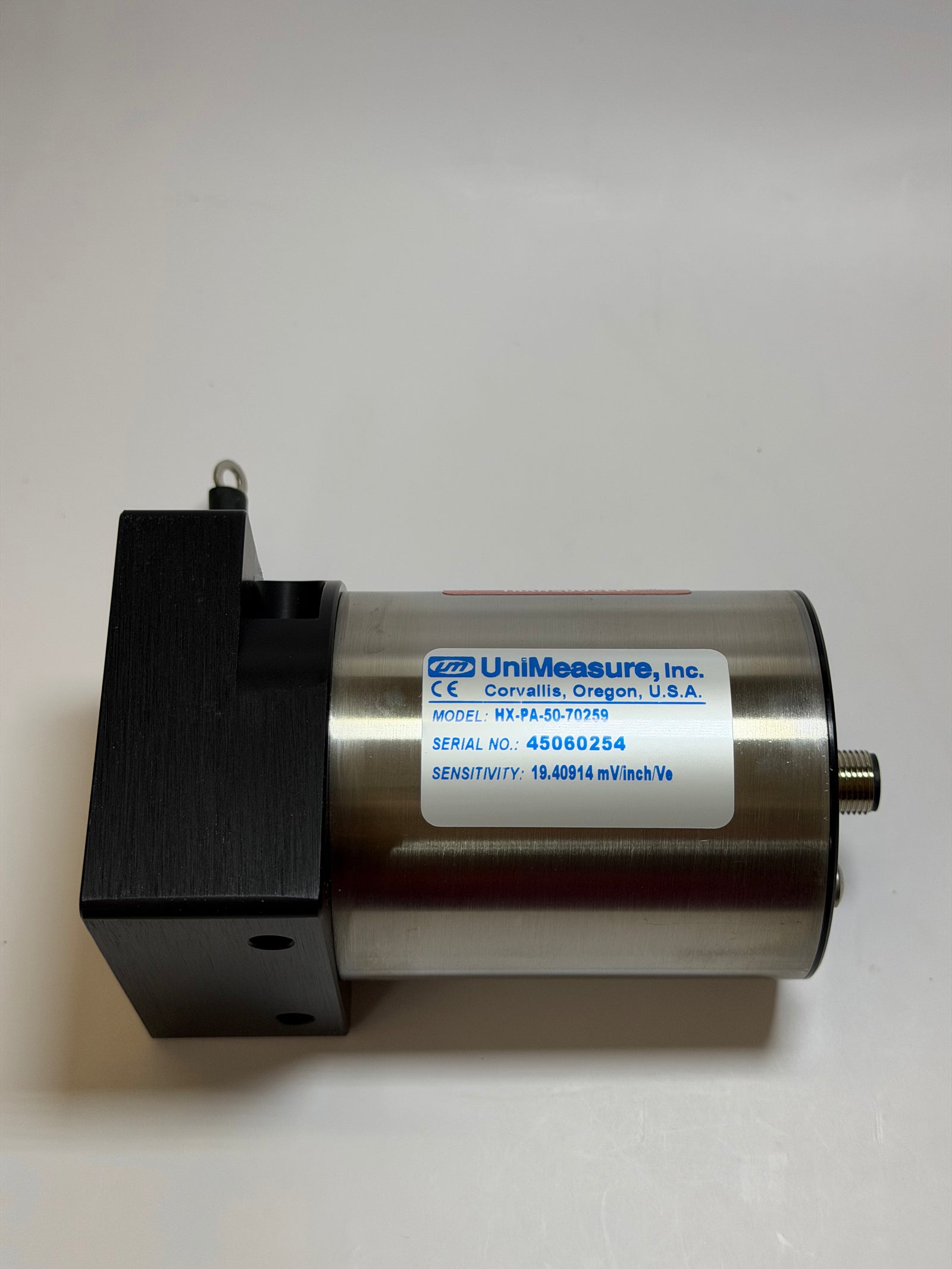

Unimeasure HX-PA Series Heavy-Duty Draw Wire Sensor with Ratiometric Output, HX-PA-50-70259
- SKU
- P-UN-U-8959
$550.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | UNIMEASURE |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-UN-U-8959 |
| Weight | 3.0 kg |
Description
Series: HX-PA (Potentiometer output, heavy-duty sealed)
Range ("50"): Refers to a 50-inch (or metric equivalent depending on configuration) measurement range
Electrical Output: Ratiometric voltage divider (voltage output proportional to wire rope extension)
Max Input Voltage: Up to 30 volts maximum (well-regulated voltage recommended for best linearity)
Construction Features: O-ring seals in all joints, wire rope dust/debris wipers, and a rigid two-point mounting system suited for harsh or wet environments (IP65 to IP68 capable depending on exact configuration)
HX: Series Designation. This indicates the UniMeasure HX Series, which consists of environmentally sealed, heavy-duty cable extension transducers designed for hostile environments (IP-65 to IP-68 rated).
PA: Electrical Output. This denotes a Potentiometric Analog output. It provides a ratiometric voltage divider output where the output voltage is directly proportional to the wire rope extension.
50: Measurement Range. This signifies a maximum linear measurement range of 50 inches (1,250 mm).
