TURCK

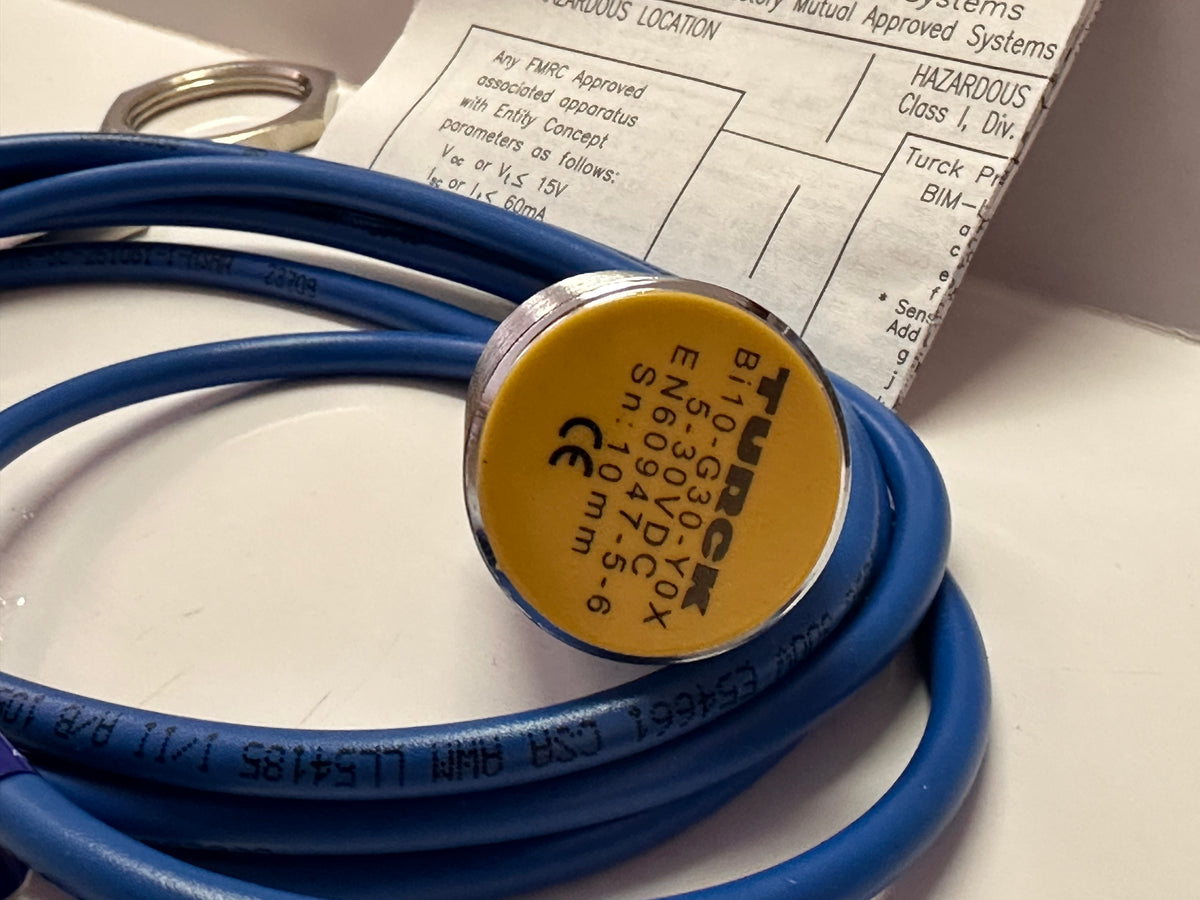

Turck BI10-G30-Y0X Inductive Proximity Sensor, 1005459
- SKU
- P-TU-T-3887
$200.00
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | TURCK |
|---|---|
| Product type | SENSOR |
| SKU | P-TU-T-3887 |
| Weight | 1.0 kg |
Description
Turck BI10-G30-Y0X threaded-barrel inductive proximity sensor, listed reference 1005459, with NAMUR output and nominal 8.2 VDC operating voltage.
Listed specifications
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 10 mm |
| Mounting | Flush |
| Operating voltage | Nom. 8.2 VDC |
| Output function | NAMUR |
| Switching frequency | 0.50 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Reference and approval checks
The original title describes the sensor as intrinsically safe. Confirm the actual unit label, full approval marking and applicable documentation before selecting it for a hazardous-area installation; the source does not establish an explosion-proof enclosure rating.
Additional source references: Bi10-G30-Y0X; Bi10-G30-Y1X; 4020000; 8193150; MS25-Ui. Their relationship to the supplied sensor is not confirmed. Check the Y0X/Y1X variant and required system compatibility before ordering.
