TURCK

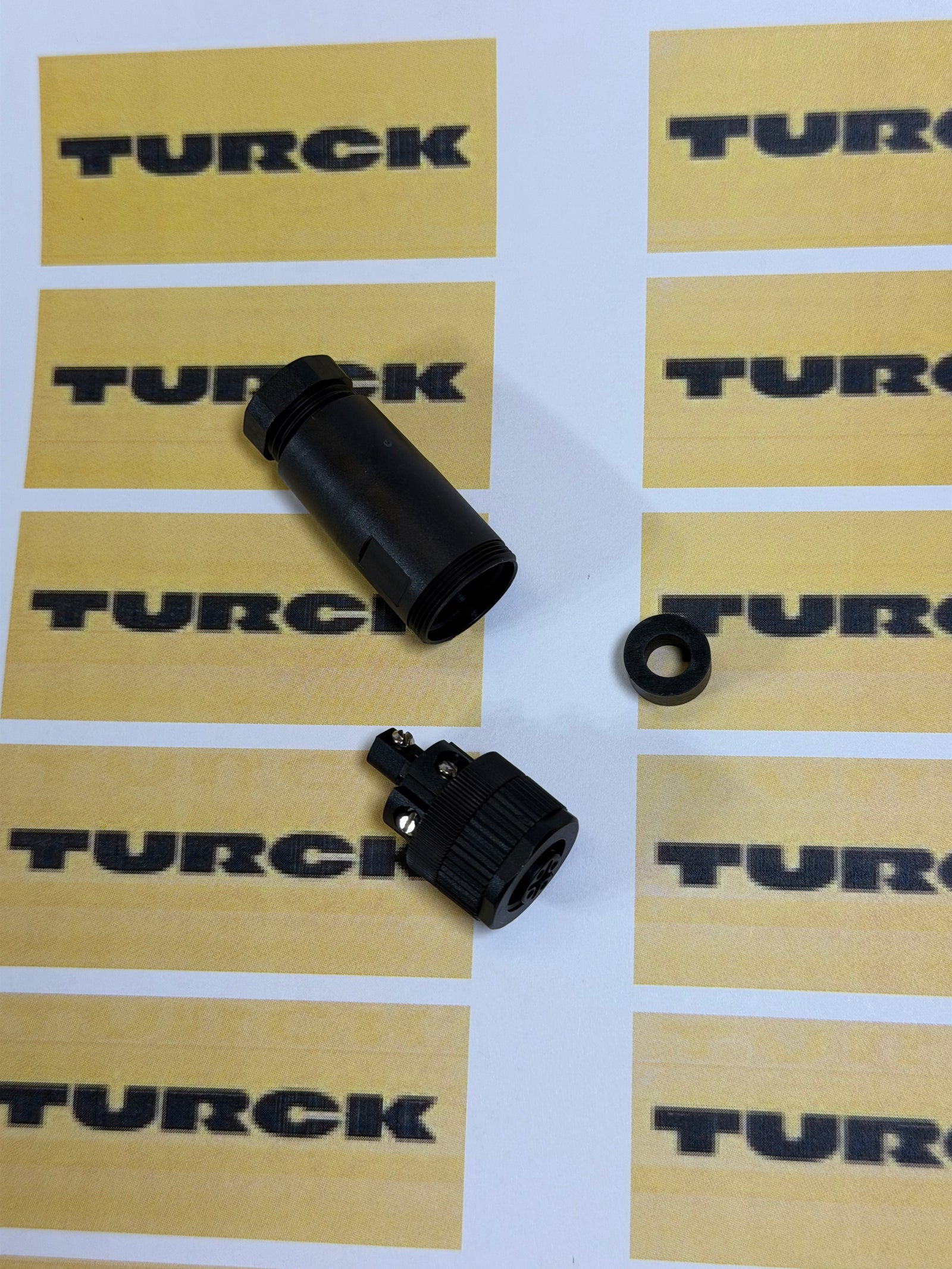

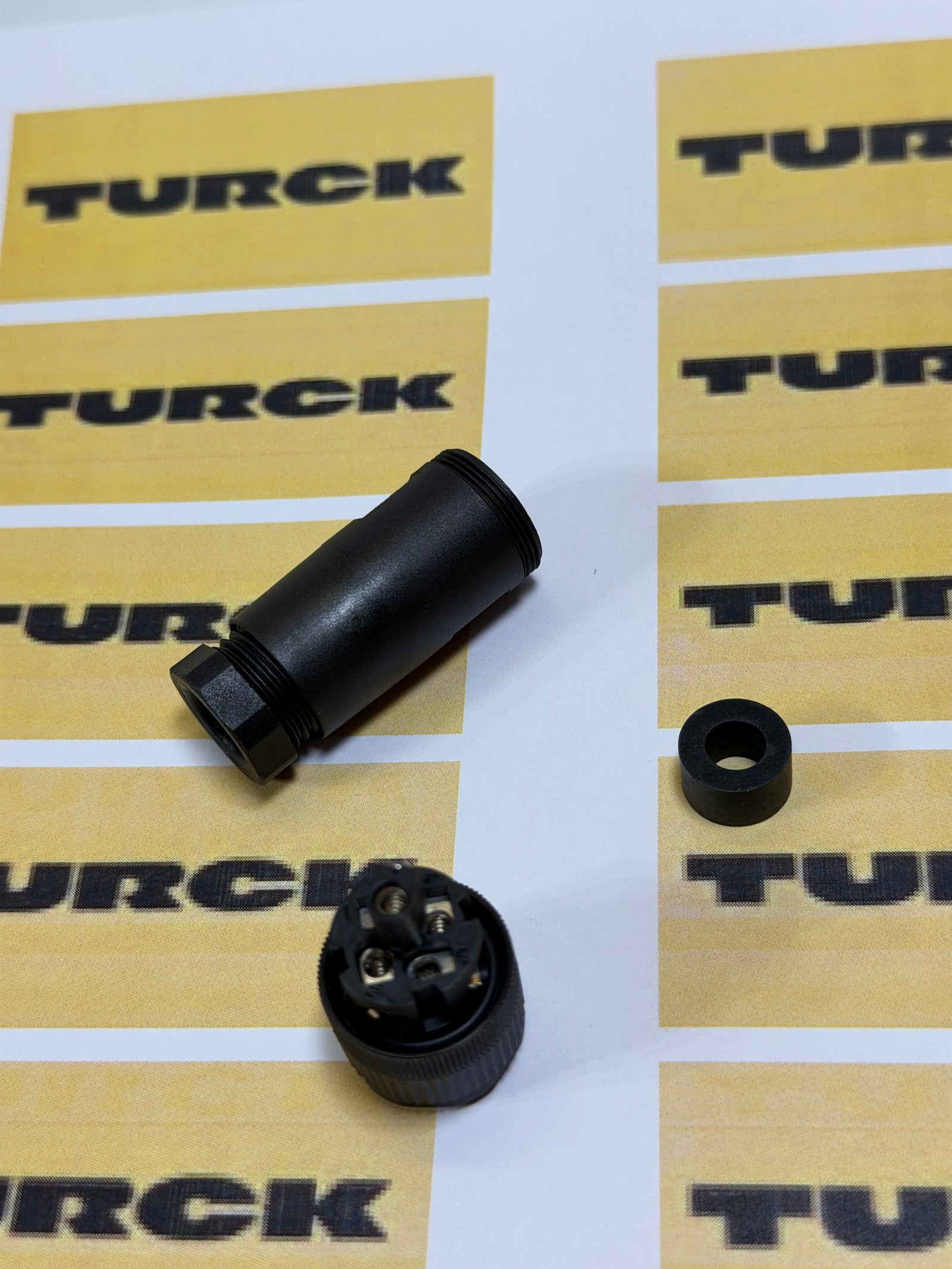

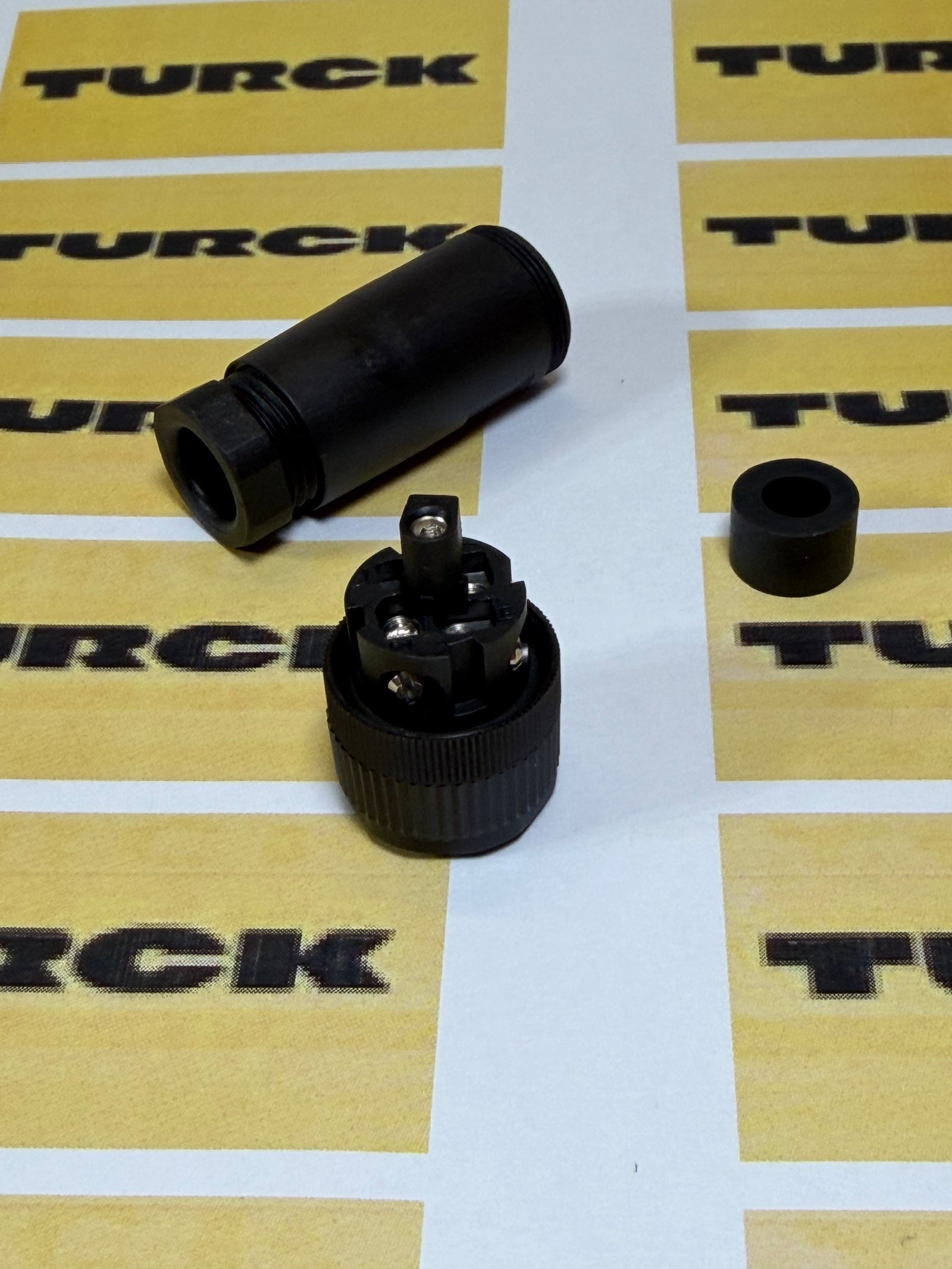

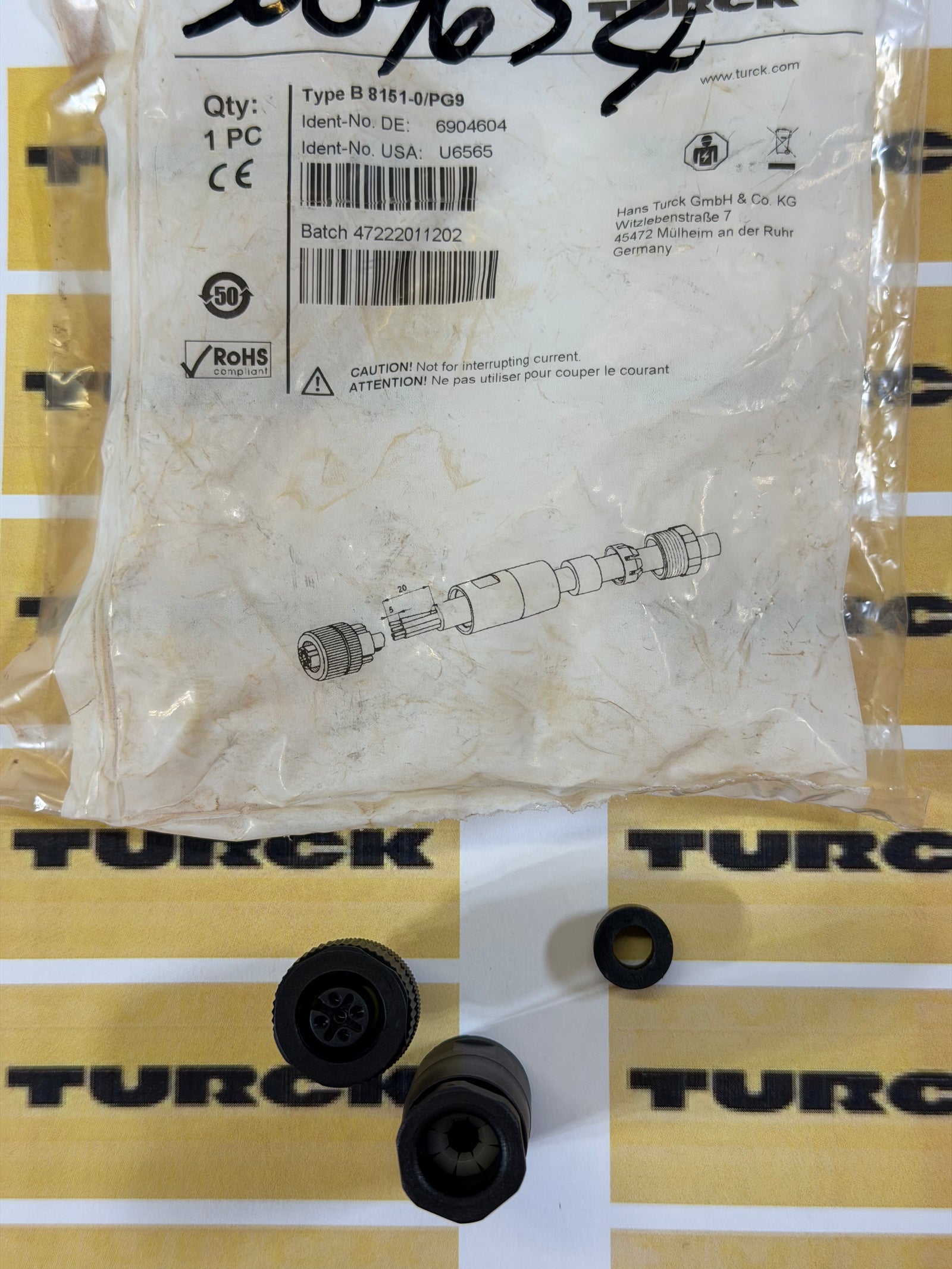

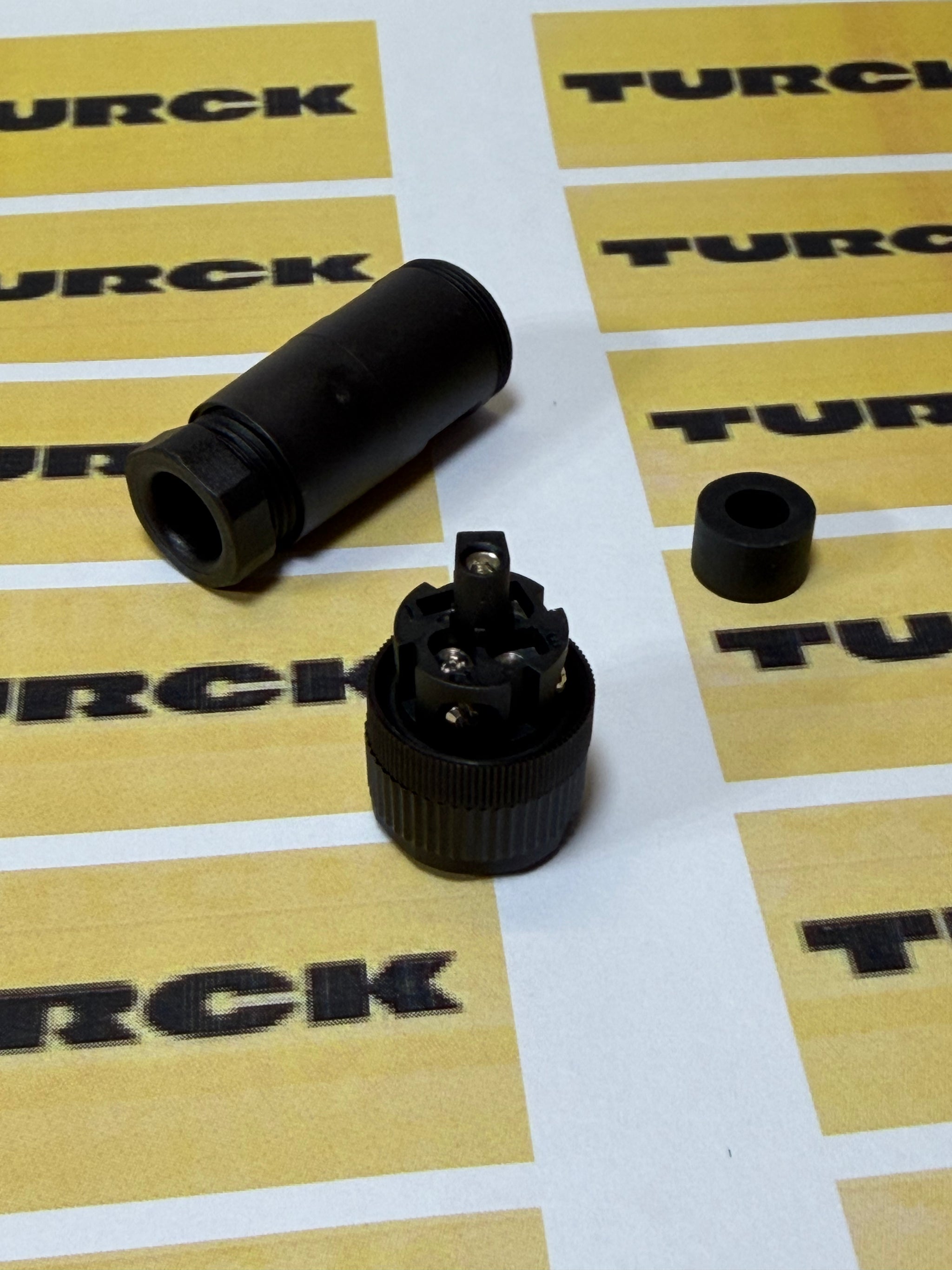

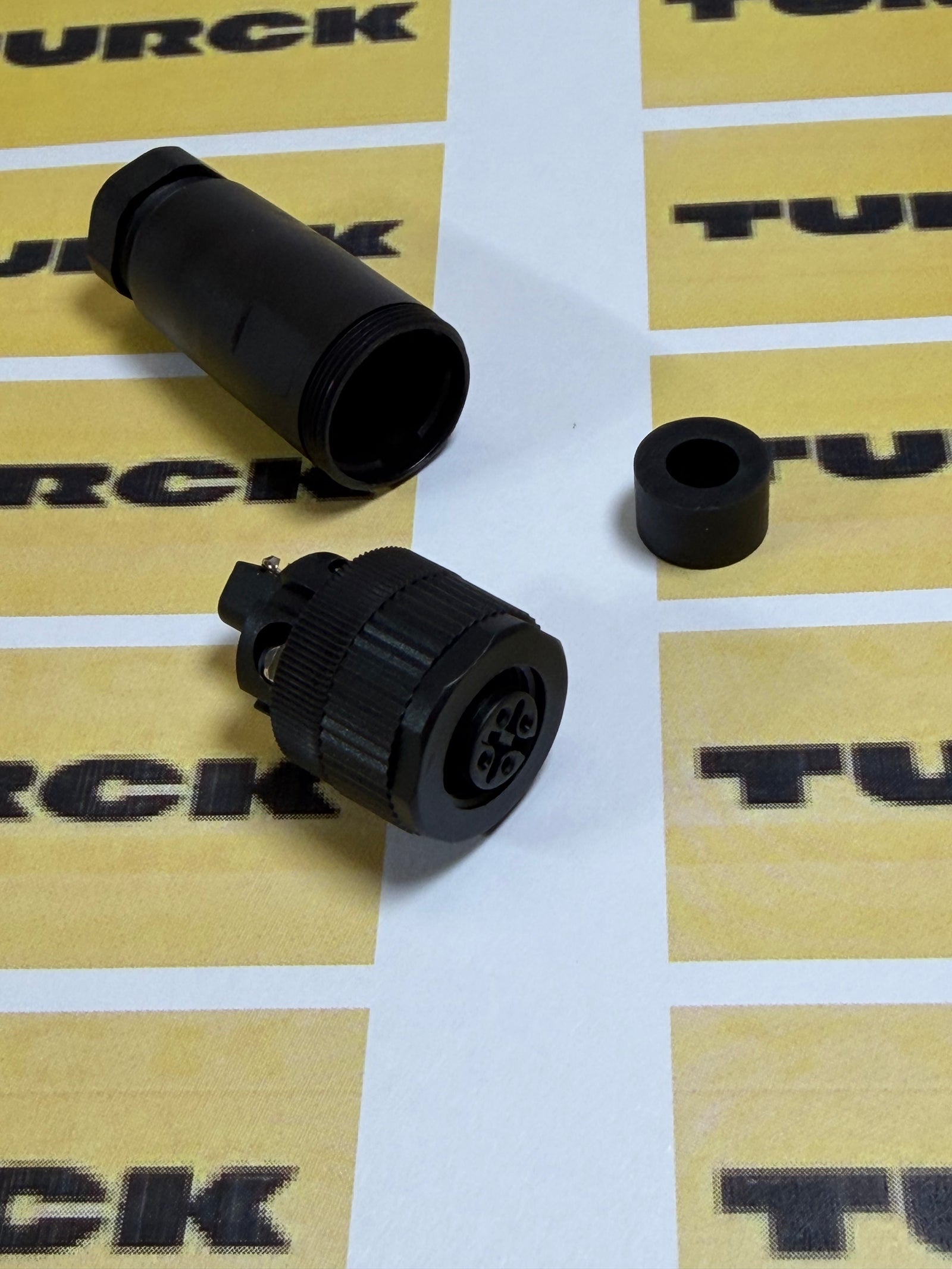

Turck B8151-0/PG9 5-Pin Field-Wireable Connector – 6904604
- SKU
- P-TU-T-8534
$27.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | TURCK |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TU-T-8534 |
| Weight | 0.5 kg |
Description
Turck B8151-0/PG9 field-wireable connector, order reference 6904604. The source also records the spaced designation B 8151-0/PG9.
Recorded specifications
- Applications: data, RFID and signal.
- Connection mode: screw/clamp connection.
- Connector A: 5 pins.
- Maximum conductor cross-section: 0.75 mm².
- Current: 4 A; voltage: 125 V.
- Network protocols: CANopen and DeviceNet.
- Plug body: plastic.
- Screw-in thread: PG9; source tags additionally identify M12.
- Approval recorded: cULus recognized.
Confirm connector gender, coding, mating interface and cable-entry requirements against the exact model before ordering. This is a connector, not a sensor module or a supplied cable assembly; approval suitability should be checked against the product documentation.
