TRIDON
Tridon TTBY68-73P T-Bolt Hose Clamp, 68–73 mm
- SKU
- P-TR-T-5575
$6.60
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | TRIDON |
|---|---|
| Product type | FASTENERS & FIXINGS |
| SKU | P-TR-T-5575 |
| Weight | 0.5 kg |
Description

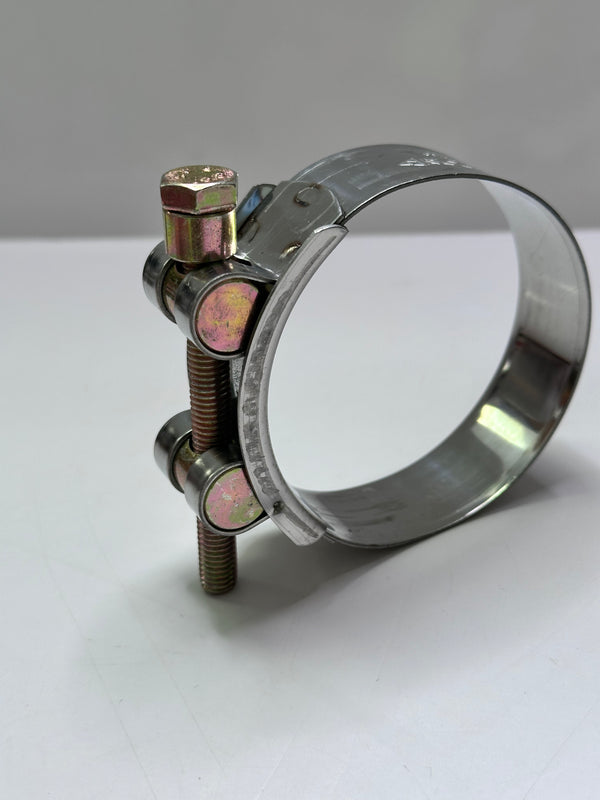

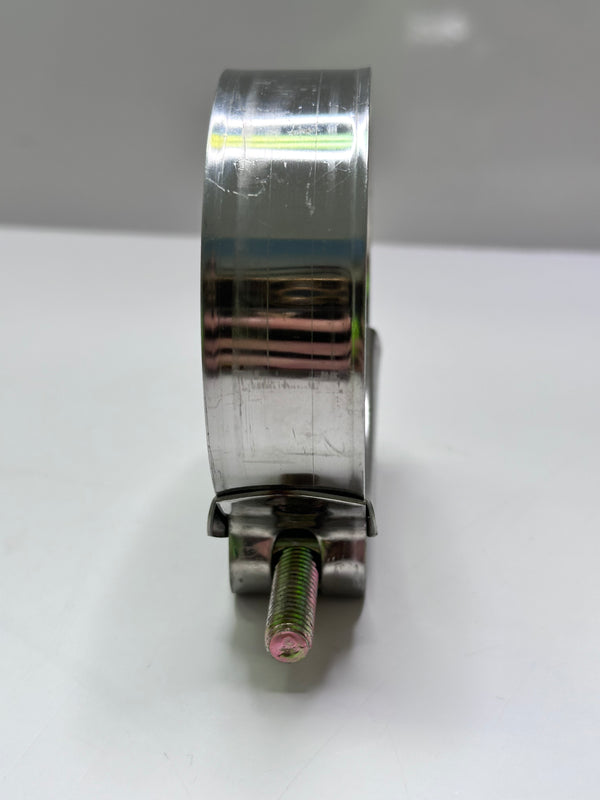

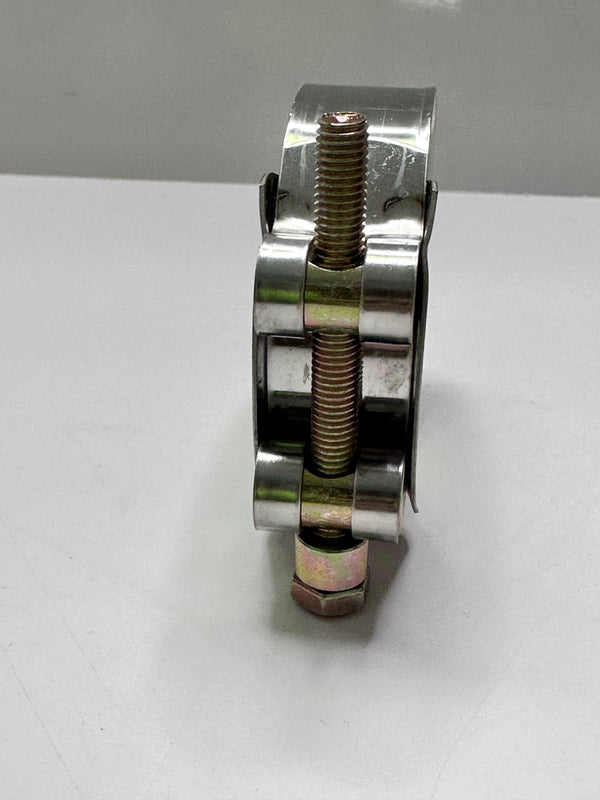

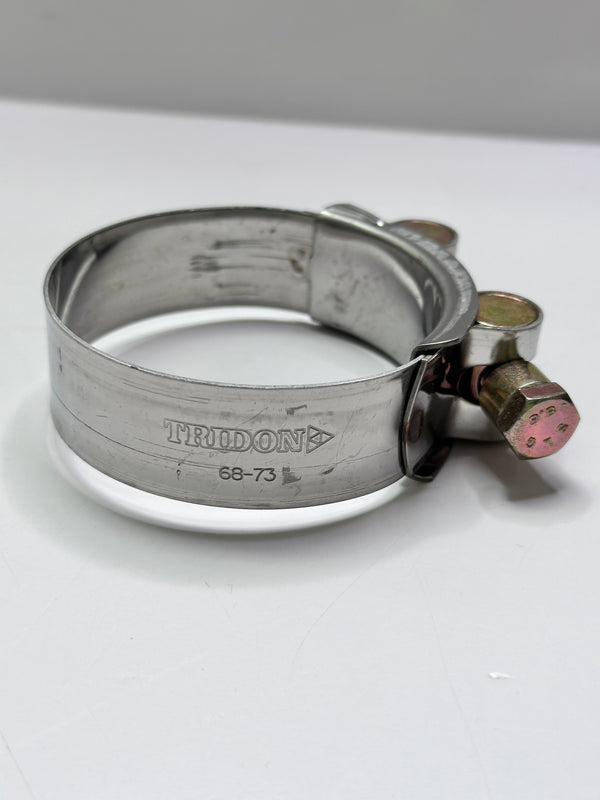

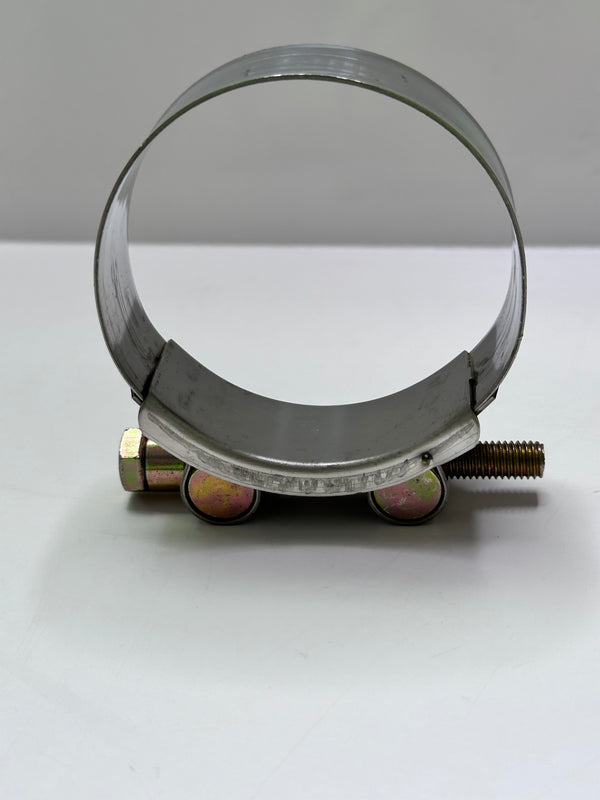

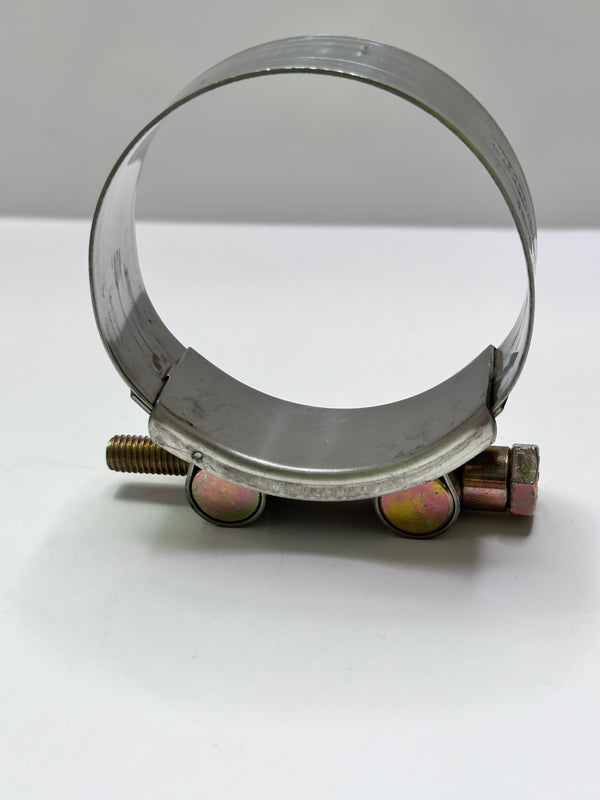

Tridon TTBY68-73P T-bolt hose clamp with a 68–73 mm clamping range, listed for turbo pipe and intercooler hose applications.
Materials and construction
- 430 stainless steel band and bridge.
- High-tensile carbon steel bolt with zinc plating.
- Zinc-plated carbon steel collar and trunnions.
- Wide solid band and rolled edge.
- Hex bolt, collar and solid-trunnion design for even tensioning.
The source describes this clamp style for applications requiring high clamping loads and additional sealing strength, including heavy-duty automotive, truck, mining, marine, industrial, farming, irrigation, agriculture, manufacturing, construction and DIY work.
The range description mentions three welds per band on larger sizes; it does not confirm this feature for the 68–73 mm unit. No tightening torque, pressure rating or band width is supplied. Match the clamp range and materials to the hose and application.
