TRIDON

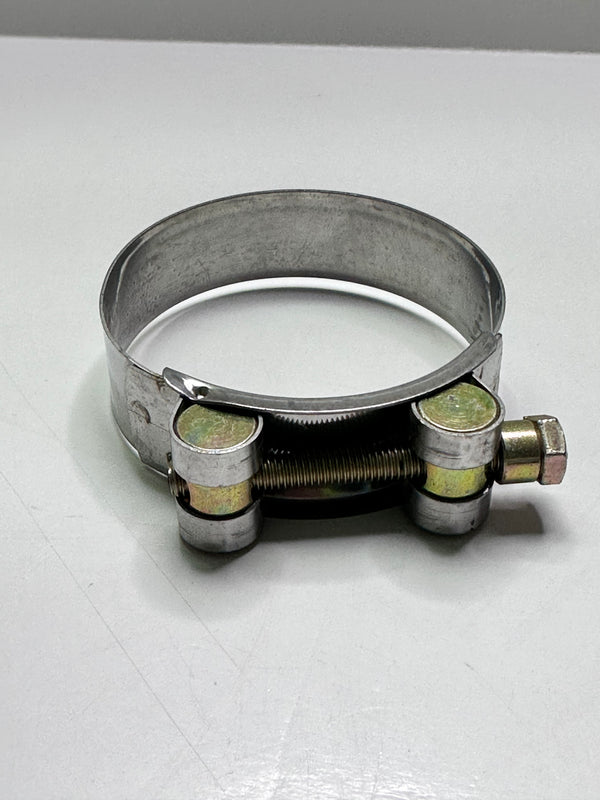

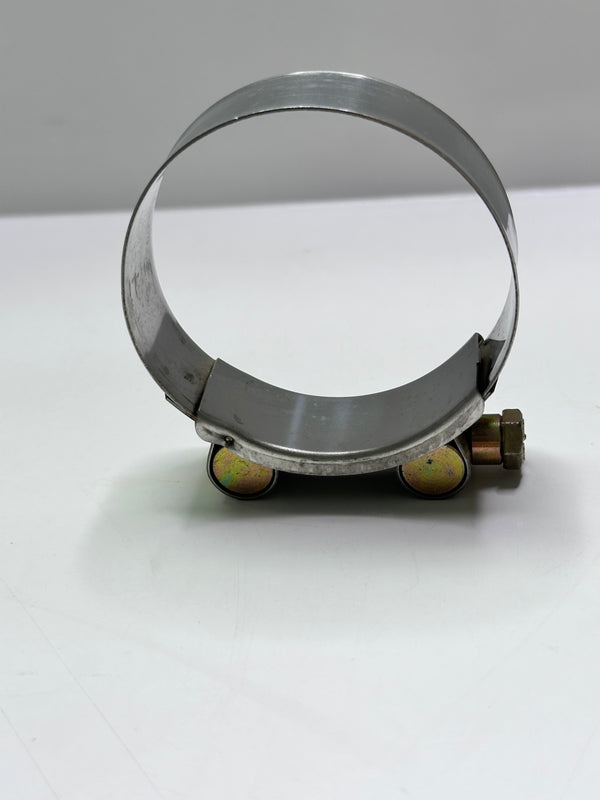

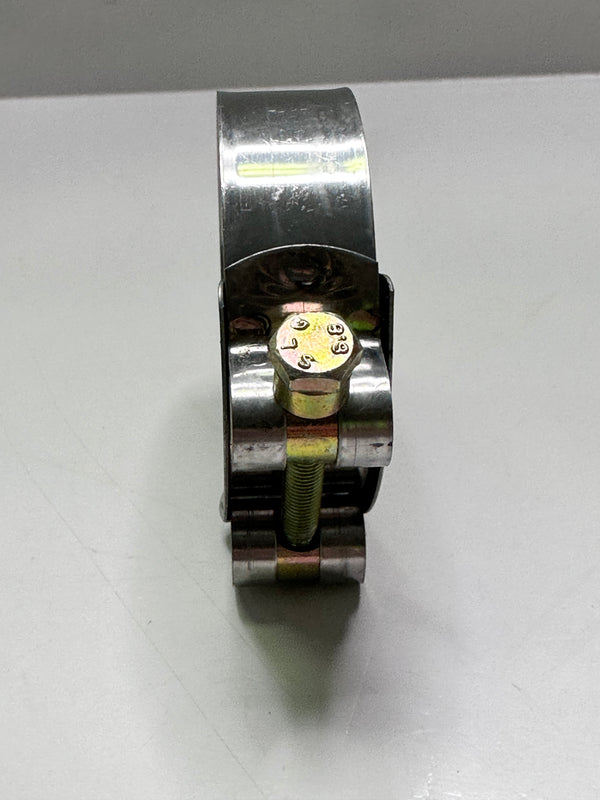

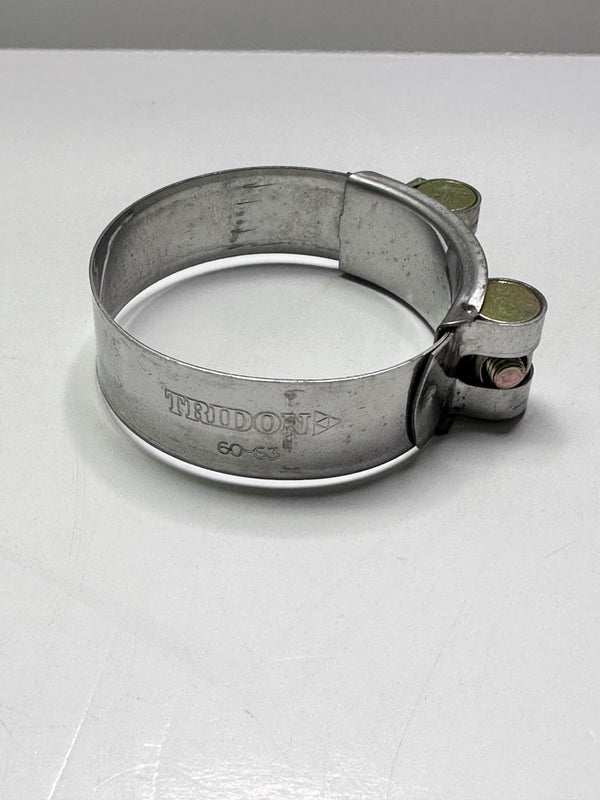

Tridon TTBY60-63P T-Bolt Hose Clamp – 60–63mm, Part S/S
- SKU
- P-TR-T-5576
- Weight
- 0.4 kg
Specifications
| Manufacturer | TRIDON |
|---|---|
| Product type | FASTENERS & FIXINGS |
| SKU | P-TR-T-5576 |
| Weight | 0.4 kg |
Description
Tridon TTBY60-63P T-bolt hose clamp, 60-63mm range, solid band, listed for turbo pipe and intercooler use. The title says Part S/S; the tag TTYB is retained as written.
Conflicting source material description
- 304 stainless steel band.
- 304 stainless steel bridge.
- High tensile 316 stainless steel bolt.
- 300 stainless steel collar.
- 300 stainless steel trunnions.
The description calls this all stainless steel, conflicting with the title's part-stainless wording. These material entries require confirmation for this exact TTBY60-63P variant.
Source design and application context
The source describes a wide band, rolled edge, hex bolt/collar/solid-trunnion tensioning design and three welds per band on larger sizes. It markets the range for high tightening loads and automotive, truck, mining, marine, industrial, farming, irrigation, agriculture, manufacturing, construction and DIY applications.
Those range statements do not confirm three welds on this size or a pressure rating. Confirm material, clamping range and installation requirements; no superior sealing, no-hose-damage or universal high-pressure suitability guarantee is added.
