TOYOTA

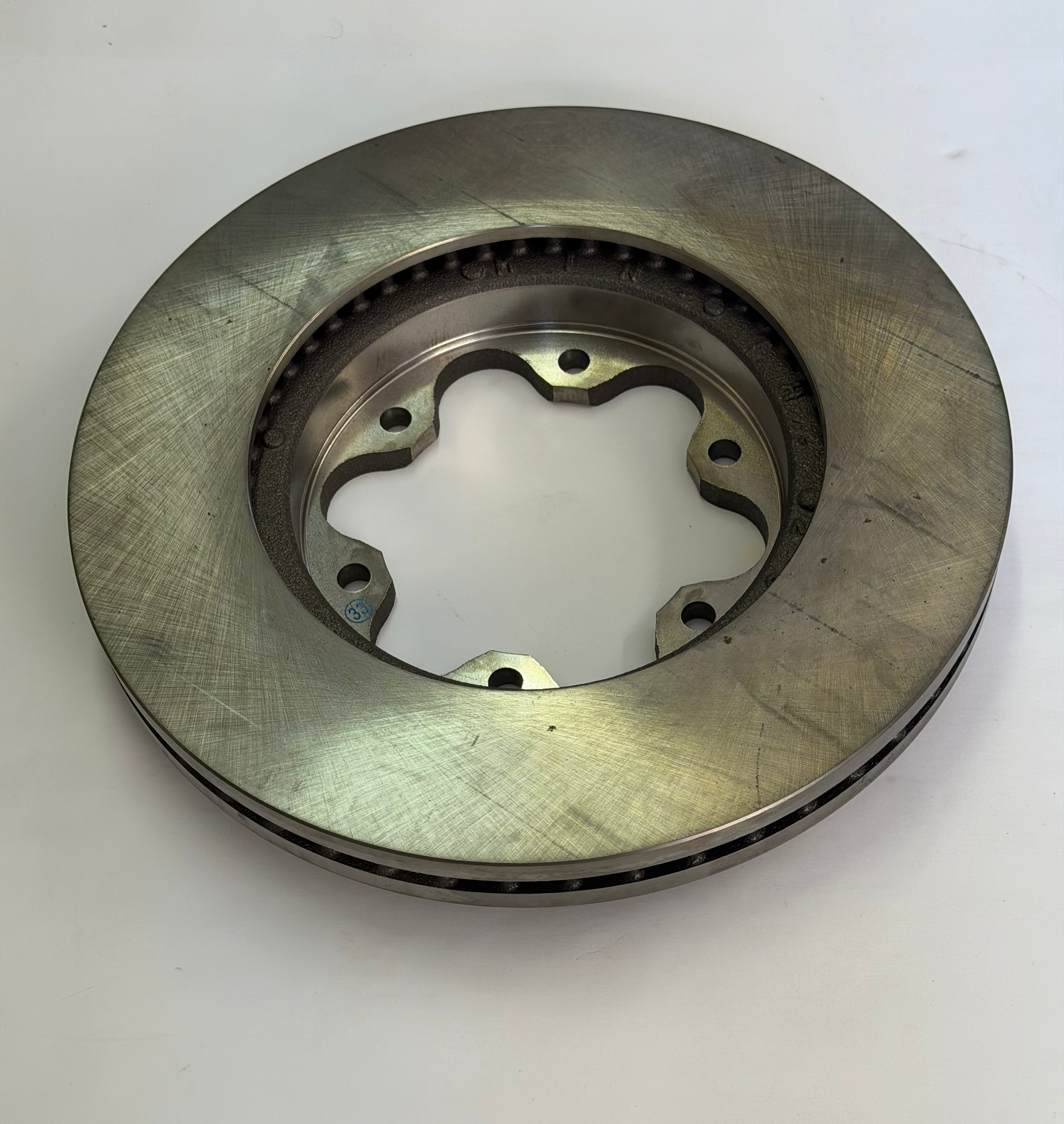

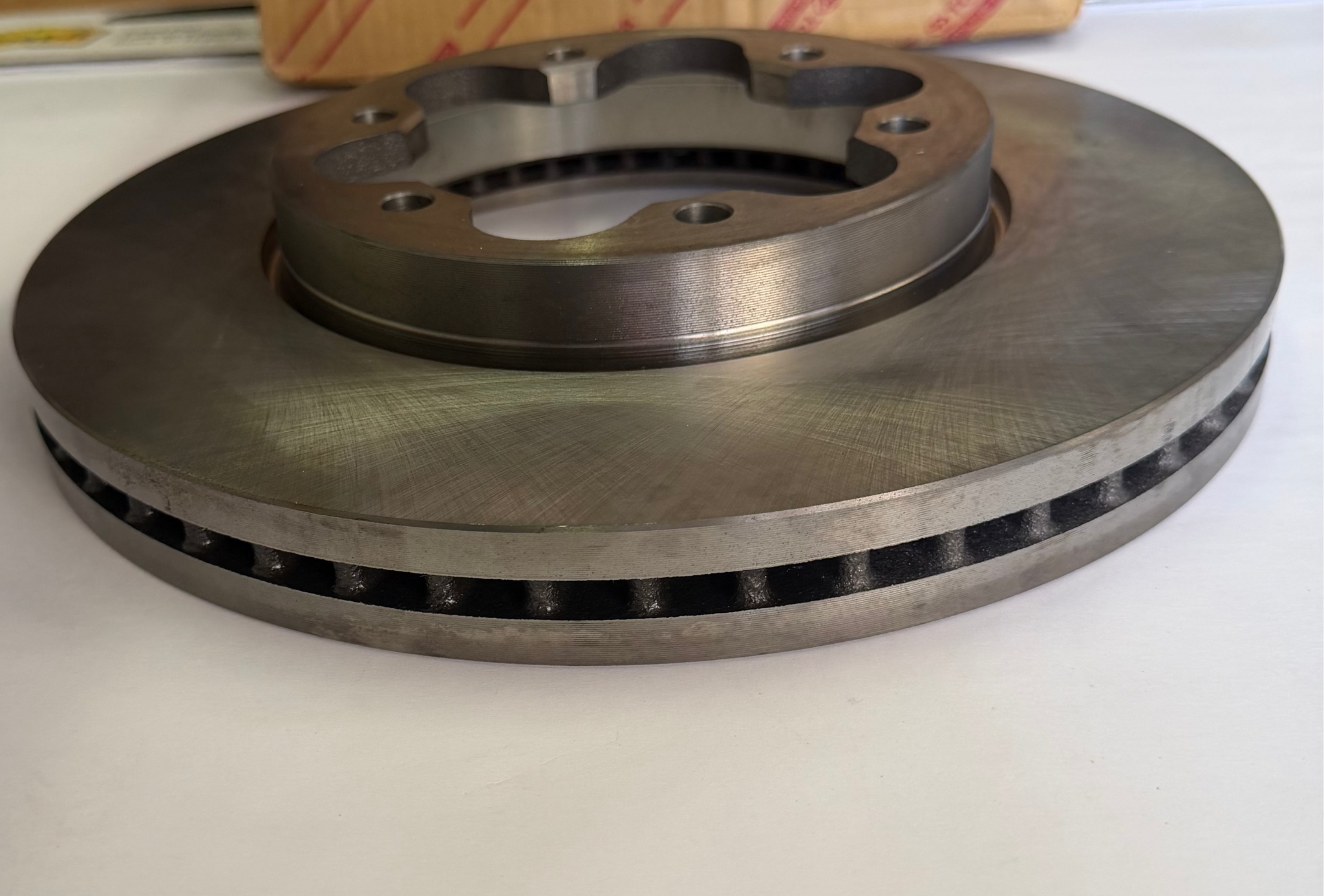

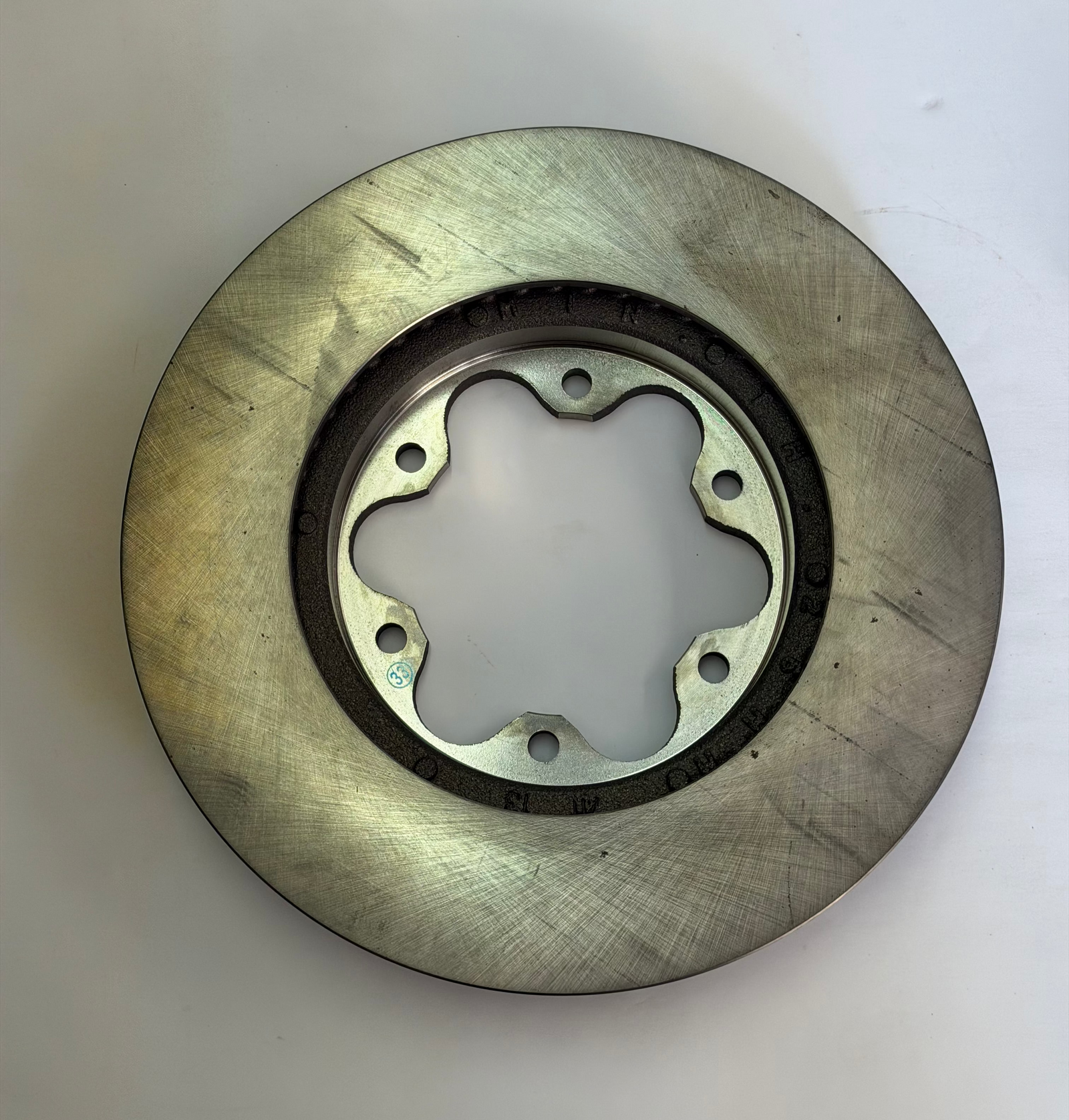

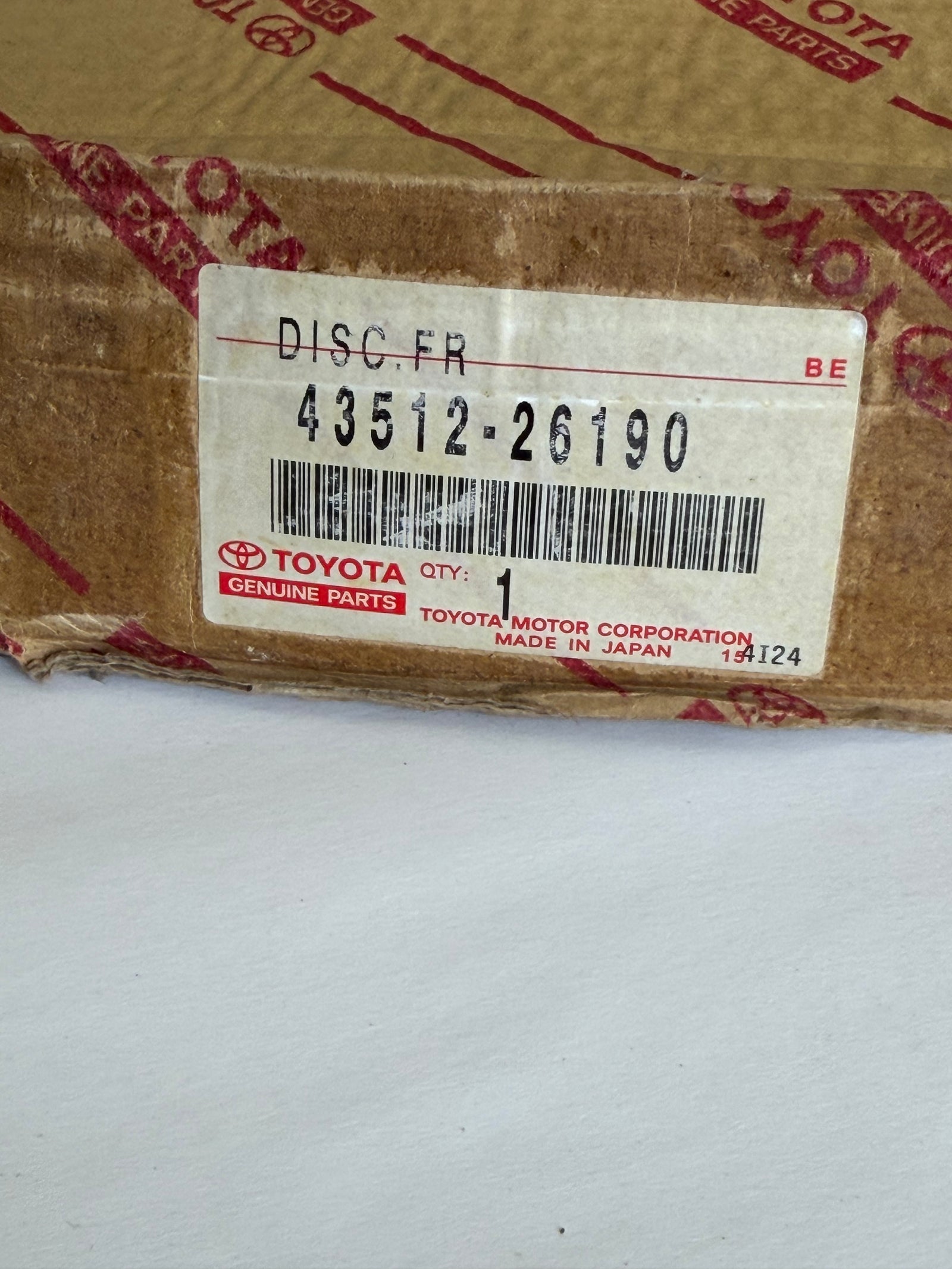

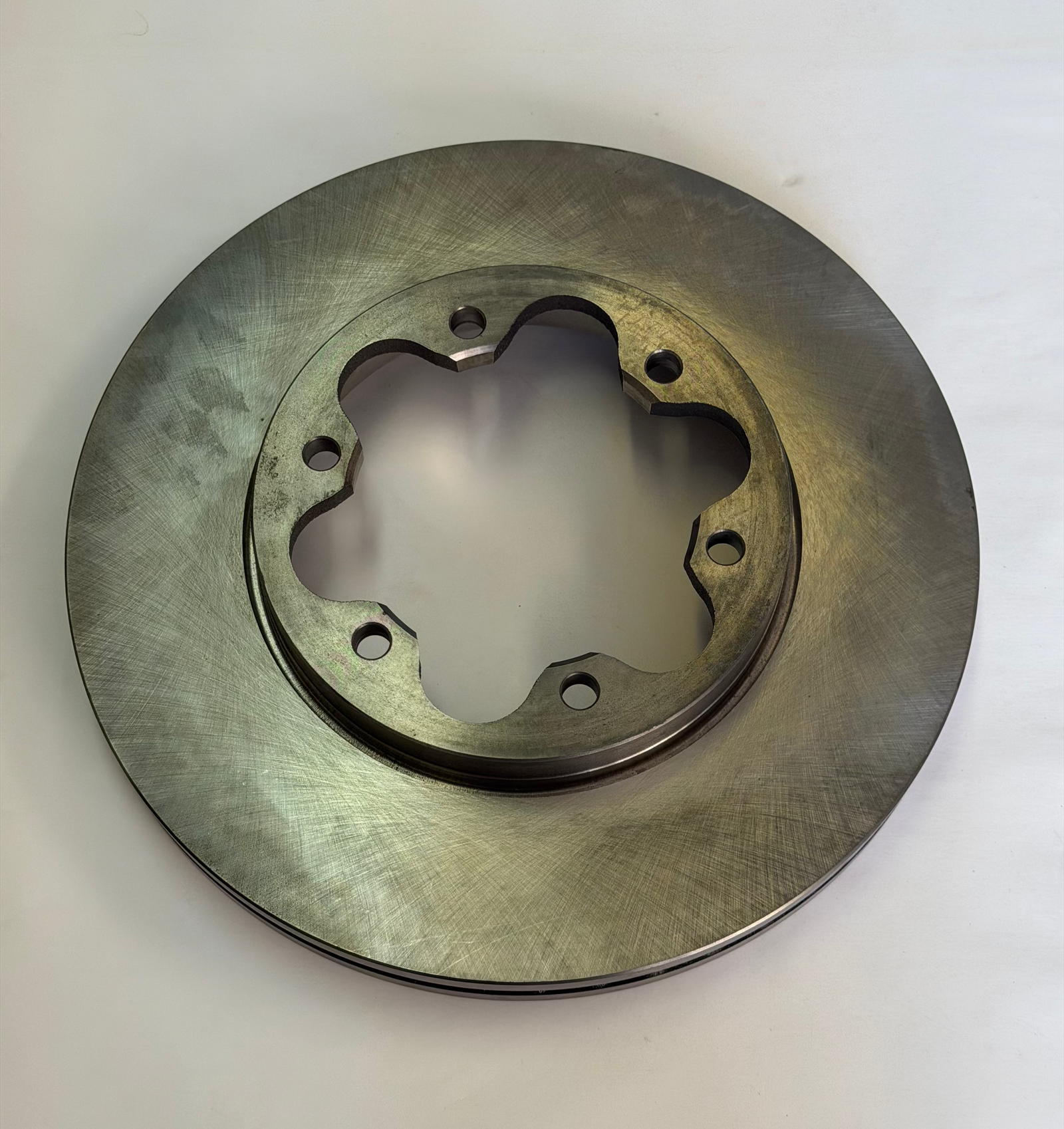

Toyota 43512-26190 Genuine Front Brake Rotor
- SKU
- P-TO-T-9008
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 8.0 kg
Specifications
| Manufacturer | TOYOTA |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-TO-T-9008 |
| Weight | 8.0 kg |
Description
- Model: Toyota HiAce / HiAce Commuter / HiAce Van (200 Series)
- Year Range: 2005 to 2019 (including LWB and SLWB variants)
-
Common Engine & Chassis Codes:
- TRH Series: TRH200, TRH213, TRH223
- KDH Series: KDH200, KDH213, KDH223
- GDH Series: GDH206, GDH2
- LH Series: LH200
| Attribute | Specification |
|---|---|
| Type | Vented Disc |
| Outer Diameter | 285 mm |
| Height | 48.2 mm |
| Max Thickness | 28 mm |
| Min Thickness (Discard) | 26 mm |
| Number of Bolt Holes | 6 holes |
| Centering (Hub) Diameter | 105 mm |
| Pitch Circle Diameter (PCD) | 127 mm |
