TILDESIGN BV

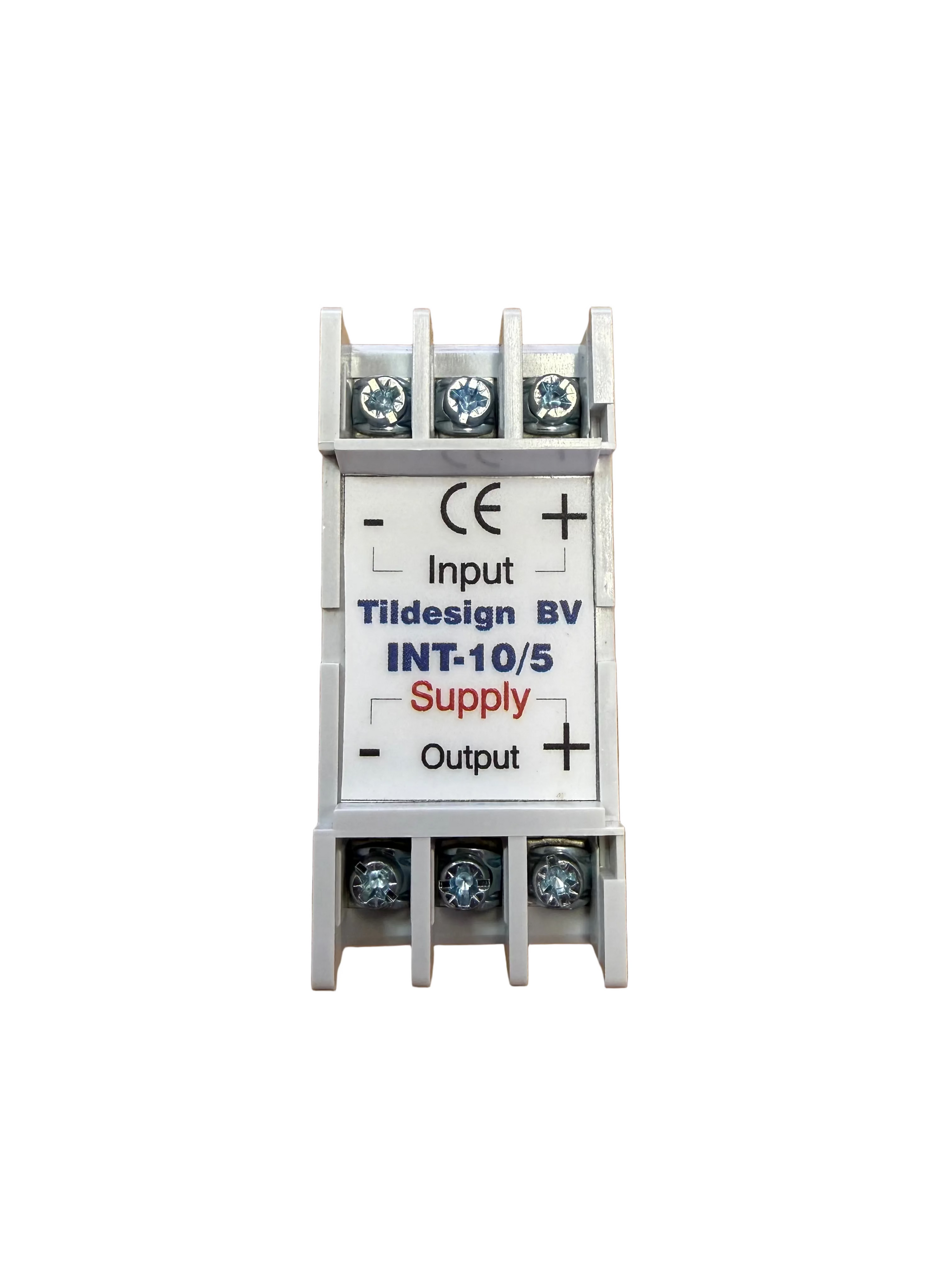

Tildesign bv INT-10/5 Signal Converter - J29 349
- SKU
- P-TI-T-8977
$300.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | TILDESIGN BV |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TI-T-8977 |
| Weight | 1.5 kg |
Description
Specialized hydraulic signal converter card designed to interface standard industrial control signals with Danfoss PVG-32 proportional hydraulic valves.
Input Signal: -10 VDC to +10 VDC.
Output Type: Ratiometric output, ranging from a minimum of 25% to a maximum of 75% of the supply voltage.
Power Supply: 9 to 30 VDC (maximum 200 mA).
Safety Feature: If a signal cable breaks or a fuse blows, the -10/+10V design automatically drives the connected valve back to its safe, neutral position.
Common Applications: Mobile cranes, industrial automation, and machinery utilizing Sauer-Danfoss proportional spool valves
