TERASAKI

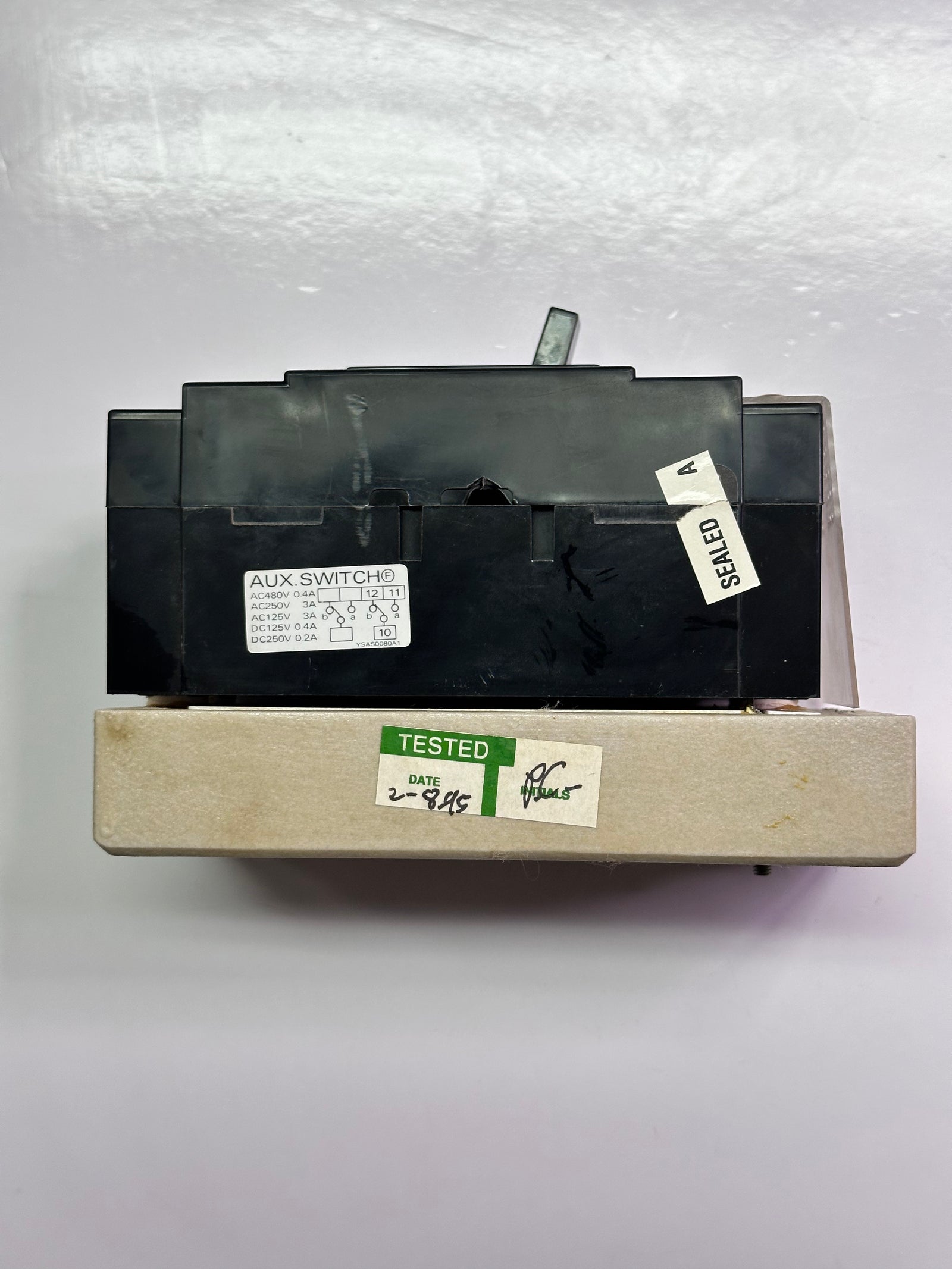

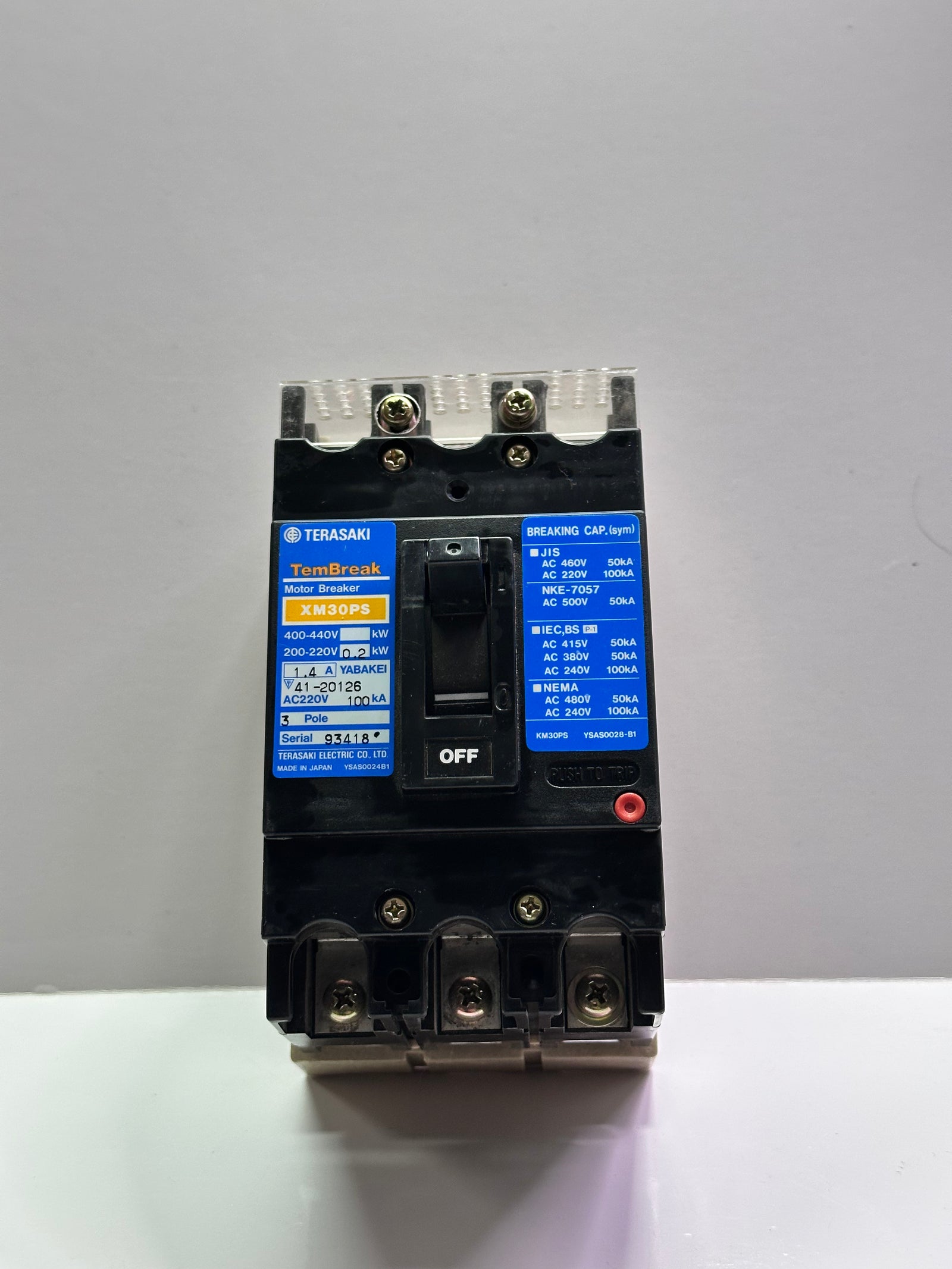

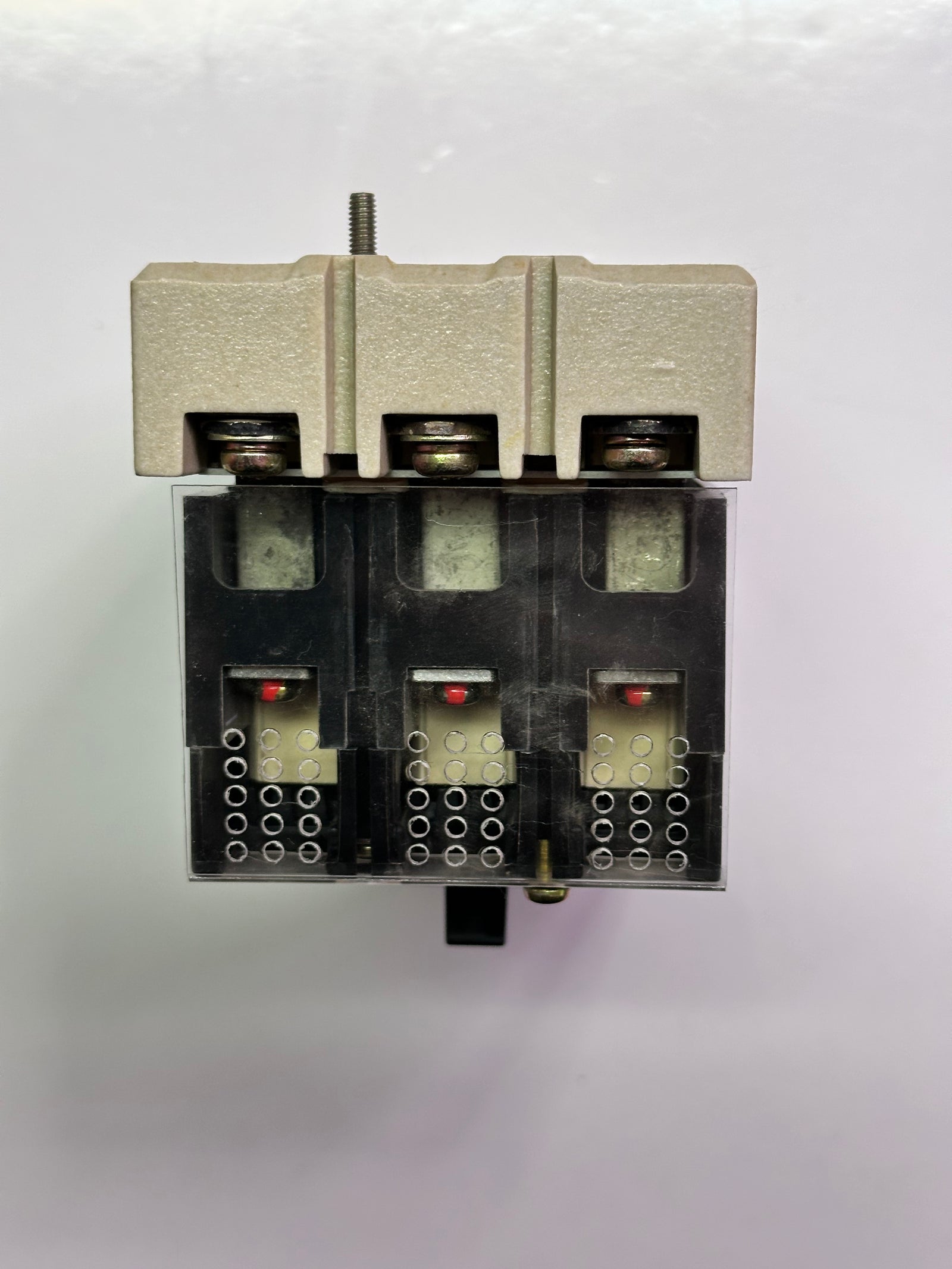

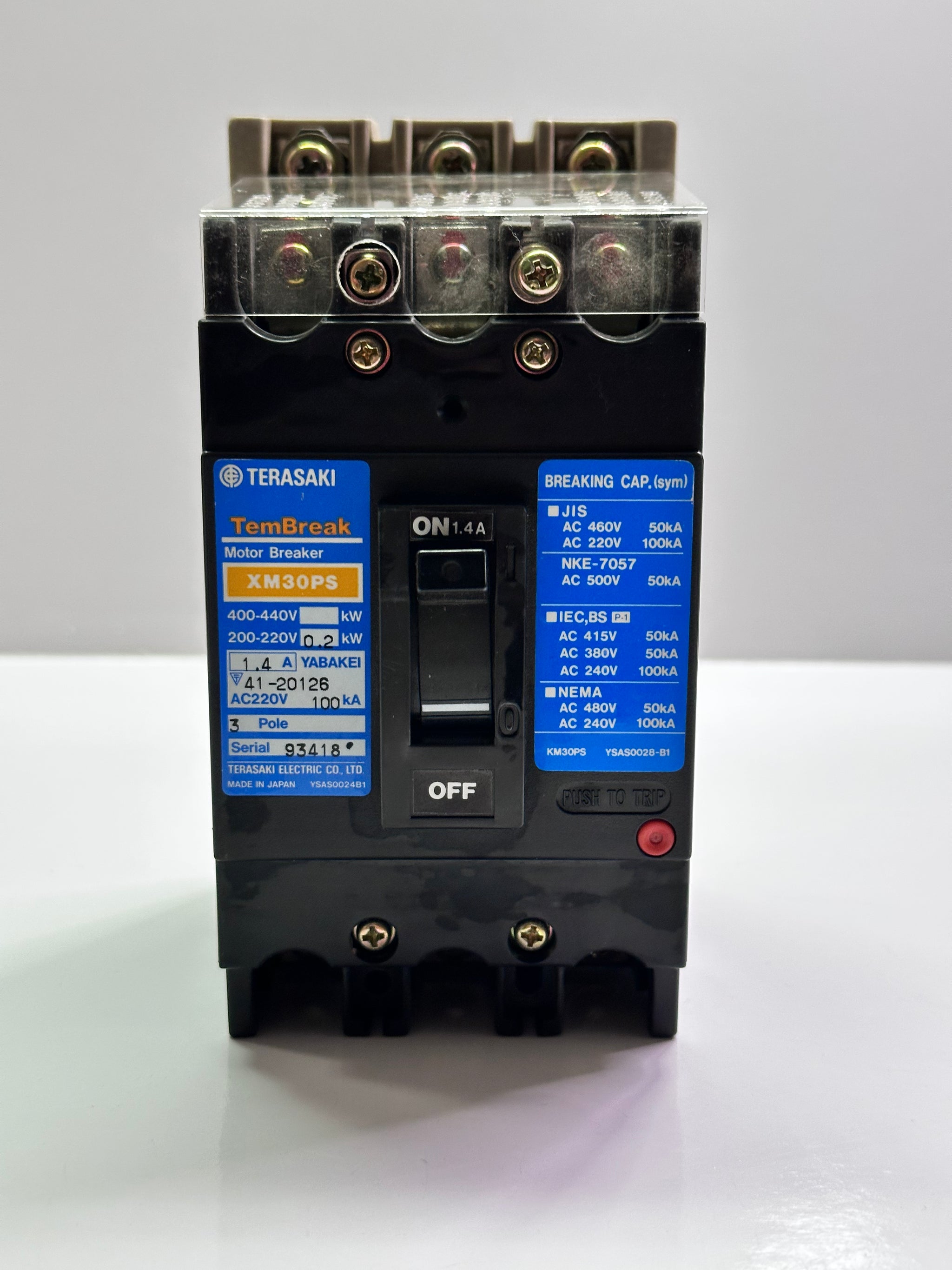

Terasaki XM30PS 3 Pole, 1.4A Power Switching Circuit Breaker
- SKU
- P-TE-T-6985
$225.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | TERASAKI |
|---|---|
| Product type | Electrical |
| SKU | P-TE-T-6985 |
| Weight | 3.5 kg |
Description
Rated current In 1.4 A
Number of poles 3
Max. rated operation voltage Ue AC 525 V
Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz 85 kA
Rated service short-circuit breaking capacity lcs at 400 V, 50 Hz 85 kA
Type of protection trip unit Thermal/magnetic release
Trip curve Fixed thermal, fixed magnetic
Frame size rating 30 A
Rated frequency 50-60 Hz
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 8 kV
AC Power loss per pole at In 1.66 W
Electrical life at Un, In (service cycles) 10000 cycles
