NHP

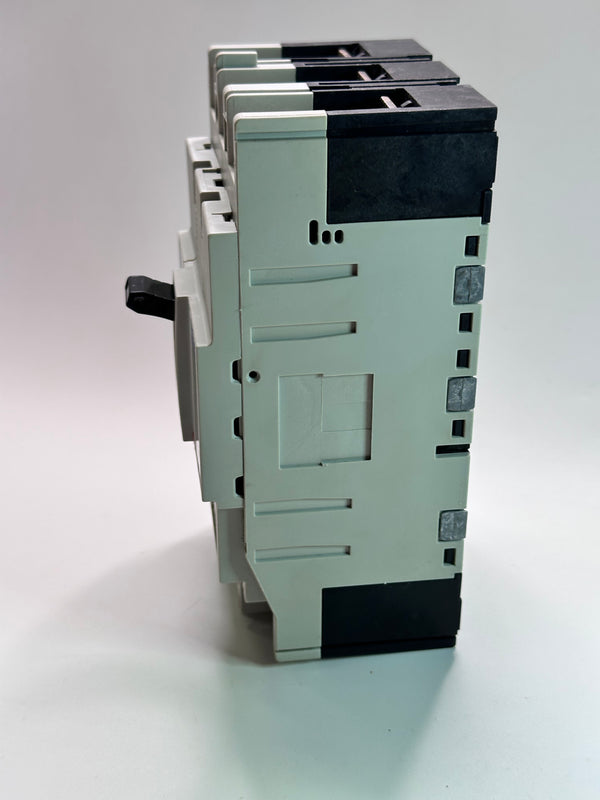

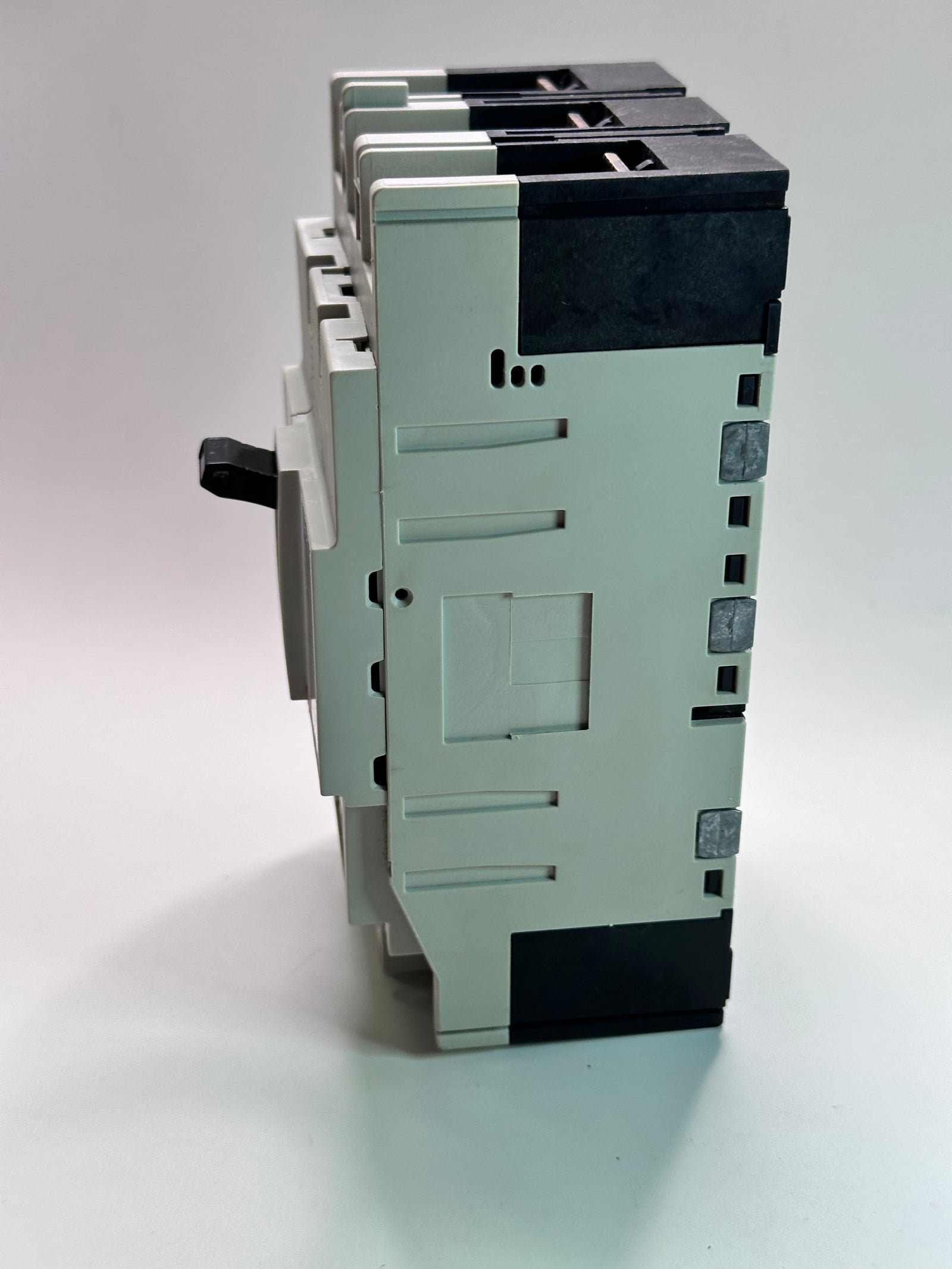

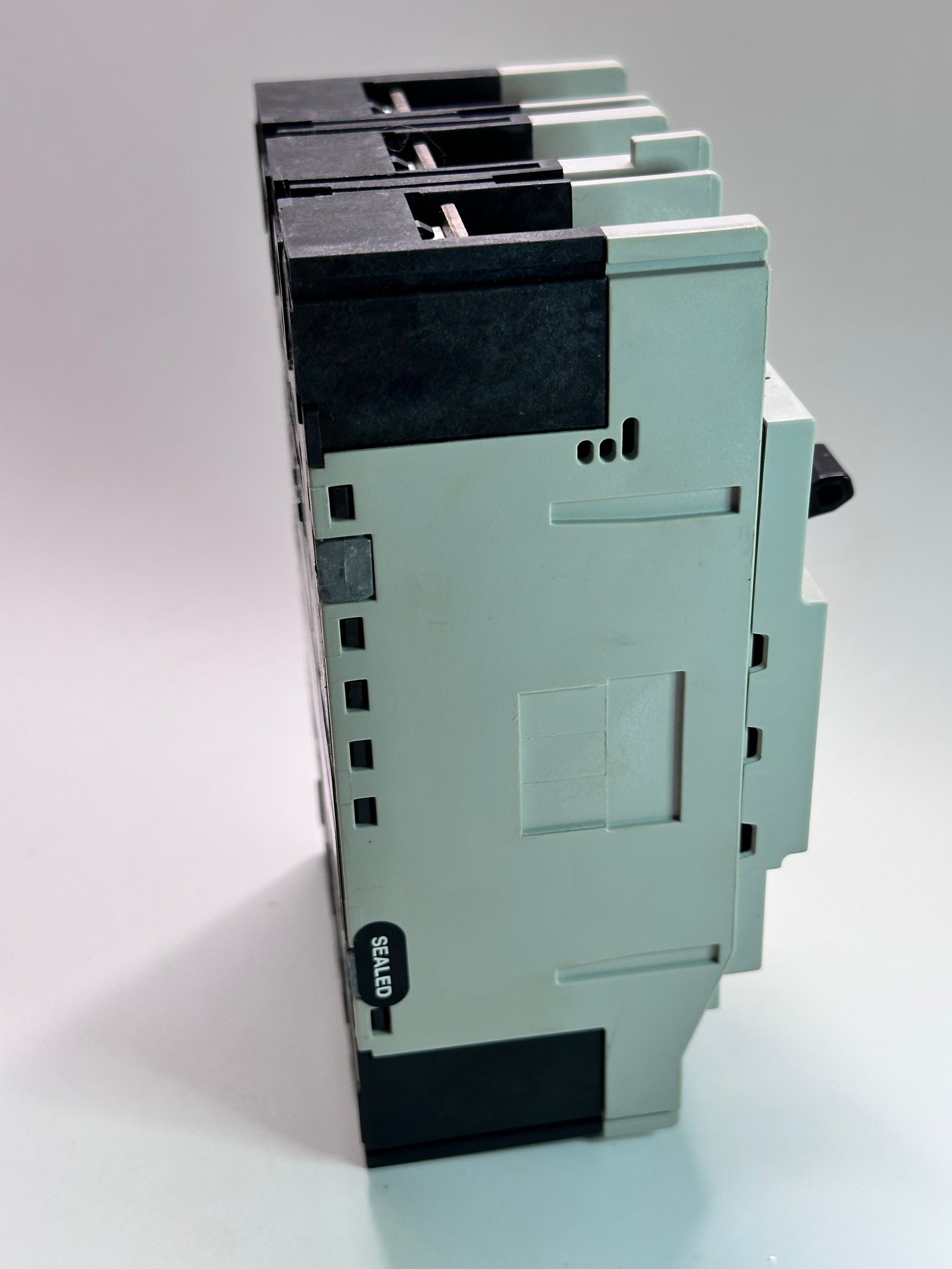

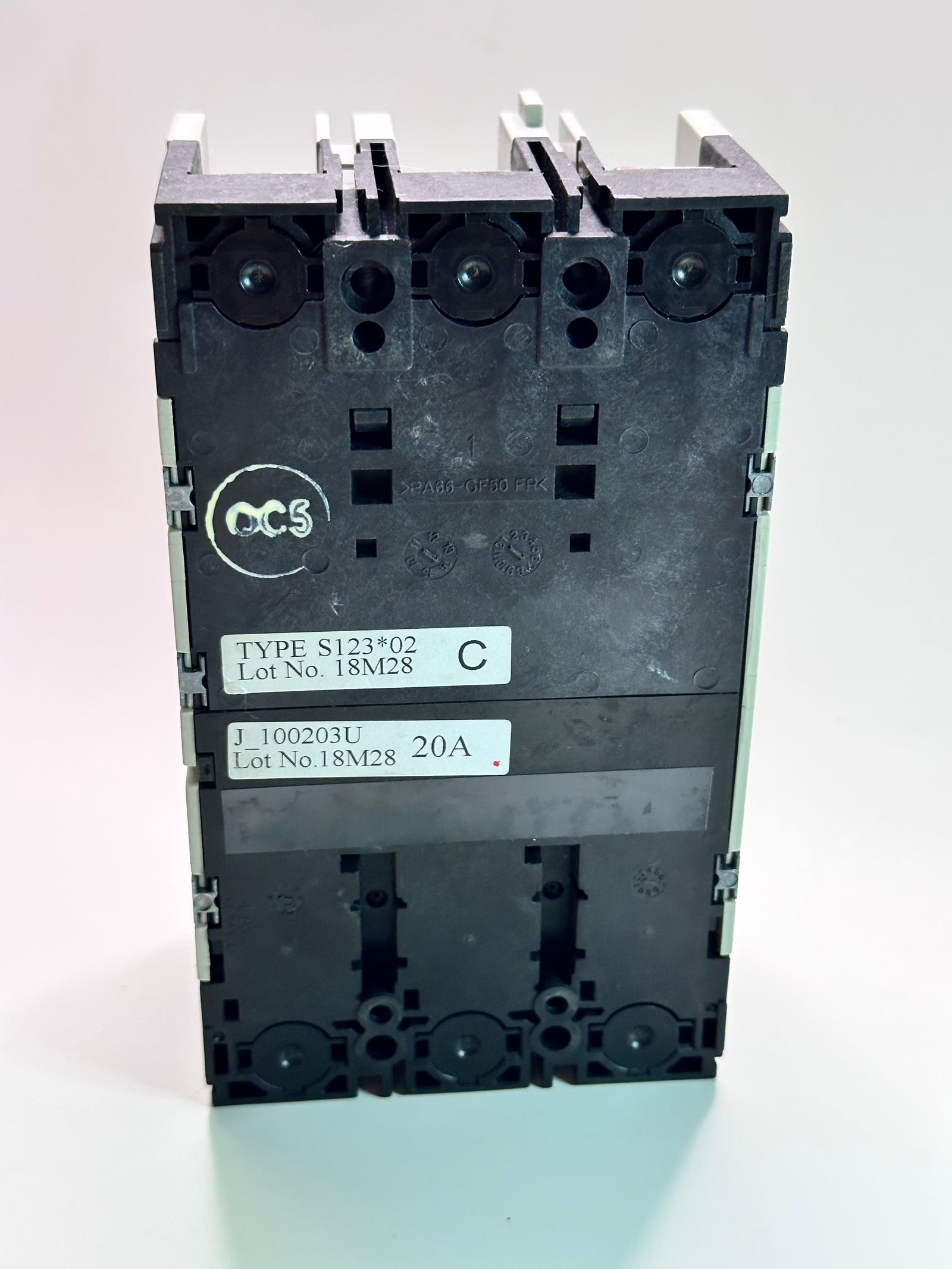

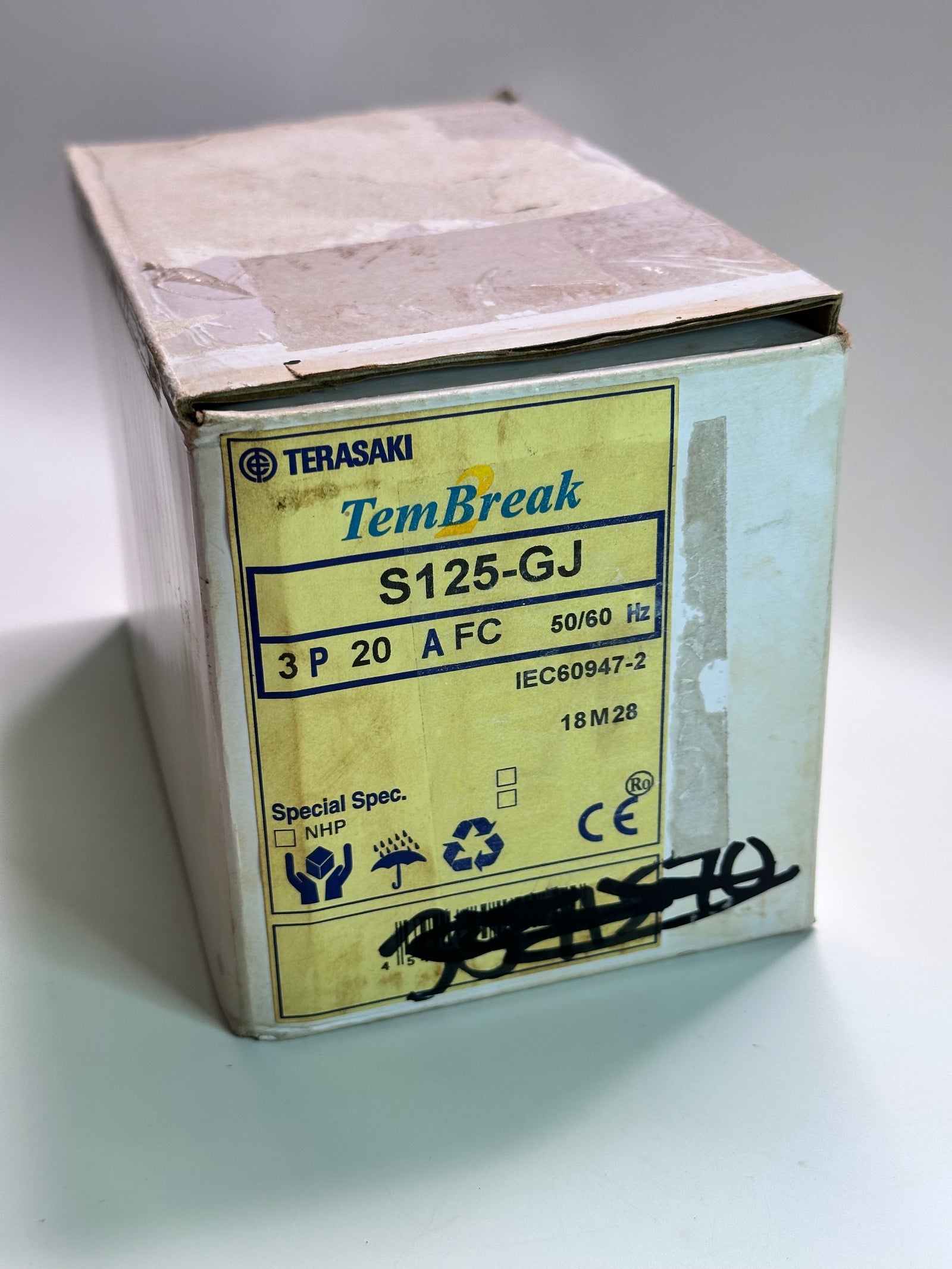

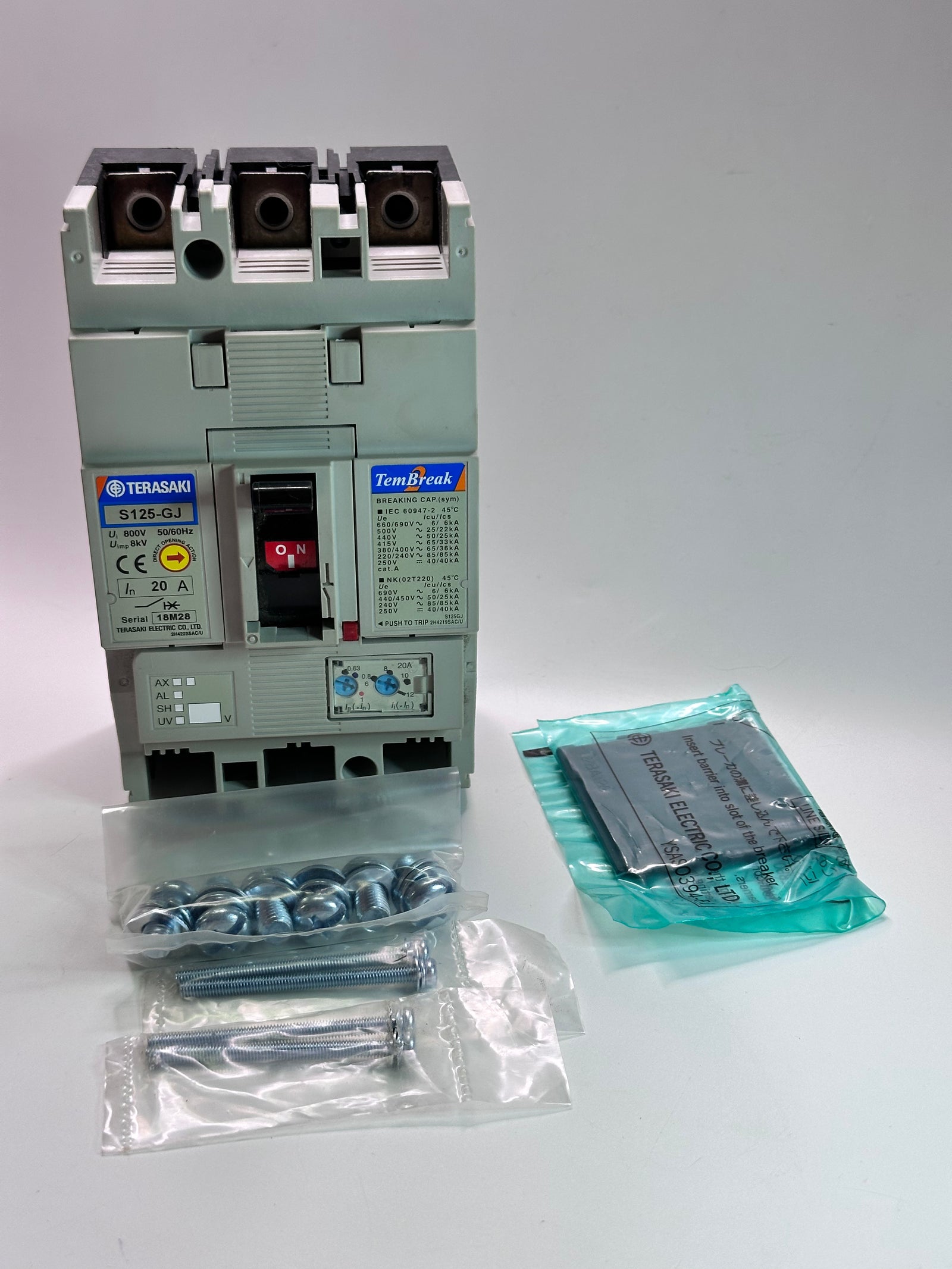

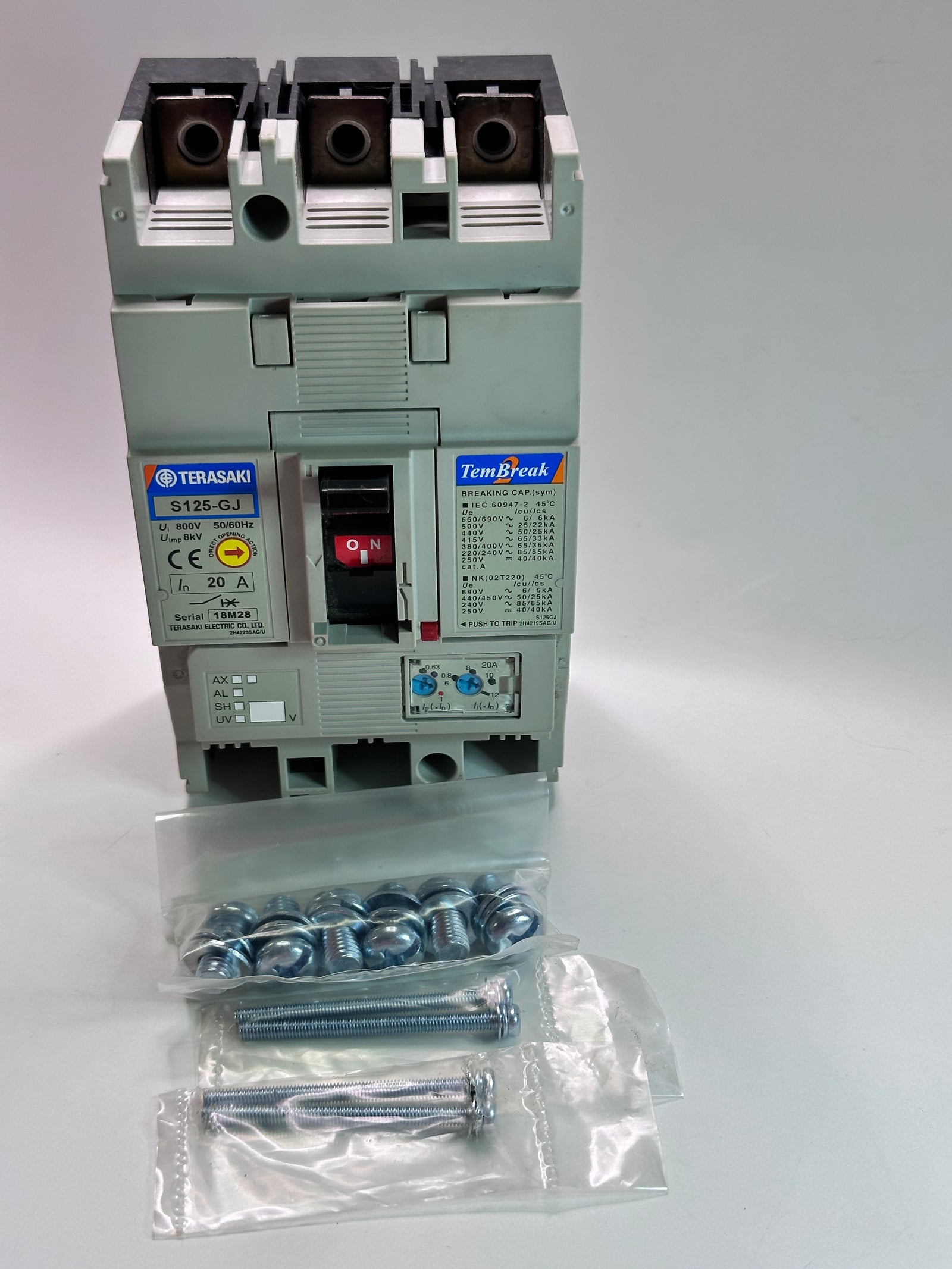

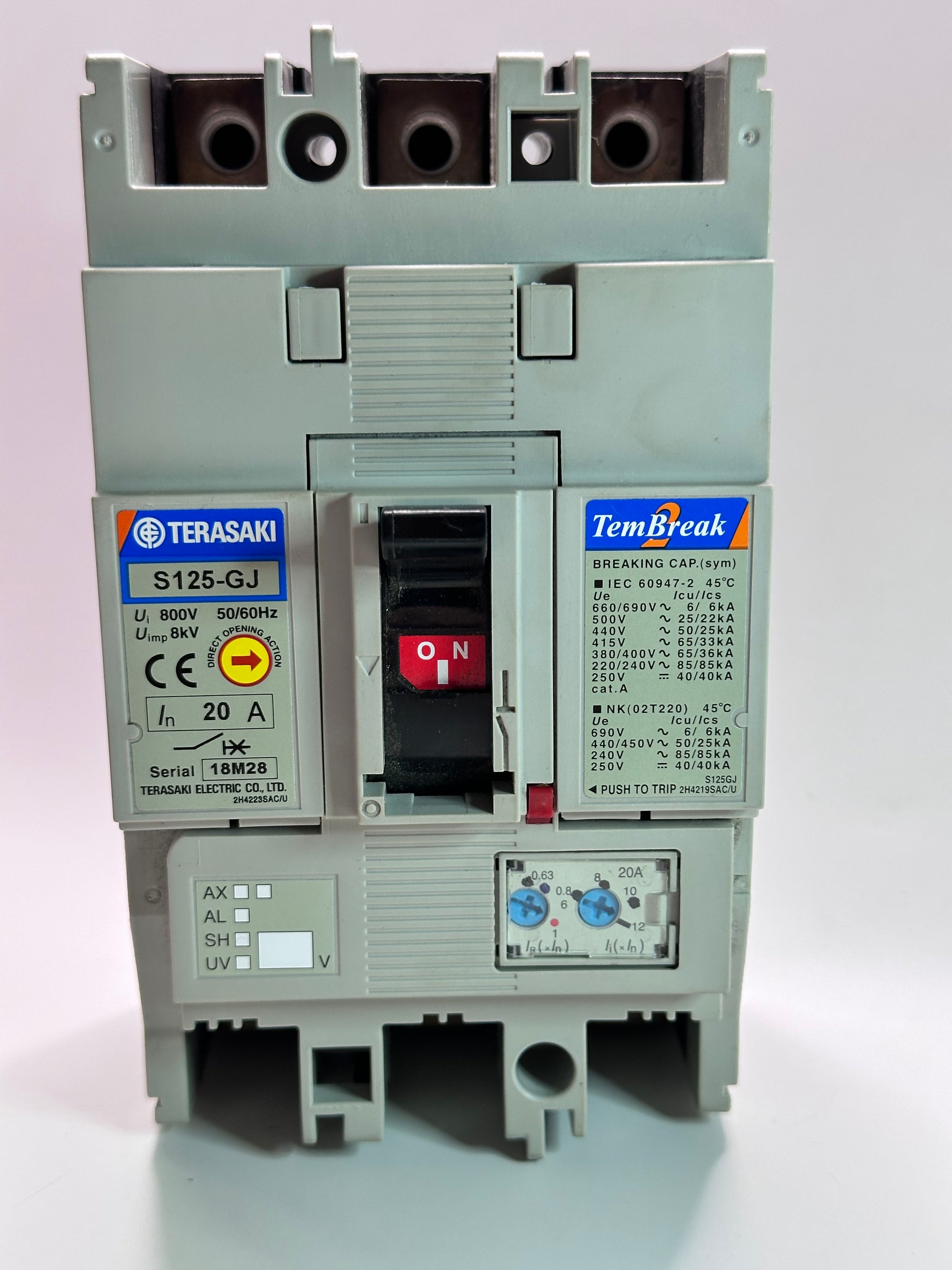

Terasaki TemBreak2 S125-GJ 3-Pole 20A Circuit Breaker – FC
- SKU
- P-TE-N-7834
$440.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TE-N-7834 |
| Weight | 5.0 kg |
Description
Terasaki TemBreak2 S125-GJ three-pole circuit breaker, recorded with NHP as vendor. Rated current is 20A; frame size is 125A.
- Series: TemBreak2
- Model references: S125-GJ / S125GJ
- Title designation: FC
- Poles: 3
- Rated current: 20A
- Frame size: 125A
- Trip unit: thermal magnetic, described as adjustable
- Source interrupting-capacity entry: 65kA at 415V
Confirm the actual nameplate, adjustment settings, connection arrangement and required protection duty before ordering. The frame size is not the rated current, and the 65kA figure is not stated for every voltage or test category. The source mentions distribution-board, motor/feeder and commercial-system applications; suitability requires matching the specific circuit requirements. No tested service condition or universal protection guarantee is made.
