NHP

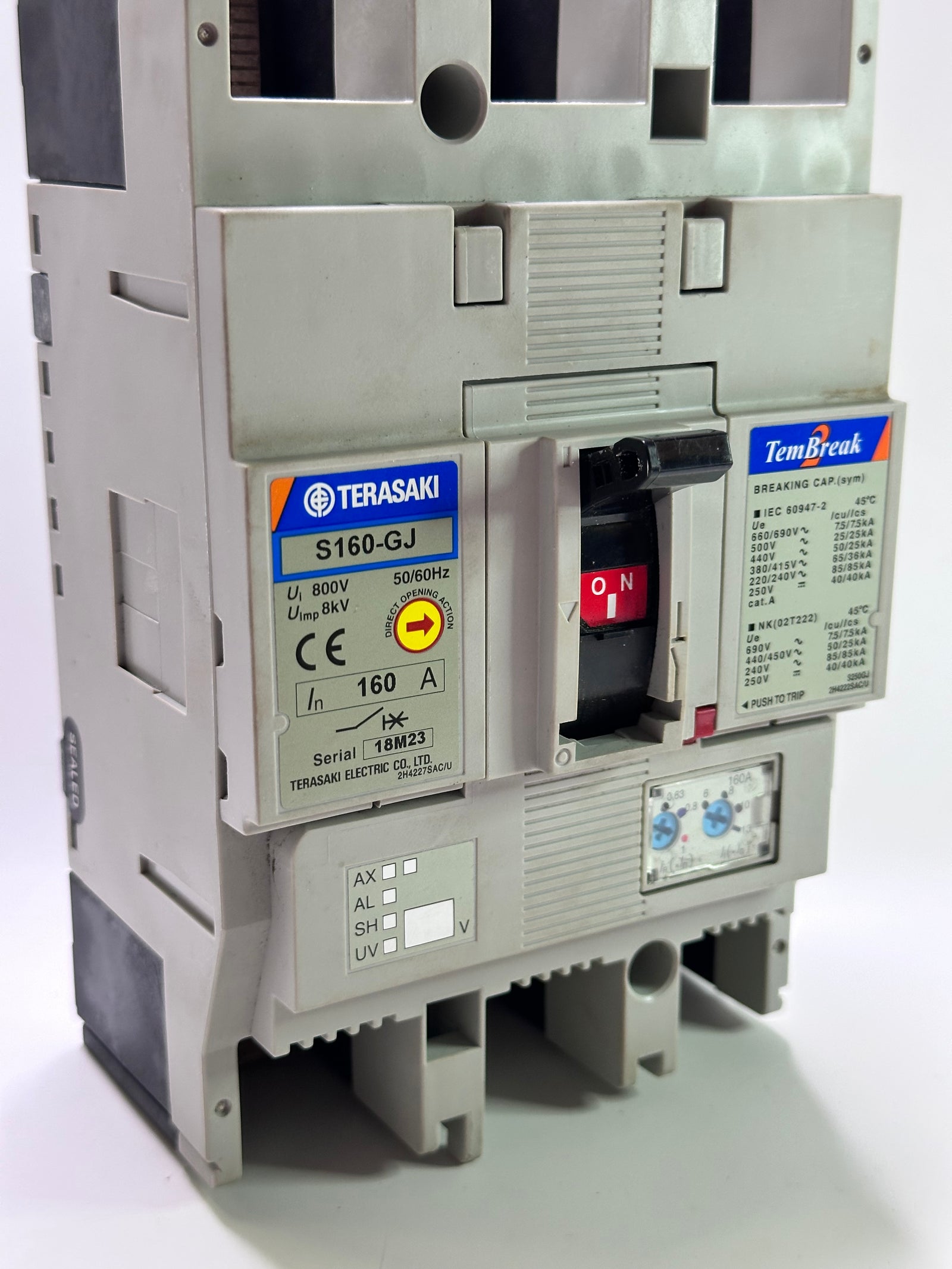

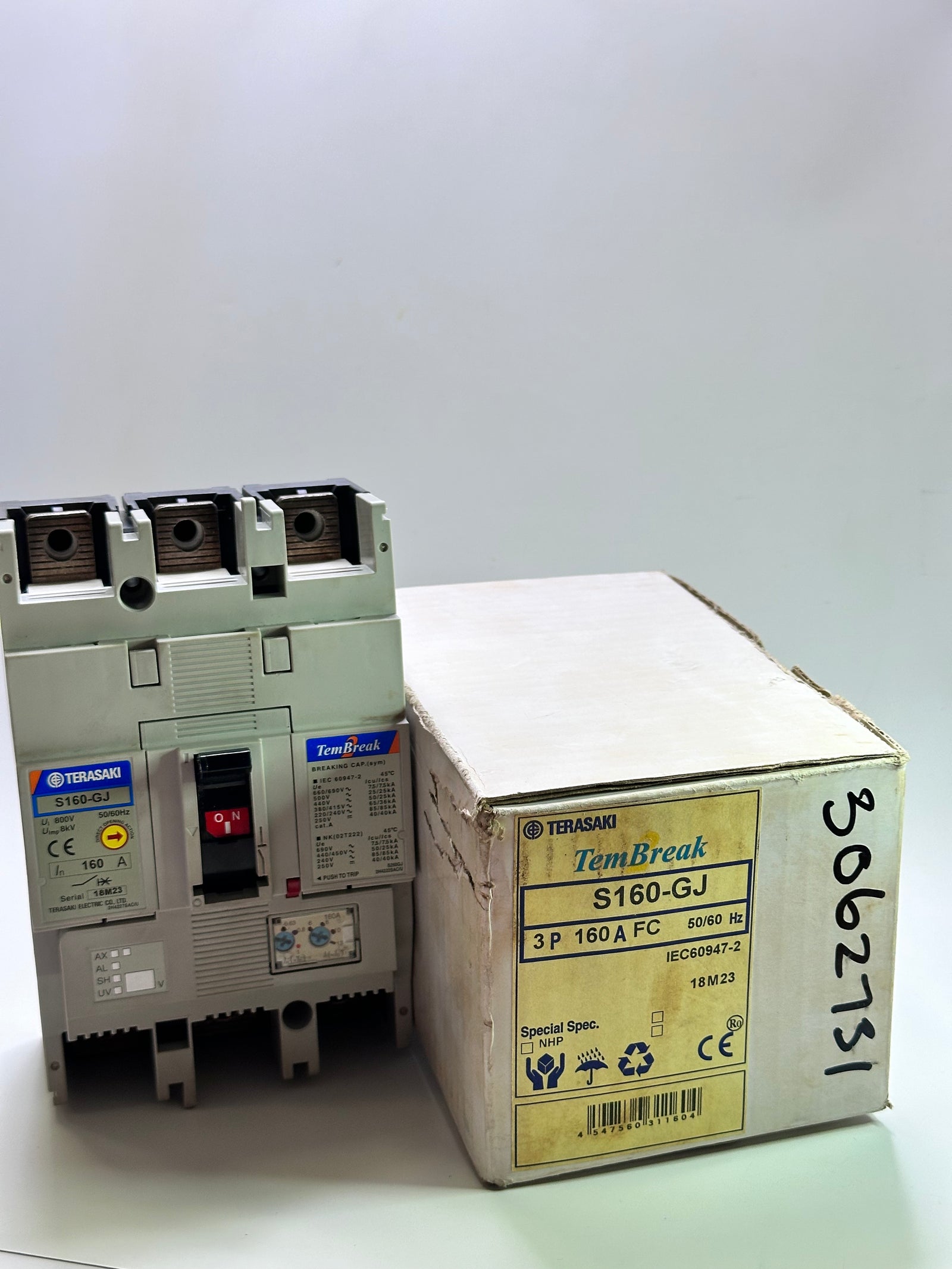

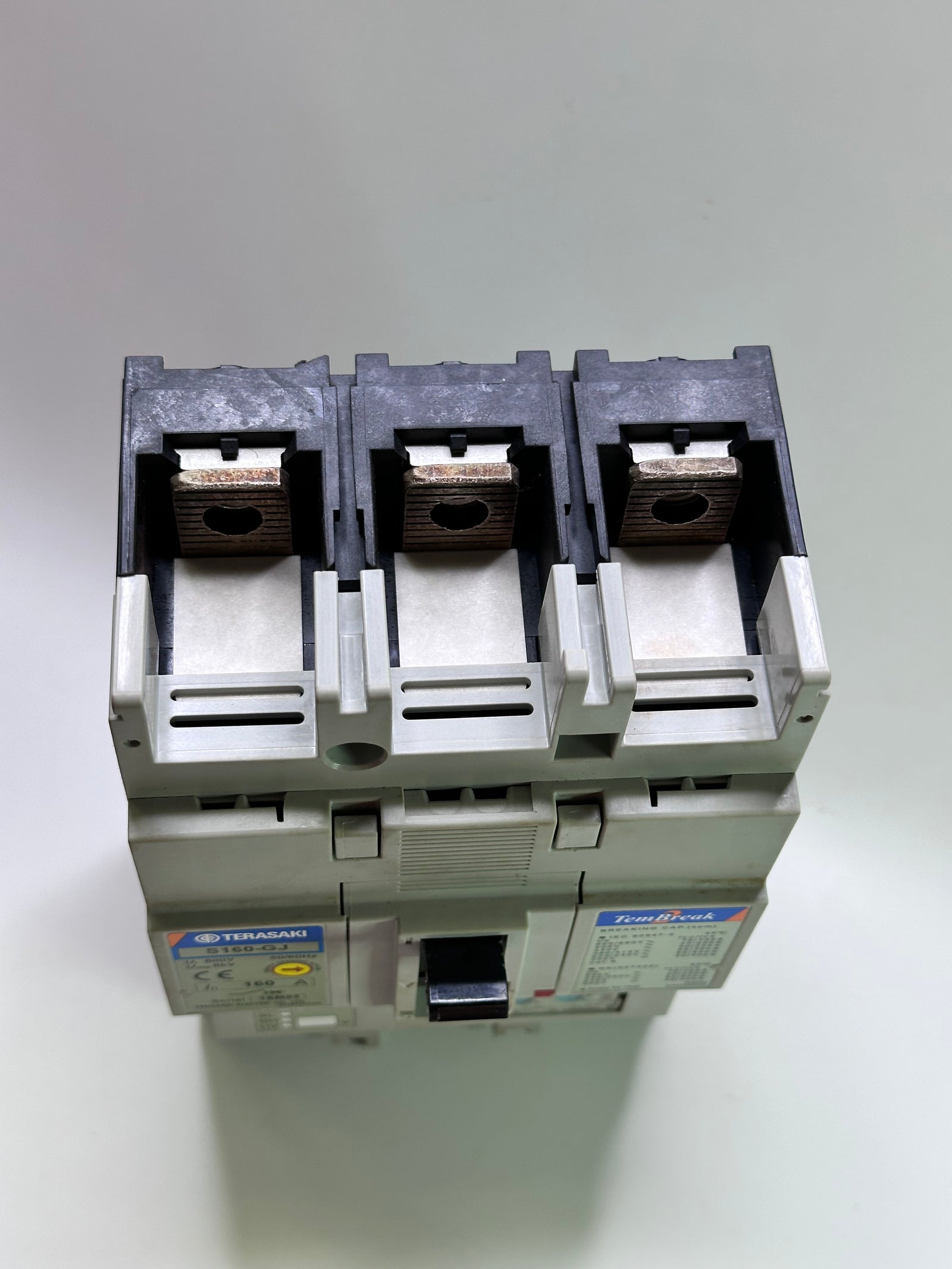

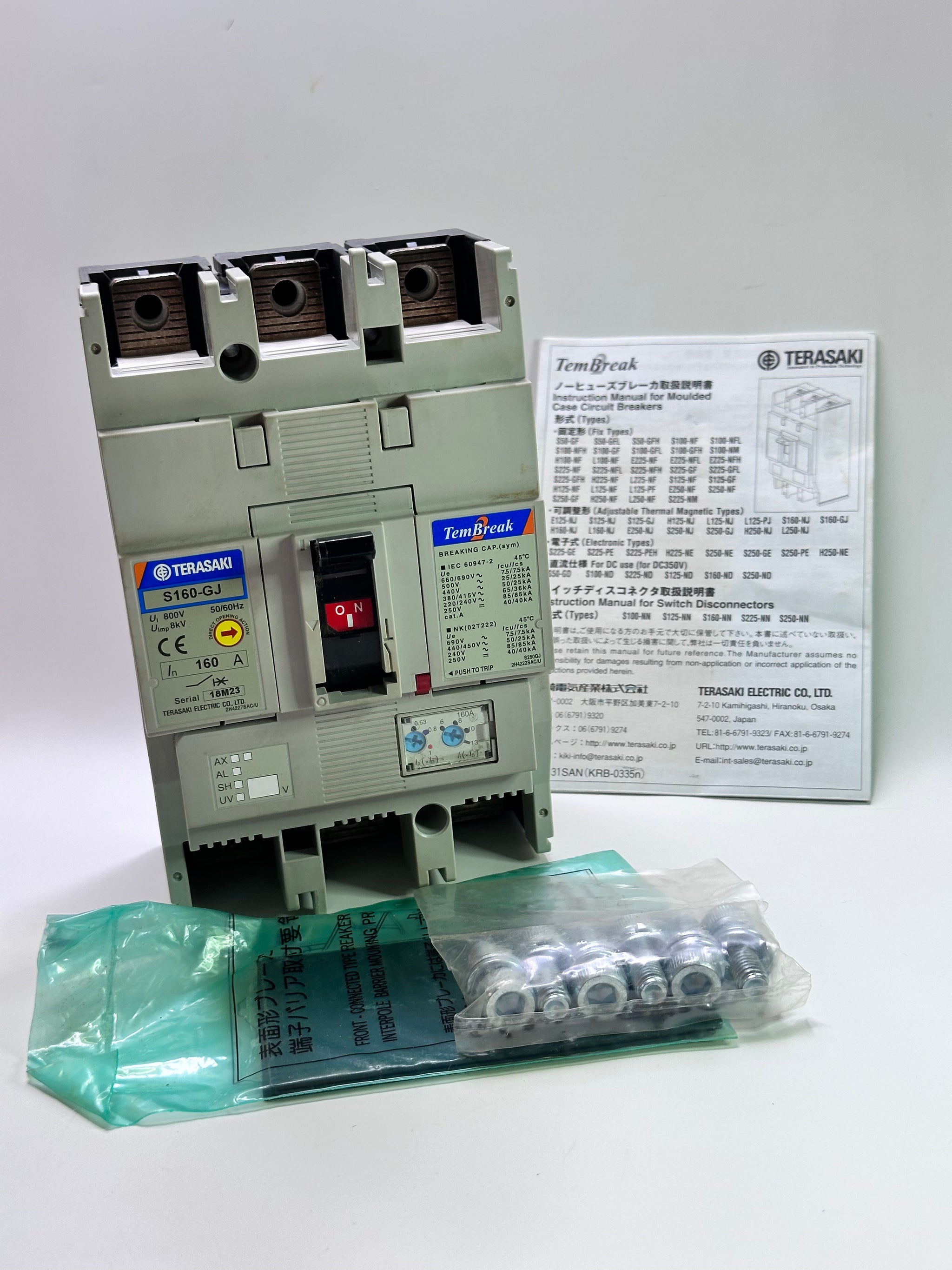

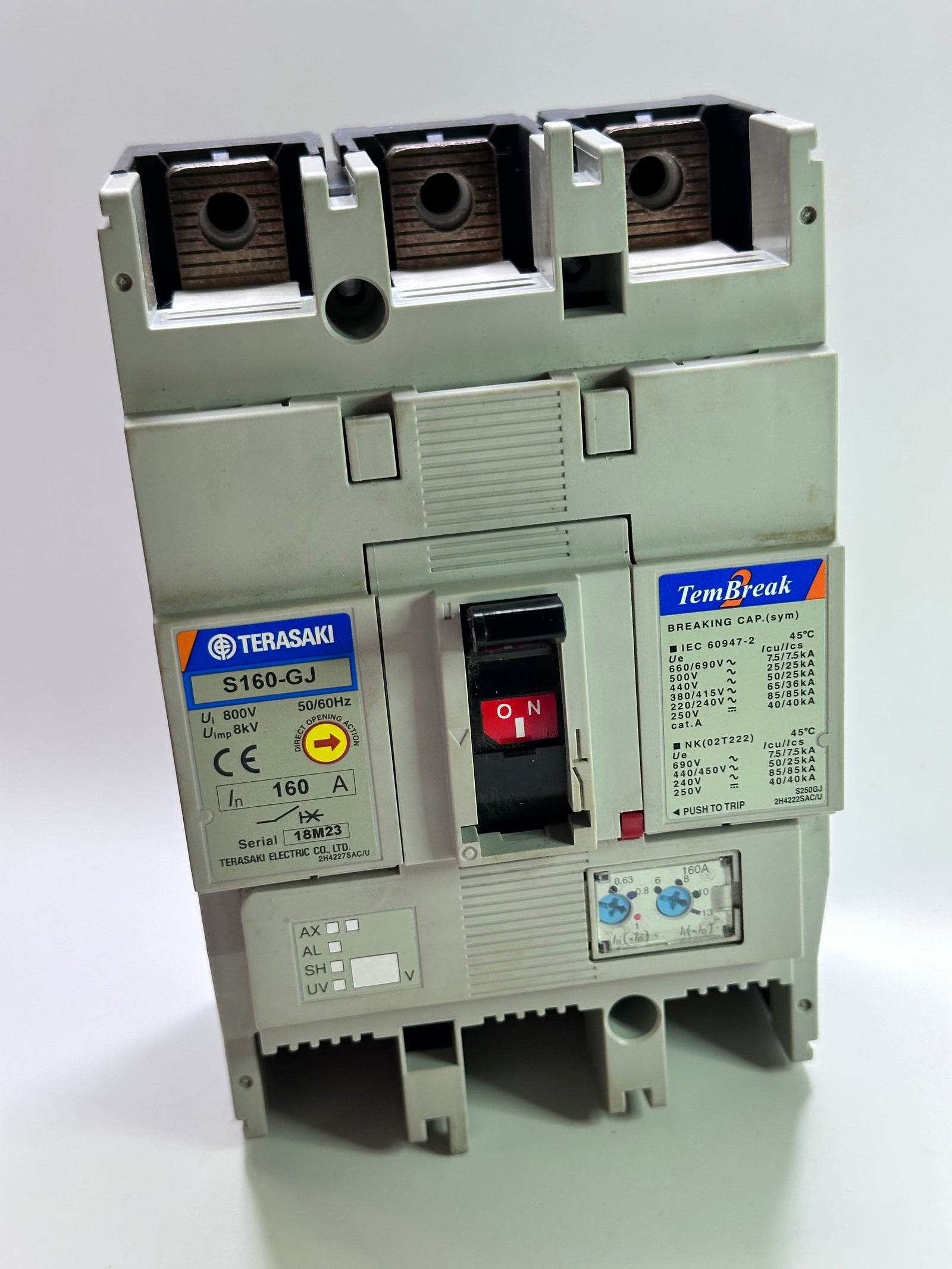

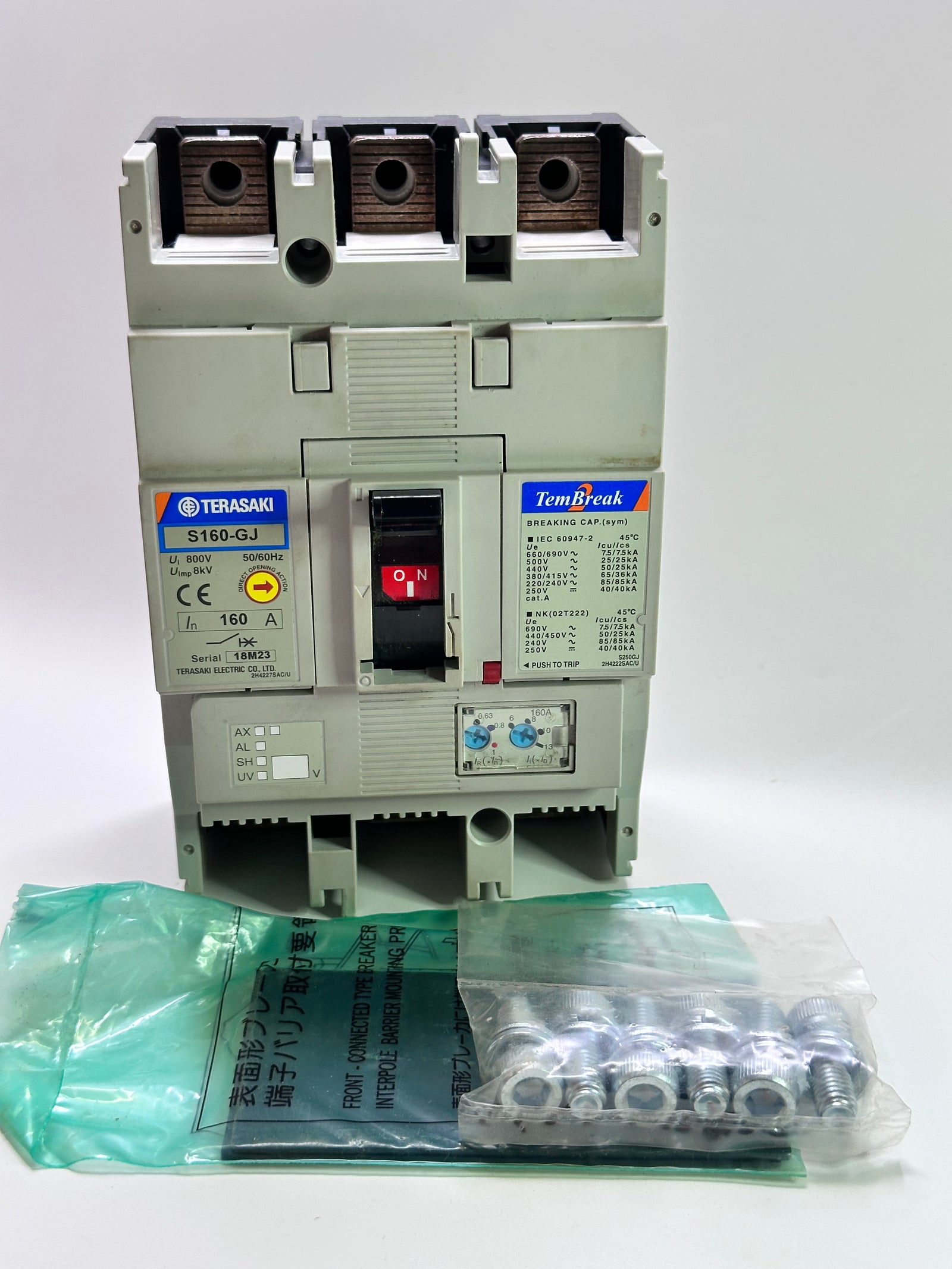

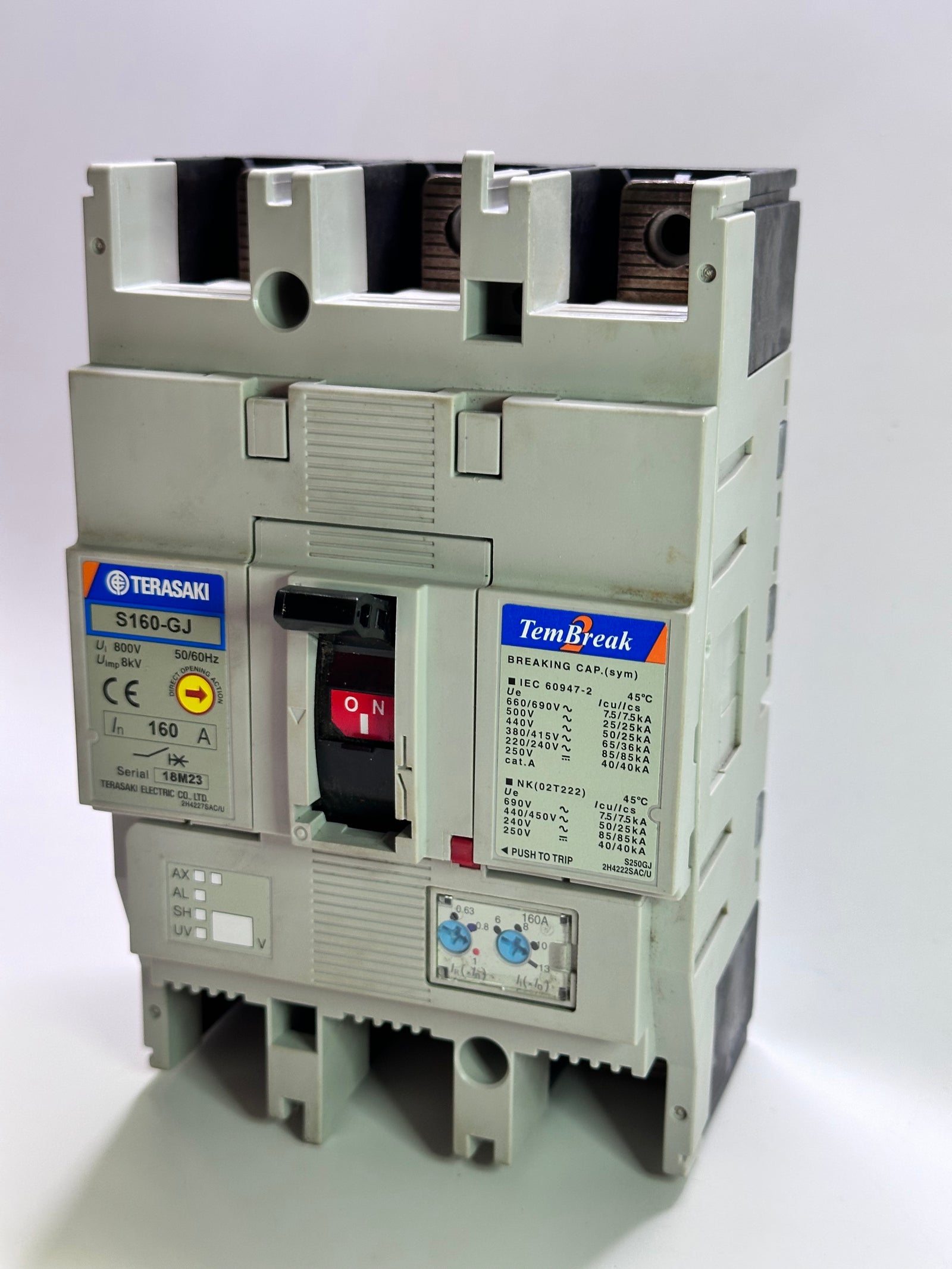

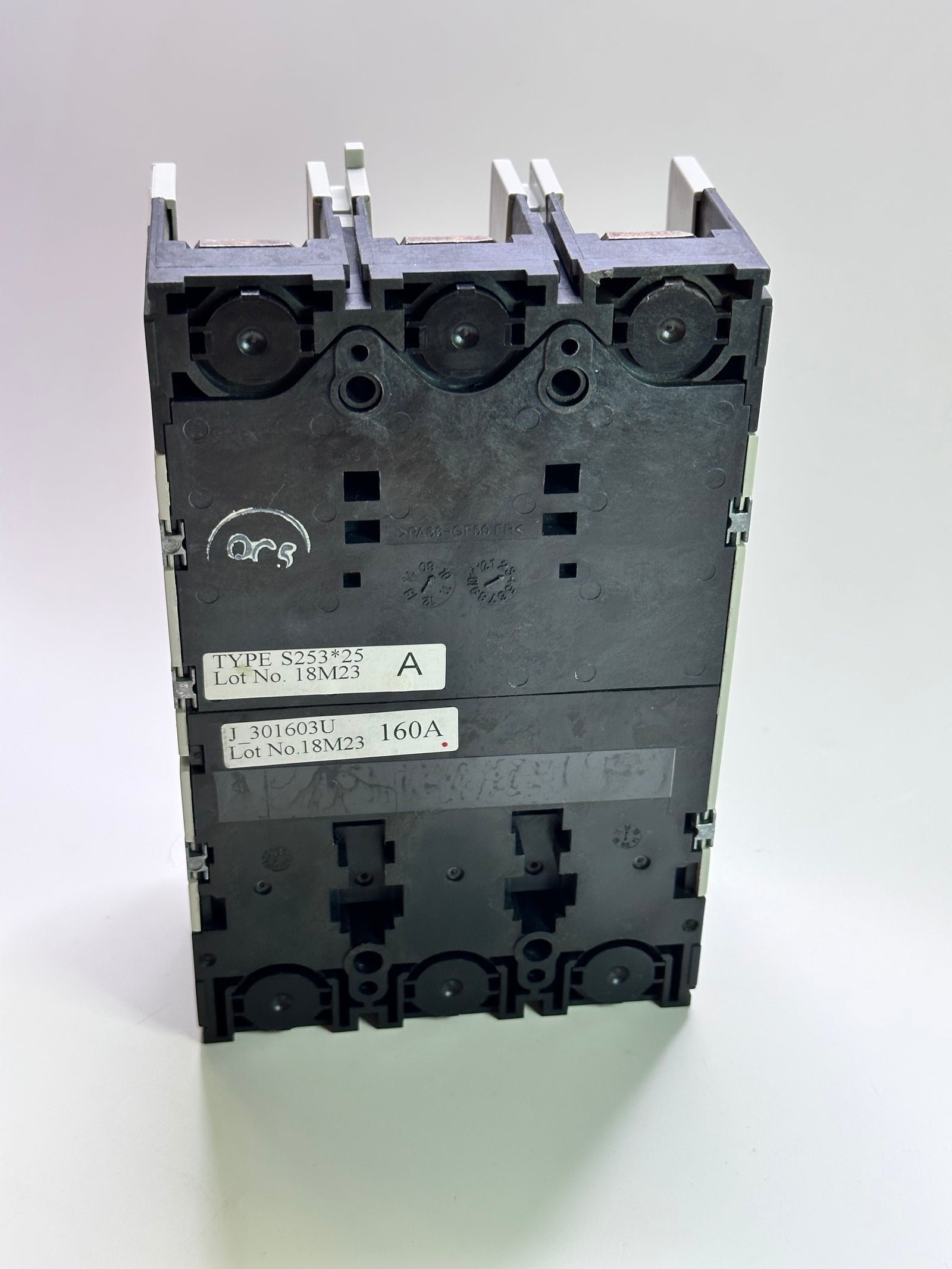

Terasaki TemBreak2 S160-GJ 3-Pole 160A FC Circuit Breaker
- SKU
- P-TE-N-7810
$450.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TE-N-7810 |
| Weight | 5.0 kg |
Description
Terasaki TemBreak2 S160-GJ 3-pole, 160A thermal/magnetic moulded-case circuit breaker, recorded as FC. Vendor recorded: NHP.
Catalogue references: S160-GJ 3P FC; S160GJ; S160GJ3160.
Recorded electrical specifications
| Rated current In | 160 A |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 V |
| Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz | 65 kA |
| Rated service short-circuit breaking capacity lcs at 400 V, 50 Hz | 36 kA |
| Type of protection trip unit | Thermal/magnetic release |
| Trip curve | Adj. thermal, adj. magnetic |
| Frame size rating | 160 A |
| Long time overload protection adjustment range | 100-160 A |
| Instantaneous protection adjustment range | 960-2080 A |
| Rated frequency | 50-60 Hz |
| Rated insulation voltage Ui | 800 V |
| Suitable for isolation | Yes |
| Rated short circuit breaking capacity, Icu 690V AC | 7.5 kA |
| Rated short circuit breaking capacity, Ics 690V AC | 7.5 kA |
| Rated impulse withstand voltage Uimp | 8 kV |
| Reverse connection of supply possible | Yes |
| Electrical life at Un, In (service cycles) | 20000 cycles |
Breaking capacities are specific to the stated voltage and service/ultimate rating; the 65 kA figure is not a rating at 690 V. Confirm the unit markings, required trip settings, connections and installation suitability. The recorded service-cycle figure is a specification, not a statement of remaining life.
