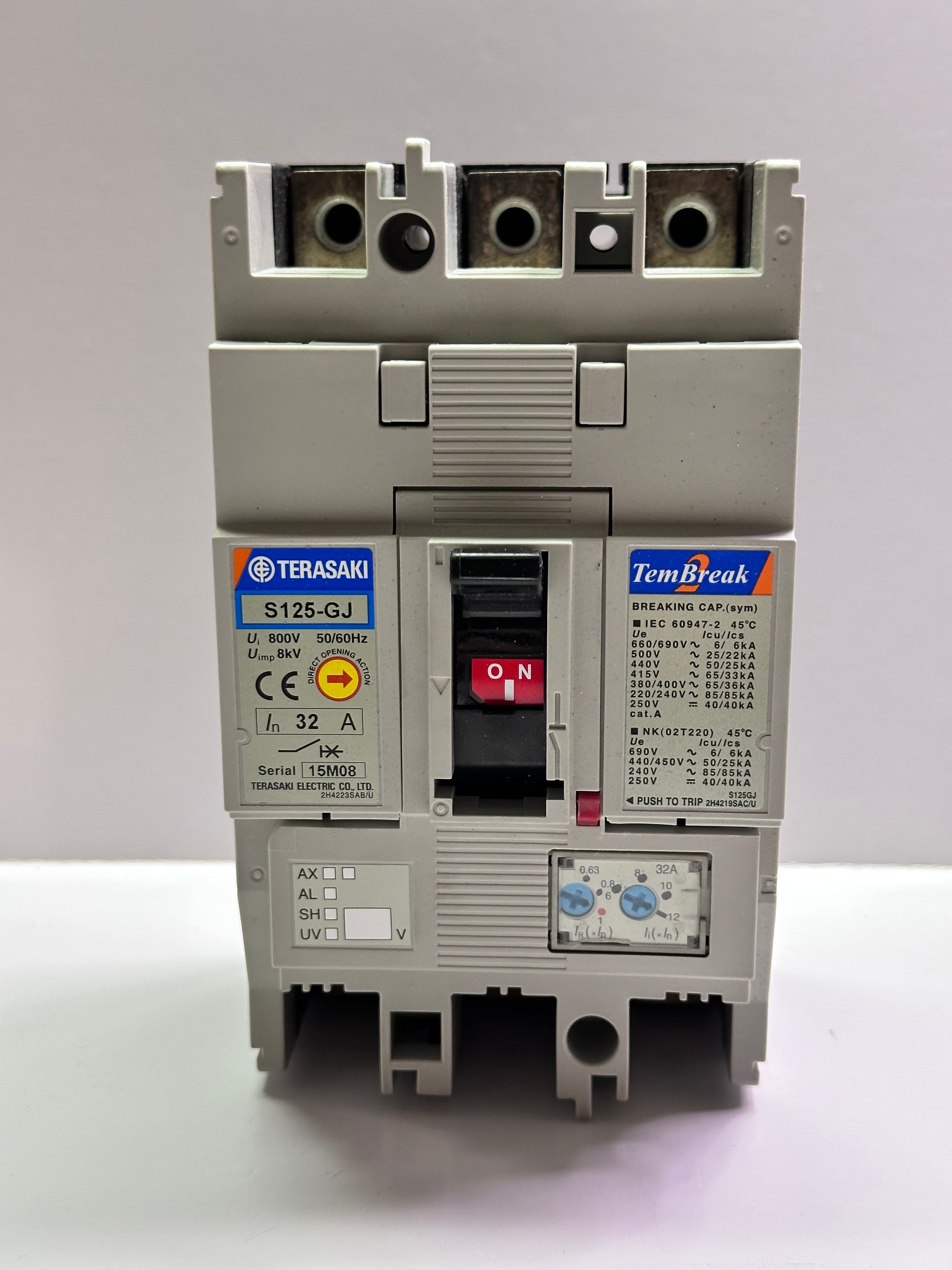

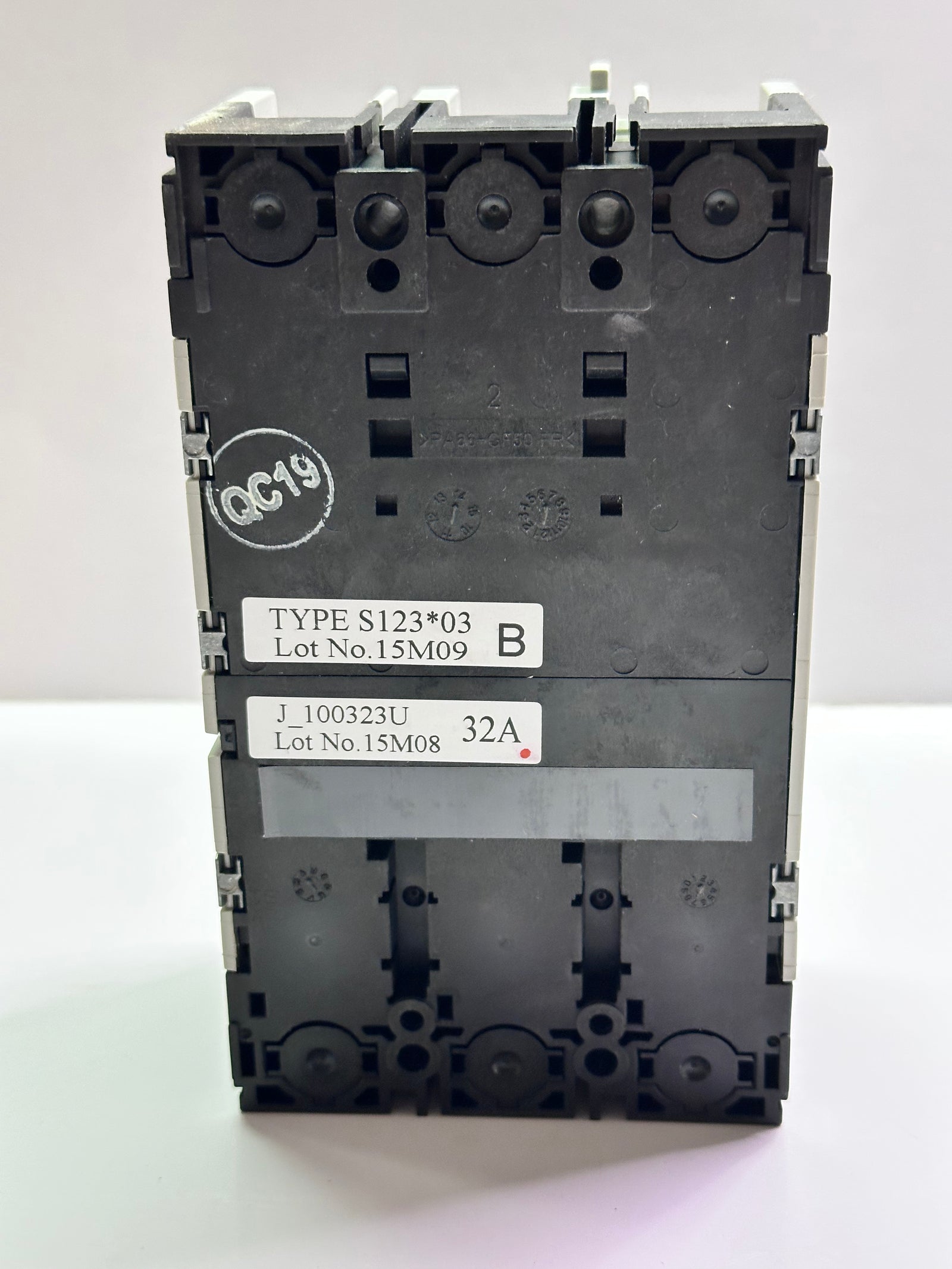

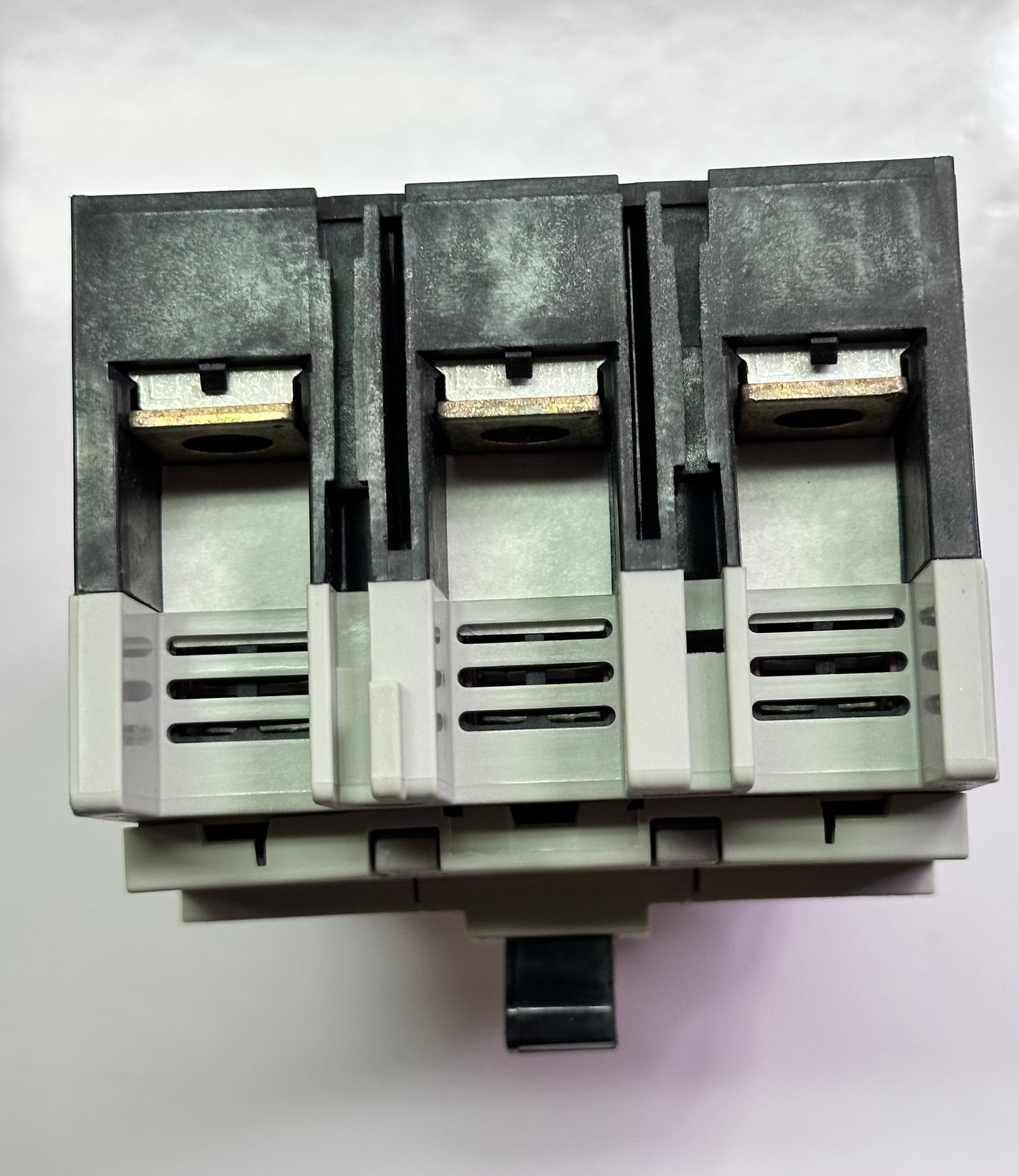

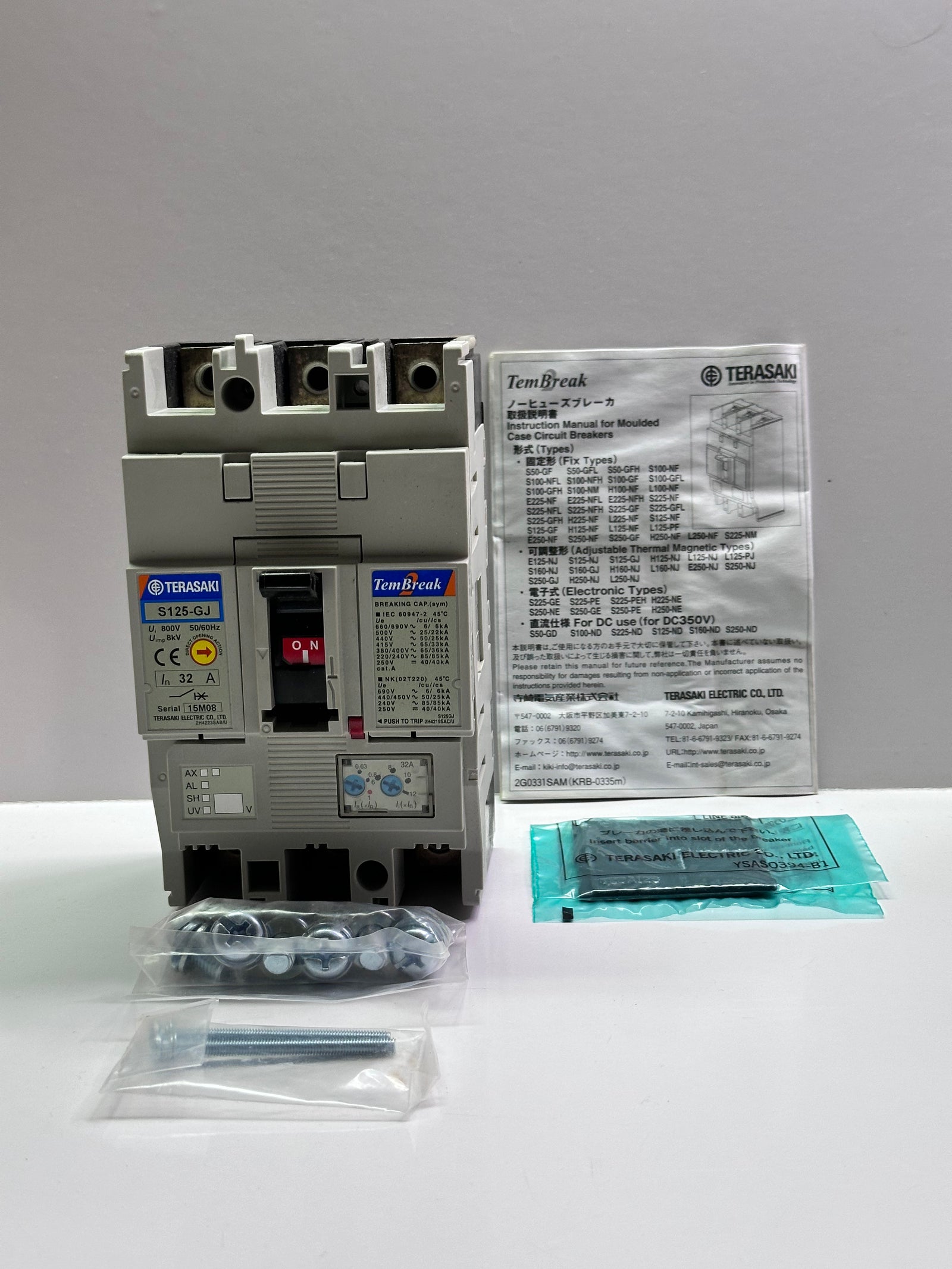

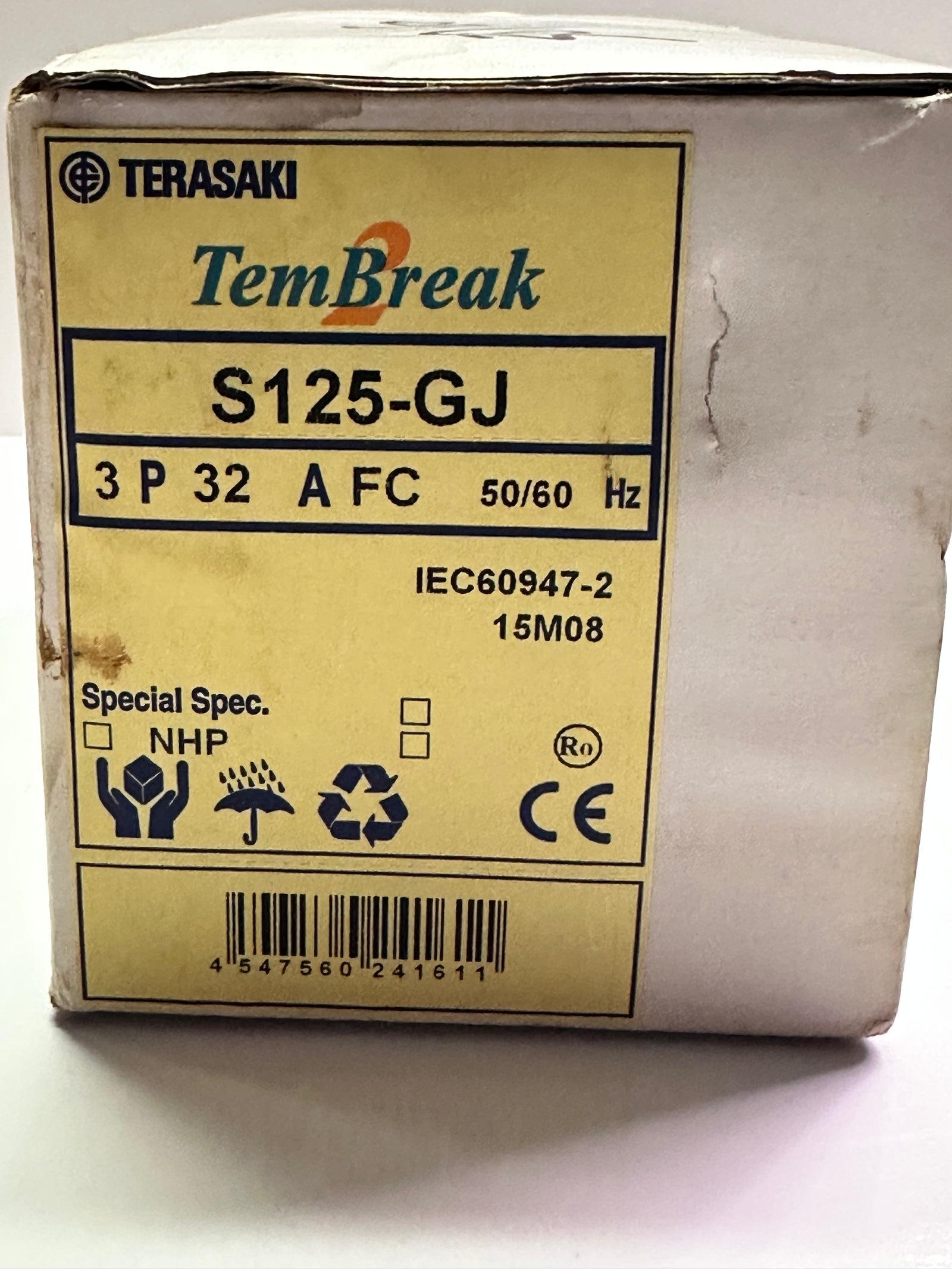

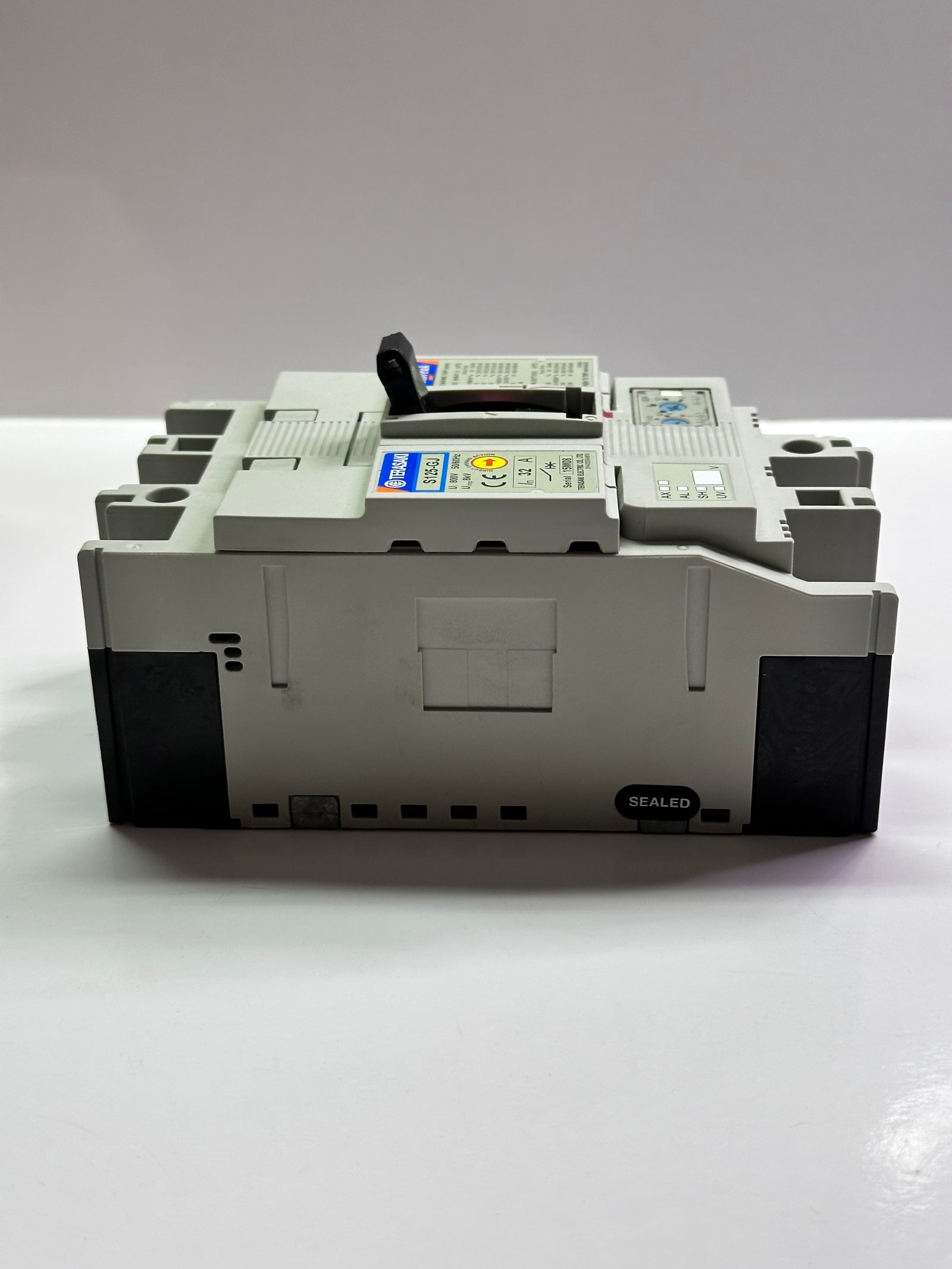

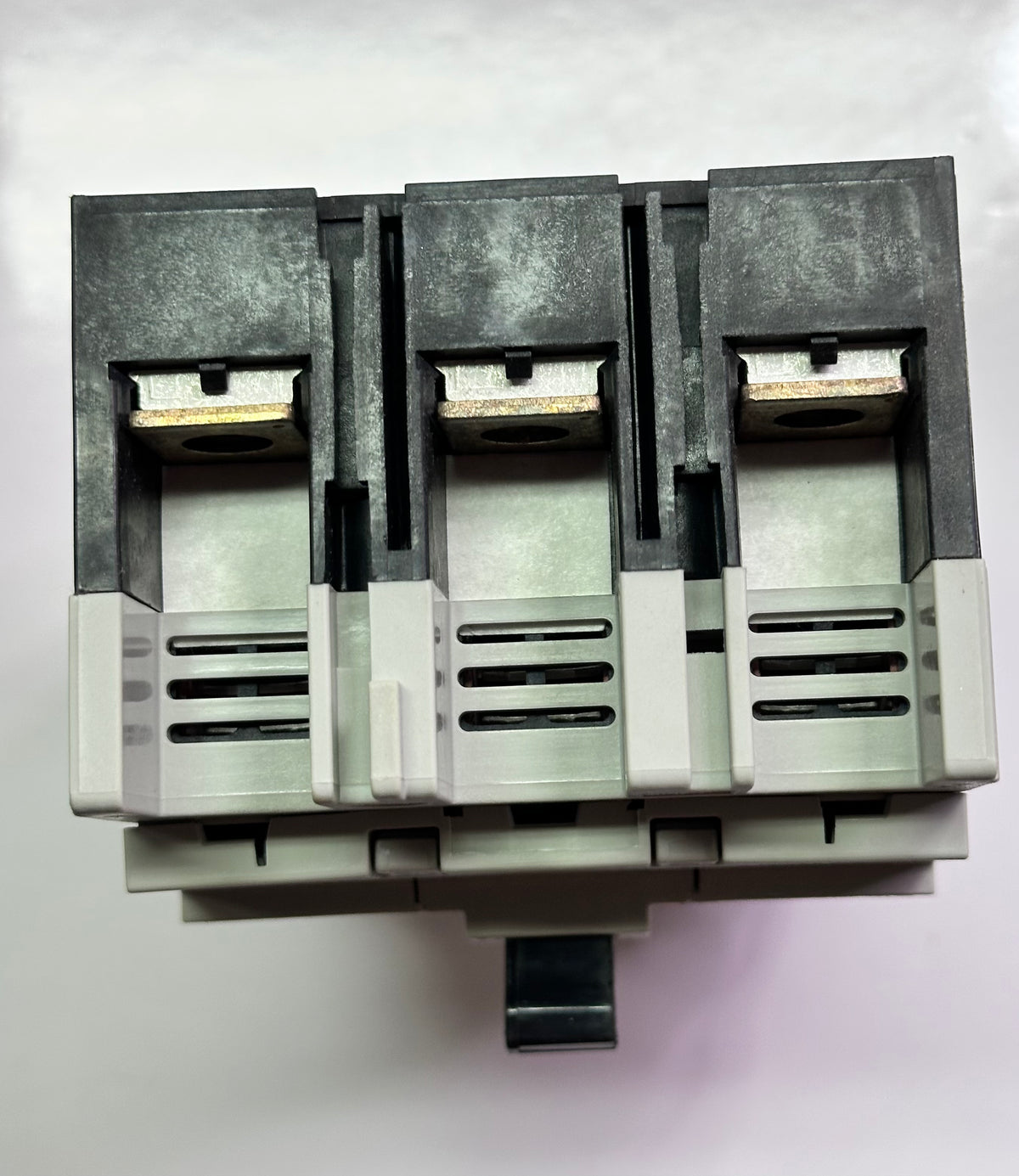

Terasaki S125-GJ TemBreak2 32A, 3 Pole FC Circuit Breaker
- SKU
- P-TE-T-6984
$220.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | Electrical |
| SKU | P-TE-T-6984 |
| Weight | 3.5 kg |
Description
Rated current In 32A
Number of poles 3
Max. rated operation voltage Ue AC690 V
Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz65 kA
Rated service short-circuit breaking capacity lcs at 400 V, 50 Hz36 kA
Type of protection trip unit Thermal/magnetic release
Trip curve Adj. thermal, adj. magnetic
Frame size rating125 A
Long time overload protection adjustment range 20-32 A
Instantaneous protection adjustment range192-384 A
Rated frequency50-60 Hz
Rated insulation voltage Ui800 V
Suitable for isolation Yes
Rated short circuit breaking capacity, Icu 690V AC6 kA
Rated short circuit breaking capacity, Ics 690V AC6 kA
Rated impulse withstand voltage Uimp8 kV
Reverse connection of supply possible Yes
Electrical life at Un, In (service cycles) 30000 cycles
