TELEMECANIQUE
Telemecanique XCRT115 OsiSense XC Series Lever Limit Switch
- SKU
- P-TE-T-3182
$450.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | TELEMECANIQUE |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TE-T-3182 |
| Weight | 2.0 kg |
Description

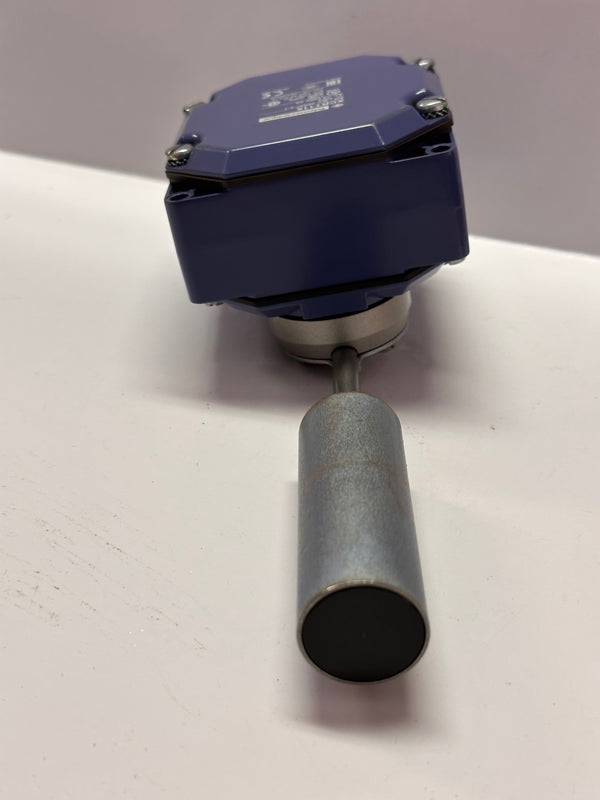

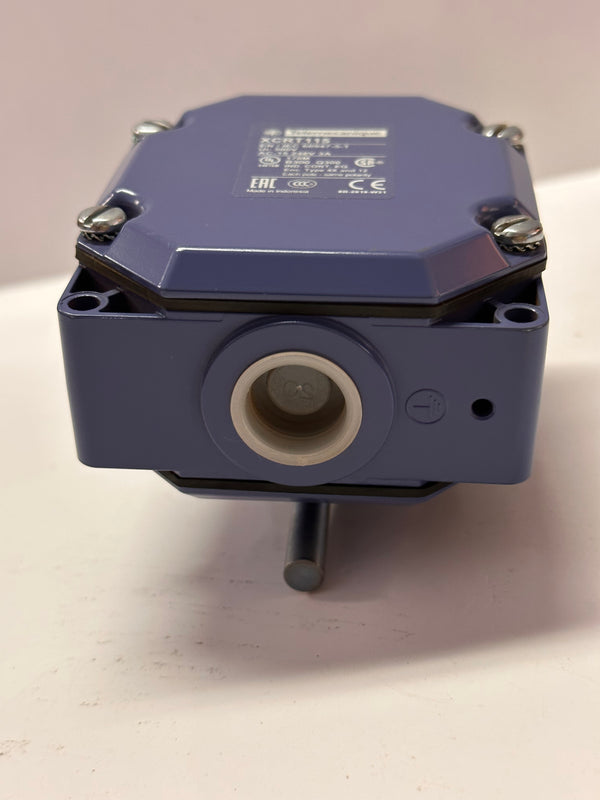

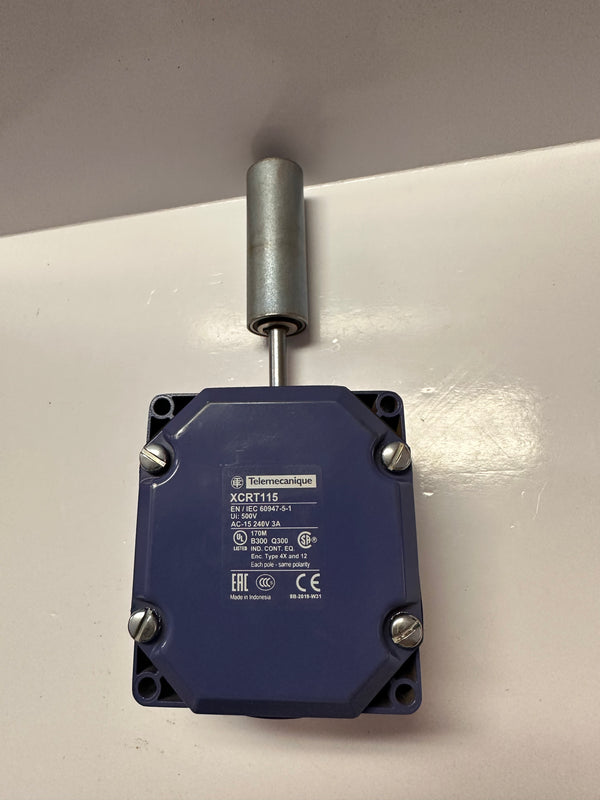

Telemecanique XCRT115 OsiSense XC Series lever limit switch for conveyor-belt shift monitoring.
Listed specifications
| Product or Component Type | Limit switch |
| Product Specific Application | For conveyor belt shift monitoring |
| Device short name | XCRT |
| Sensor design | - |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing Mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller zinc plated steel with lever |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Number of poles | 2 |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 2 per direction |
| Positive opening | Without |
The source explicitly states positive opening: Without. Do not treat the spring-return action as a positive-opening or safety-rated function.

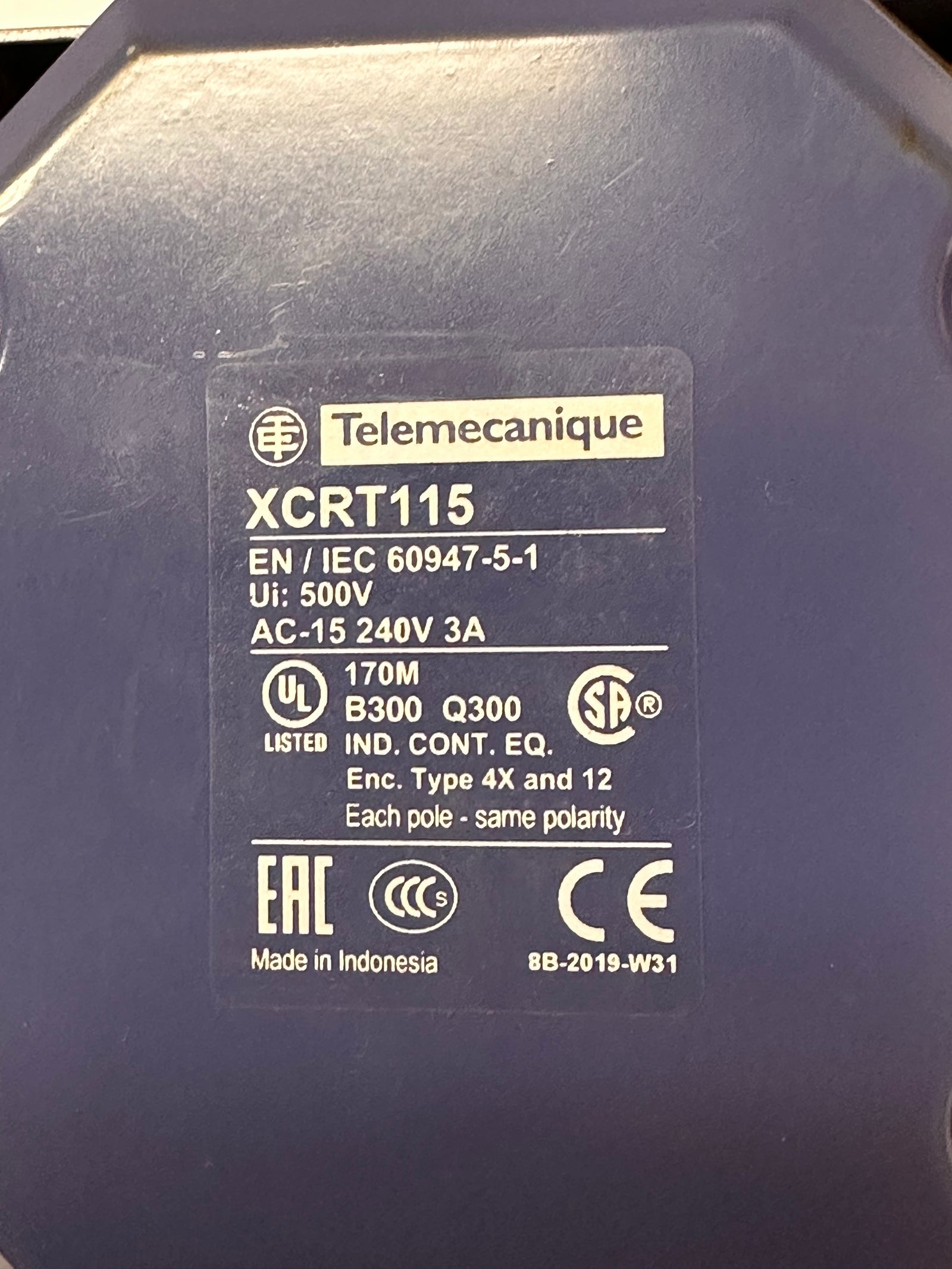

Additional original reference: 609-6681. The original tags record 240V and 3A, but the source does not state their load-duty relationship; confirm applicable electrical ratings before installation. The source contact-block wording is retained and is not converted into a different total contact count.
Confirm the exact switch, lever arrangement and conveyor monitoring requirements before ordering.
