SCHNEIDER ELECTRIC

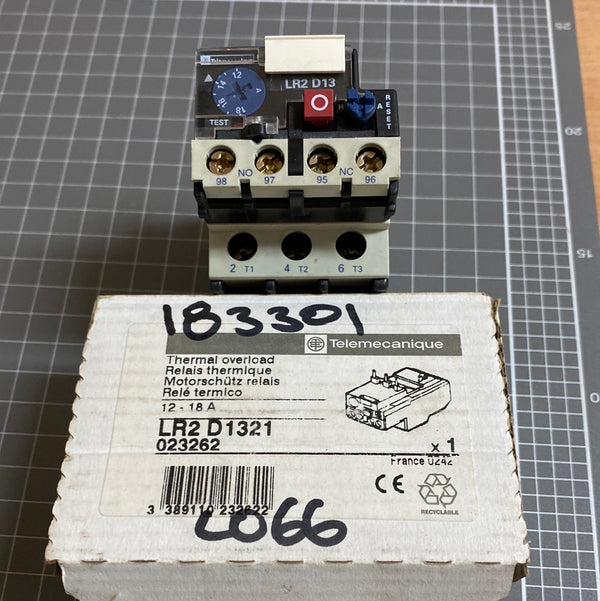

Schneider Electric LR2 D1321 Thermal Overload Relay 12–18 A
- SKU
- P-TE-T-0396
$68.50
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TE-T-0396 |
| Weight | 1.0 kg |
Description
Schneider Electric LR2 D1321 thermal overload relay for motor protection, recorded adjustment range 12–18 A. Additional reference: 023262.
Recorded technical details:
| Product or component type | Thermal overload relay |
|---|---|
| Device short name | LR2D |
| Relay application | Motor protection |
| Tripping threshold | 1.14 +/-0.06 In A conforming to IEC 60947-4-1 |
|---|---|
| Phase failure sensitivity | Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 |
| Mounting support | Plate Rail |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals |
| Height | 121 mm |
| Width | 75 mm |
Confirm the exact relay, compatible contactor, mounting dimensions and trip settings before installation. Source-listed IEC references describe the recorded specification and are not independent verification of this item's compliance.
