SUTTON TOOLS
Sutton D1020199 Blue HSS Jobber Drill Bit, Pack of 10
- SKU
- P-SU-S-7320
$12.50
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | SUTTON TOOLS |
|---|---|
| Product type | TOOL ACCESSORIES |
| SKU | P-SU-S-7320 |
| Weight | 0.5 kg |
Description

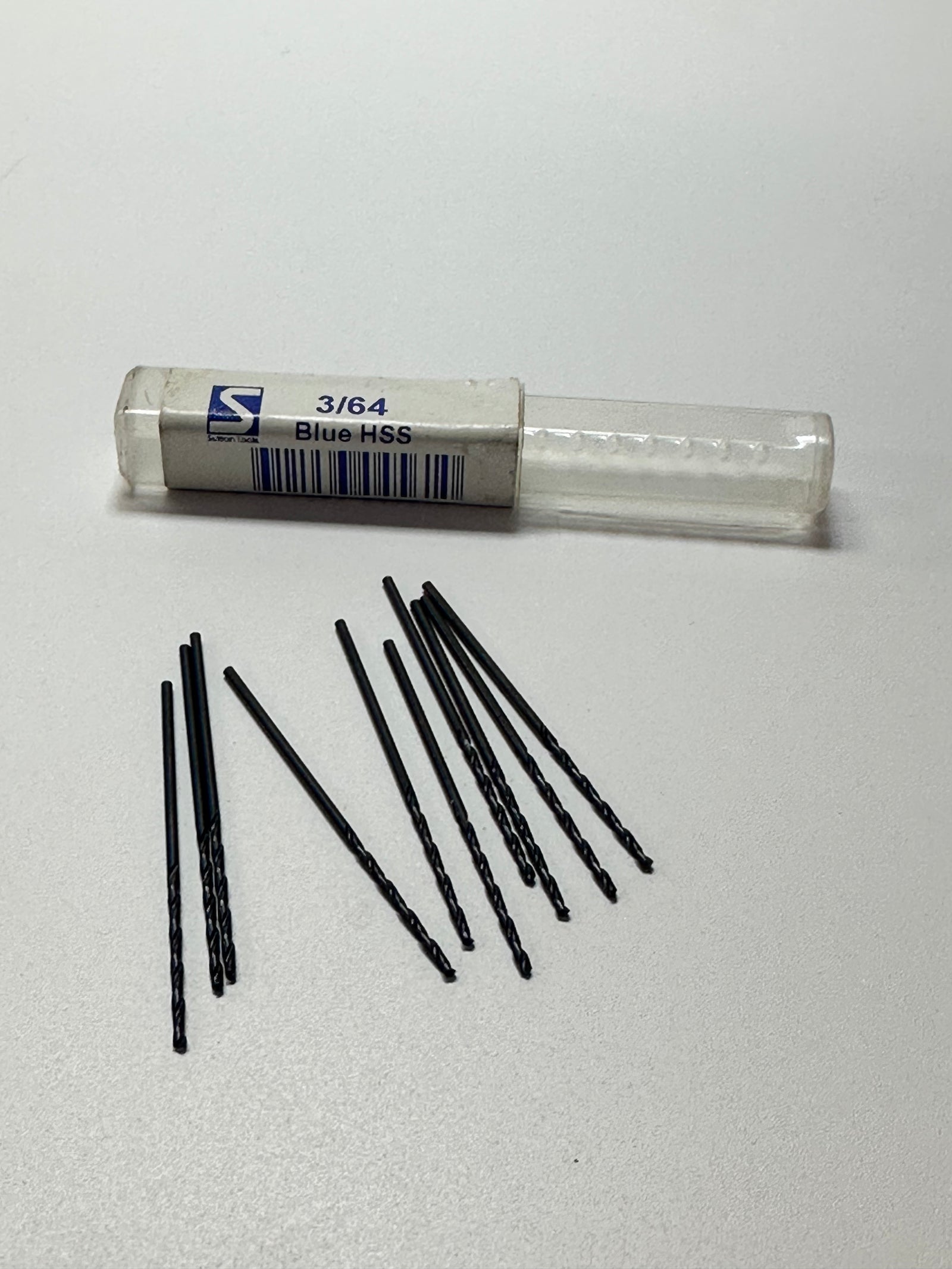

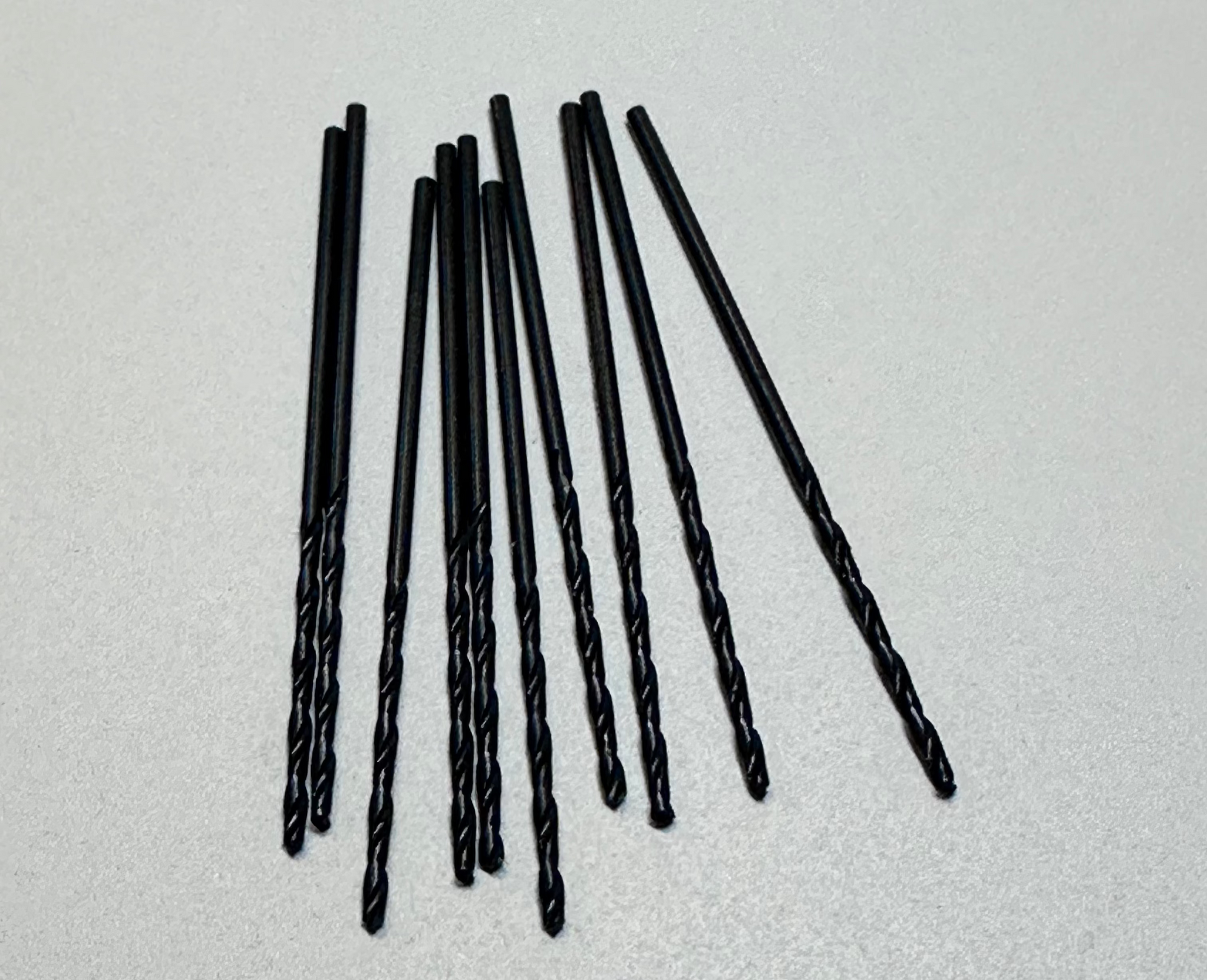

Sutton blue HSS jobber drill-bit listing, source title D1020199, pack of 10.
Model and size confirmation required

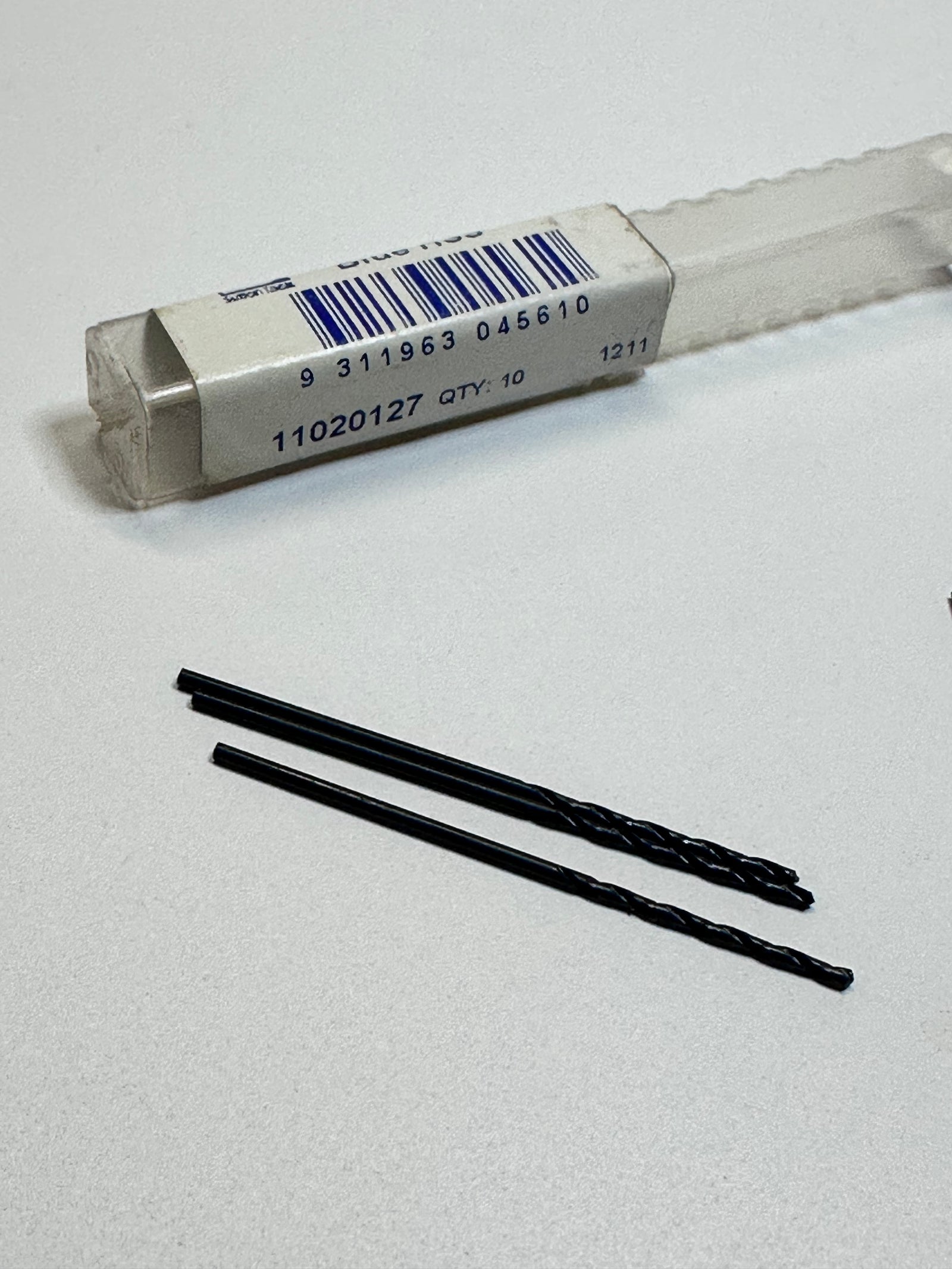

The original title says D1020199, but the detailed source and tags say D1020119, with a 1.19mm field and a 3/64" tag. Neither part number has been corrected or treated as equivalent. Confirm the actual packaging/bit marking and diameter before ordering.
Original source specifications — variant unconfirmed
- Brand Sutton Tools
- Model Number D1020119
- Thread Diameter (mm) 1.19
- Overall Length (mm) 44
- Flute Length (mm) 19
- Group Code D102
- Type Jobber Drill Bit
- System of Measurement DIN 338, Metric, ANSI B94-11
- Material High Speed Steel (HSS)
- Finish Steam Oxide (Blue)
- Helix Angle R30
- Shank Form A
- Point Angle 118
- Point Form A
- Maximum Cut Depth 5XD
- Point Tolerance h8
The source label “Thread Diameter (mm)” is retained literally; this is a jobber drill-bit listing, not a threading tap. The 44mm overall length, 19mm flute length and other specification entries are not confirmed for the title’s D1020199 variant. No exact cutting/application recommendation is supplied.
