SUN HYDRAULICS

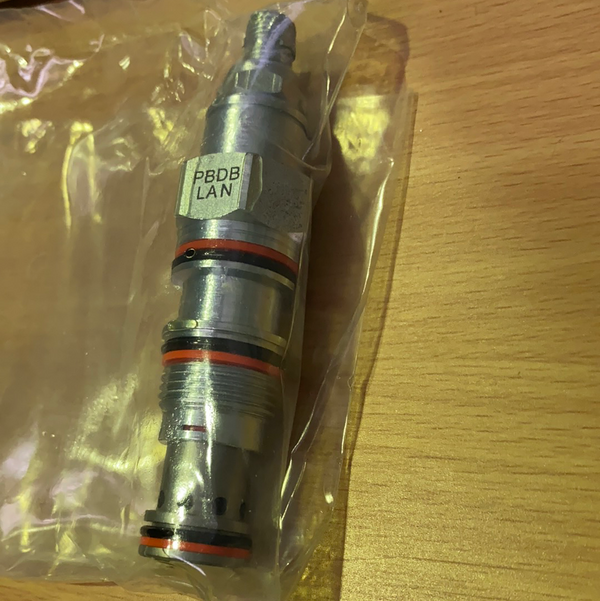

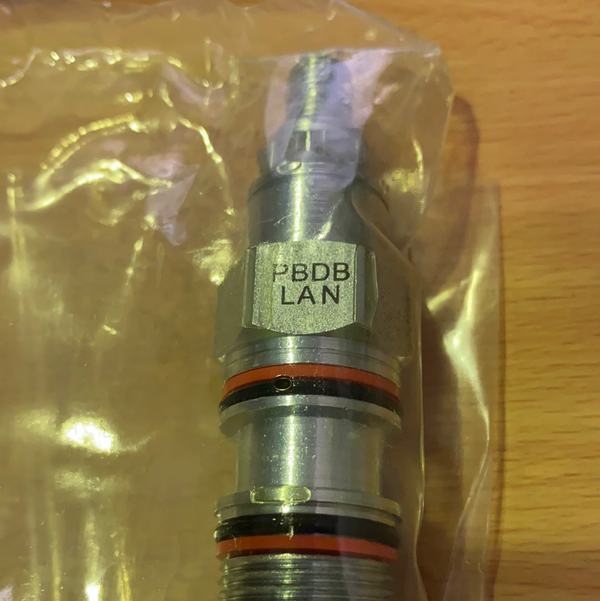

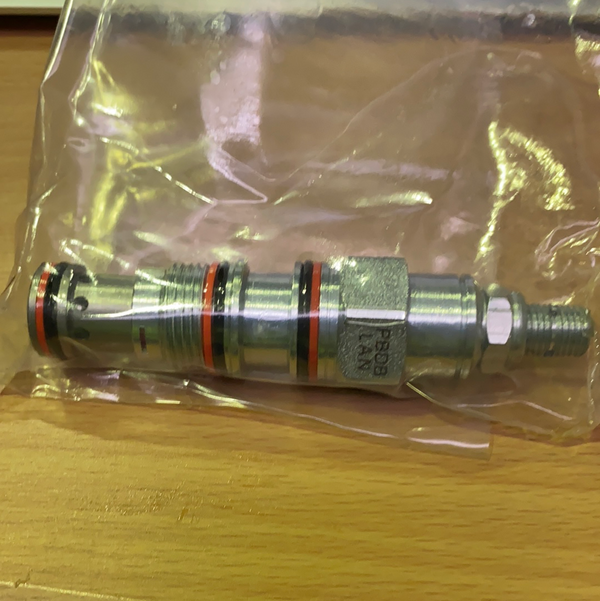

Sun Hydraulics PBDB-LAN Pilot-Operated Pressure-Reducing Valve
- SKU
- P-SU-S-0208
$85.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | SUN HYDRAULICS |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-SU-S-0208 |
| Weight | 0.5 kg |
Description
Sun Hydraulics PBDB-LAN pilot-operated pressure-reducing cartridge valve, also recorded as PBDBLAN. Series 1, T-11A cavity; recorded capacity 10gpm / 40L/min and maximum operating pressure 5000psi.
The source specifications below include adjustment and installation details. The listed Buna, EPDM, polyurethane and Viton seal kits are replacement options, not confirmation of the seal material installed or kits included. Maximum operating pressure is not a supplied pressure setting.
SUN HYDRAULICS PBDB-LAN
| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm - 40L/min. |
| Maximum Operating Pressure | 5000 psi |
| Factory Pressure Settings Established at | blocked control port (dead headed) |
| Control Pilot Flow | 7 - 10 in³/min. |
| Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 7/8 in. |

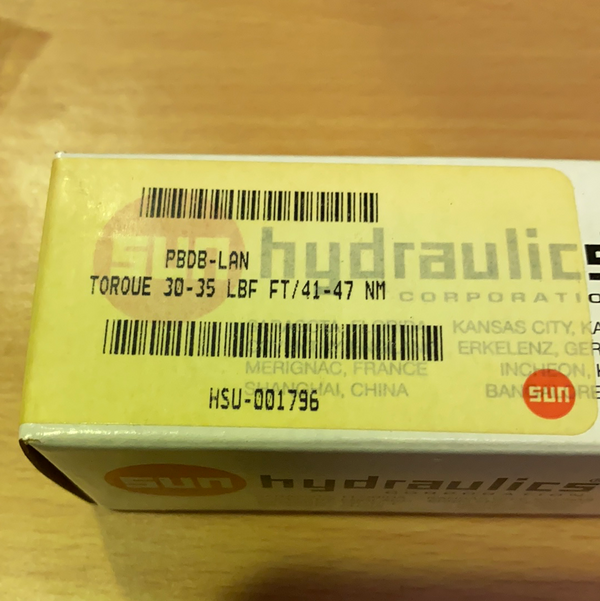

| Valve Installation Torque | 30 - 35 lbf ft |
| Adjustment Screw Internal Hex Size | 5/32 in. |
| Locknut Hex Size | 9/16 in. |
| Locknut Torque | 80 - 90 lbf in. |
| Model Weight | 0.35 lb. |
| Seal kit - Cartridge | Buna: 990011007 |
| Seal kit - Cartridge | EPDM: 990011014 |
| Seal kit - Cartridge | Polyurethane: 990011002 |
| Seal kit - Cartridge | Viton: 990011006 |
