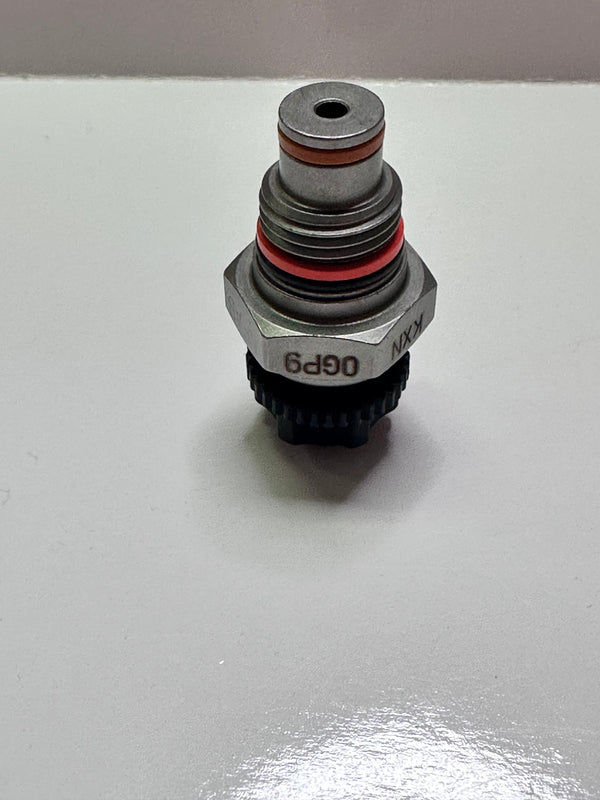

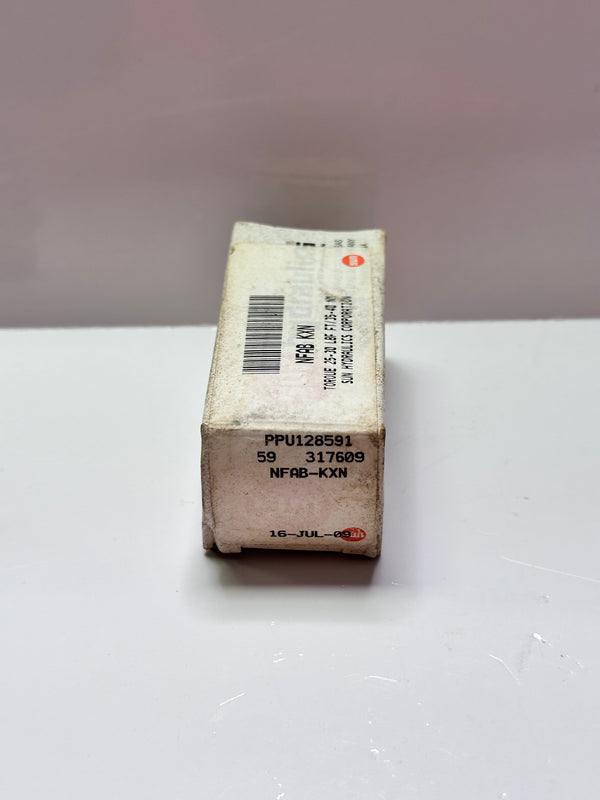

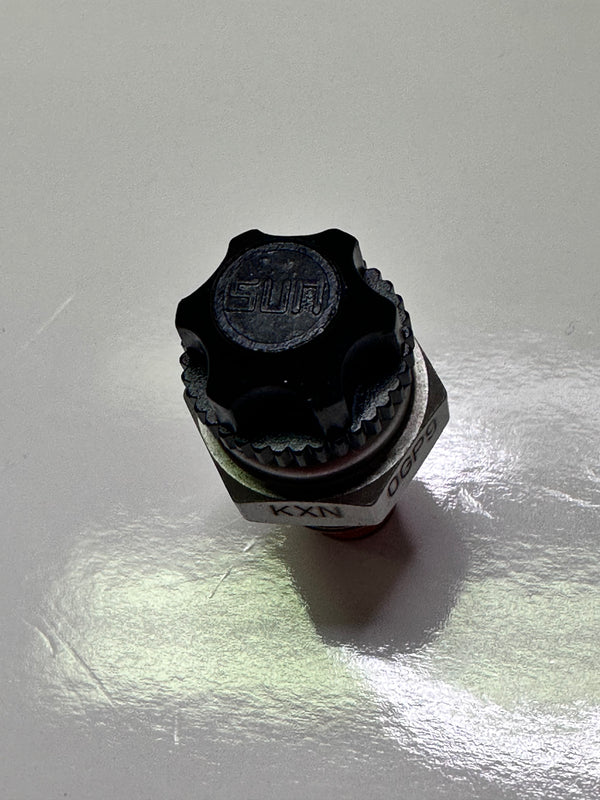

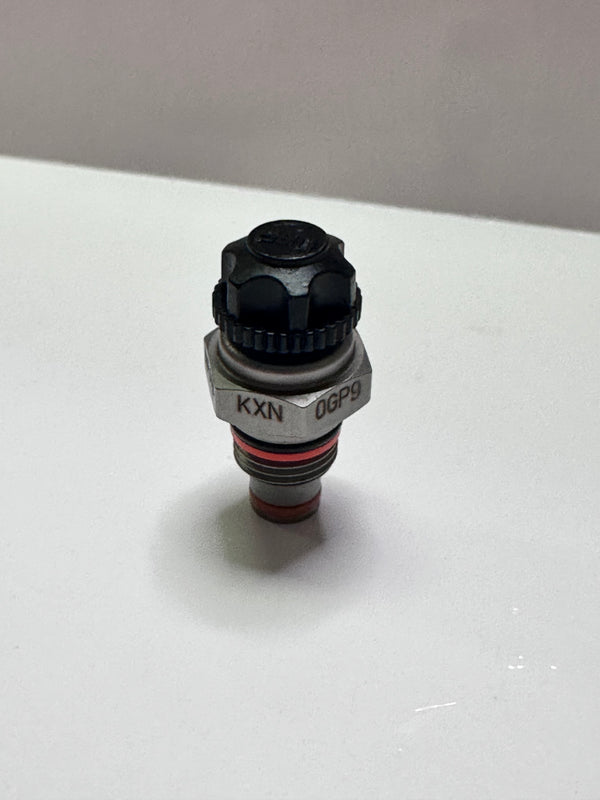

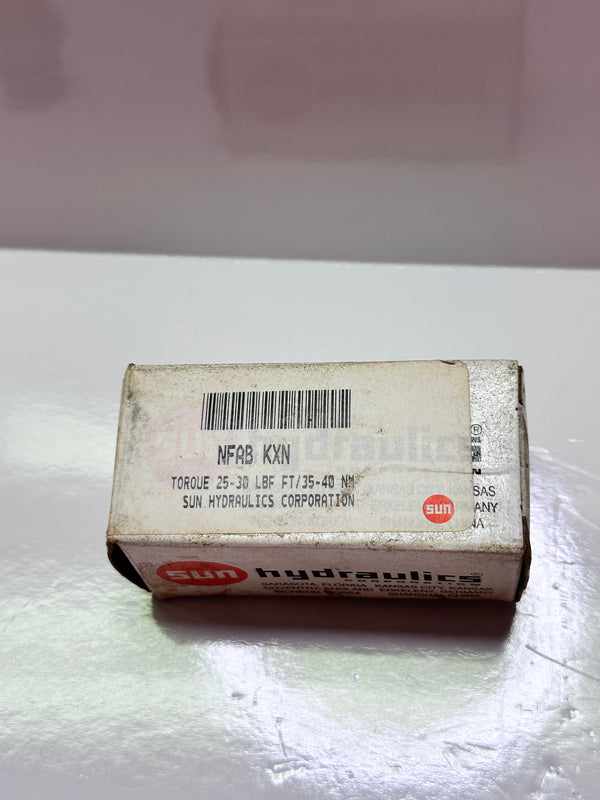

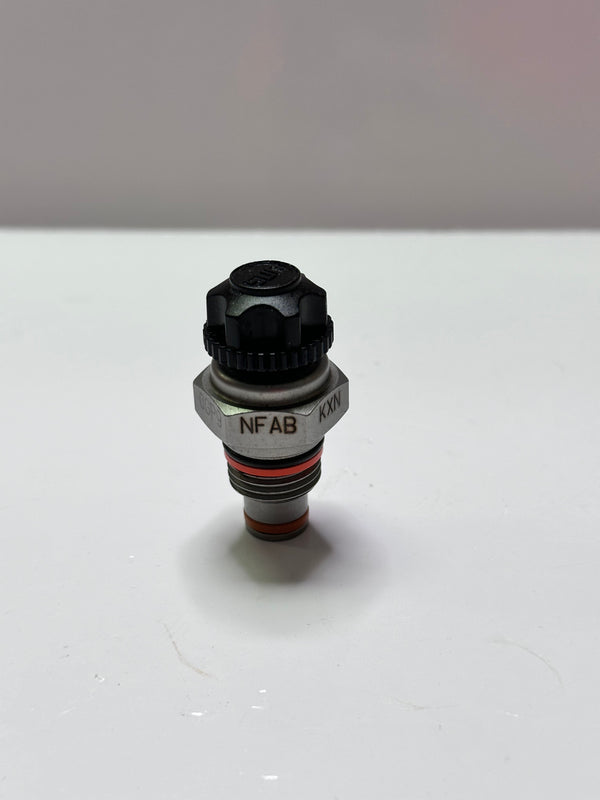

Sun Hydraulics KFABKXN Fully Adjustable Needle Valve, Pilot Capacity Series P

Cavity T-8A
Series P
Capacity 0,8 L/min. (0,9 mm)
Maximum Operating Pressure 350 bar
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 3
Effective Orifice Size 0,9 mm
Valve Hex Size 22,2 mm

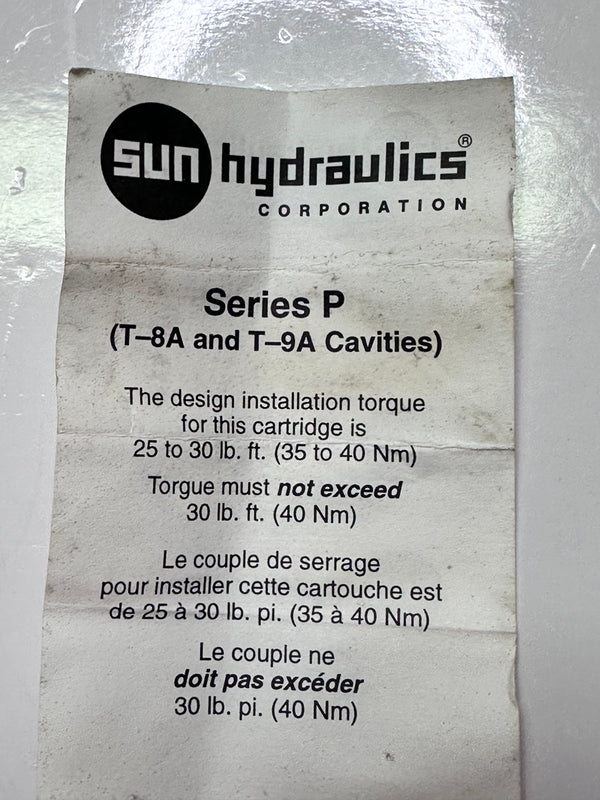

Valve Installation Torque 27 - 33 Nm
Seal kit - Cartridge Buna: 990008007
Seal kit - Cartridge EPDM: 990008014
Seal kit - Cartridge Polyurethane: 990008002
Seal kit - Cartridge Viton: 990008006
