SUN HYDRAULICS

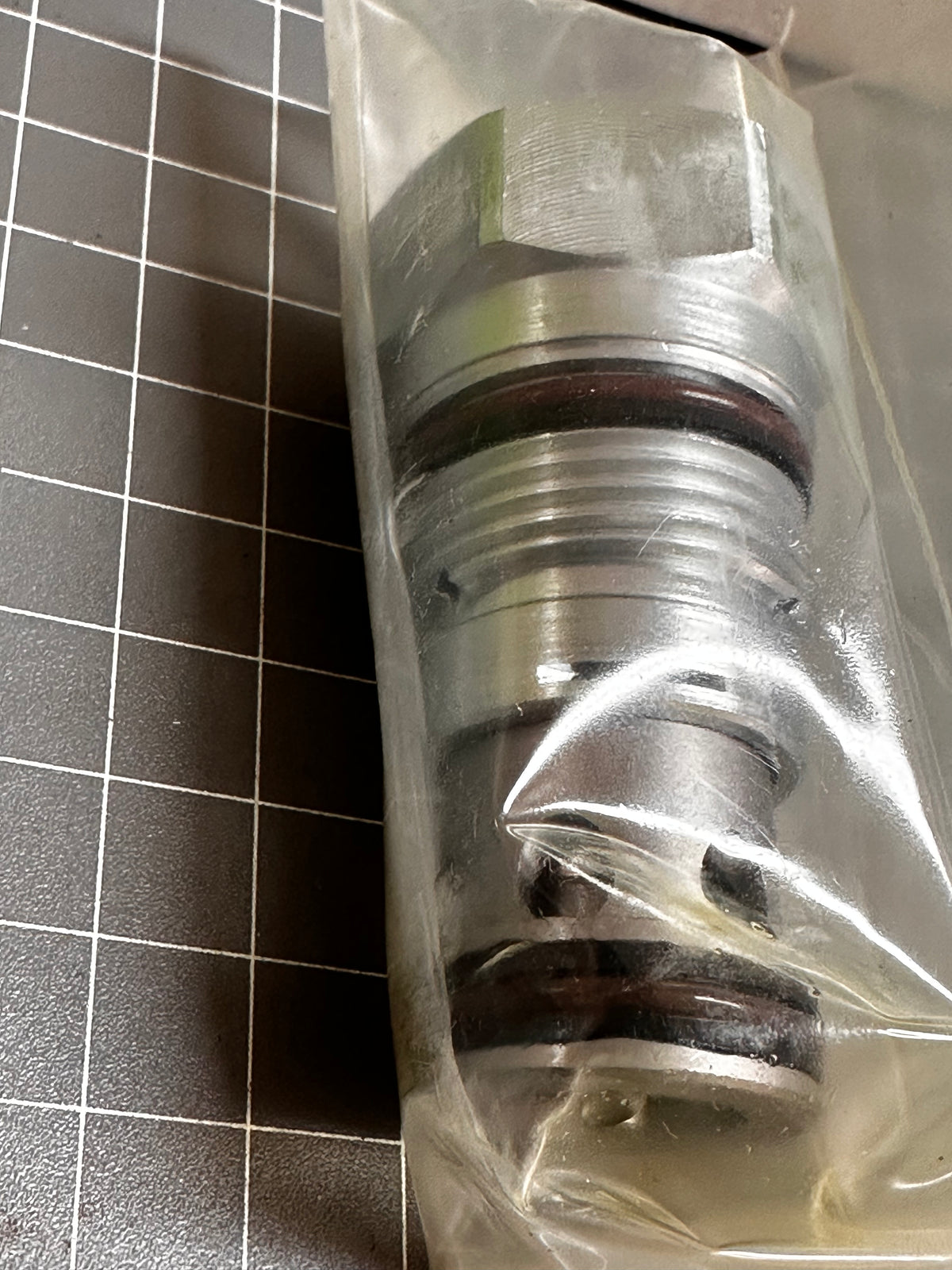

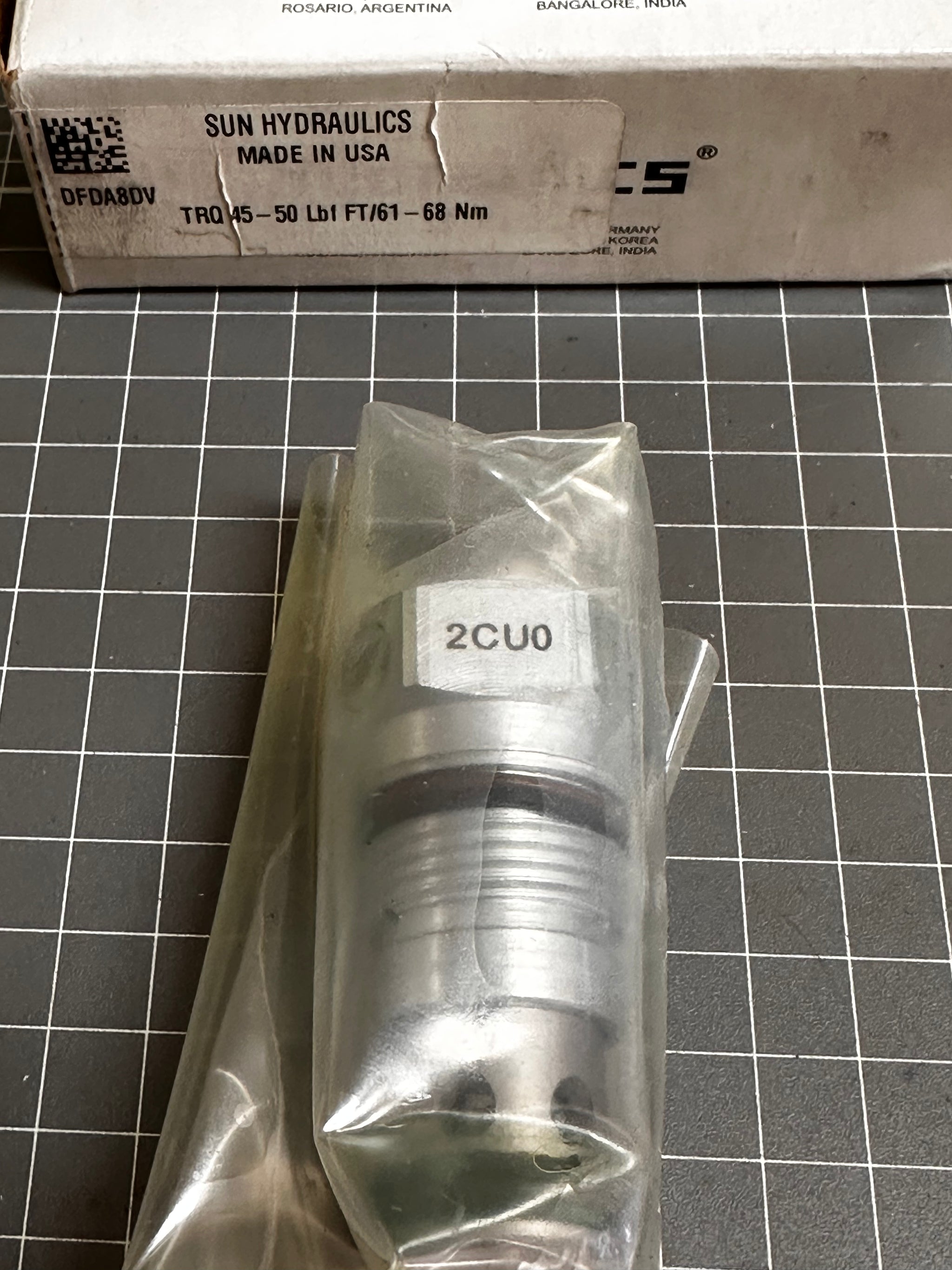

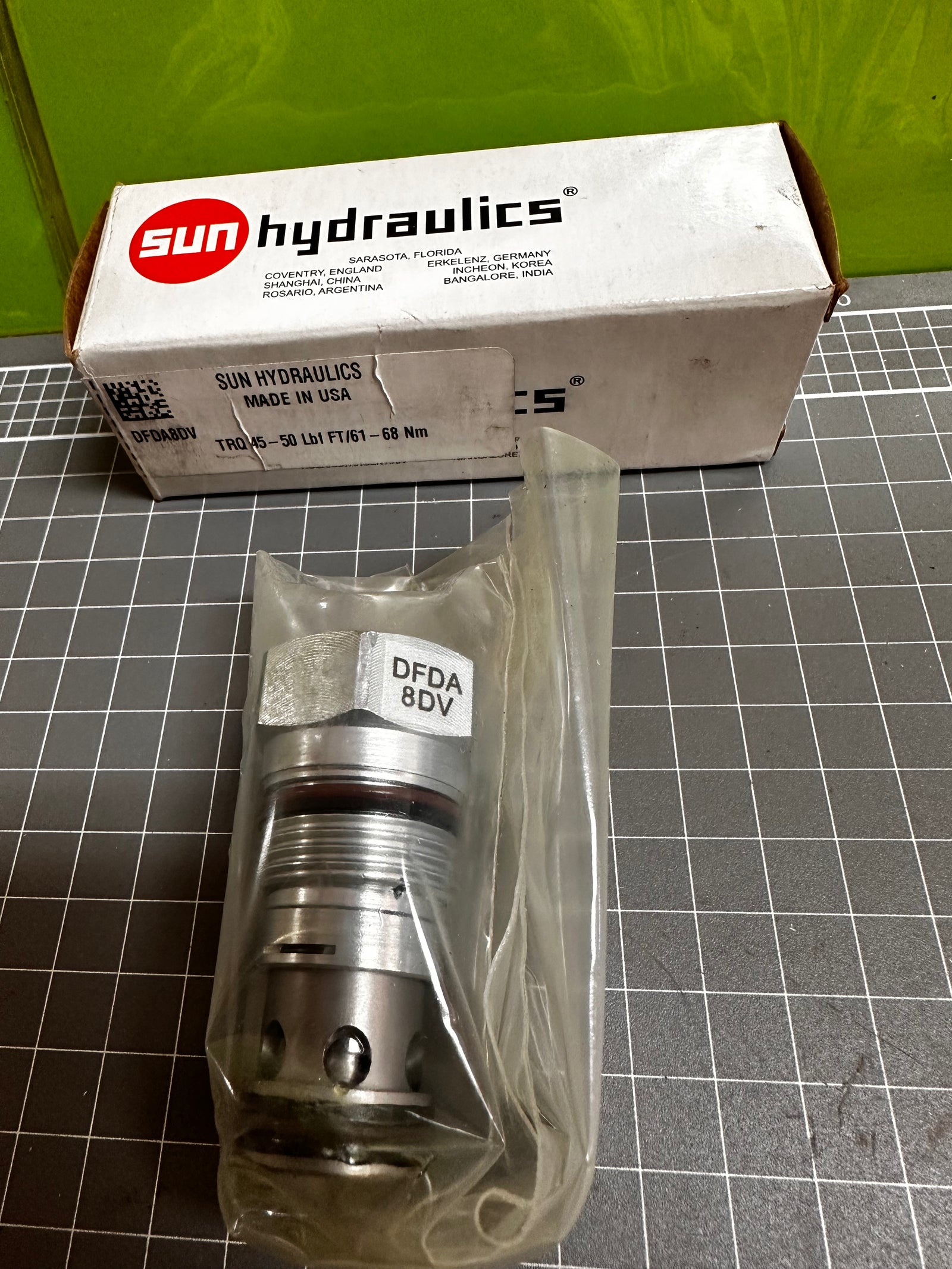

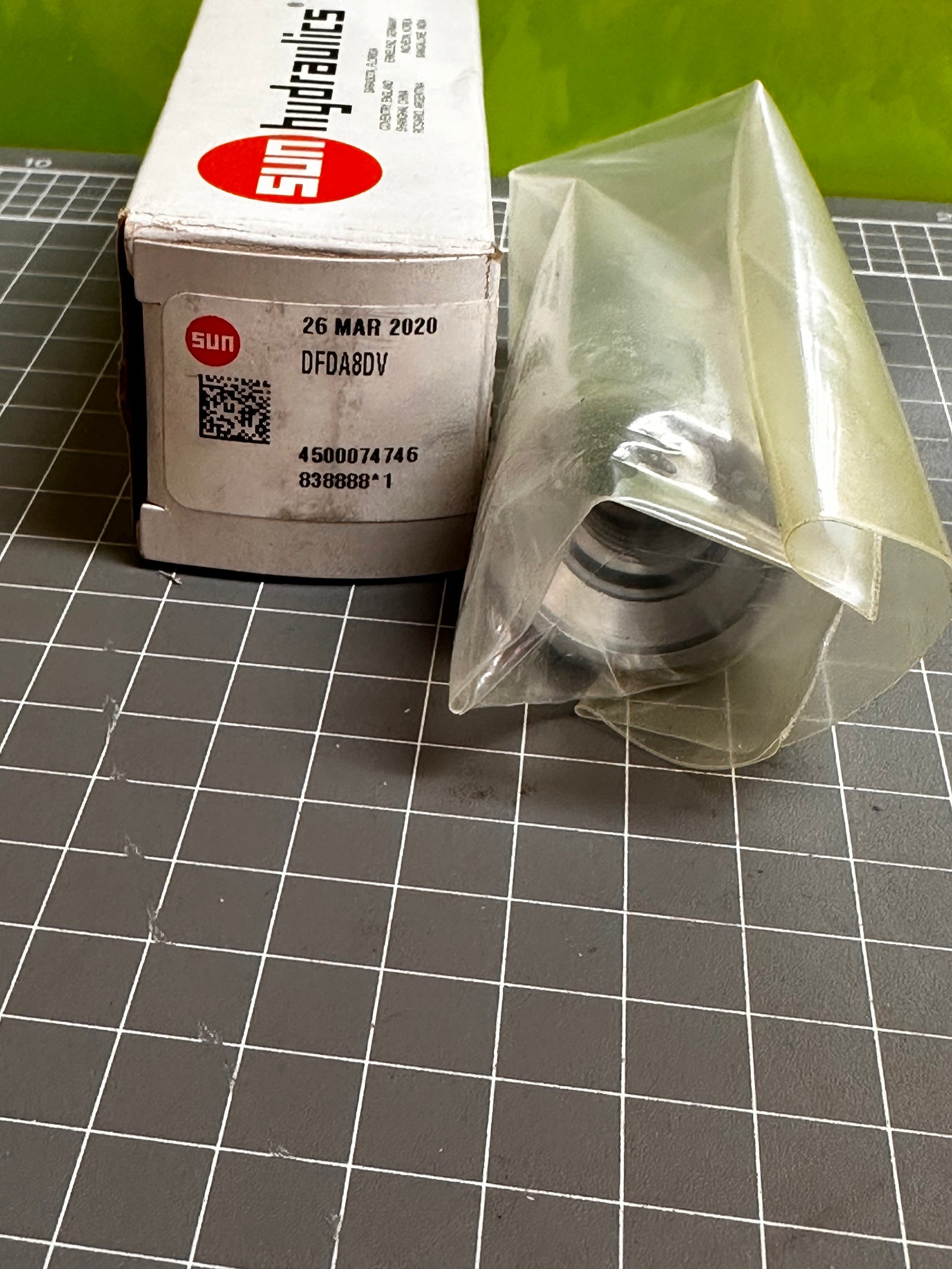

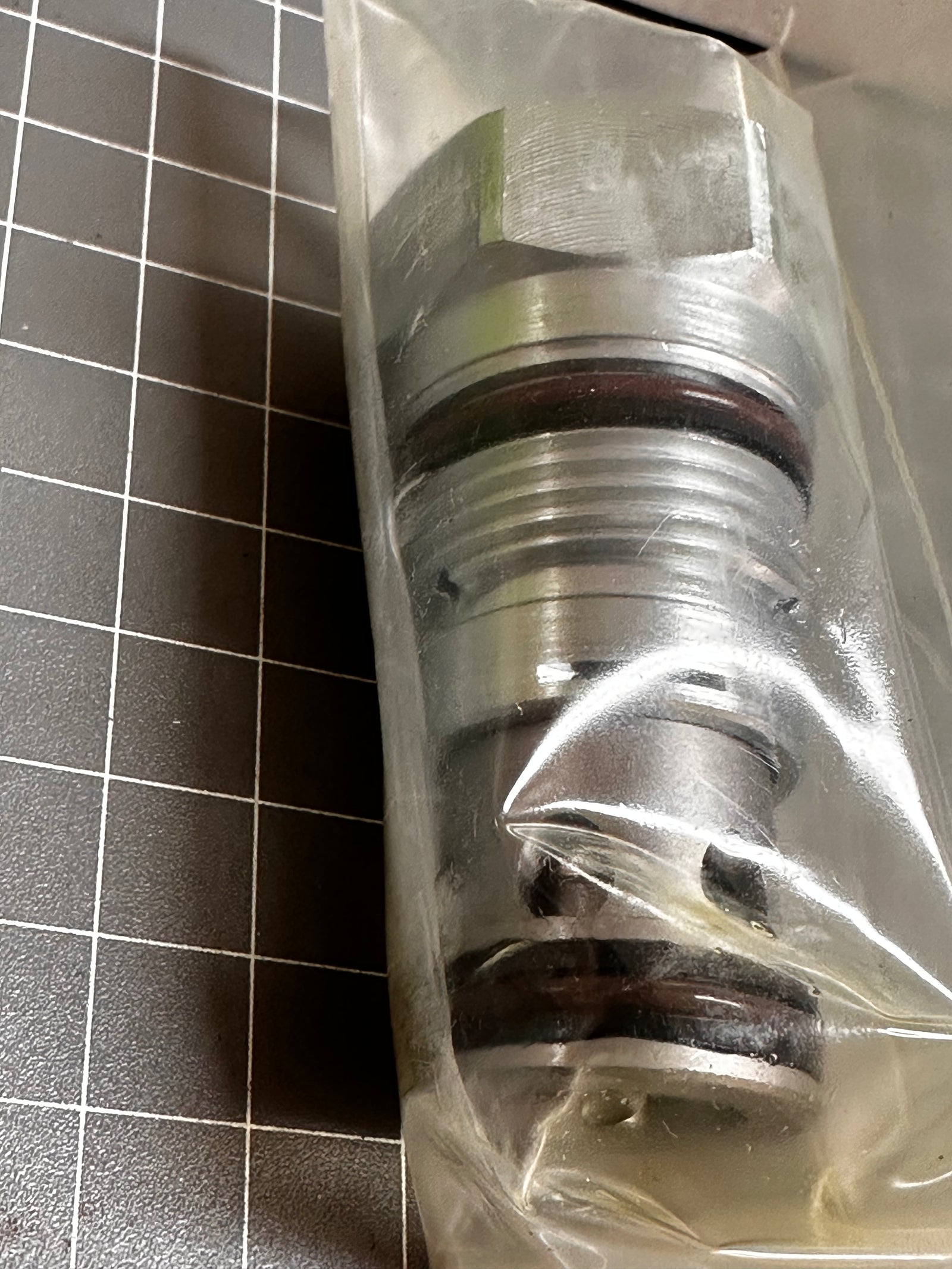

SUN DFDA8DV 2-way, poppet directional valve with integral T-8A control cavity - control 1-2
- SKU
- P-SU-S-2403
$80.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.2 kg
Specifications
| Manufacturer | SUN HYDRAULICS |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-SU-S-2403 |
| Weight | 0.2 kg |
Description
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | see pilot control mssee pilot control ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Check Cracking Pressure | 50 psi3,5 bar |
| Pilot Control Cavity | T-8AT-8A |
| Pilot Control Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
