PHOENIX CONTACT
Phoenix Contact SUBCON-PLUS-PROFIB/SC2 D-SUB Connector — Reference Check Required
- SKU
- P-SU-P-2947
$45.00
Price includes GST.
Low stock: 5 left
Warehouse pickup available
- Weight
- 0.1 kg
Specifications
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Product type | DATA & COMMUNICATION |
| SKU | P-SU-P-2947 |
| Weight | 0.1 kg |
Description

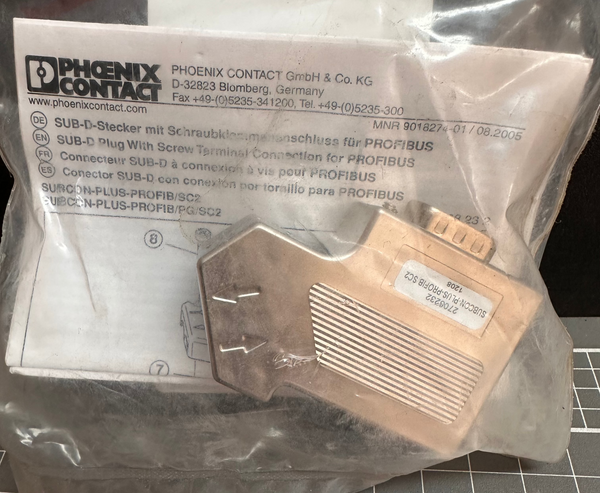

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 PROFIBUS D-SUB plug connector, listed with 9 positions.

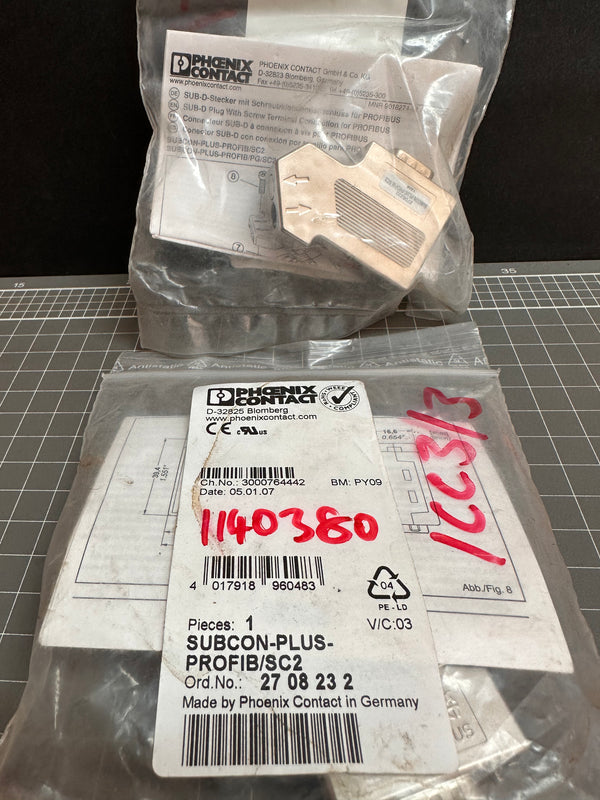

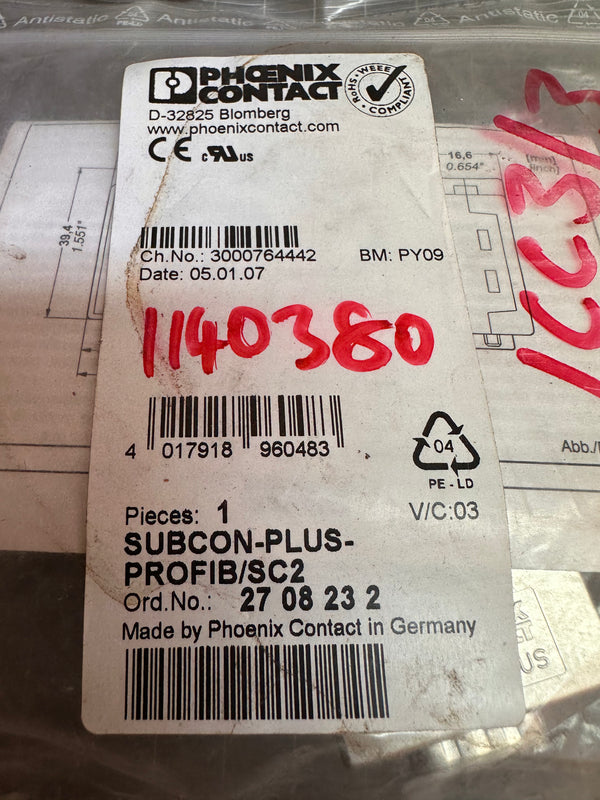

Part-number confirmation required: the source title gives 2708282, while the description and tags give 2708232 / 27 08 23 2. Both references are retained without assuming equivalence.
Specifications recorded in the source
- PROFIBUS DP bus system; data rate 12 Mbps.
- Nominal voltage 5 V; nominal current 100 mA.
- Cable diameter 7.6–8.4 mm.
- Ambient operating temperature -20°C to 75°C.
- Metal-plated ABS housing; screw connection.
- Cable entry angle less than 35°.
The original description lists UL, cUL, CSA, EAC, cULus and ATEX approvals. Exact certification numbers, conditions and the supplied unit’s markings are not provided; these source claims do not establish hazardous-area suitability for a particular installation.
Confirm the label reference, connector arrangement and required approvals before ordering.
