STURDEE
Sturdee Single Sheave Wire Rope Block, 100mm, Listed 500kg
- SKU
- P-ST-S-7707
- Weight
- 4.5 kg
Specifications
| Manufacturer | STURDEE |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-ST-S-7707 |
| Weight | 4.5 kg |
Description

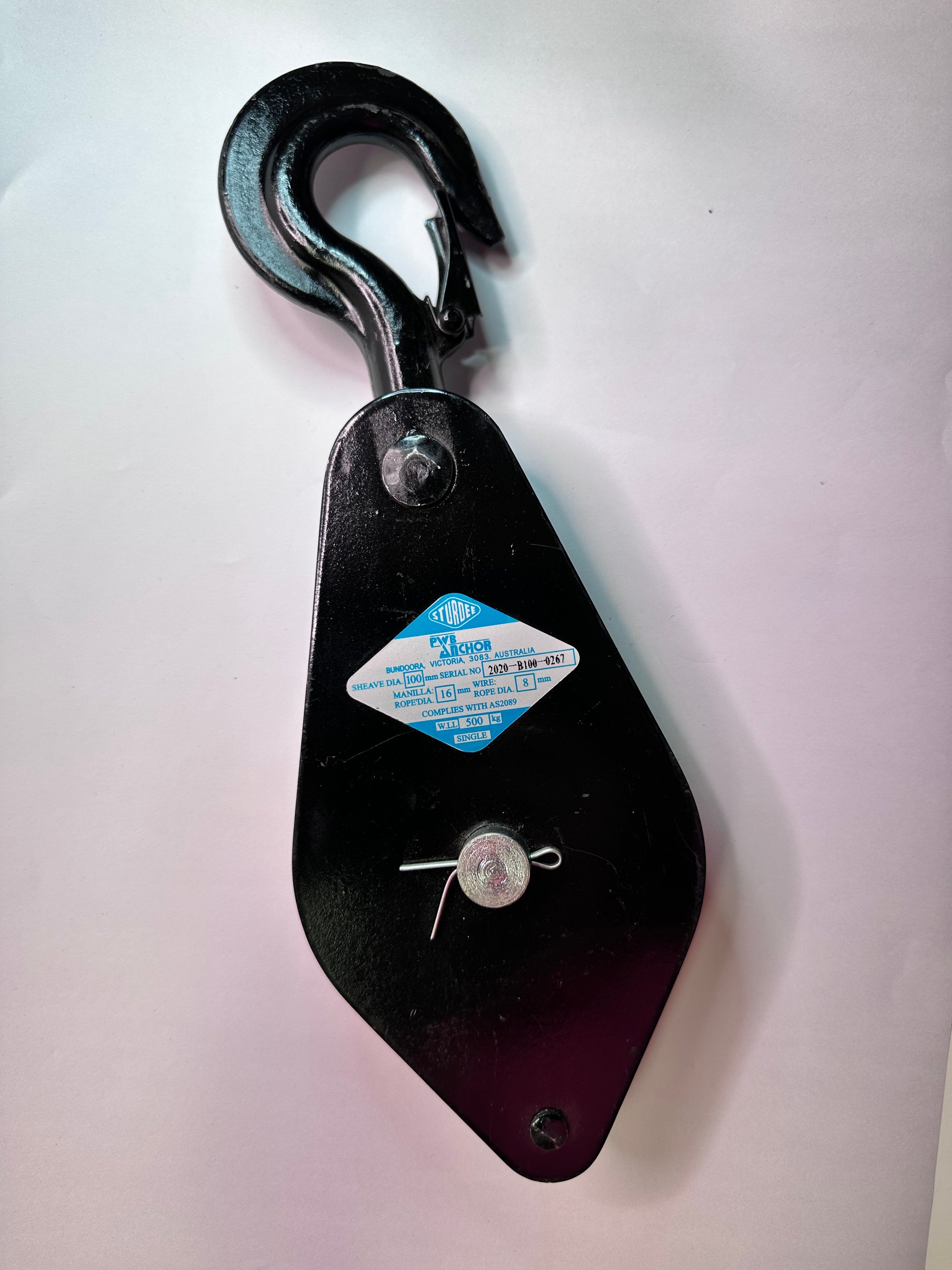

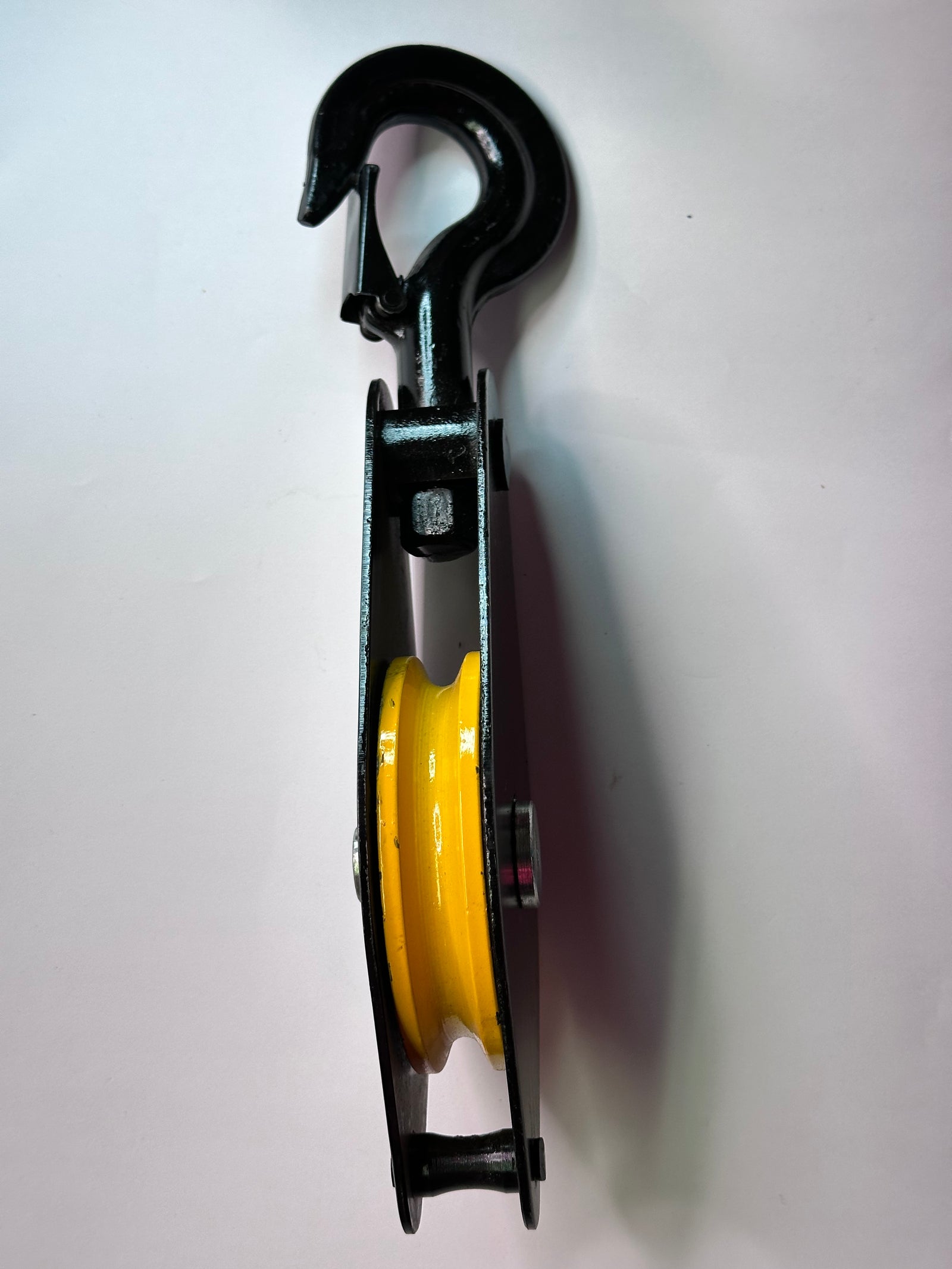

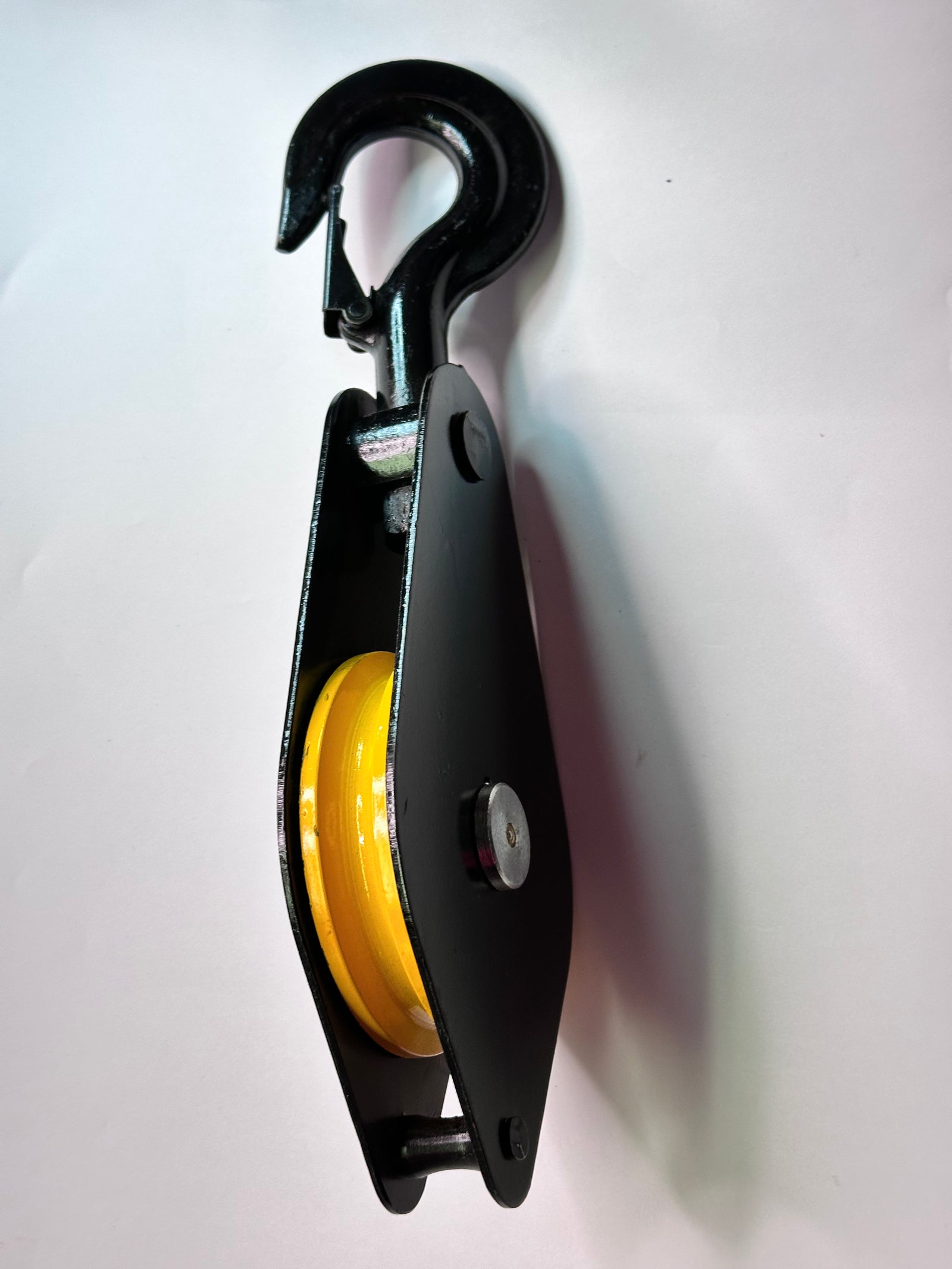

Sturdee single sheave wire rope block, listed with a 100mm sheave (4" size designation) for 8mm wire rope, in black.
Load and compliance check required

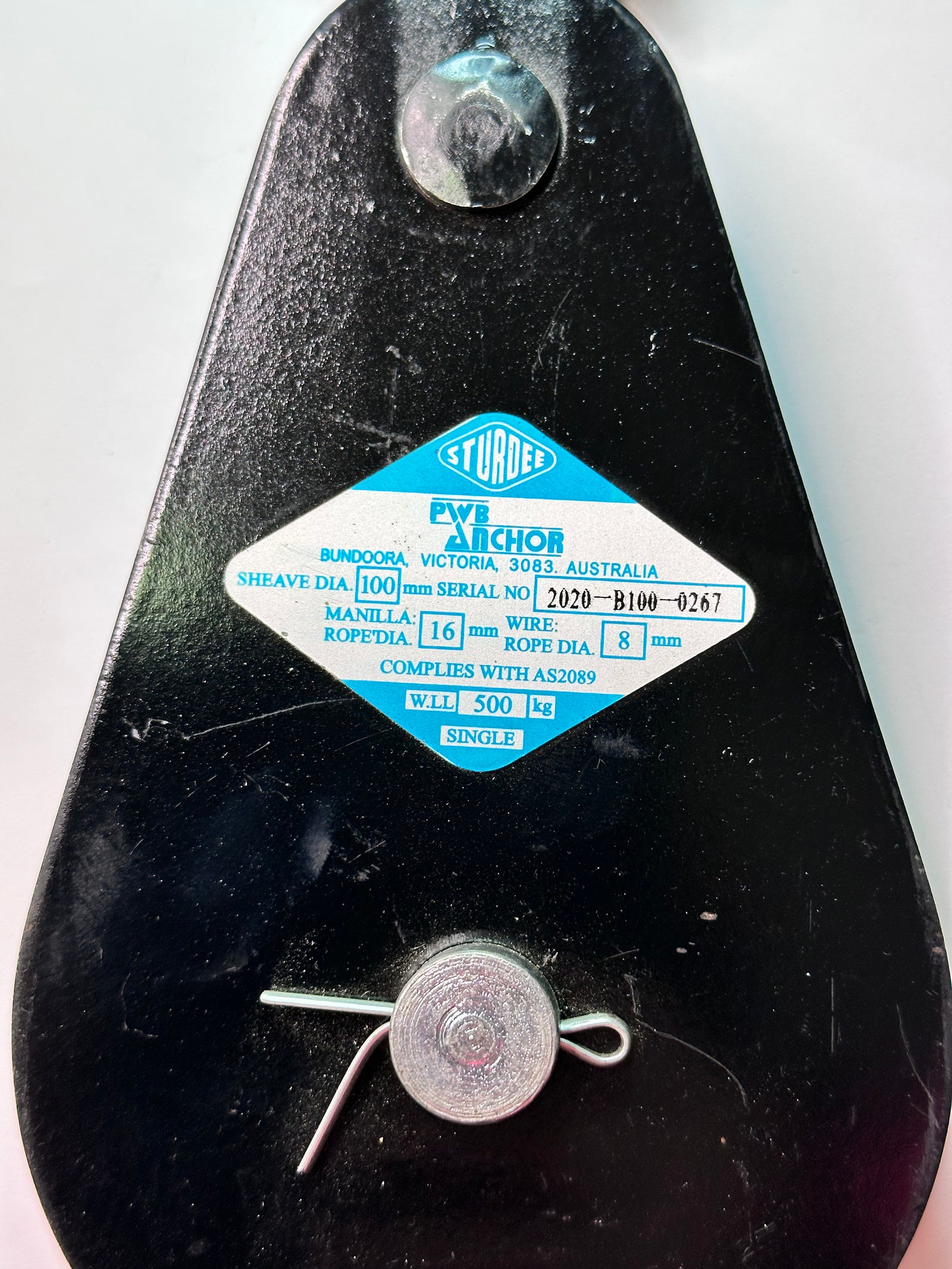

The source states a 500kg Working Load Limit / 500 kg lift capacity and lists AS 2089 under an “ISO Compliance Number” heading. These are source claims, not independently verified current certification or approval for an assembled rigging system. Confirm the block identification, condition, markings and documentation before lifting use; no capacity for a particular reeving arrangement has been calculated.

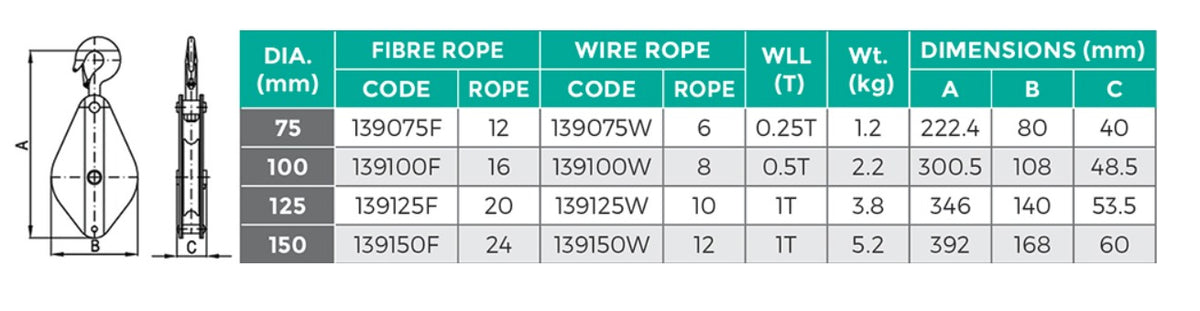

Original source specifications
| Type | Single, Wire Rope |
| Material | High Tensile Steel |
| Rope/Wire Diameter | 8 mm |
| Lift Capacity | 500 kg |
| Sheave Diameter | 100 mm |

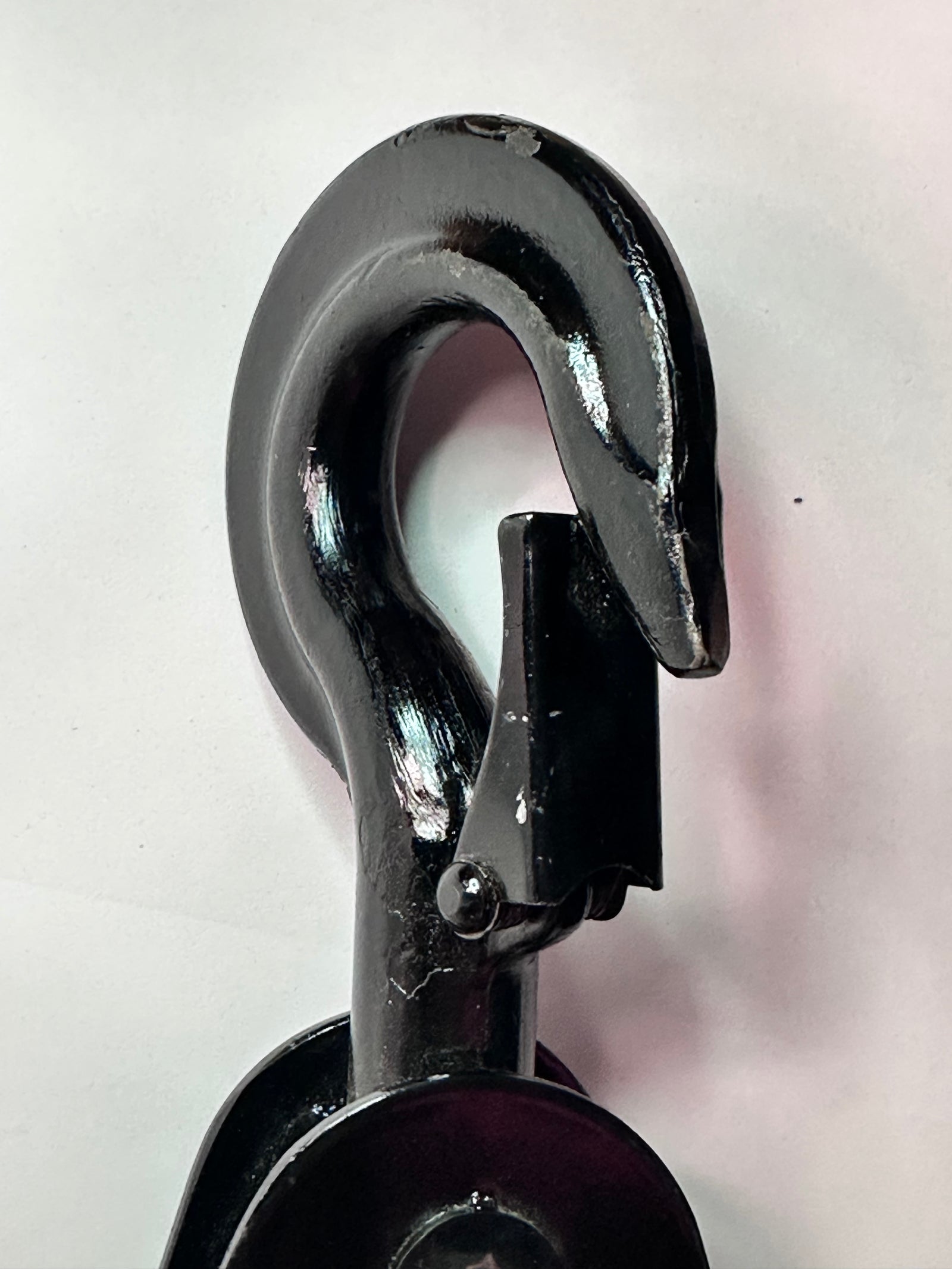

| Feature | Hook suspended with safety latch, Fully interchangeable sheaves. |
| ISO Compliance Number | AS 2089 |
| Application | Suitable for block and tackle, general pulling, manual operated wire rope. |
| Size | 4" |
| Colour | Black |
Original source feature claims
-
500kg Working Load Limit
-
100mm sheave wheel diameter
-
Designed for 8mm steel wire rope
-
Steel-compatible groove reduces wear and friction
-
Strong, lightweight construction
-
Easy to install and operate in field or workshop
Recorded references
100M-1B-HW, 139075F, 2020-B100-0267 and 45674. PWB ANCHOR is a legacy keyword; the relationship to this Sturdee-marked listing needs confirmation. No wire rope, spare sheave or complete block-and-tackle set is established as included.
