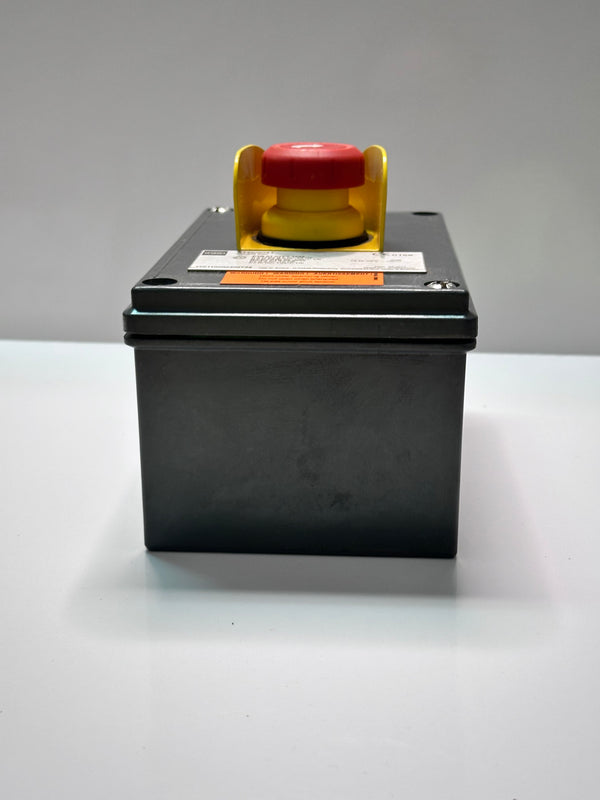

Stahl 8146/5041-SP3A Emergency Stop Control Box
- SKU
- P-ST-S-5757
$250.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | STAHL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-ST-S-5757 |
| Weight | 3.5 kg |
Description
Stahl 8146/5041-SP3A emergency-stop control box. Source references also include 8146/5041 and 81465041.
Source details requiring verification
- Enclosure material: polyester resin; listed protection: IP66
- First source specification: 500V AC, 50/60 Hz; 170 mm width × 112.5 mm height; −20 to +70 °C

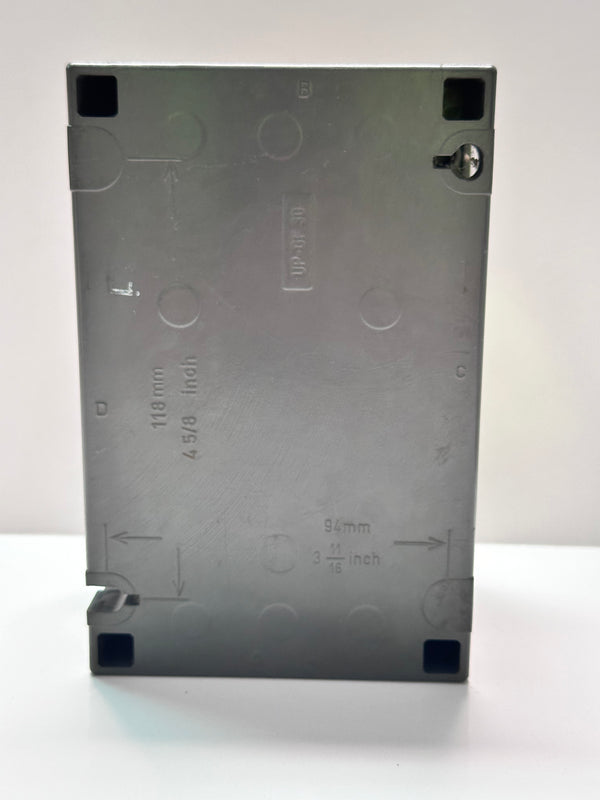

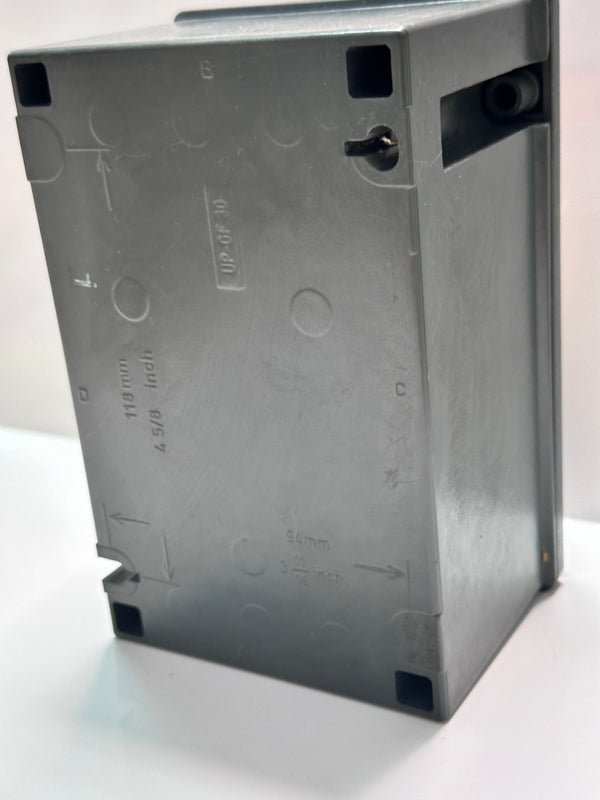

- Second source specification: 230V / 50 Hz, 6A; dimensions 112 × 170 × 91 mm; ambient −20 to +40 °C
- Control-voltage field is incomplete; schematic described as without wiring
Recorded components
- 1 ST Pilzschluesseltaster EMERGENCY STOP MS
- 1 Contact element Oe + S
- 1 ST protective conductor terminal USLKG 5
- 1 ST: Lower 8161/5 M20-13-fitting M20x1,5sw
Unverified approval transcription

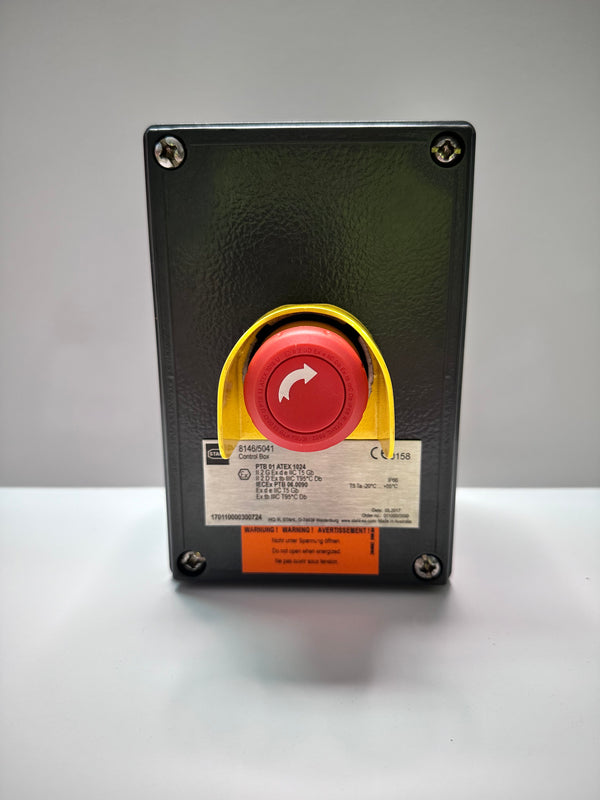

Gas: Ex II 2 G Ex de IIC T6 Gb. Dust: Ex II 2 D Ex tb IIIC T80 ° C Db IP66. ATEX certificate: PTB 01 ATEX 1024. IECEx certificate: IECEx PTB 06.0090. Other approval: on request.
These statements are retained from conflicting source specifications, not confirmed ratings or approvals for this exact assembly. Confirm the SP3A nameplate, fitted components, wiring, electrical and ambient ratings, dimensions and approval documentation before ordering or installation.
