| Contact Configuration: | SPDT 2 CIRCUIT |
| Contact Rating: | 120 TO 600 VAC 10 AMPERE, 125 TO 600 VDC 10 AMPERE |
| Connection Type: | 1/4 INCH-18 TPI FNPT |
| Enclosure: | NEMA 4/4X/13 |
| Enclosure Material: | 303 STAINLESS STEEL |
| Application: | INDUSTRIAL |
| Approval: | UL, CSA, CE |
| Catalog Number: | 9012GJW1 |
| Model: | 9012 |
| Type: | ADJUSTABLE DIFFERENTIAL |
| Operator Type: | 440 STAINLESS STEEL PISTON WITH VITON[R] FLUOROCARBON DIAPHRAGM |
| Operating Pressure Rating: | 15 TO 825 PSIG |
| Maximum Line Pressure Rating: | 7500 PSIG |
| Differential Pressure Rating: | 80 TO 200 PSIG |
| Pressure Media: | AIR, GAS, HYDRAULIC OIL, STEAM, WATER |
| Category: | Pressure Switches |
| Full Technical Description: | Adjustable Differential Type; 7500 psig Max. Line Pressure Rating; SPDT 2 Circuit Contact Configuration; 1/4 Inch-18 TPI FNPT Connection Type; 303 Stainless Steel Enclosure Material; 120 to 600 VAC 10 Ampere, 125 to 600 VDC 10 Ampere Contact Rating; UL, CSA, CE Approval; Industrial Application; NEMA 4/4X/13 Enclosure; 440 Stainless Steel Piston With VITON[R] Fluorocarbon Diaphragm Operator Type; 80 to 200 psig Differential Pressure Rating; Air, Gas, Hydraulic Oil, Steam, Water Pressure Media; 15 to 825 psig Operating Pressure Rating; 9012 Model |
| Manufacturer: | Square D Co. |
| Manufacturer Brand: | Square D Co. |

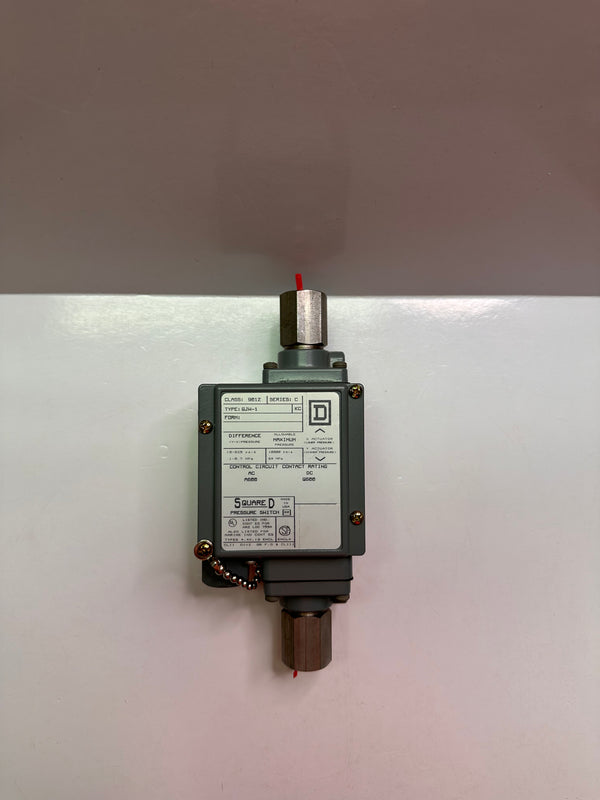

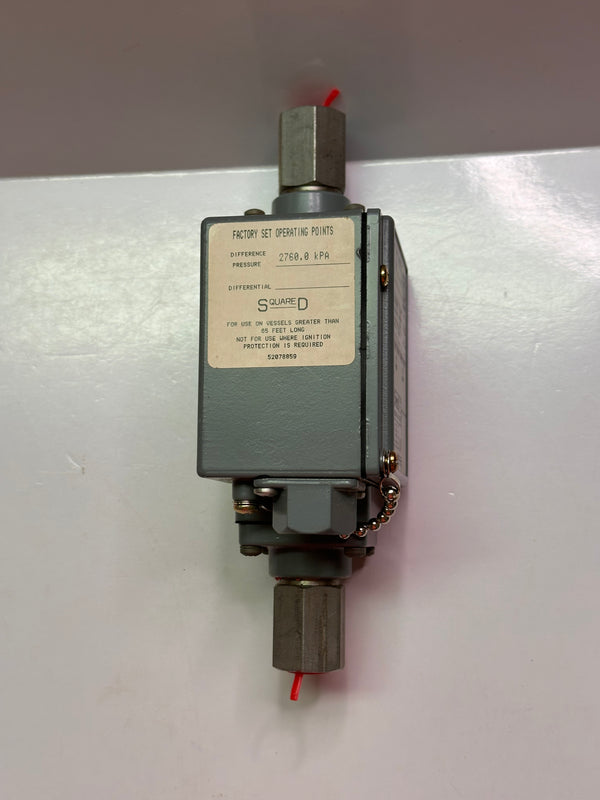

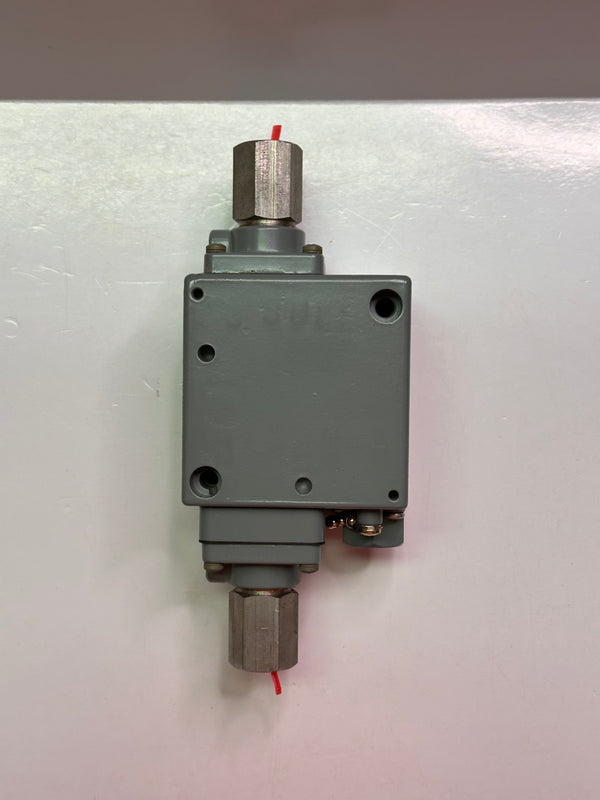

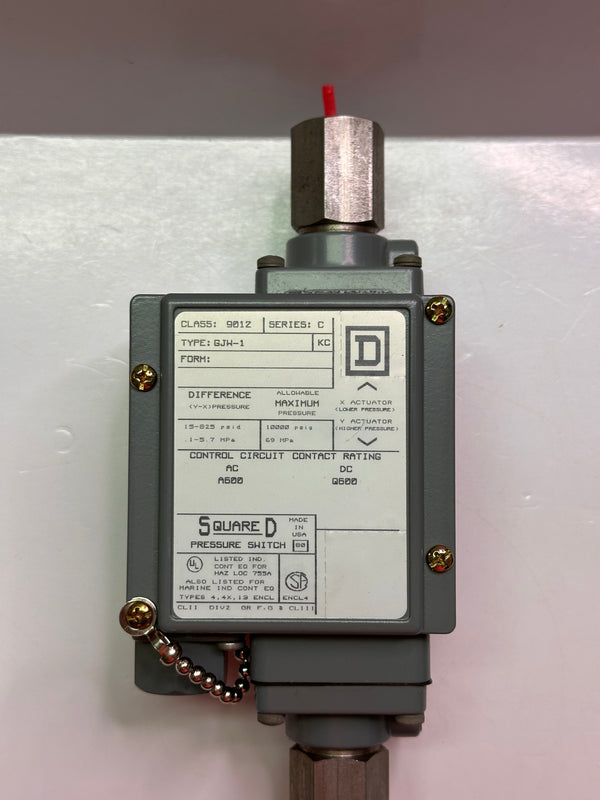

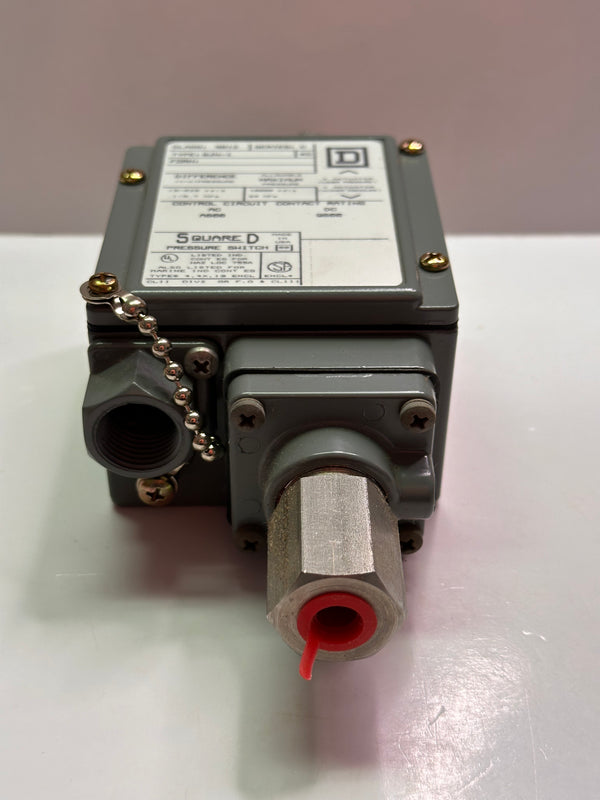

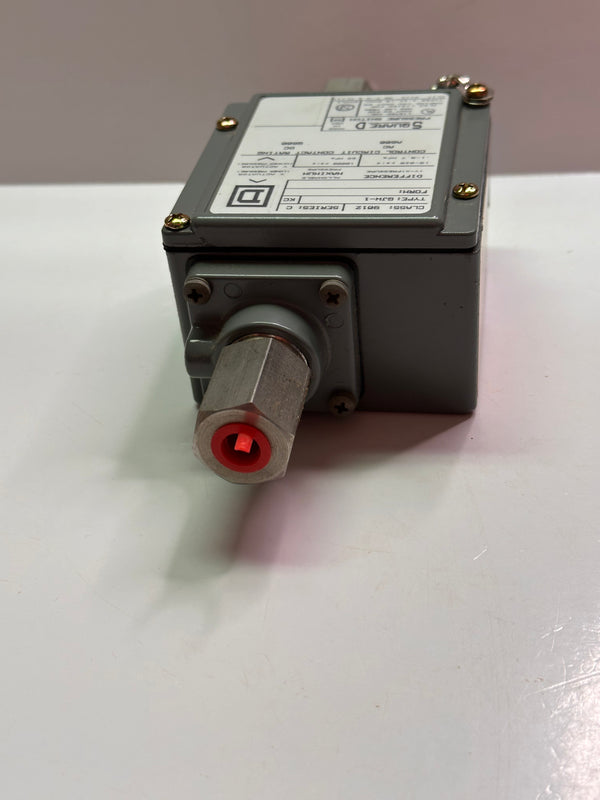

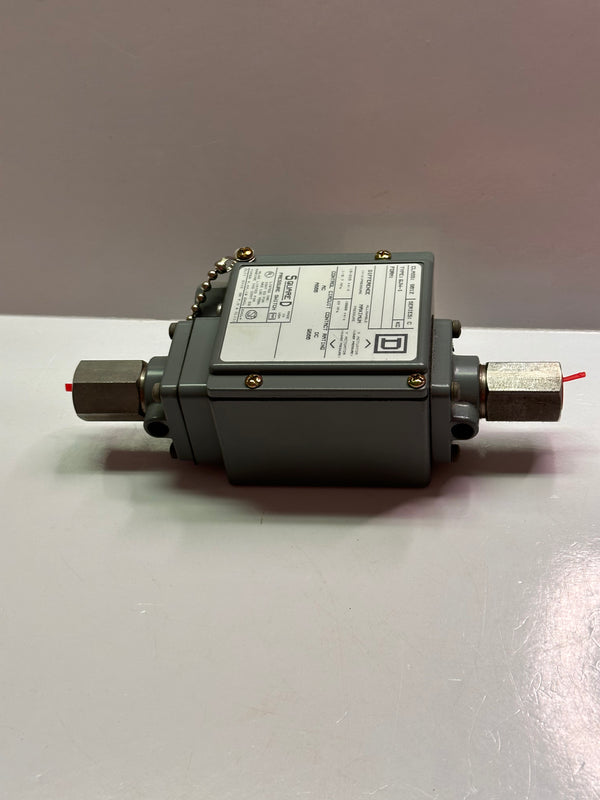

| Product Description: | Telemecanique 9012GJW1 Pressure Switch 480Vac 10Amp G +Options |
