SQUARE D

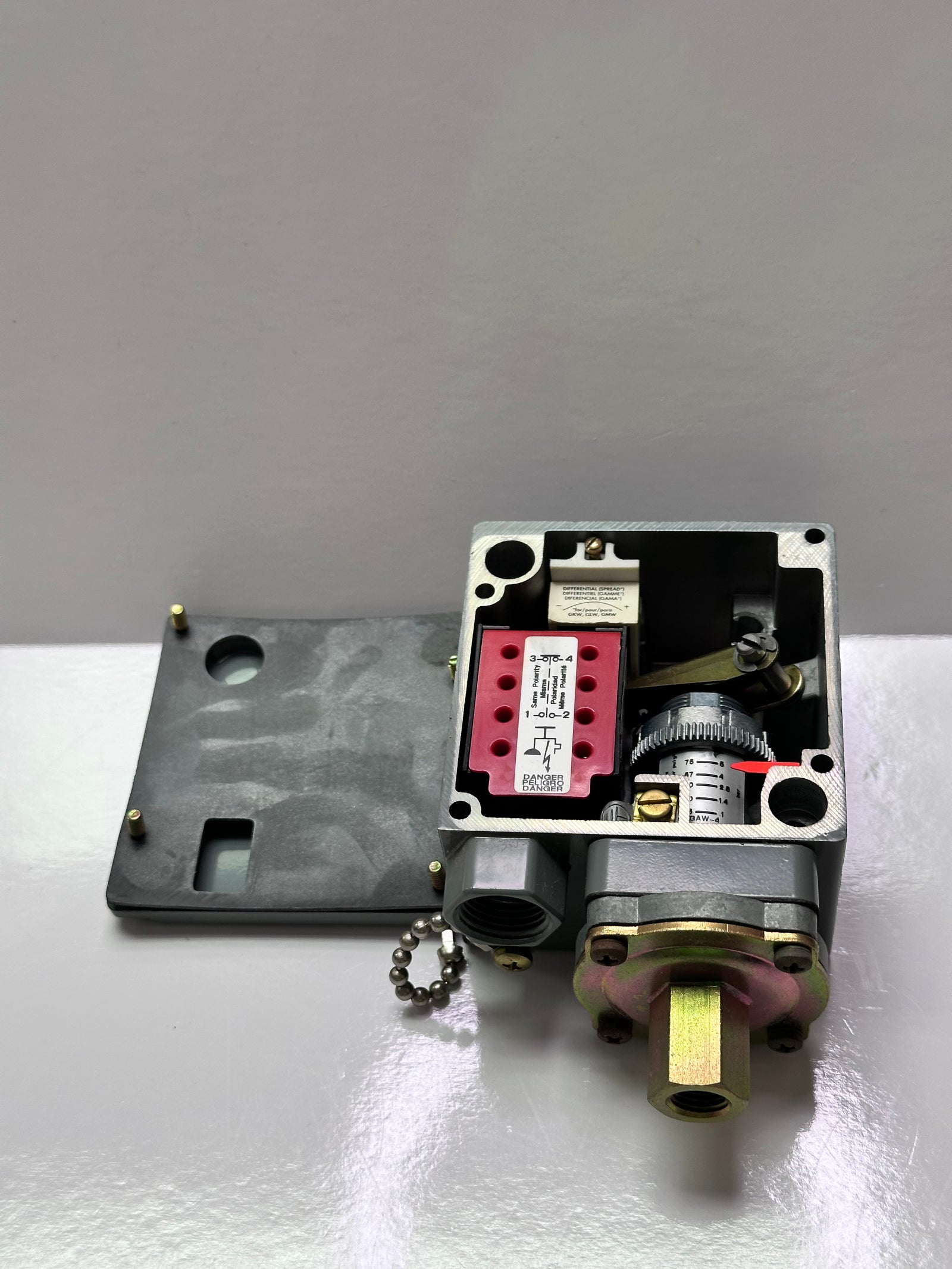

Square D 9012GAW4 Pressure Switch SPDT - 1.5 to 75 psi - 1/4"-18 NPTF - Screw Clamp Terminals
- SKU
- P-SQ-S-6098
$450.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | SQUARE D |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SQ-S-6098 |
| Weight | 2.5 kg |
Description
Square D 9012GAW4 9012G Series low-pressure diaphragm switch with SPDT output.
- Source-listed pressure range: 1.5–75 PSI.
- Connection: 1/4-inch–18 NPTF.
- Title specifies screw-clamp terminals.
- Source media: air, hydraulic oil, non-corrosive fluids and non-corrosive gases.
- Source electrical entries: 600 V AC and 10 A; applicable contact-duty conditions are not provided.
Confirm pressure settings, wetted-material compatibility and electrical contact ratings before installation. This is a pressure switch, not a transmitter; do not assume 10 A applies at every voltage or load type.
