SPRECHER + SCHUH

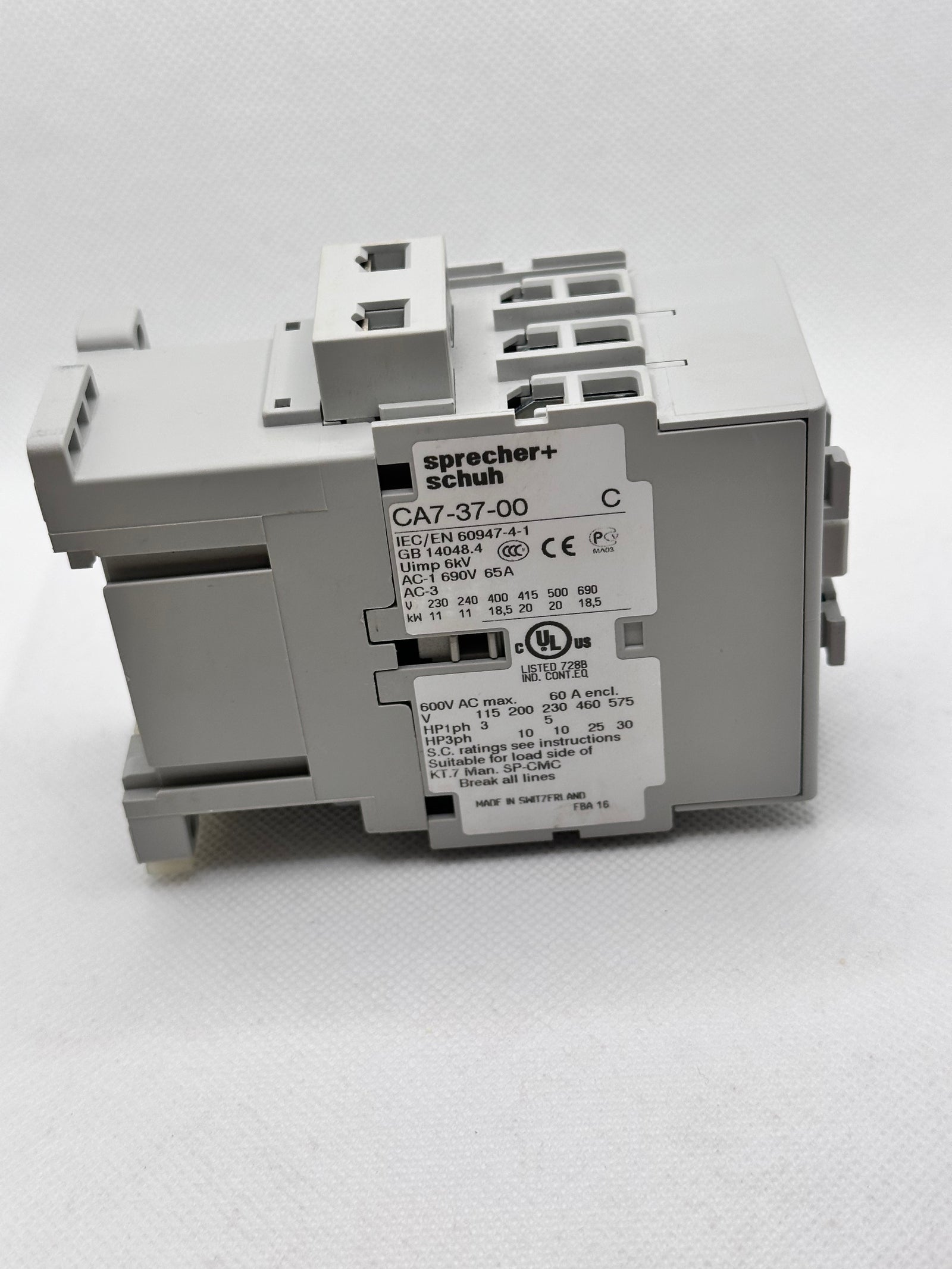

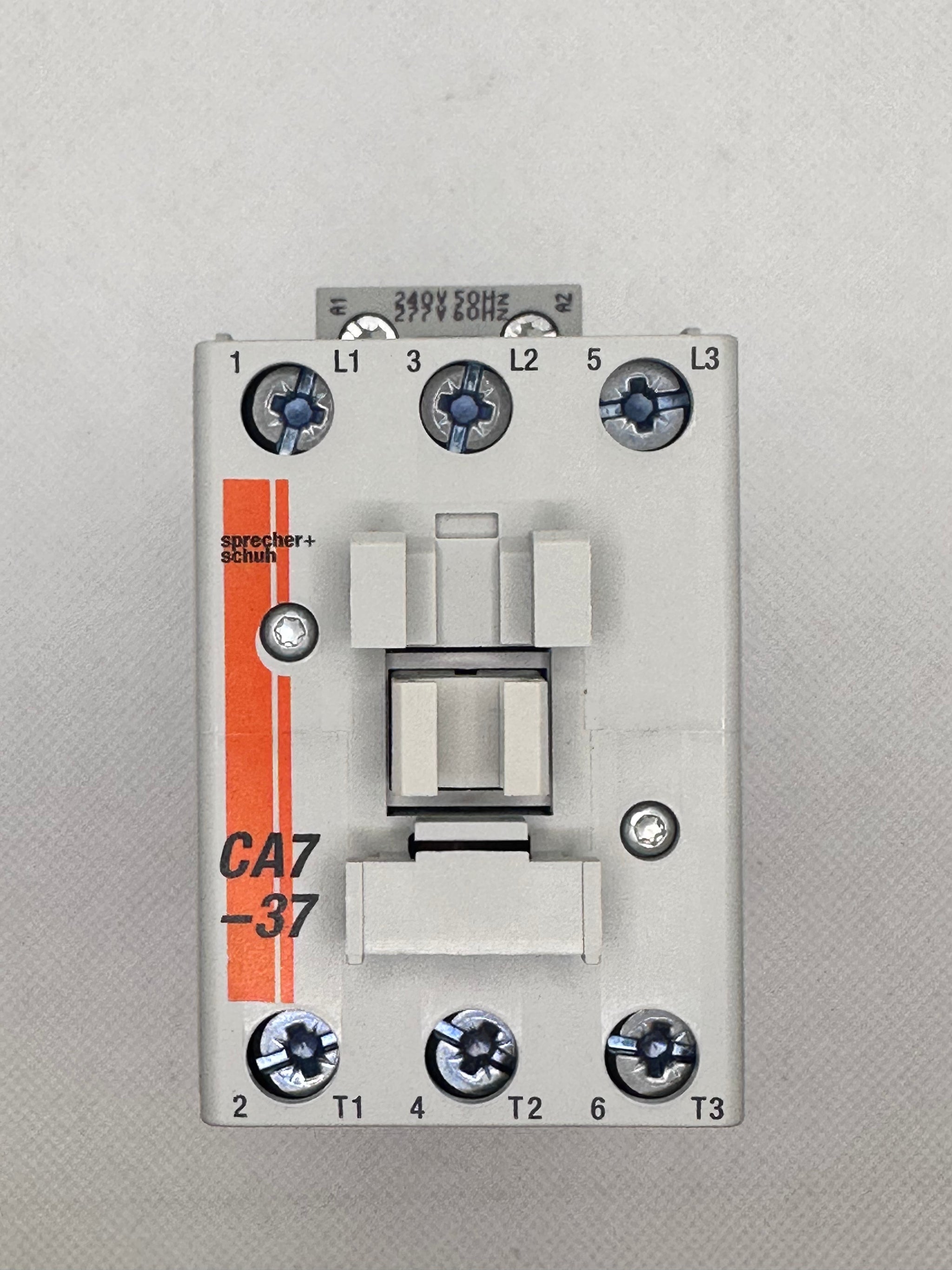

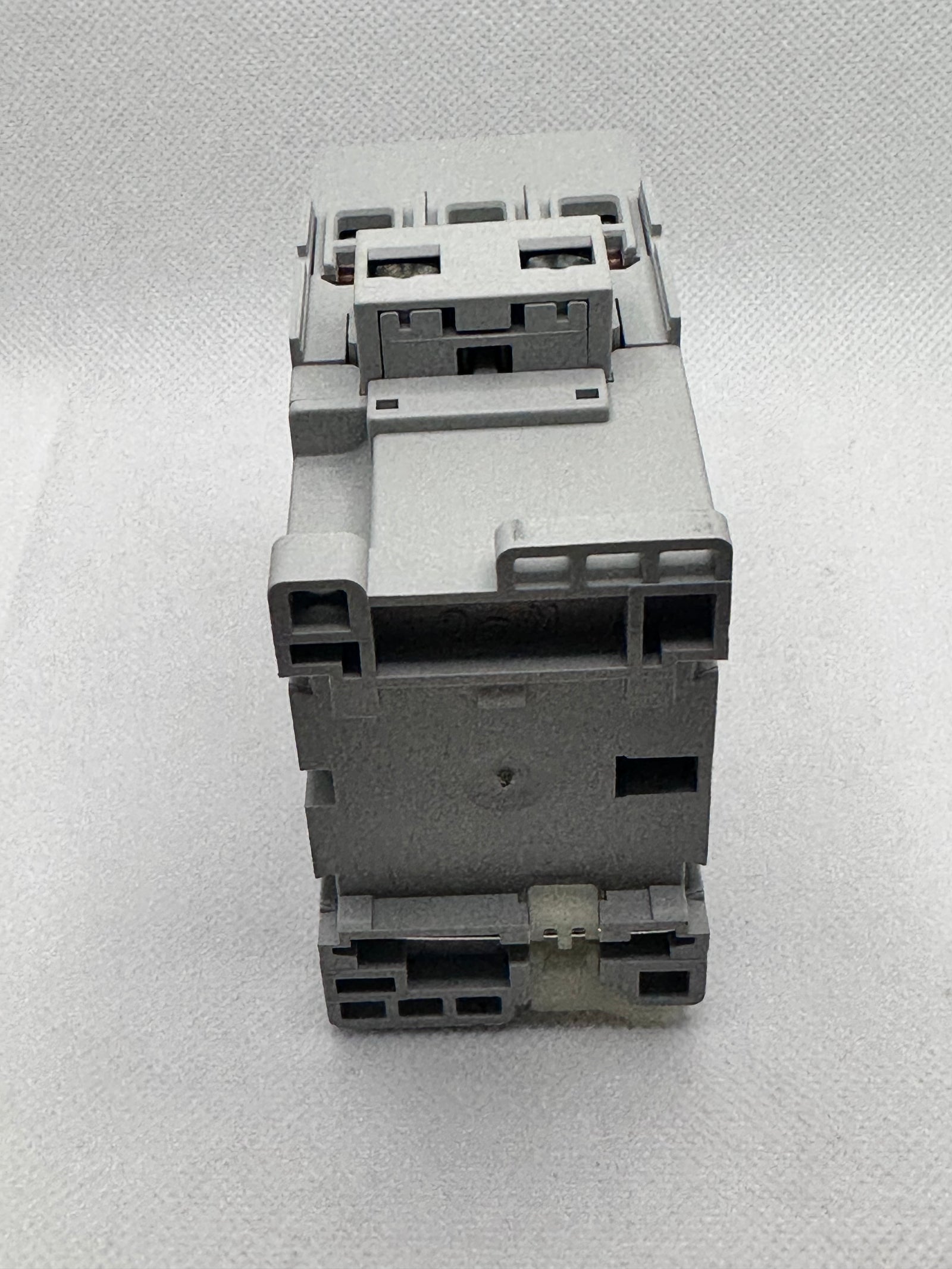

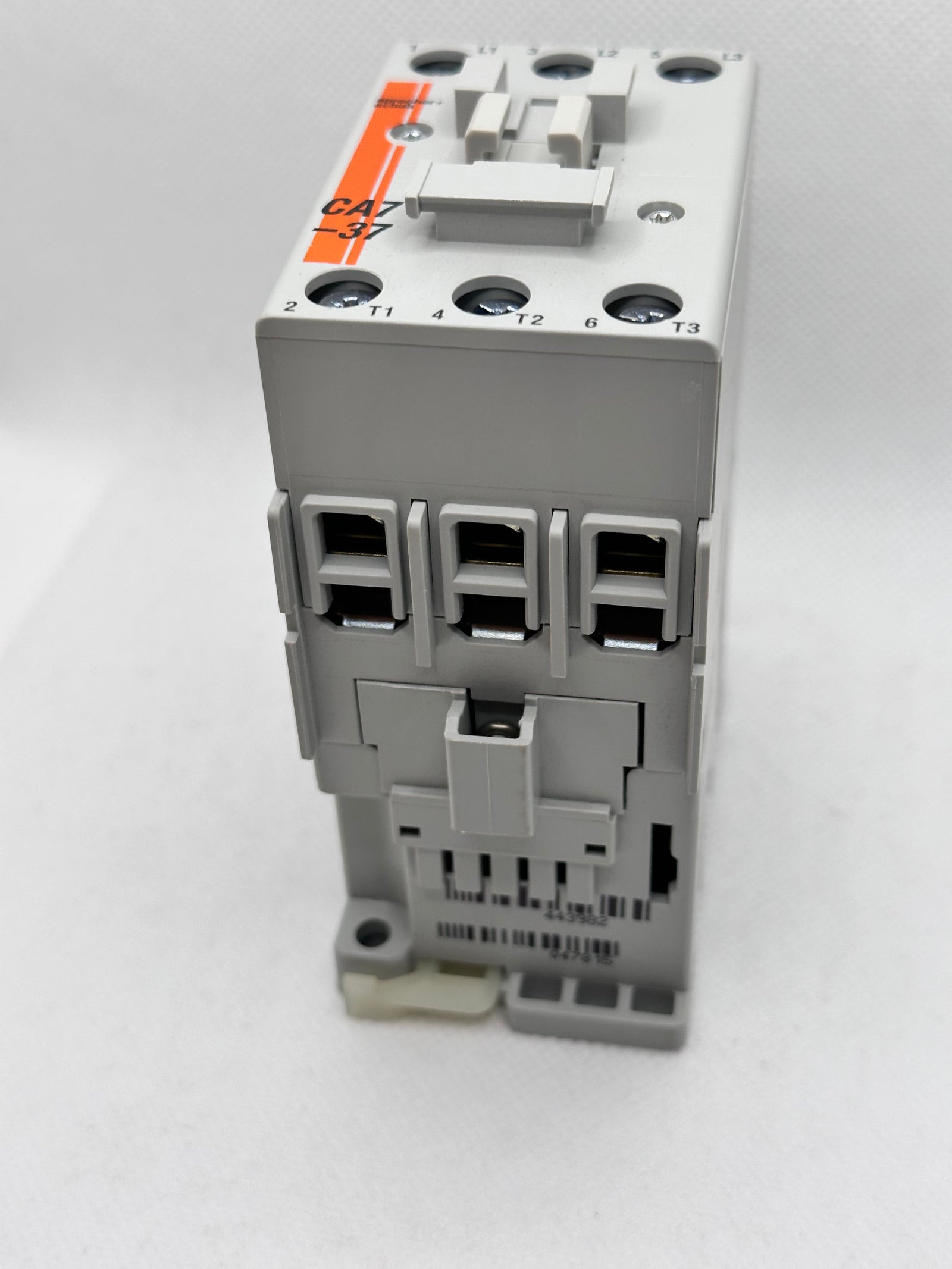

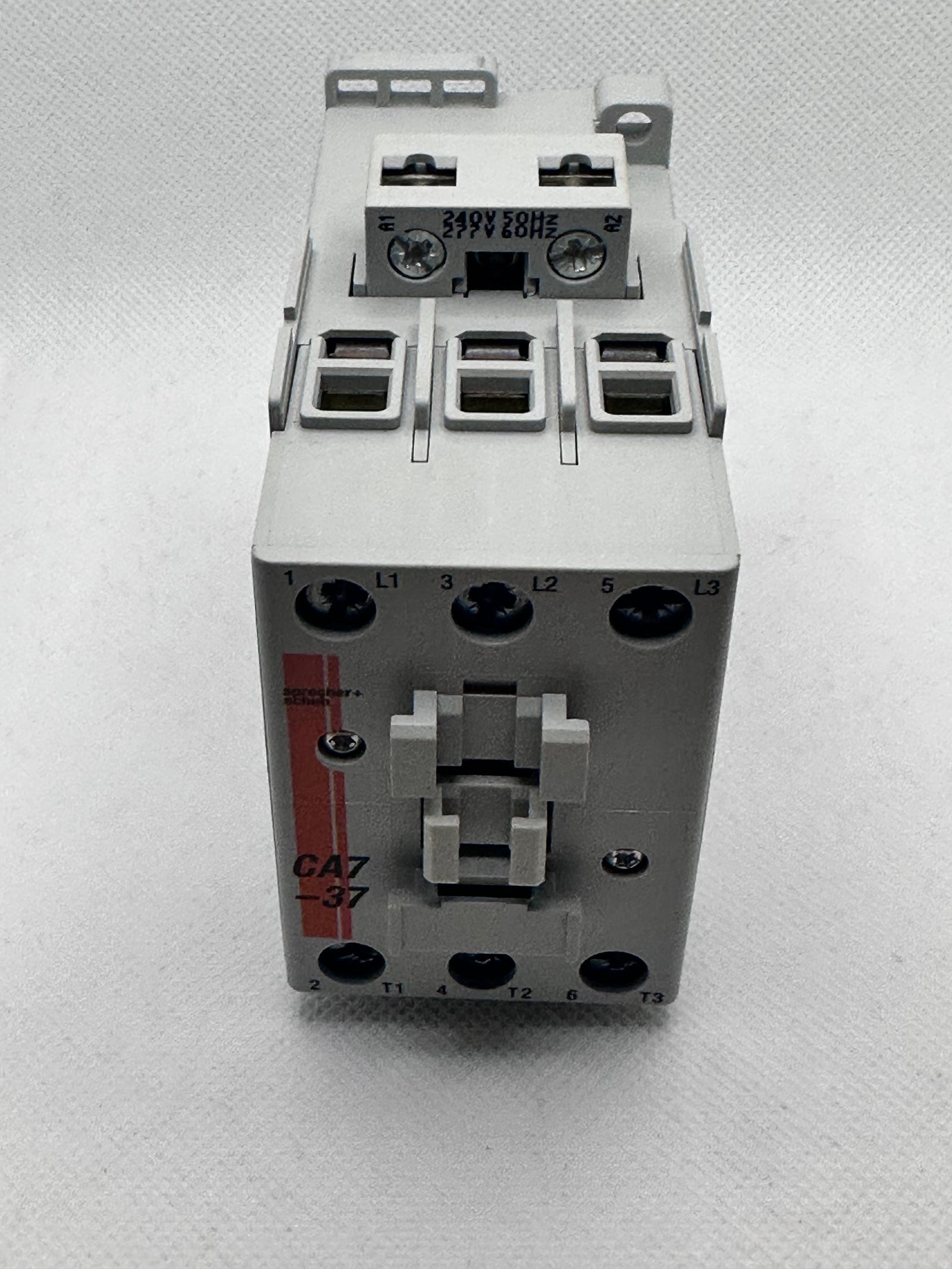

Sprecher + Schuh CA7-37-00-240VAC Contactor
- SKU
- P-SP-S-6961
$190.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 1.5 kg
Specifications
| Manufacturer | SPRECHER + SCHUH |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SP-S-6961 |
| Weight | 1.5 kg |
Description
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V37 A
Rated operation power at AC-3, 400 V20 kW
Rated operation current Ie at AC-1, 400 V65 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ240 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 690 V21 A
Rated operation power at AC-3, 690 V18.5 kW
Rated operation power at AC-4, 400 V6.3 kW
Control supply voltage Us at AC 60HZ277 V
Power consumption, AC coil pickup105 VA
Power consumption, AC coil hold-in12.3 VA
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V14 A
