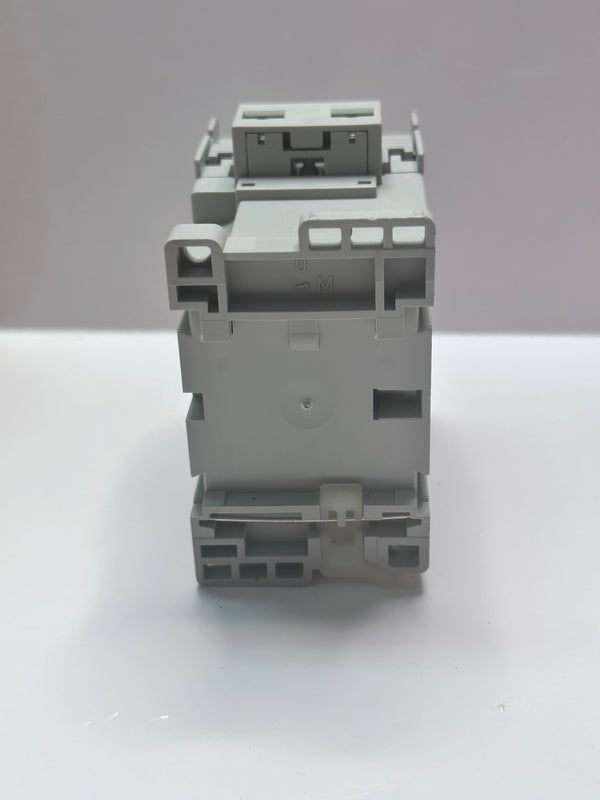

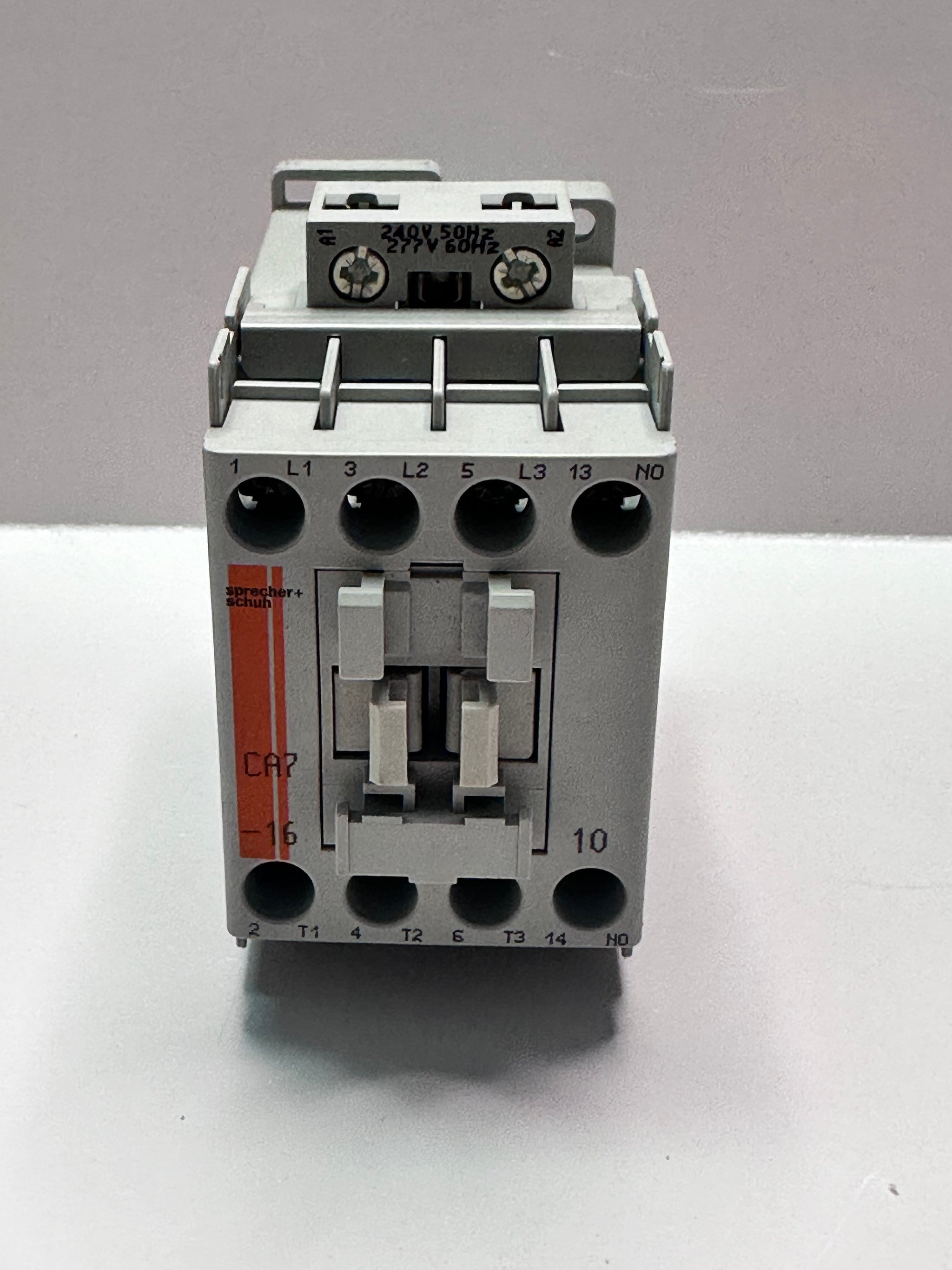

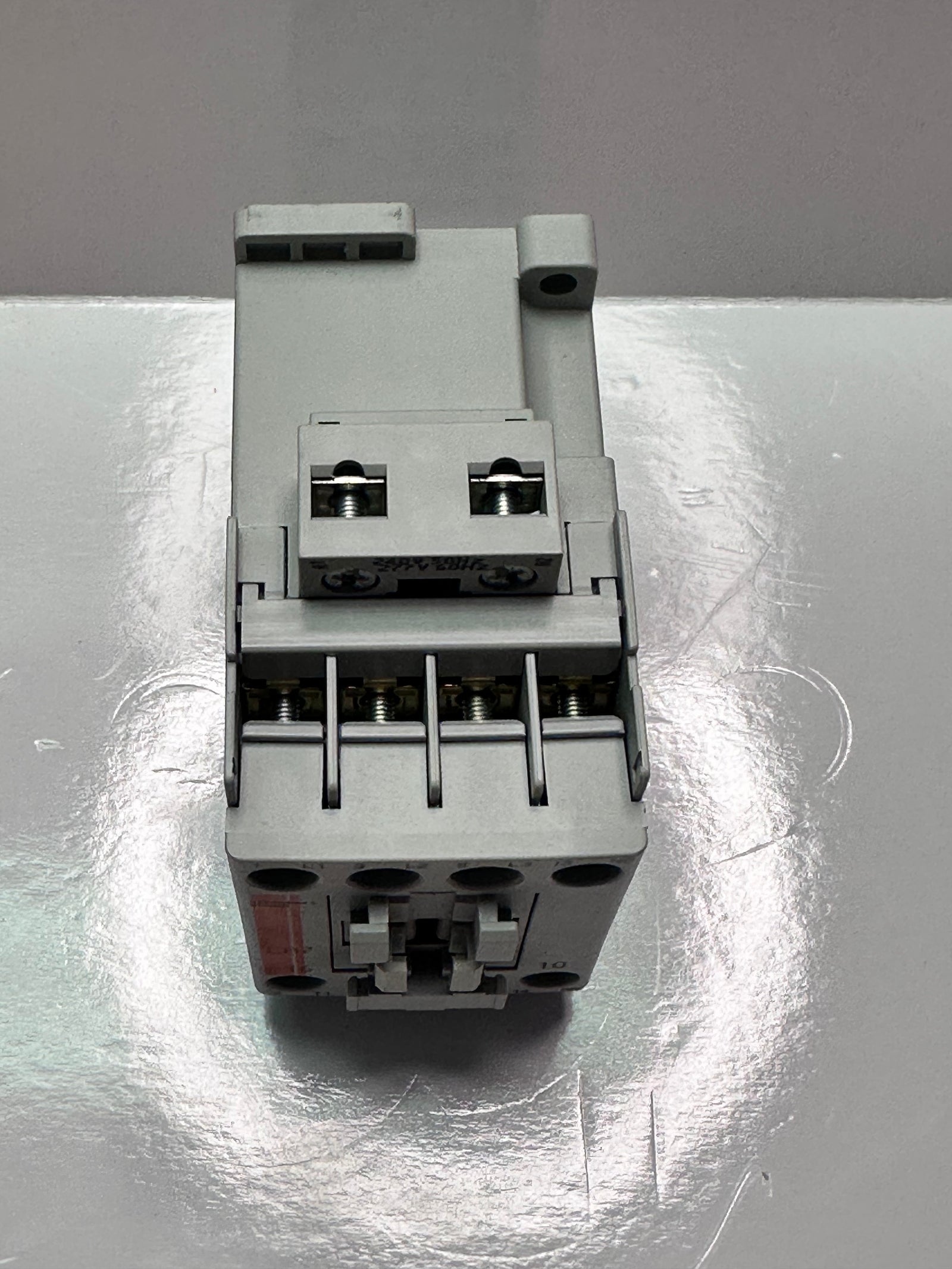

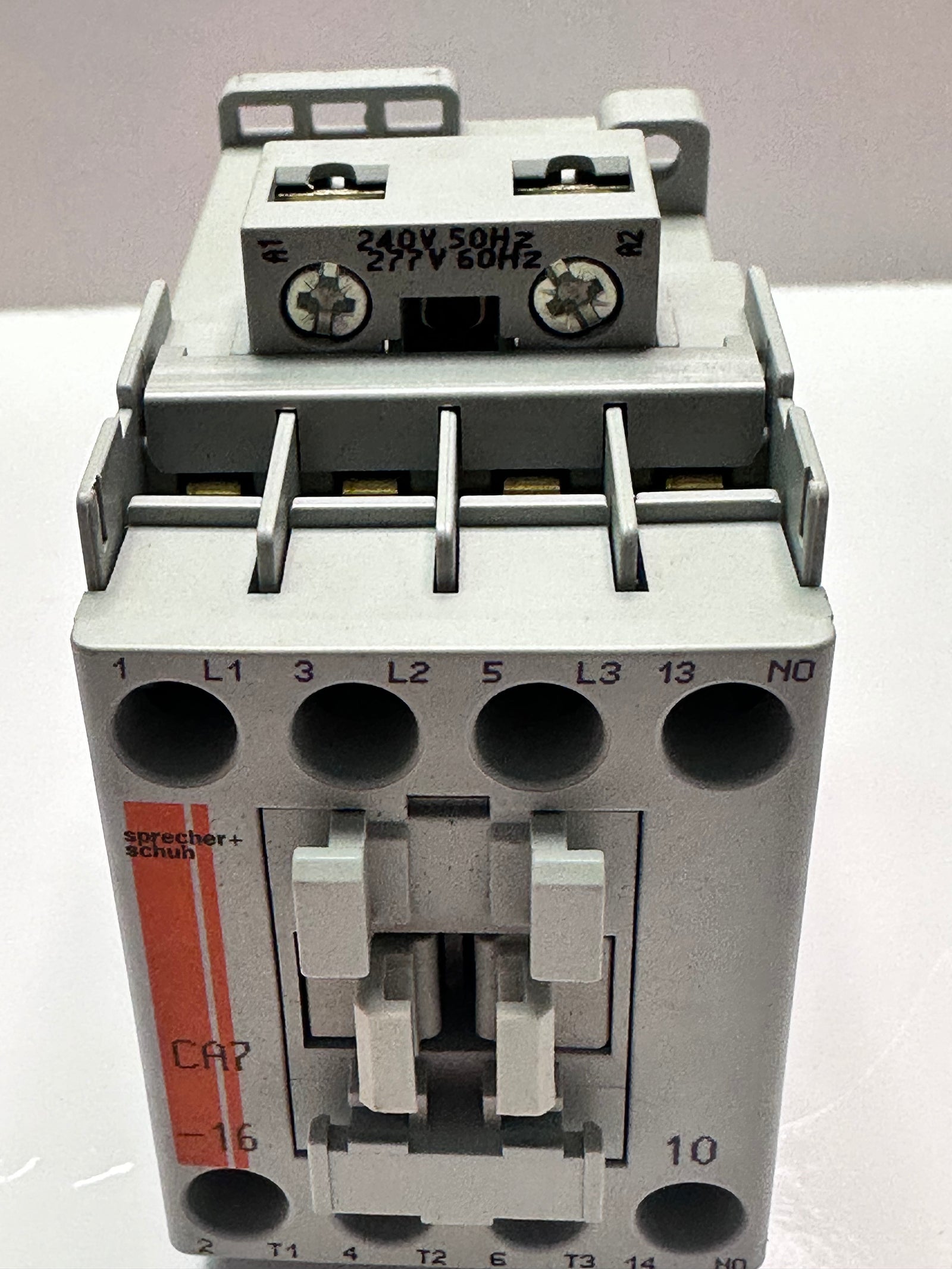

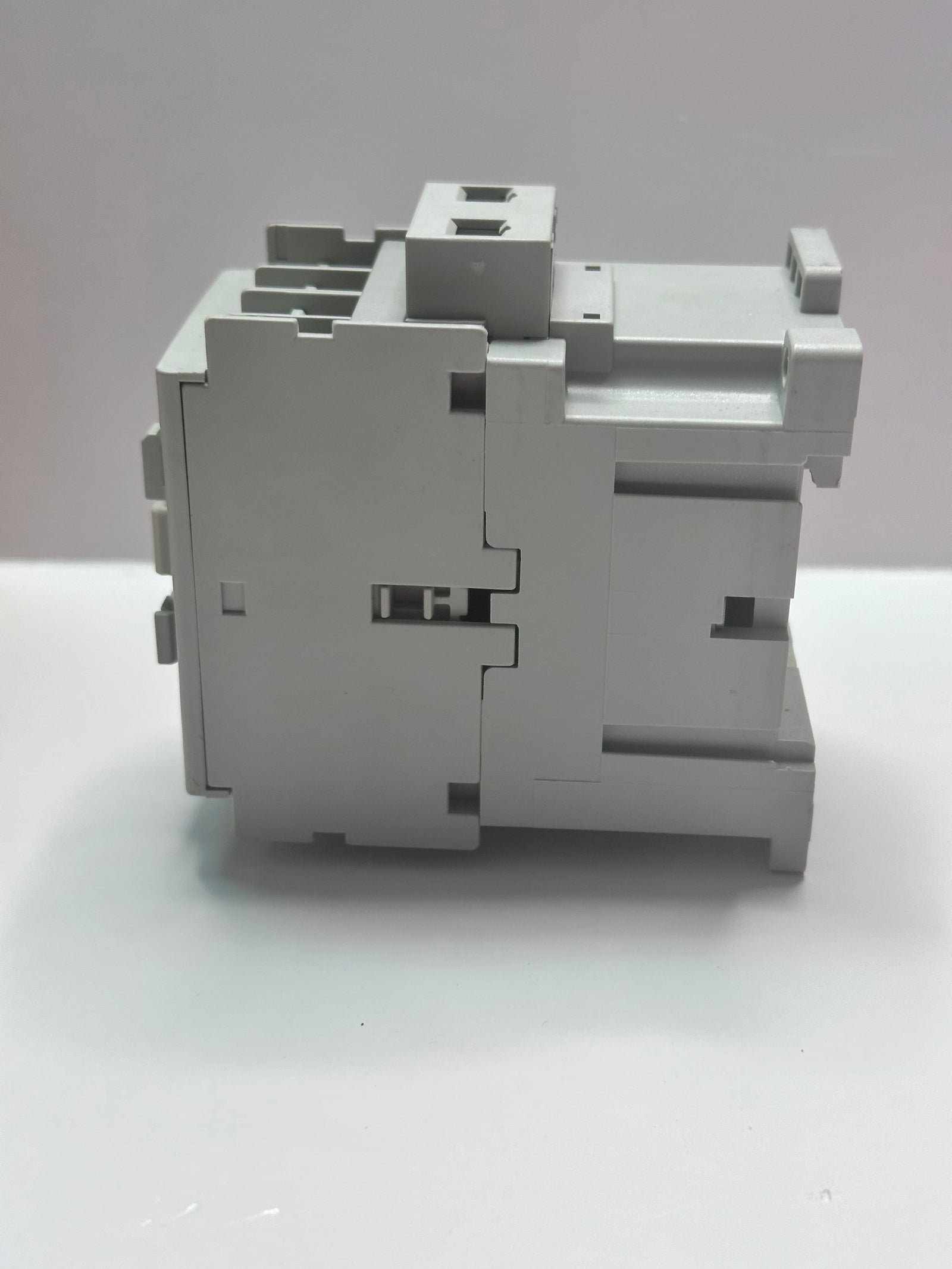

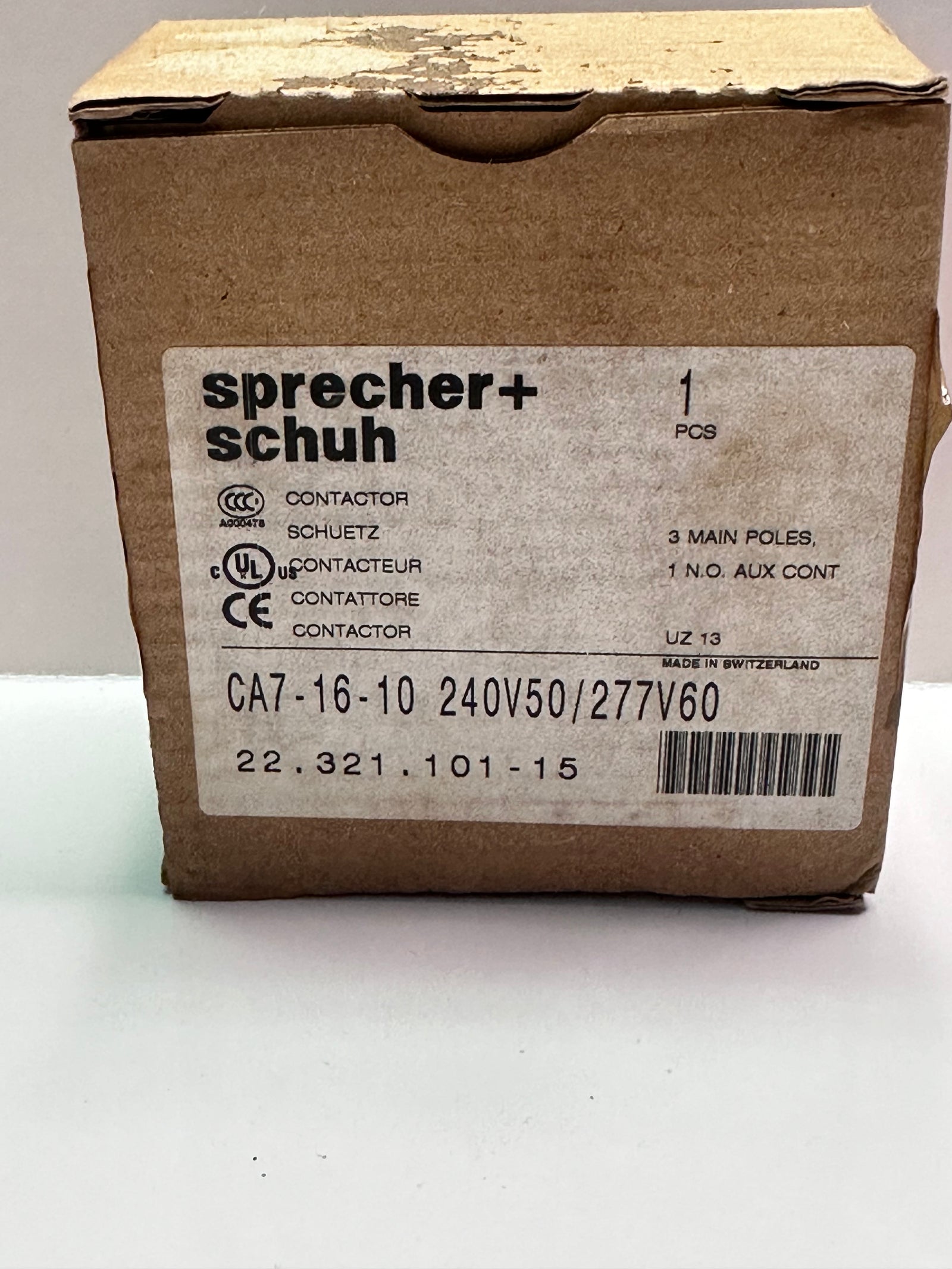

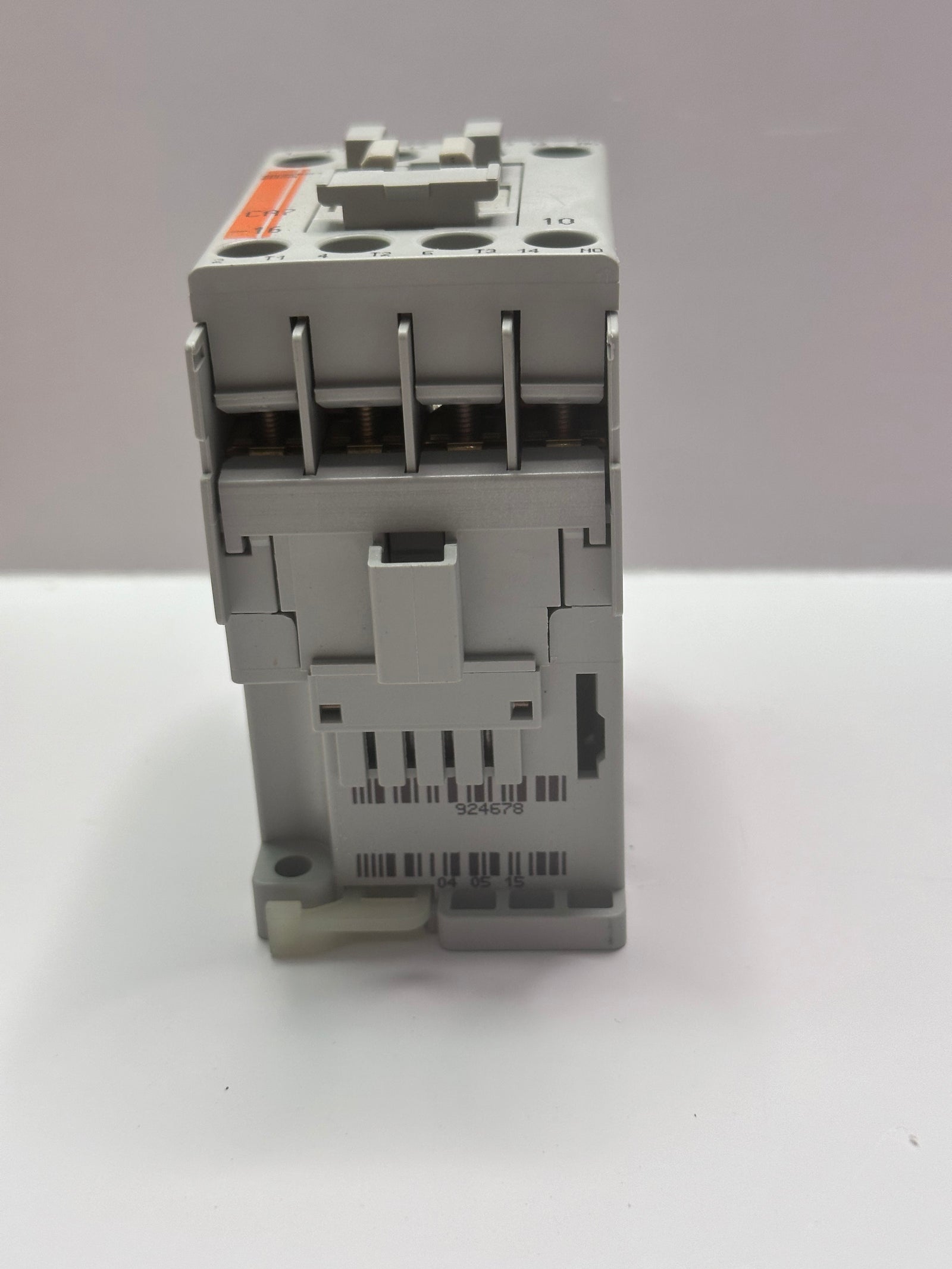

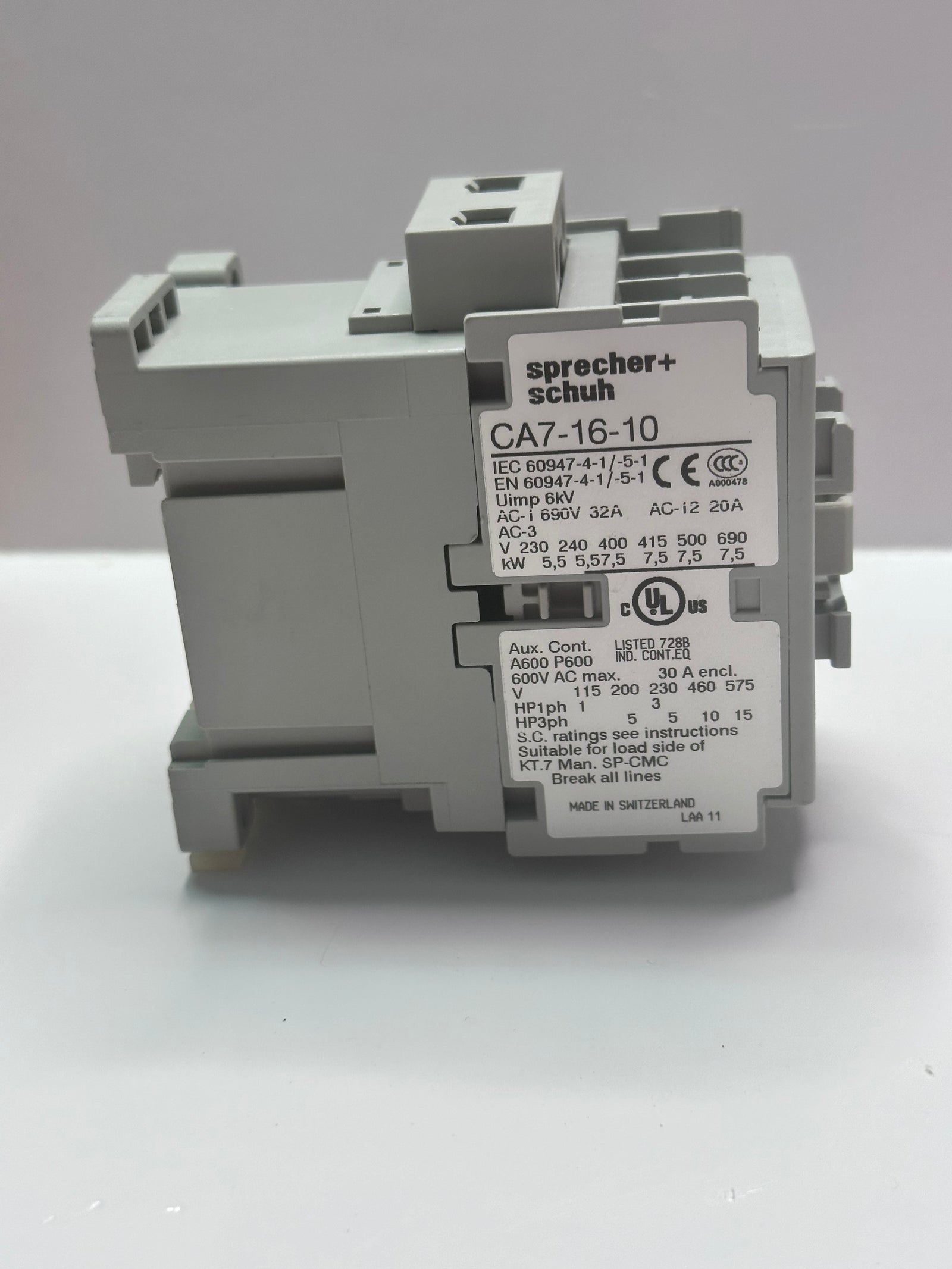

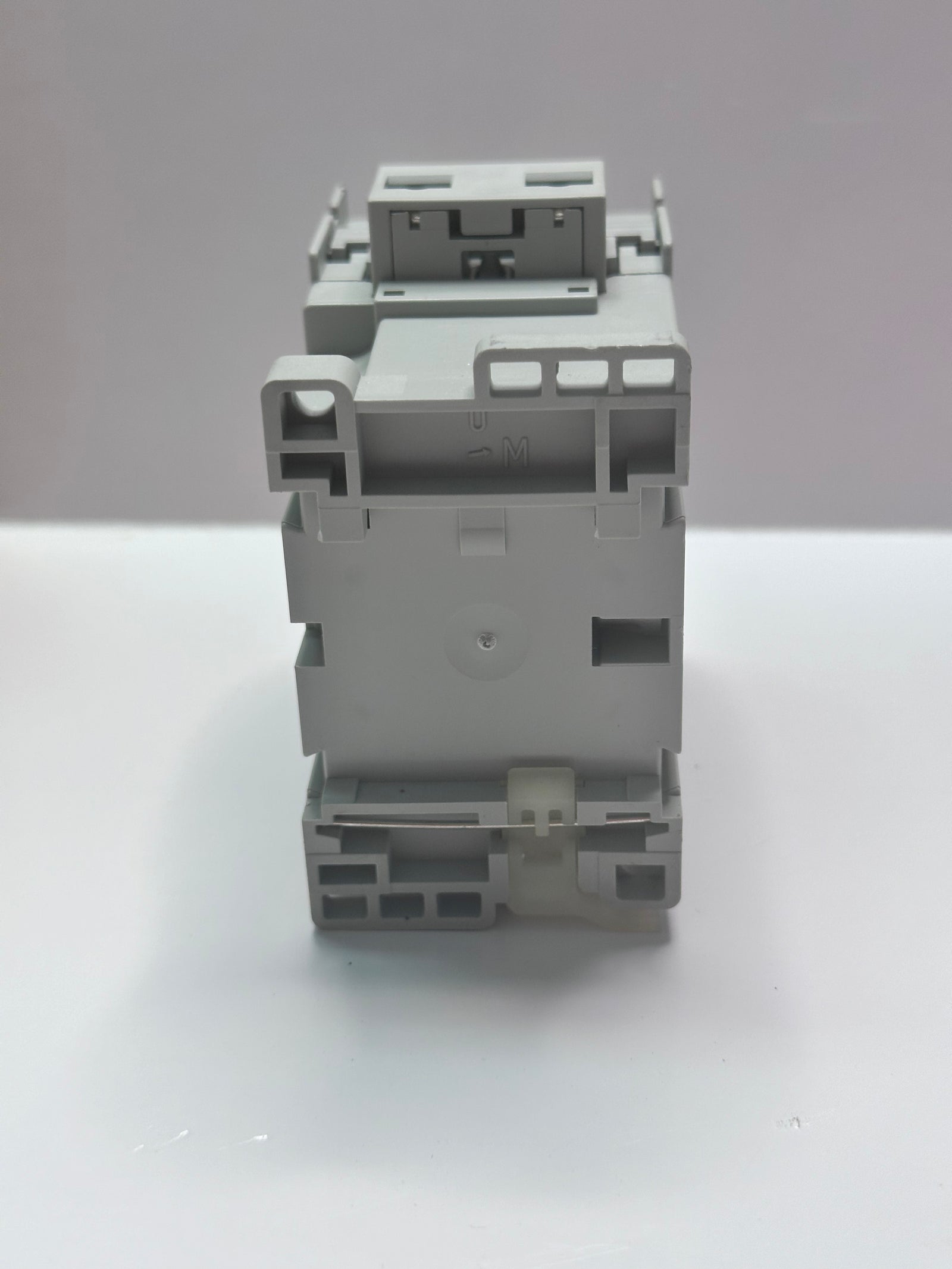

Sprecher + Schuh CA7-16-10 Contactor, 240V 50Hz / 277V 60Hz

CONTACTOR 7.5kW 3P 240V AC COIL 1NO AUXILIARY.

Specifications

Product Series: CA7-16
Coil Voltage: 240 V AC
Integrated Aux :1 N/O
Component Type: Motor Control and Drives Standard Contactor
Coil Type: Conventional
Contact Configuration, Auxiliary: 1 NO
Contact Configuration, Main Poles:3 NO
Ie, Rated Operational Current, AC-1, 415V, 40°C :32
Ie, Rated Operational Current, AC-3, 415V, 60°C :16
Ie, Rated Operational Current, AC-3, 690V, 60°C :9
IP Rating: IP20
kW Rating, AC-3, 415V, 60°C: 75
kW Rating, AC-3, 690V, 60°C: 75
Number of Poles: 3
Tightening Torque, Power Terminals, max: 2
Un, Coil Voltage, AC @50Hz, Max: 264
Un, Coil Voltage, AC @50Hz, Min: 204
Un, Coil Voltage, AC @50Hz, Nom: 240
Un, Coil Voltage, AC @60Hz, Max: 304
Un, Coil Voltage, AC @60Hz, Min: 235
Un, Coil Voltage, AC @60Hz, Nom: 277
