Sporlan ERZE-5-GA Expansion Valve – 168792, R-410A, 5 Ton
- SKU
- P-SP-P-2651
$150.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | PARKER |
|---|---|
| Product type | VALVES |
| SKU | P-SP-P-2651 |
| Weight | 2.0 kg |
Description

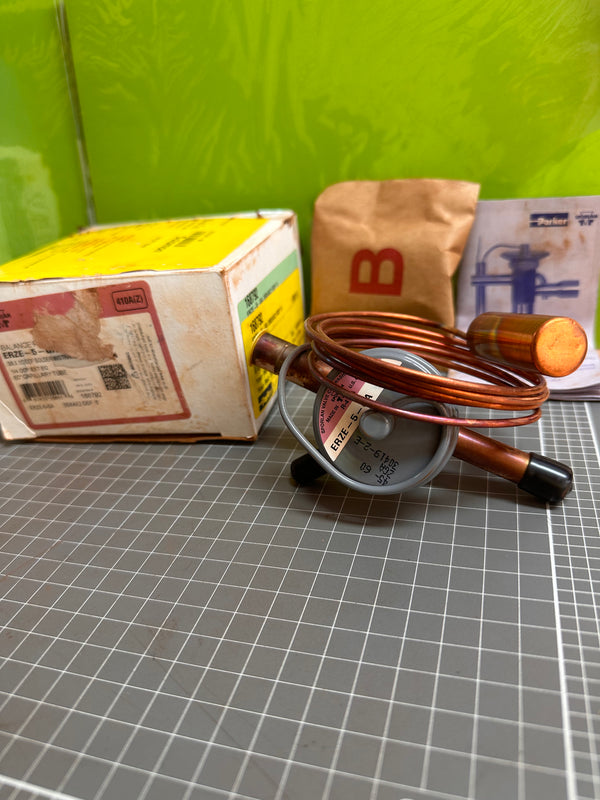

Sporlan ERZE-5-GA expansion valve

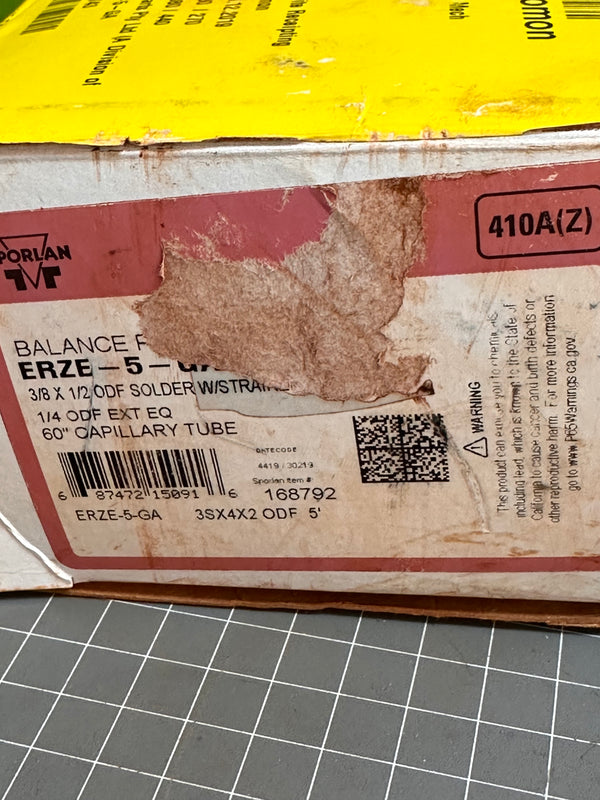

Air-conditioning expansion valve, Sporlan number 168792. Full source designation: ERZE-5-GA 2SX4X2 ODF 5. Recorded vendor: Parker.
Source specifications
| Application | A/C; original tags also refer to a heat pump |
|---|---|
| Refrigerant / code | R-410A / GA |
| Nominal capacity | 5 tons, source rating |
| Equalizer | External |
| Capillary tube length | 5 feet |
| Material / colour-finish | Brass |
| Connection ends | ODF |
| Source connection / size notation | 3/8 inch × 1/2 inch × 1/4 inch ODF |
| Element size | 45, as listed |
| Port size | 1/4 inch |
| Height | 3.0 inches |
| Length | 4.8 inches |
| Width | 5.0 inches |
| Item weight | 1.18 lb per each |
Confirm the exact valve configuration, connection locations and refrigeration-system requirements before ordering. The source does not state nominal-capacity test conditions, operating pressure limits or additional supplied installation items; do not treat the capacity as guaranteed under every operating condition.
