Epiroc 2658498895 / 24063-08 24V 65A Continuous-Duty Solenoid Relay
- SKU
- P-SO-E-3492
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | Epiroc |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-SO-E-3492 |
| Weight | 1.5 kg |
Description

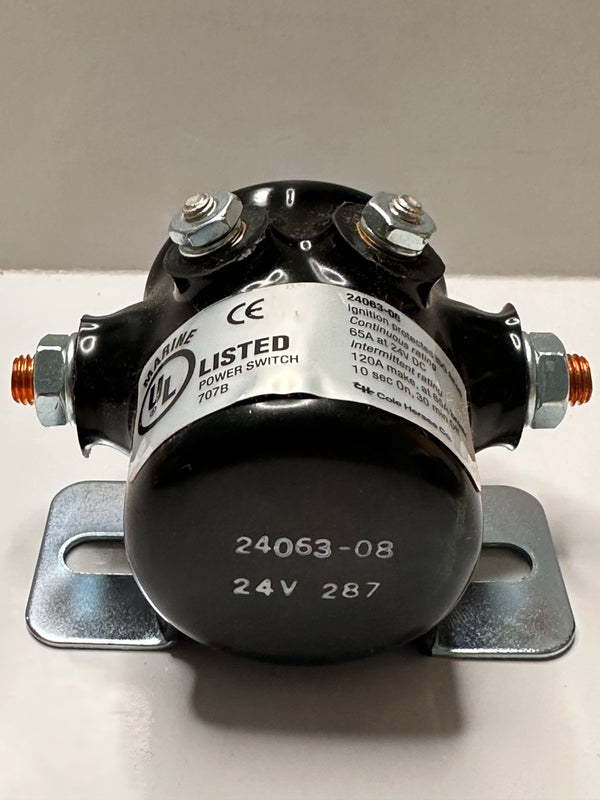

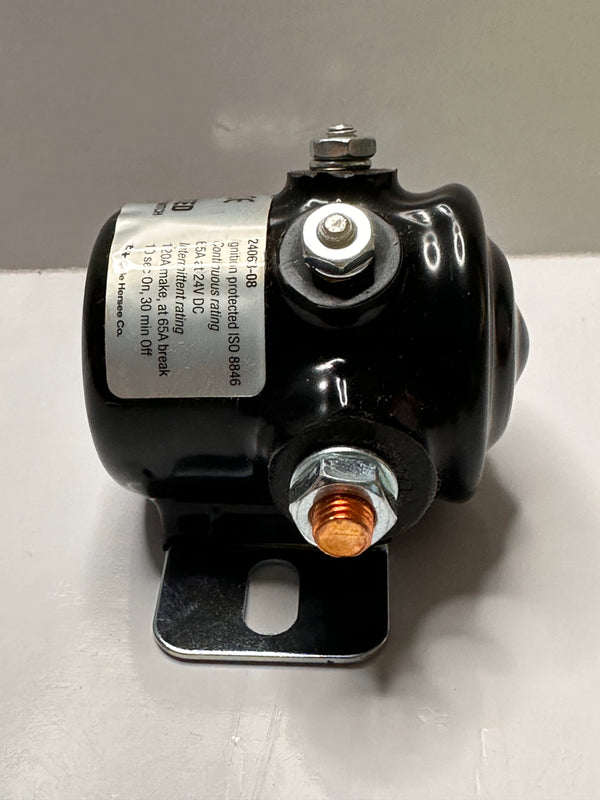

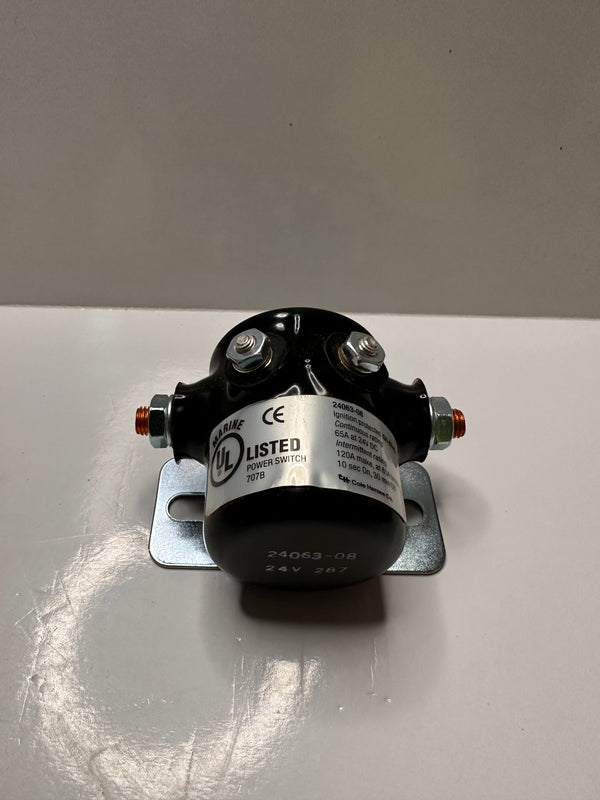

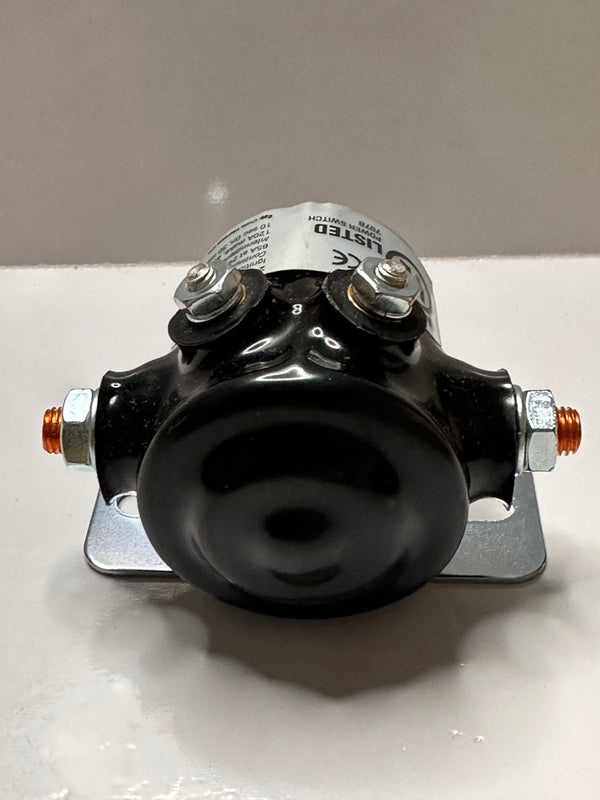

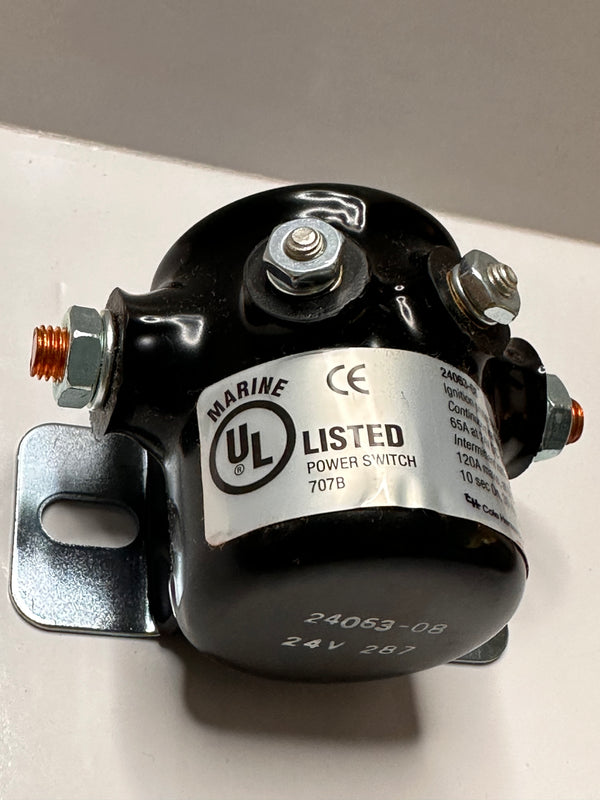

Epiroc-listed 24063-08 insulated solenoid relay, with recorded reference 2658498895 and Cole Hersee / Littelfuse identification. The source describes a continuous-duty SPST relay with normally open contacts, a 24V coil and a 65A continuous contact-current rating.

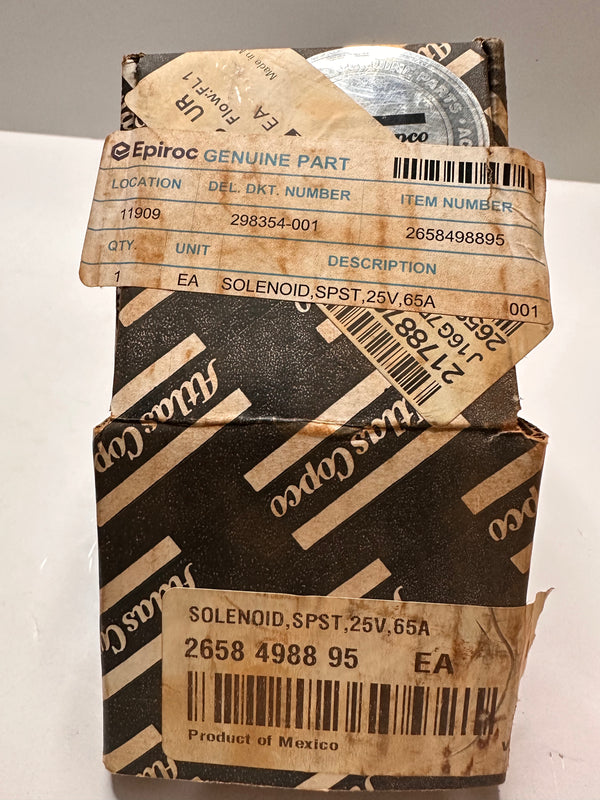

- Part references: 24063-08 and 2658498895
- Circuit: single pole, single throw (SPST), normally open
- Coil: 24V; stated impedance 71 ohms
- Continuous contact current: 65A
- Additional stated switching duty: 120A make / 65A break at 10 seconds on, 30 minutes off
- Insulated coil design: studs electrically isolated from the housing
- Housing: plated steel with PVC coating; stated sealing rating IP66
- Power studs: two 5/16"-24 copper studs
- Control/coil studs: two #10-32 steel studs

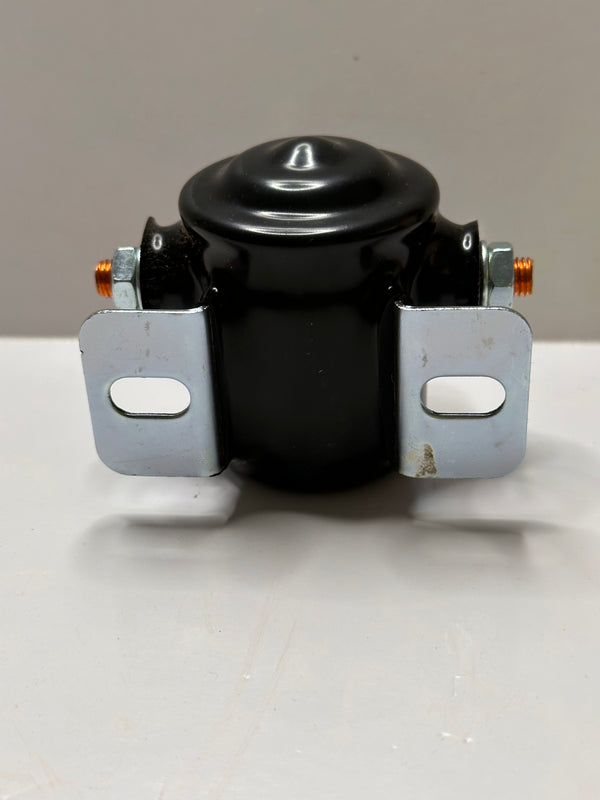

- Mounting: flat bracket
- Included hardware: assembled hex nuts and lock washers
- Source states UL and CE approval; check actual markings against installation requirements
Listed for earthmoving / auto-electrical use; the original listing also describes marine use. Confirm the part reference, coil supply, switching duty and installation requirements before ordering. No specific Epiroc machine fitment is stated.
