SEMIKRON

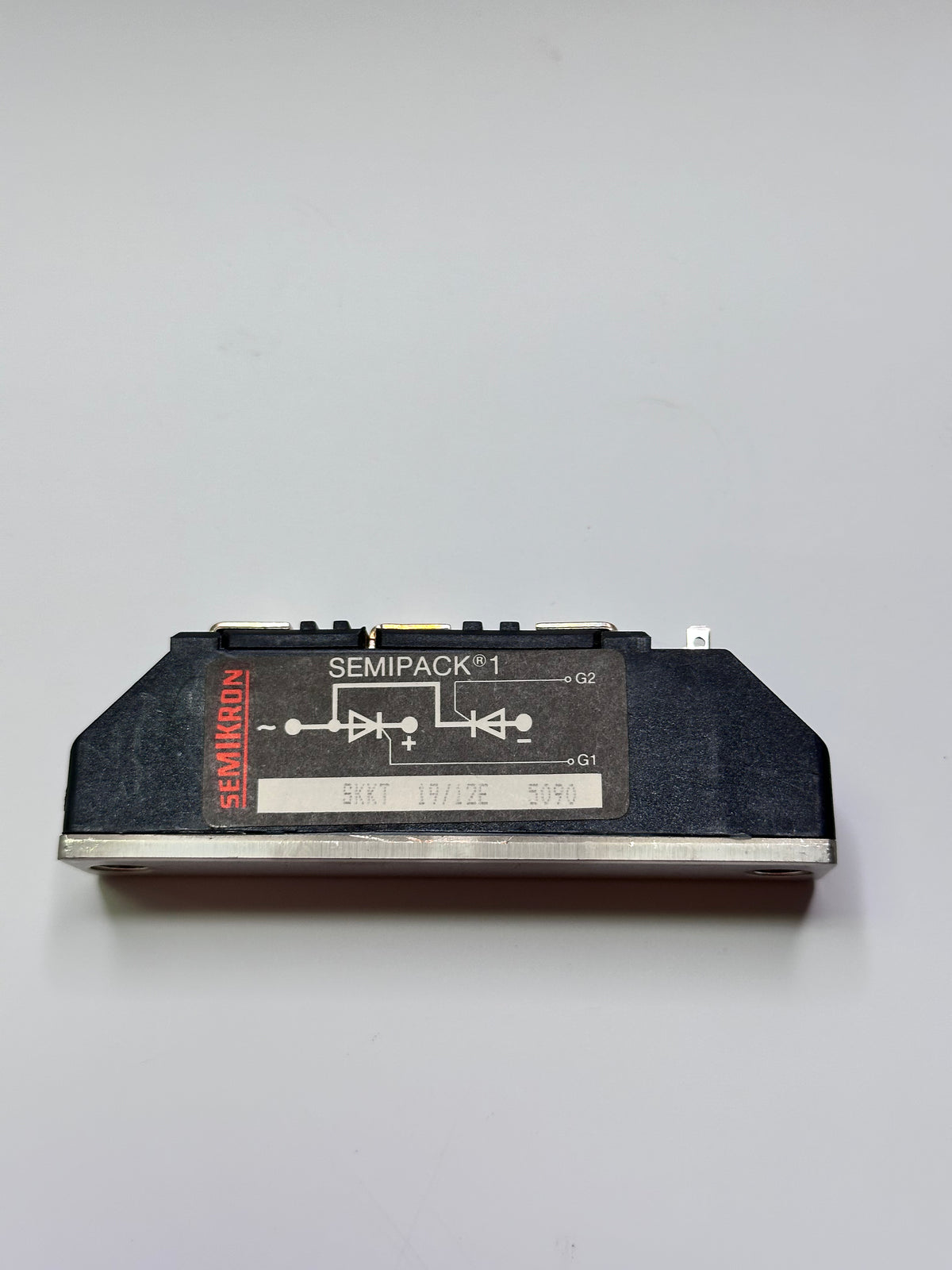

Semikron SKKT 19/12E Dual Thyristor Module — 18 A, 1200 V
- SKU
- P-SK-S-7584
$65.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | SEMIKRON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SK-S-7584 |
| Weight | 1.0 kg |
Description

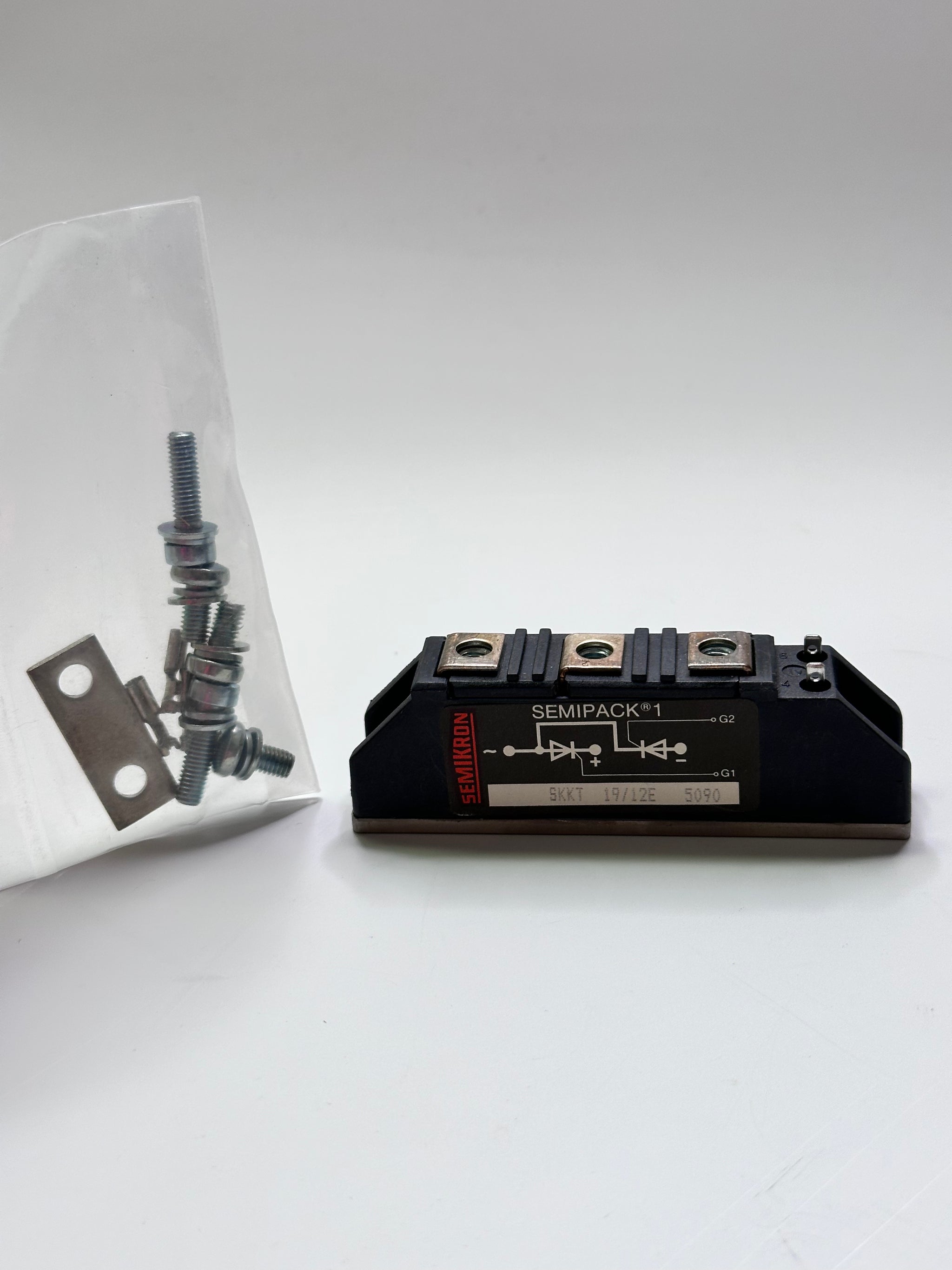

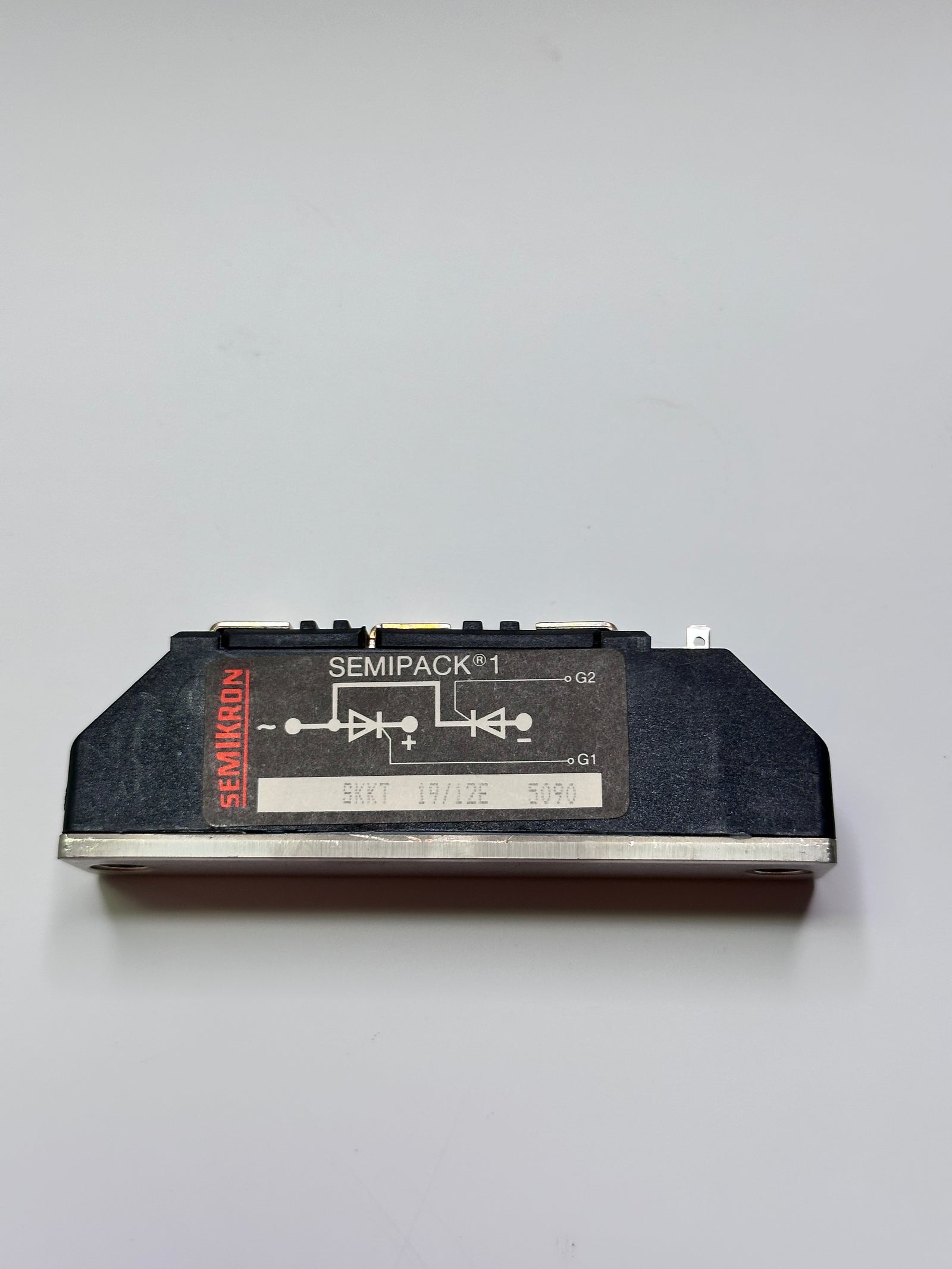

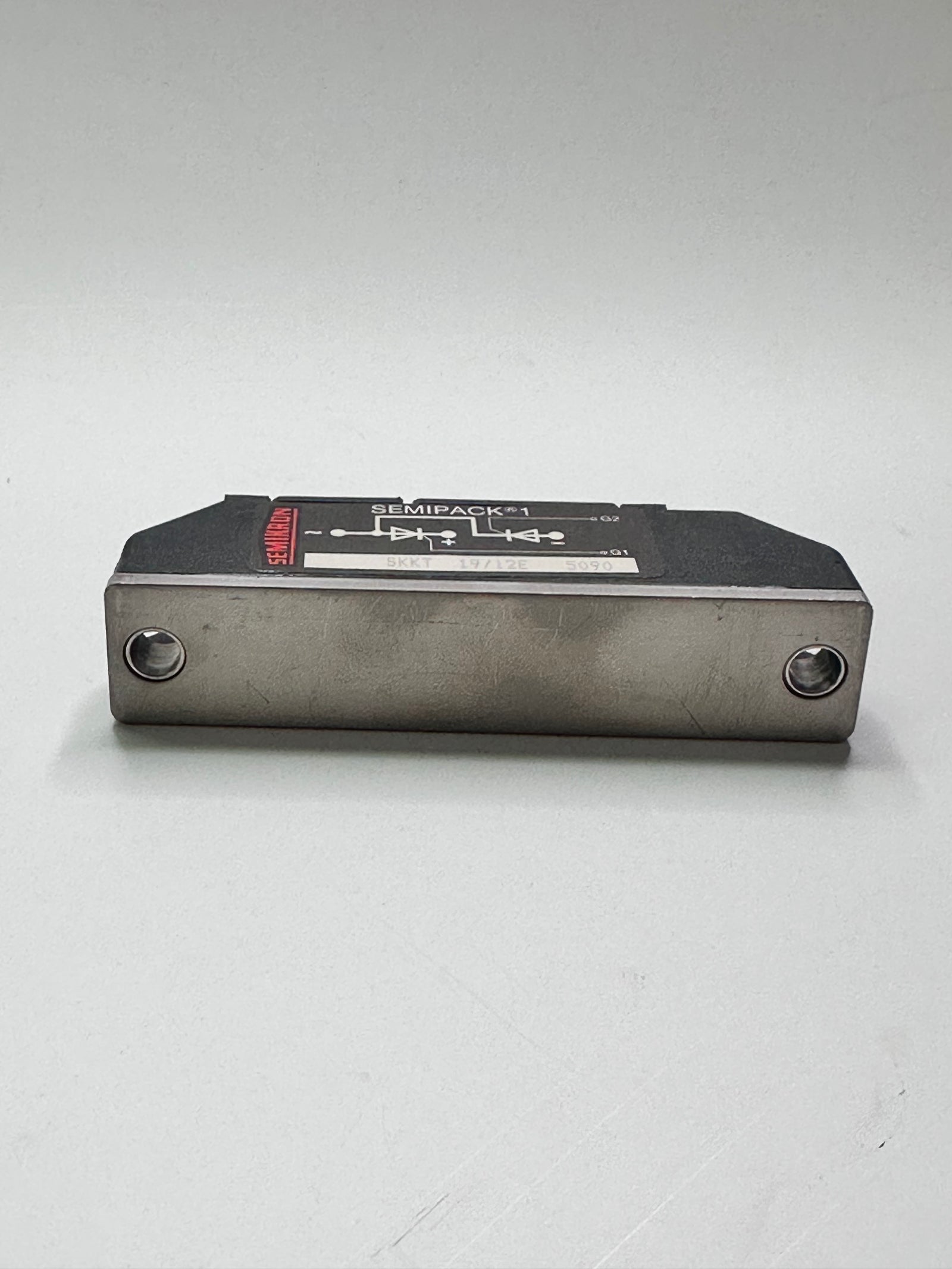

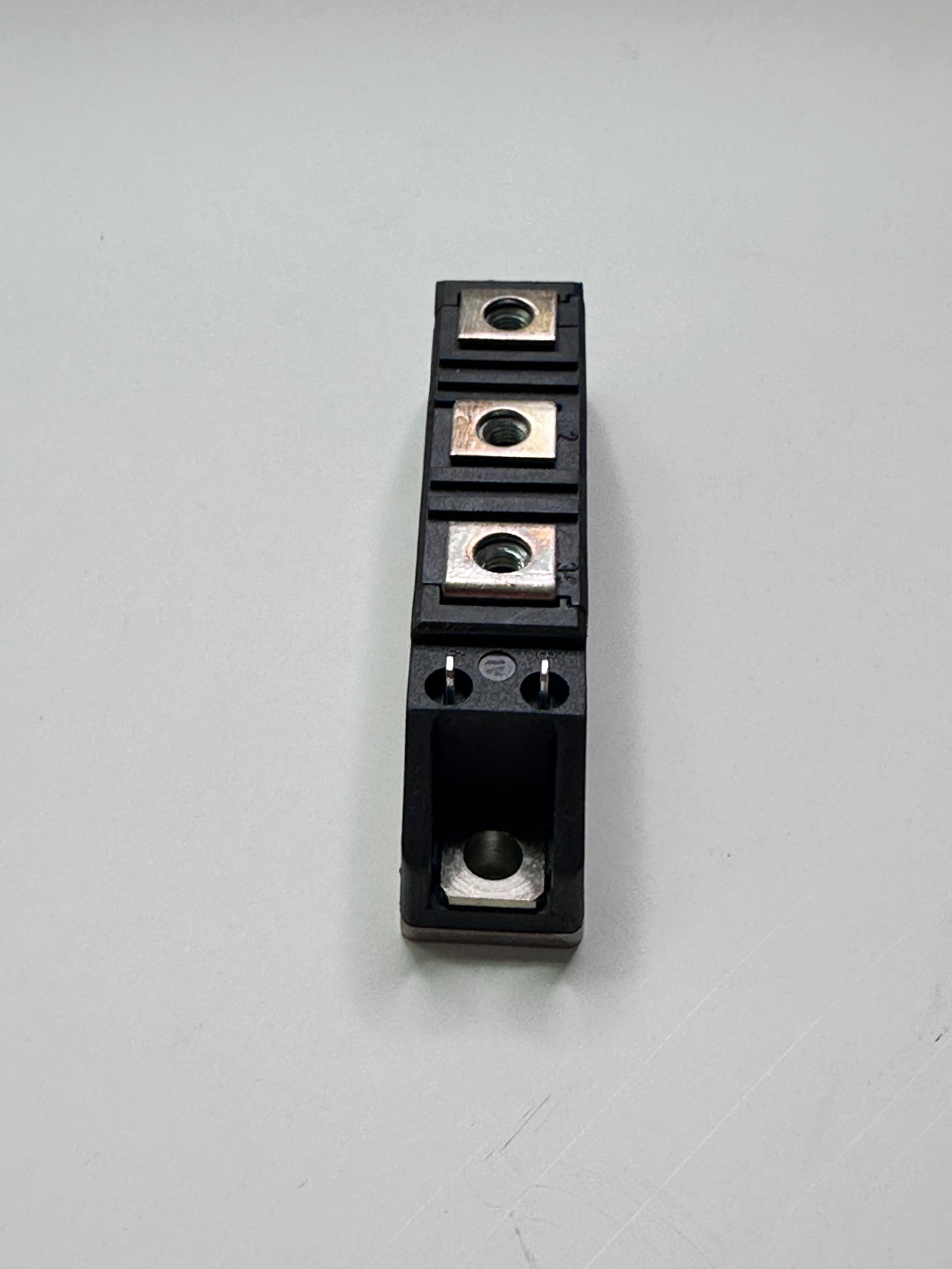

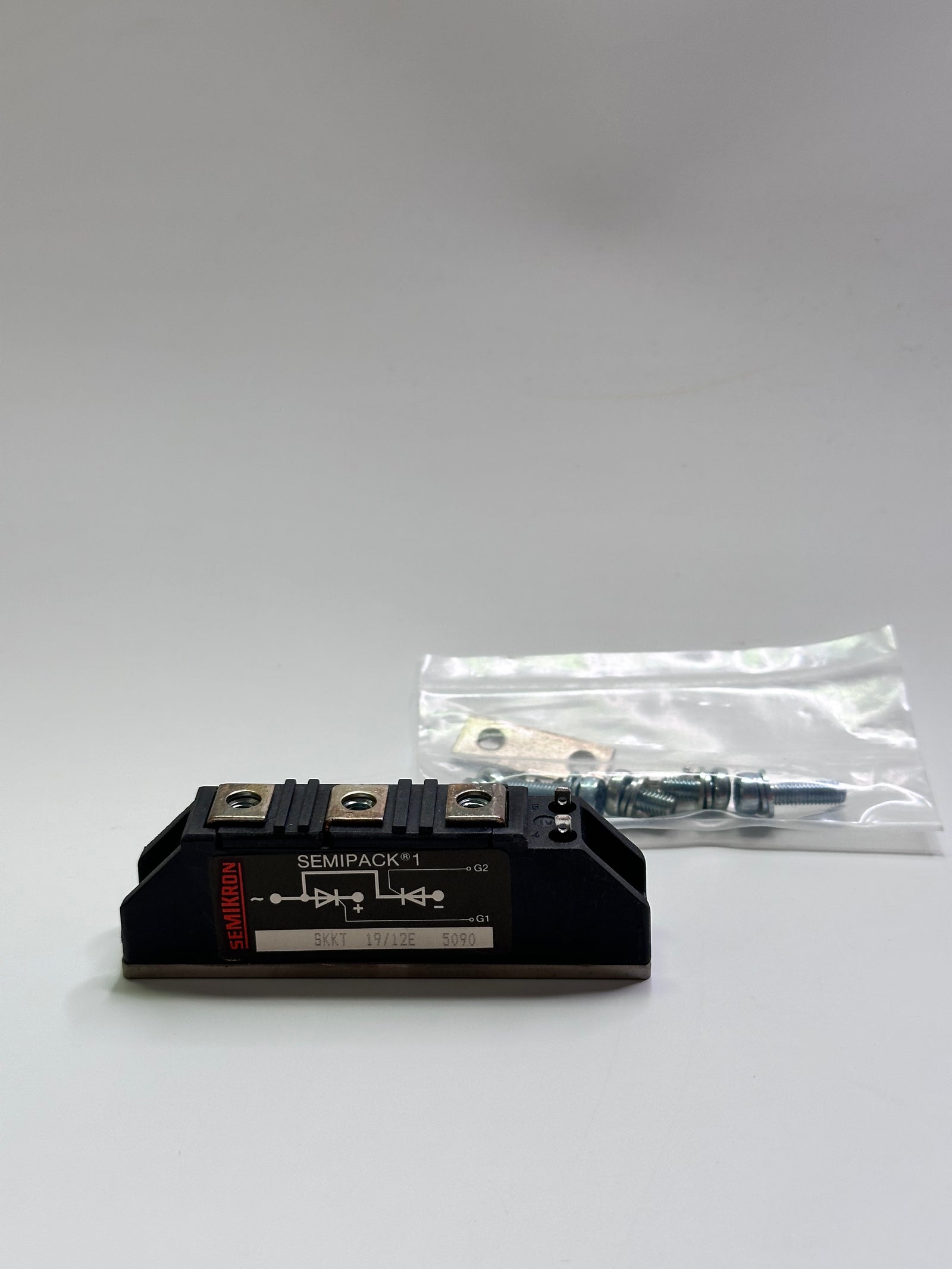

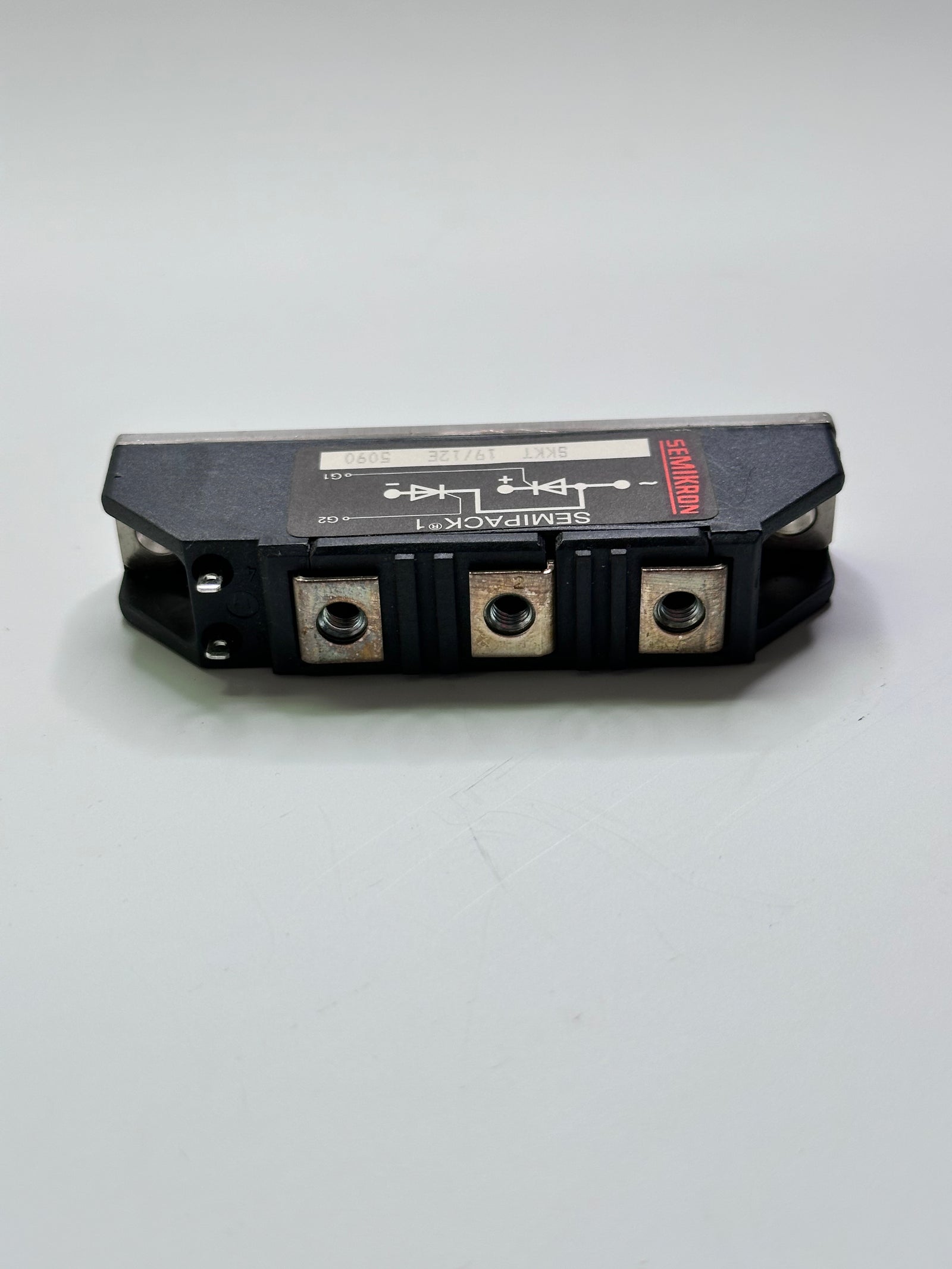

Semikron SKKT 19/12E dual thyristor (SCR) module in a standard SEMIPACK 1 housing.
- Peak off-state voltage: 1200 V
- On-state current: 18 A
- Gate trigger current: 150 mA
- Holding current: 100 mA
- Latching current: 250 mA
- Recorded voltage rise rate: 1000 V/µs
Additional captured designation: SKKT 19/12E 5090. Danfoss appears in the original tags; no further relationship is established by the source. Confirm the exact module reference, circuit requirements and applicable rating conditions before ordering. Heatsink and mounting accessories are not specified as included.
