SIRCO 3X400A F Manually Operated Multipolar Load Break Switch 26003041

Description

Manually operated Load break switch
SIRCO frame B5 with 3 poles, 400A,
415VAC/500VDC frontal direct operation
with handle type J1or frontal external
operation with handle type S2. Delivered
without handle.
Effective date 1993-04-14
Offer Life Cycle Code 40
Country of origin TN
Environmental Sustainability
Climate change-Total-Cradle to Grave
[kg CO₂ eq.]
202
Climate change-Total-Cradle to Gate
[kg CO₂ eq.]
24
SVHC > 0.1 mass percentage? No
RoHS applicable? Yes
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V] 500
Rated operating voltage [V] 400..500
Rated permanent current Iu [A] 400
Rated permanent current at AC-23,400V
[A]
400
Rated permanent current at AC-21 ,400V
[A]
400
Rated short-time withstand current lcw
[kA]
13
Rated operation power at AC-23, 400V
[kW]
220
Switching power at 400 V [kW] 220
Conditioned rated short-circuit current Iq
[kA]
100
Number of poles 3
ETIM - Mechanical characteristics
Suitable for floor mounting No
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Suitable for distribution board installation No
Suitable for intermediate mounting Yes
Colour control element Other
Degree of protection (IP), front side IP20
Width [mm] 230
Height [mm] 23

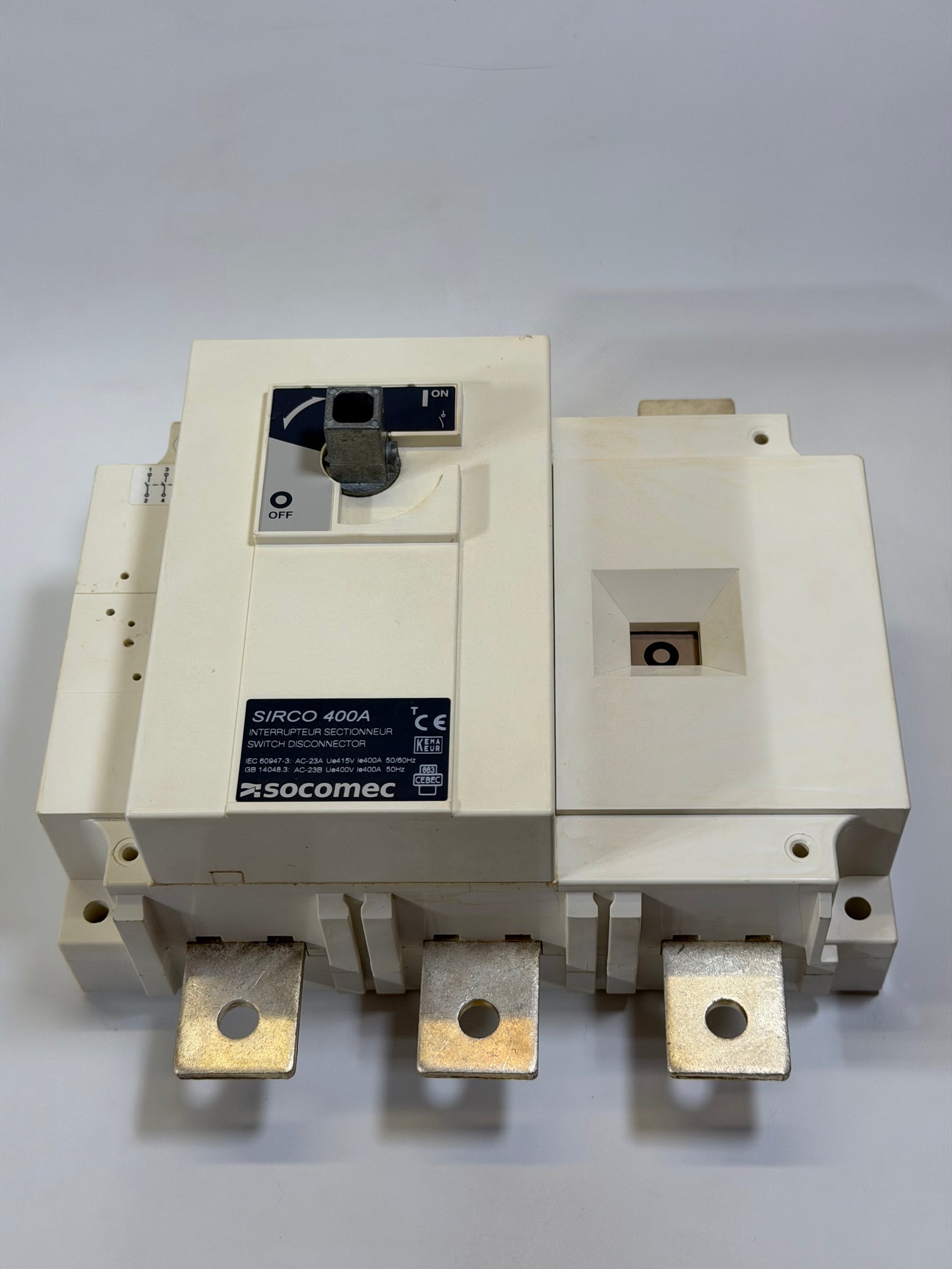

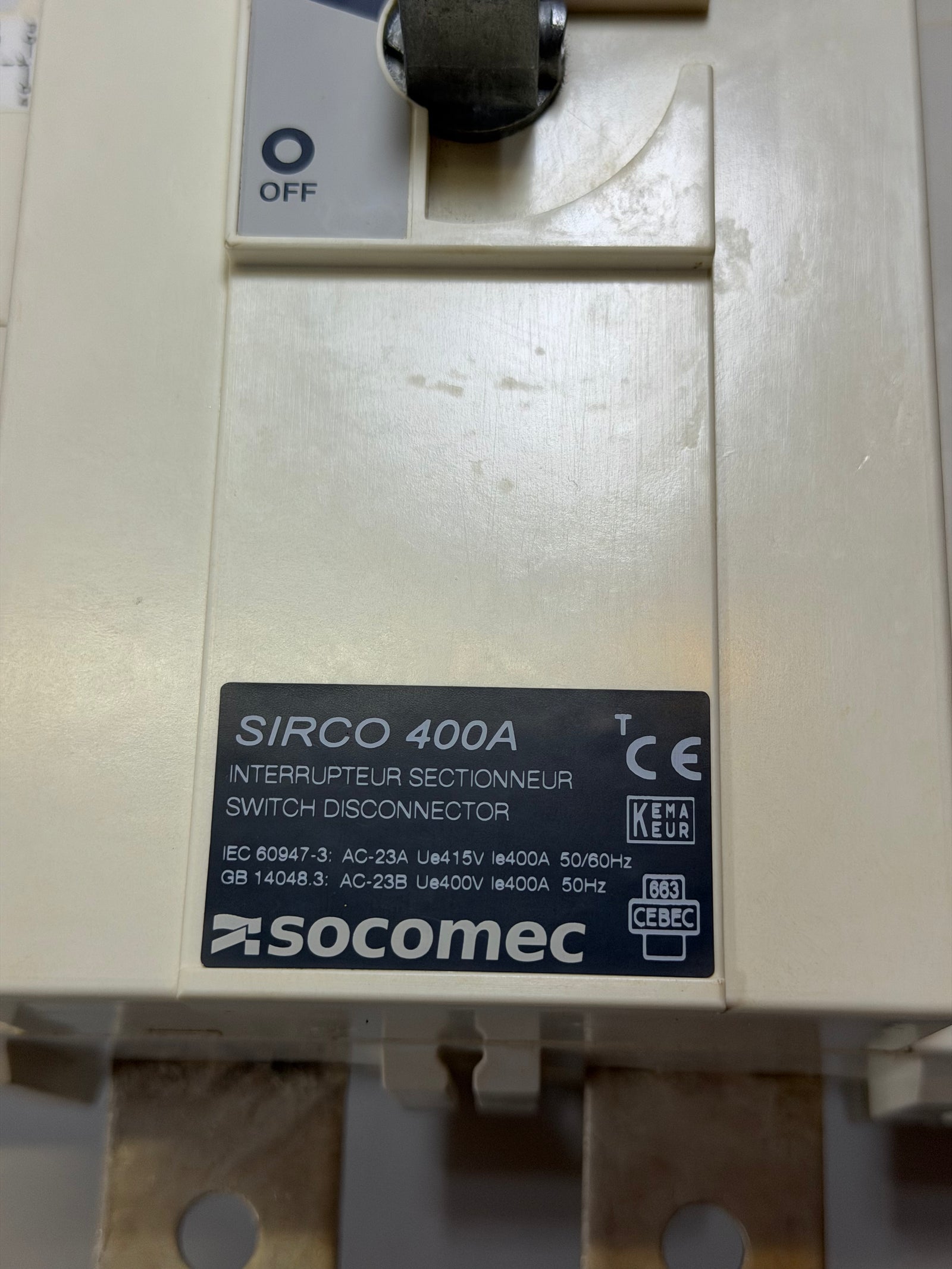

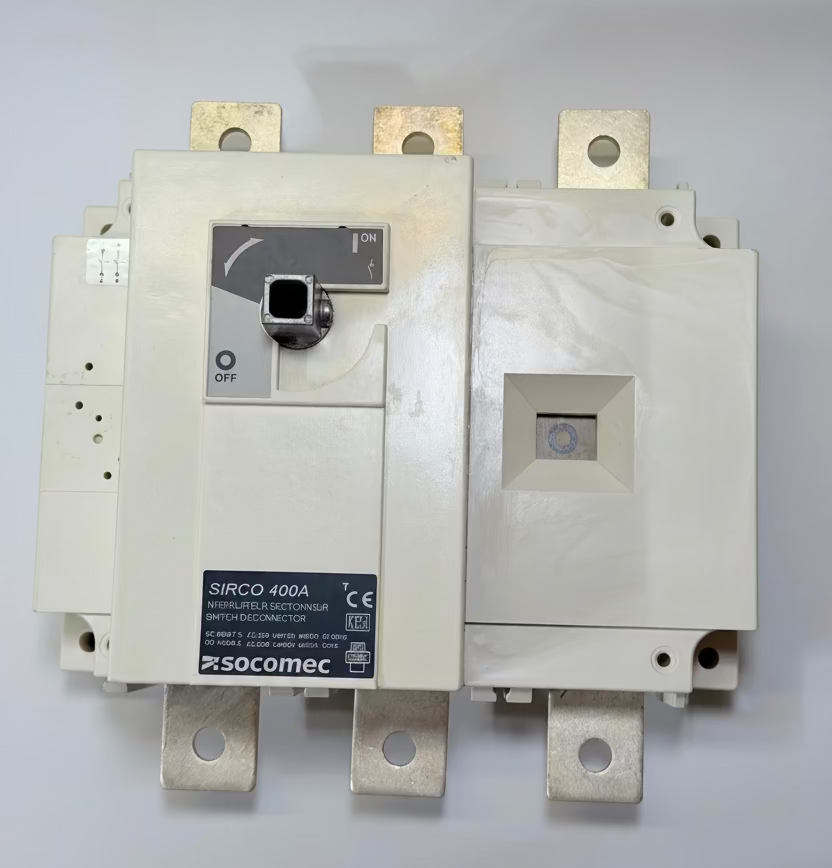

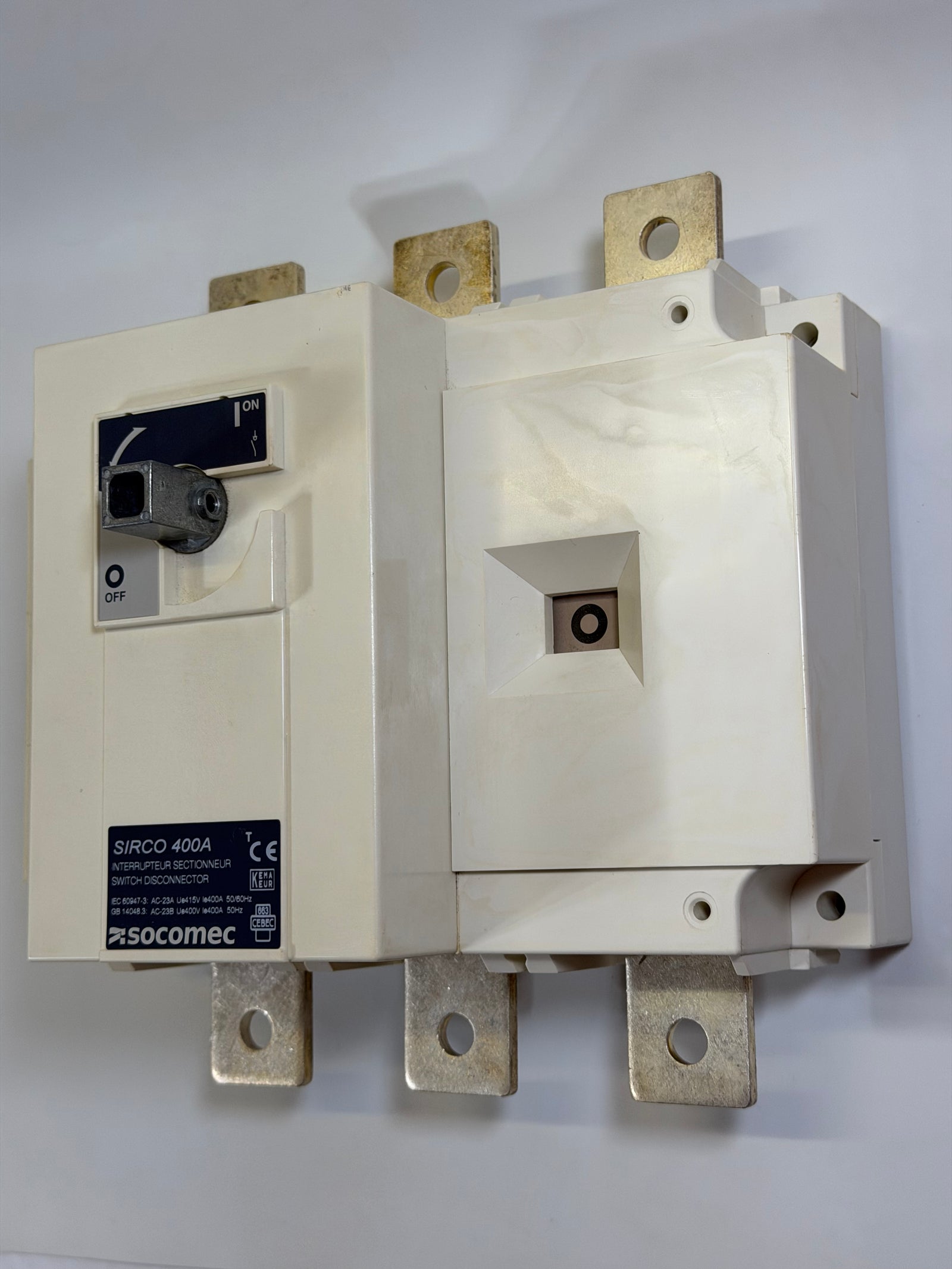

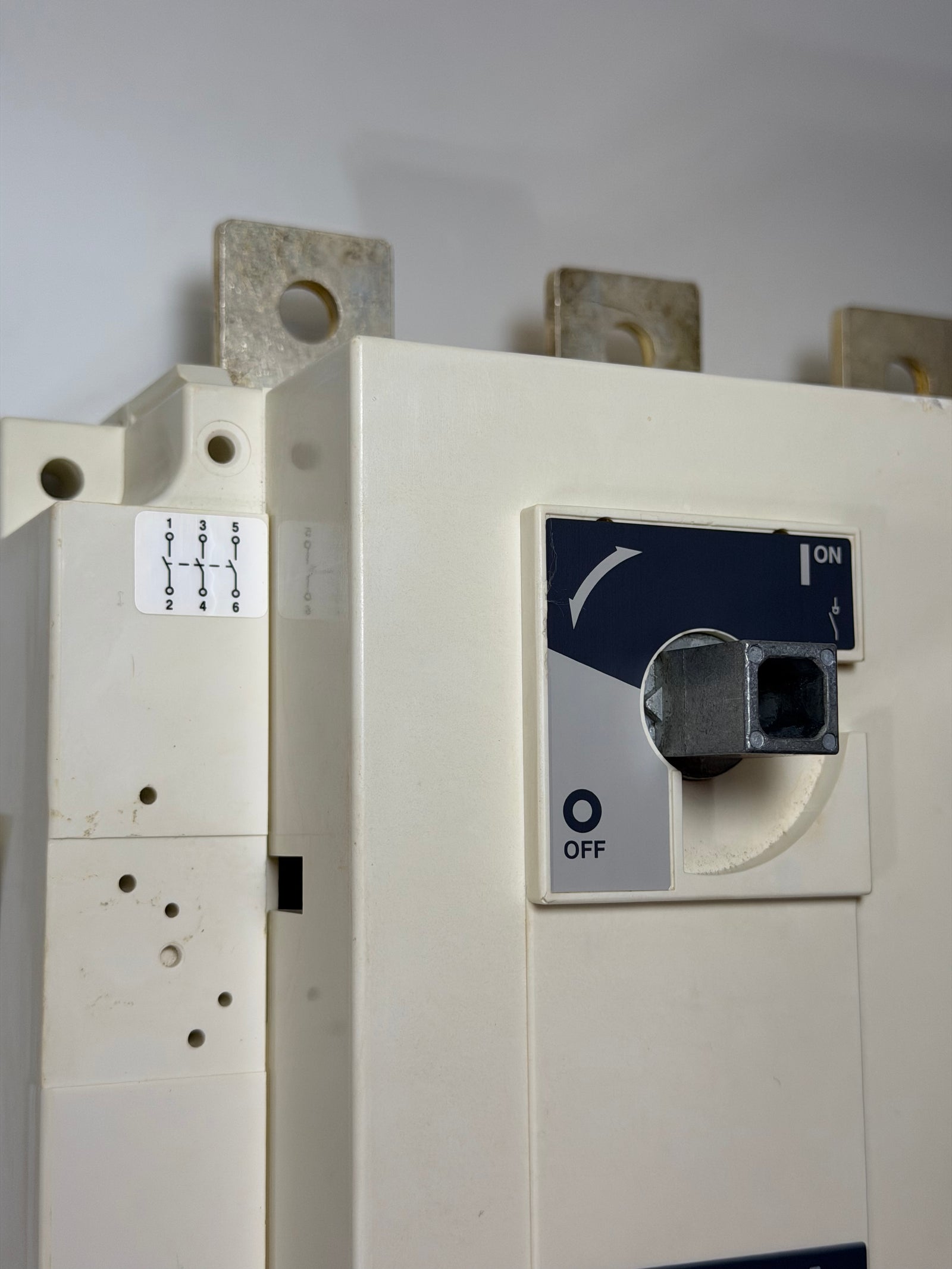

**Switch Sold as is in photo, not other parts available.
