SIEMENS
Siemens 1FK6063-6AF71-1TB0 Synchronous Servo Motor — 3000 rpm
- SKU
- P-SI-S-0064
$1,100.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 14.0 kg
Specifications
| Manufacturer | SIEMENS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SI-S-0064 |
| Weight | 14.0 kg |
Description

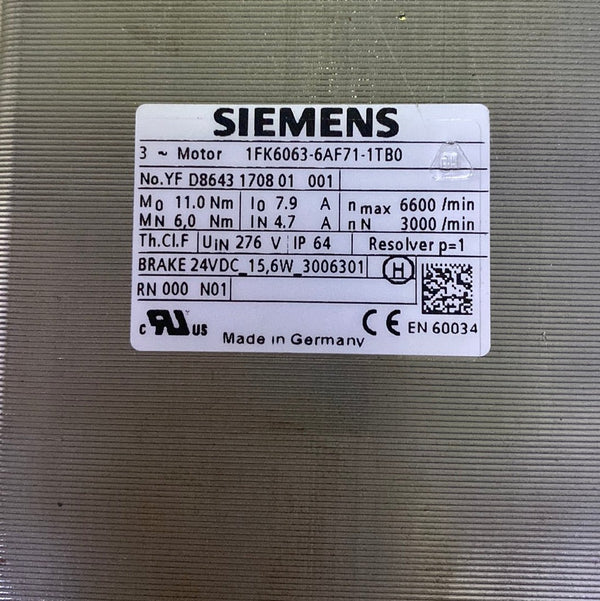

Siemens 1FK6 synchronous servo motor. The title and tags record 1FK6063-6AF71-1TB0; the description records 1FK6063-6AF71-1TBO. Confirm the final character on the nameplate before ordering.
Recorded specifications
- 6-pole motor; 11 Nm; 3000 rpm
- Additional source rating notation: 100 K
- Natural air cooling
- Mounting: IM B5 (V1, V3)

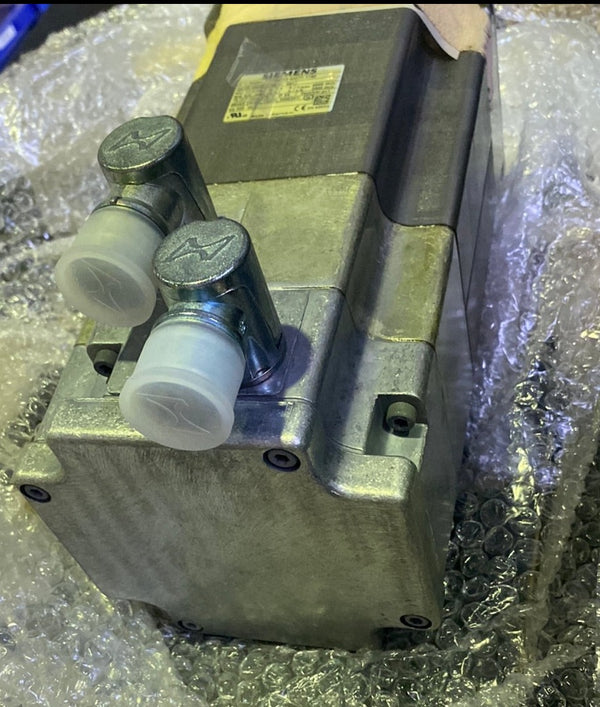

- Power/signal connectors rotatable through 270°
- 2-pole resolver, P=1

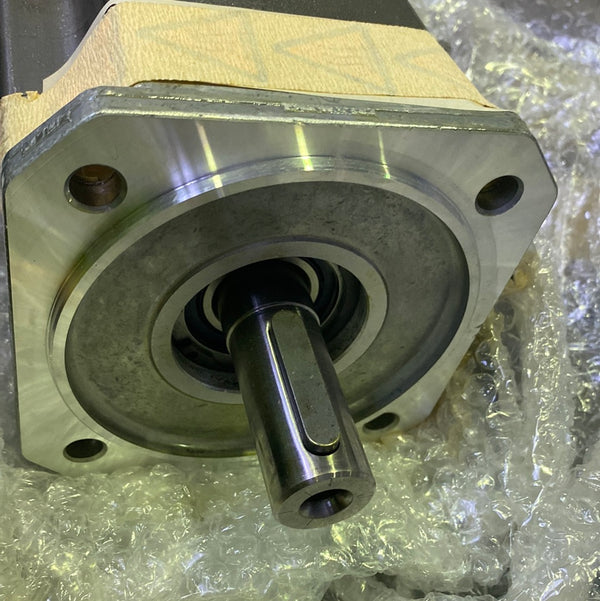

- Shaft with fitted key; tolerance N
- Holding brake
- Listed protection: IP64
- Compact reference: 1FK60636AF711TB0
Specifications are taken from the source listing. Verify the exact motor suffix, drive compatibility, electrical ratings and brake requirements against the unit documentation.
