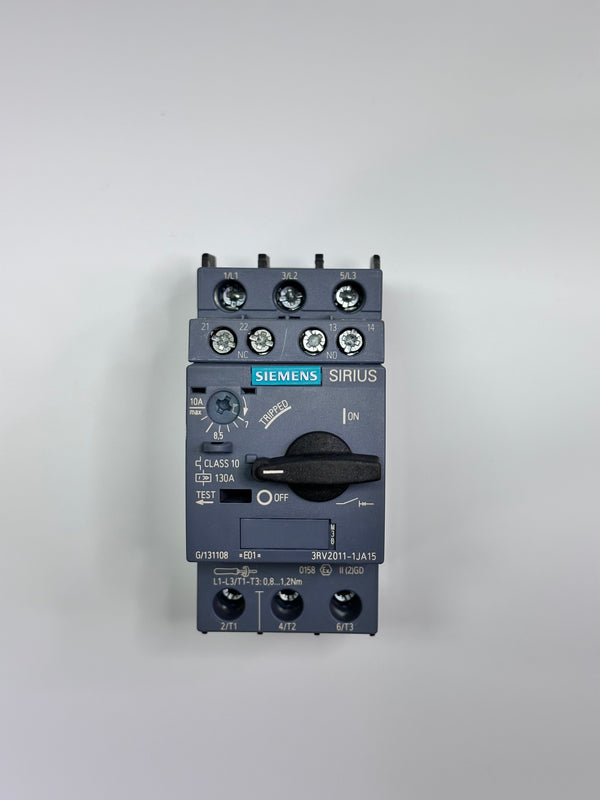

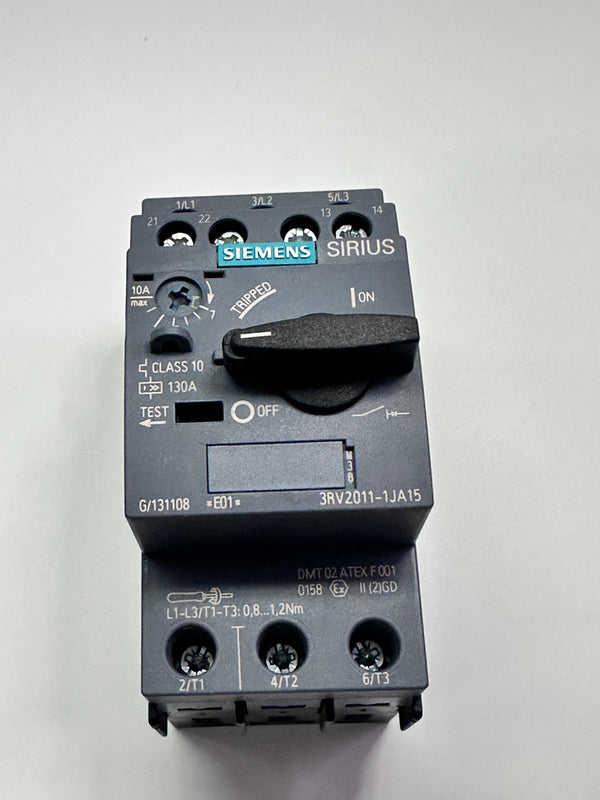

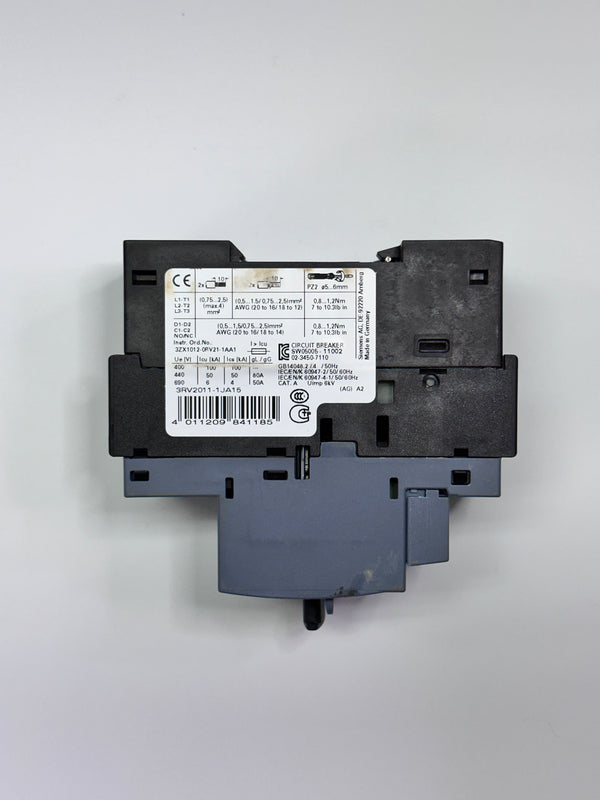

| Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC |
|
|
Brand | Siemens |
|
|
Current Rating | 7 → 10 A |
|
|
Range | SIRIUS 3RV |
|
|
Motor Protection Component | Circuit Breaker |
|
|
Supply Voltage | 690 V |
|
|
Series | 3RV2 |
| Overall Width | 45mm | |
|
|
Overall Depth | 97mm |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 690 V | |
|
|
Maximum Operating Temperature | +60°C |
|
|
Better World Claim | Alternative materials, Extended product life, Saves energy |
|
|
Breaking Capacity | 100 kA |
| Better World Product | Yes | |
| Terminal Type | Screw | |
|
|
Number of Poles | 3 |
|
|
Size | S00 |
