SIEMENS

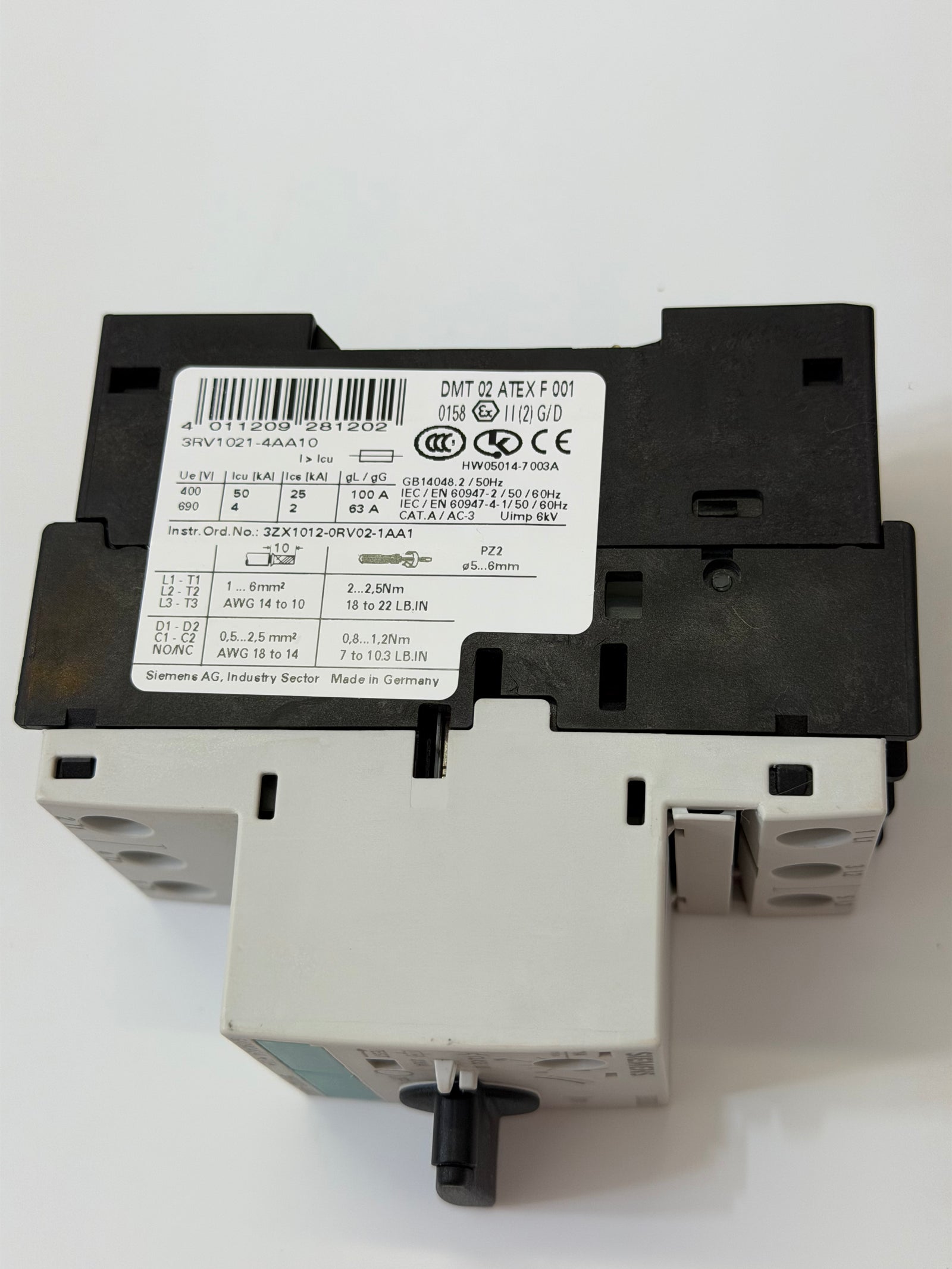

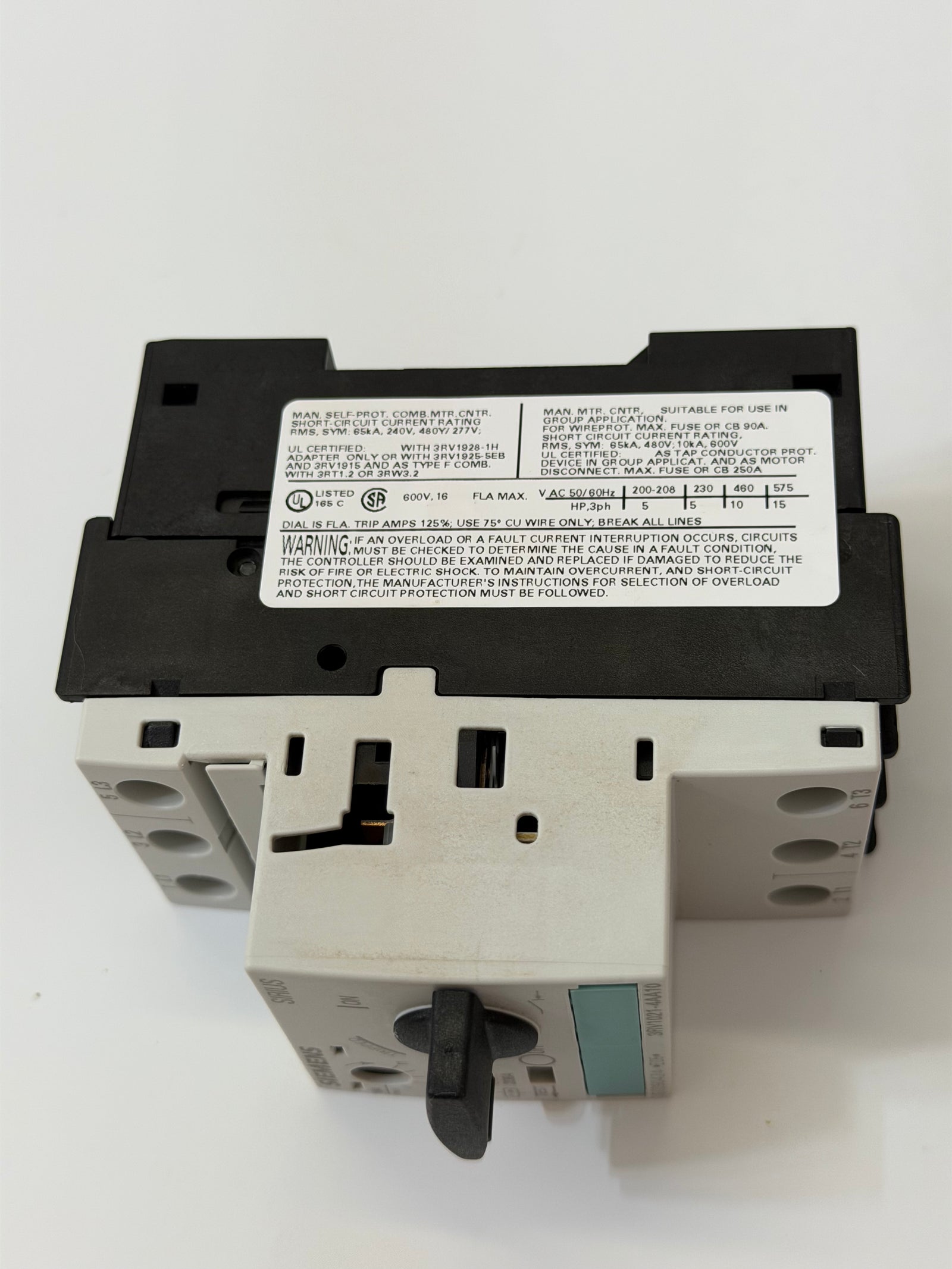

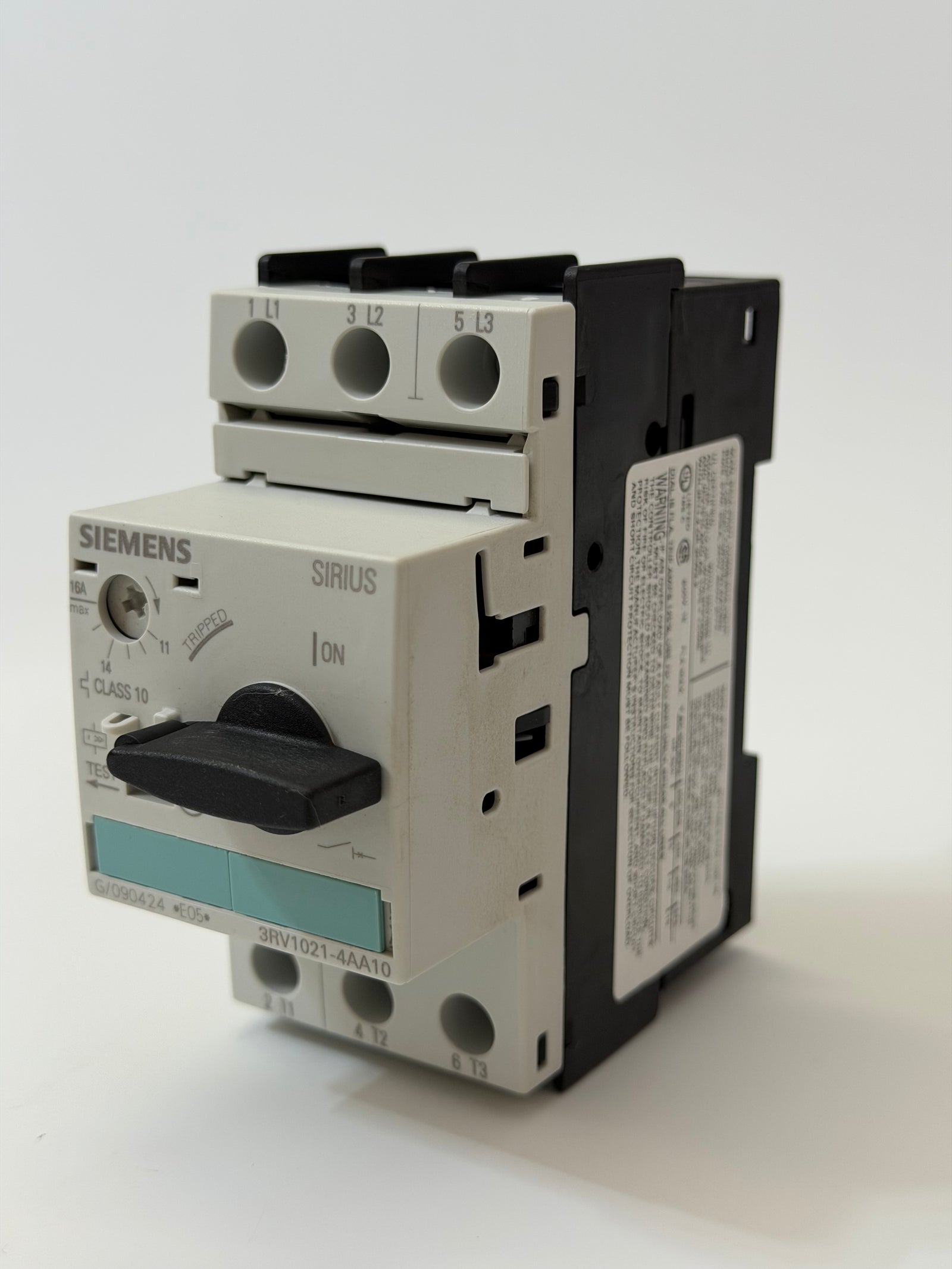

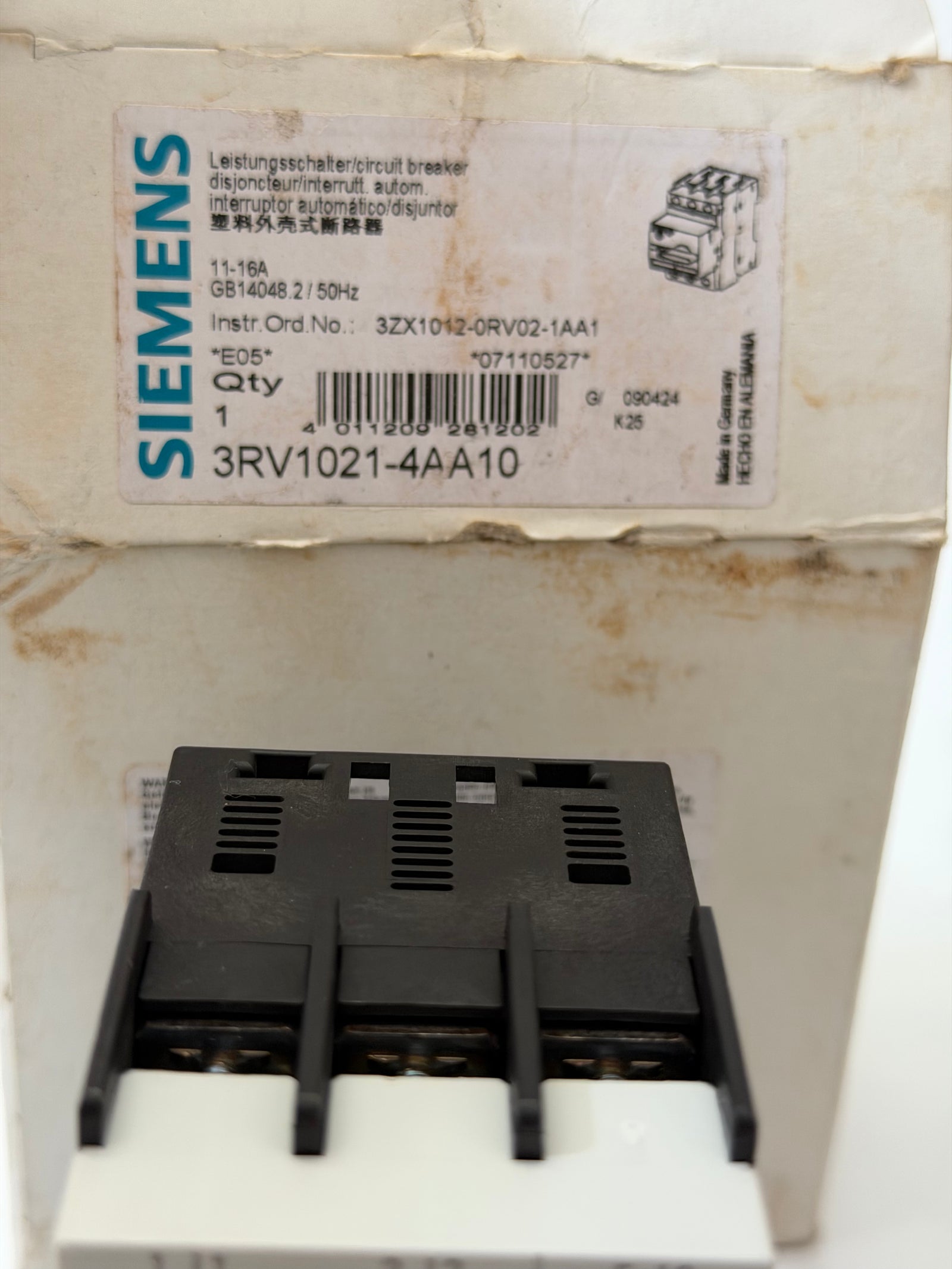

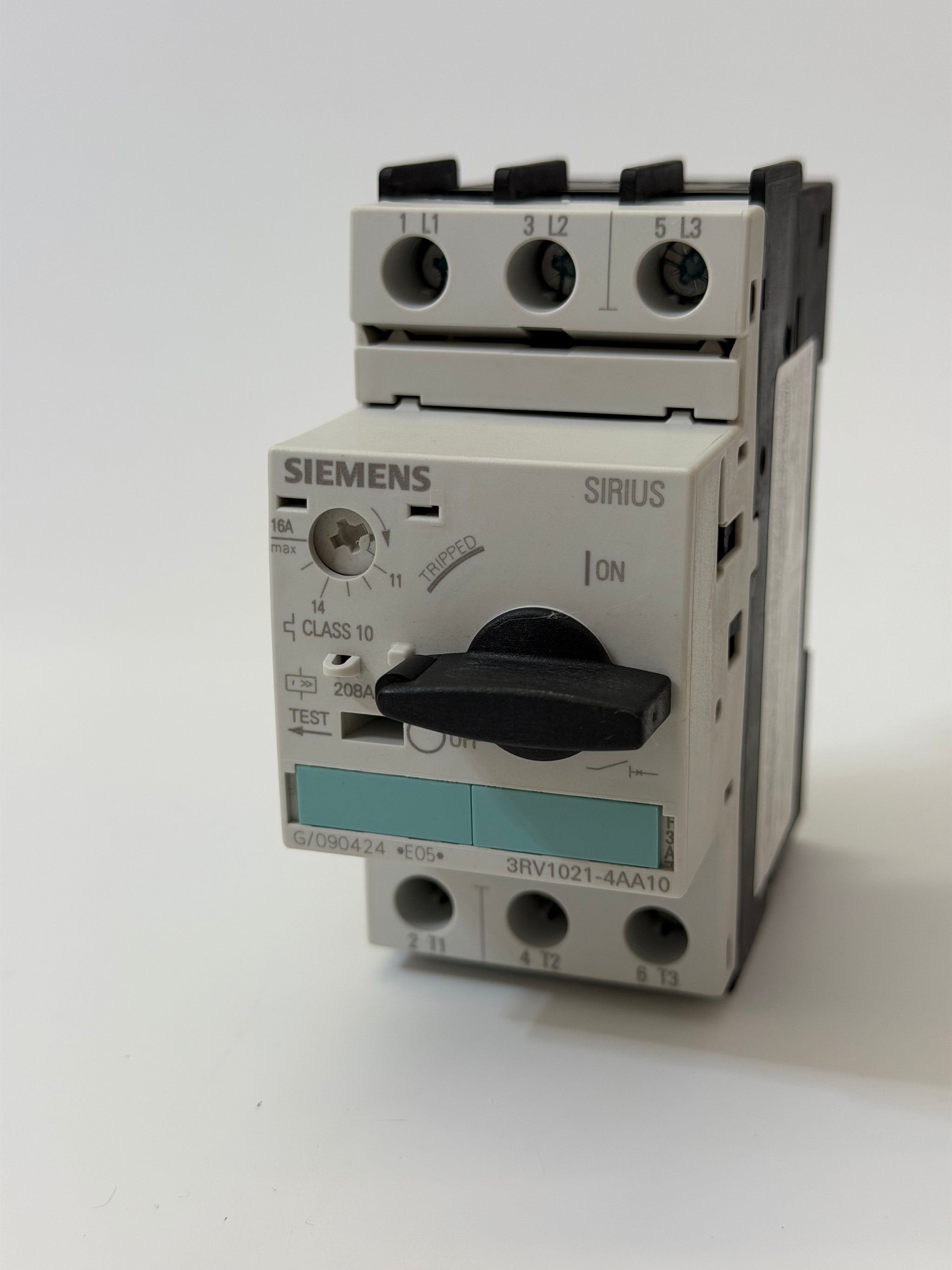

Siemens 3RV1021-4AA10 Motor-Protection Circuit Breaker, 16A
- SKU
- P-SI-S-8327
$100.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | SIEMENS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SI-S-8327 |
| Weight | 2.0 kg |
Description
| Part Number | 3RV1021-4AA10 |
| Manufacturer | Siemens |
| Type | Contactors |
| Model # | 3RV10214AA10 |
| Size | S0 |
| No of Poles | 3 |
| Overload Protection | Yes |
| Undervoltage Release | Yes |
| Ground Fault Detection | No |
| Surge Voltage Resistance | 6000V |
| Protection Class IP | IP20 |
| Shock Resistance | 25g / 11 ms |
| Operating Voltage | 690V |
| Operating Power | 7.5kW |
| Operating Current | 16 A |
| Trip Class | CLASS 10 |
| Mounting Type | Screw and Snap-On mounting onto 25mm standard mounting rail |
| Depth | 96 mm |
| Height | 97 mm |
| Width | 45 mm |
