SIEMENS

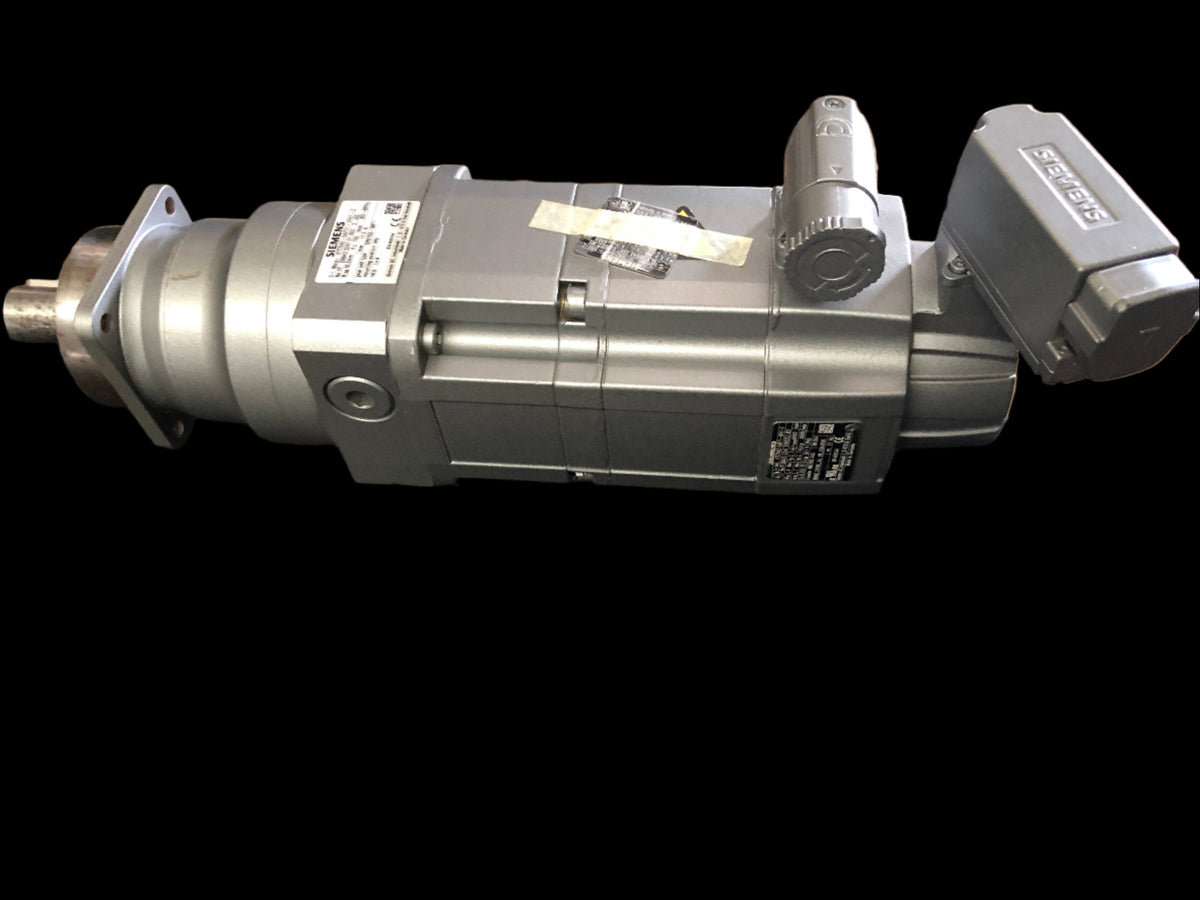

Siemens 1FT7042-5AF71-1FH1-Z SIMOTICS Servo Motor with Planetary Gearbox
- SKU
- P-SI-S-0068
$1,600.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 10.0 kg
Specifications
| Manufacturer | SIEMENS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SI-S-0068 |
| Weight | 10.0 kg |
Description
Siemens SIMOTICS S 1FT7 synchronous servo motor, reference 1FT7042-5AF71-1FH1-Z, listed with a planetary gearbox. The gearbox model, ratio and geared-output ratings are not provided; confirm these and the -Z options before ordering.
Motor specifications as listed
- M0: 3 Nm (100 K).
- NN: 3000 rpm; PN: 0.85 kW. These are motor ratings, not confirmed gearbox-output ratings.
- Naturally cooled; mounting designation IMB 5 (IM V1, IM V3).
- Conventional flange, described as 1FT6/1FK7 compatible. Confirm the exact mounting dimensions for your installation.
- Rotatable power connector and encoder connector.
- 22-bit multiturn absolute encoder with DRIVE-CLIQ interface, encoder AM-22-DQ.
- Plain shaft with holding brake.
- Accuracy tolerance N; vibration severity grade A; protection IP65.
Additional source references
1FT70425AF711FH1-Z; SINAMICS; S120. Confirm drive, electrical and mechanical compatibility against the exact motor and gearbox identification; no supply-voltage rating is stated.
