HEINEMANN
Heinemann SF15A-40 Hydraulic Magnetic Circuit Breaker — 2 Pole, 40A
- SKU
- P-SF-H-7576
- Weight
- 3.0 kg
Specifications
| Manufacturer | HEINEMANN |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SF-H-7576 |
| Weight | 3.0 kg |
Description
Heinemann SF15A-40 two-pole hydraulic magnetic circuit breaker, recorded at 40A with curve 2.

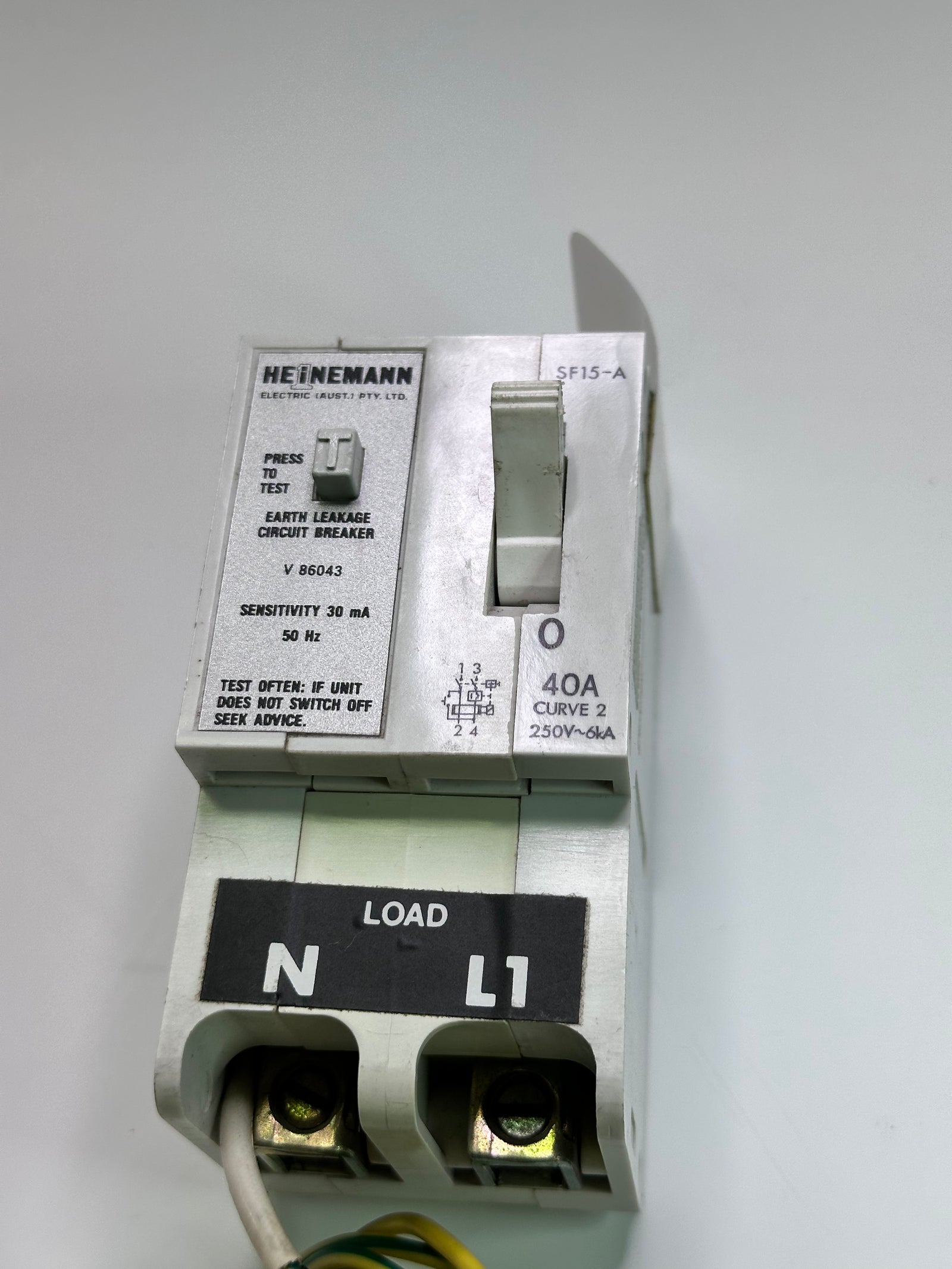

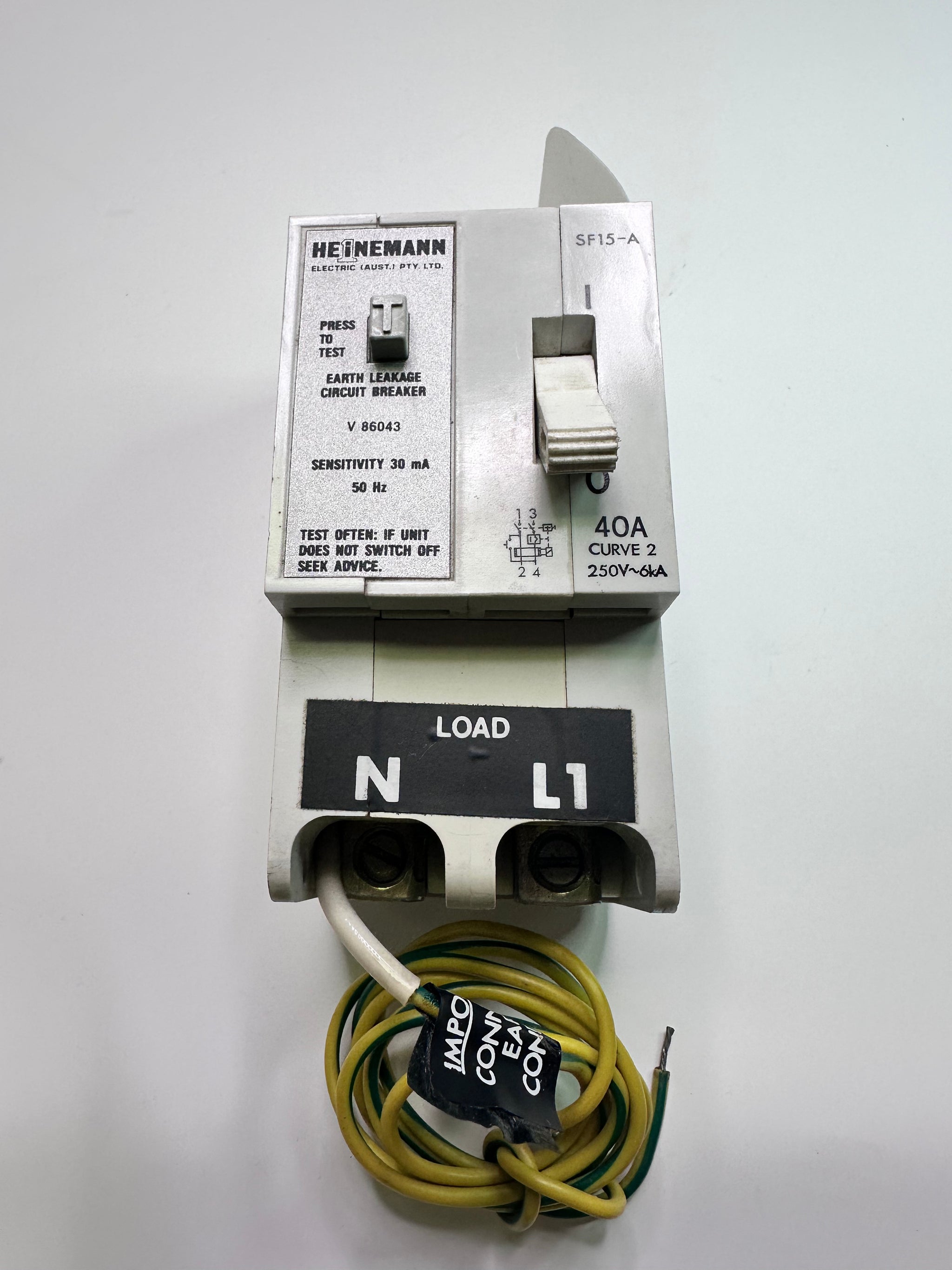

Recorded markings
2 pole Hydraulic magnetic circuit breaker
40A
curve 2
250`6kA
The original title records 250V and the tags record 250V~6kA; the source body records “250`6kA”. Confirm the exact voltage, AC/DC designation and breaking-capacity conditions from the device label before selection.
Earth-leakage function is unconfirmed. The previous title and tags called this an earth-leakage breaker, but the description identifies a hydraulic magnetic breaker and gives no residual-current trip rating. Do not treat this listing as confirmation of RCD/RCBO protection. Confirm the complete device function and suitability with the label or technical documentation before installation.
