SCHROEDER

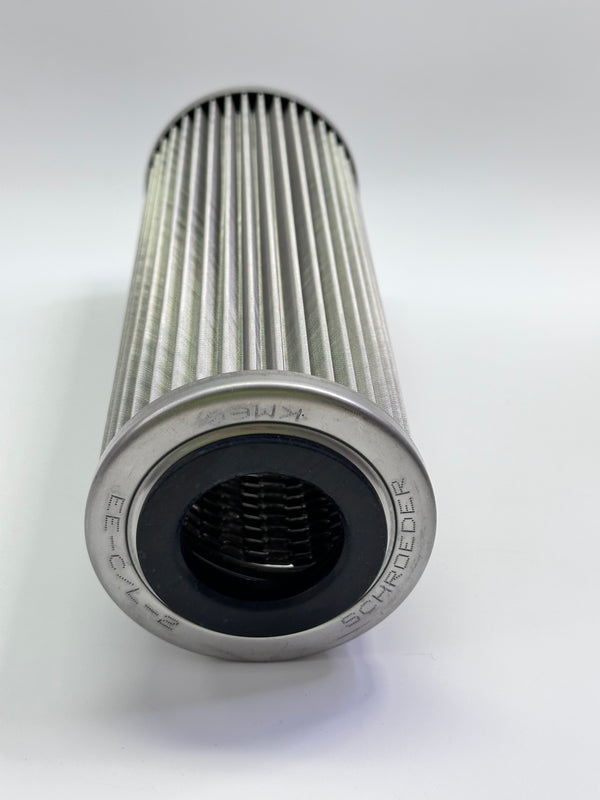

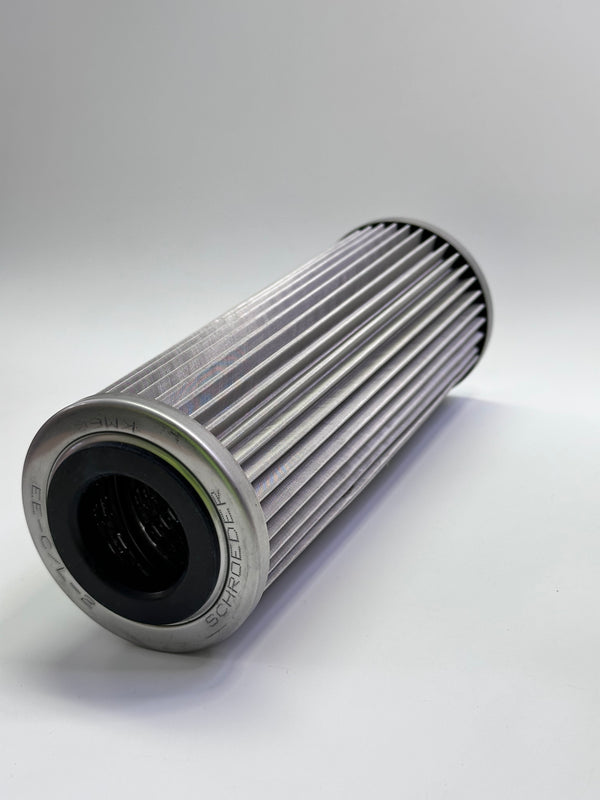

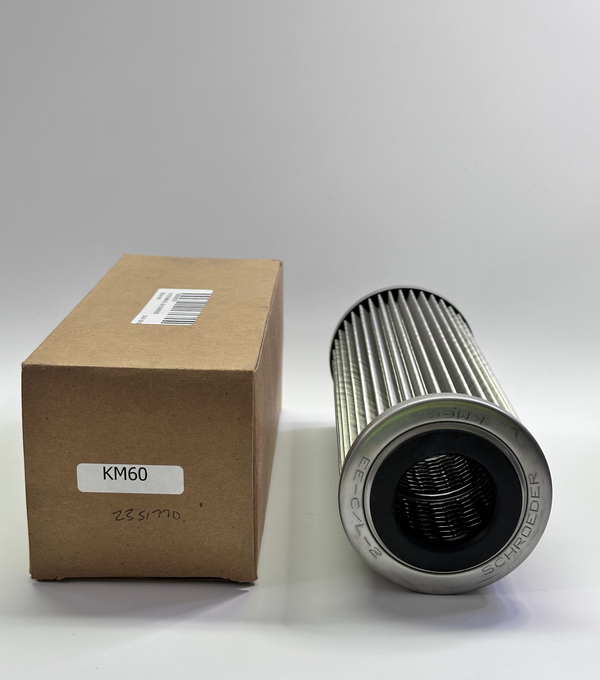

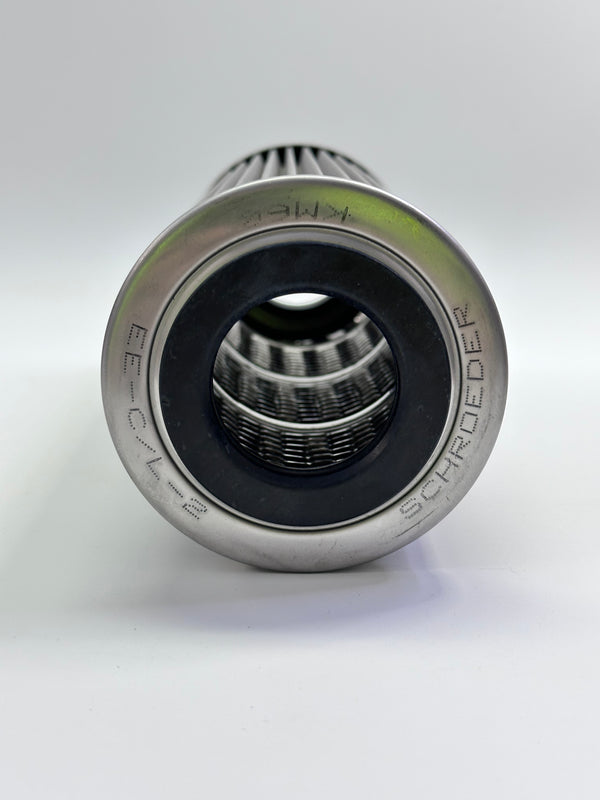

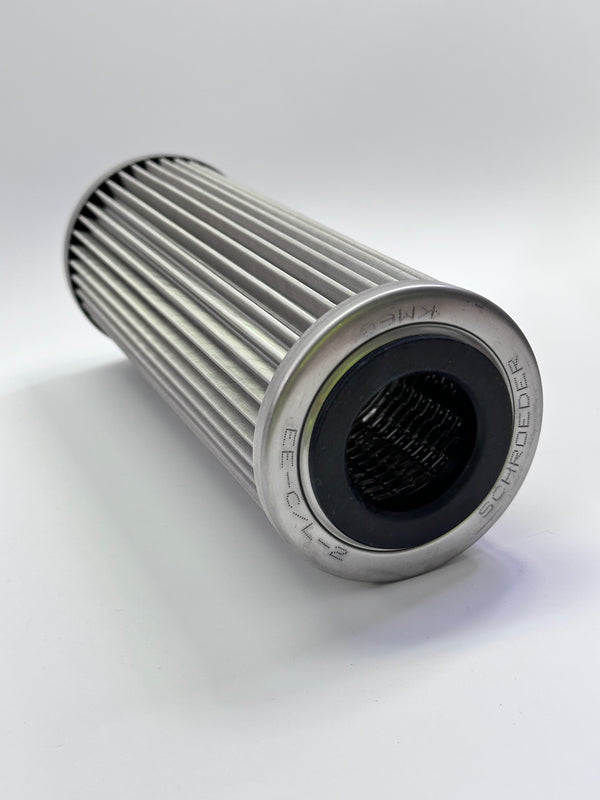

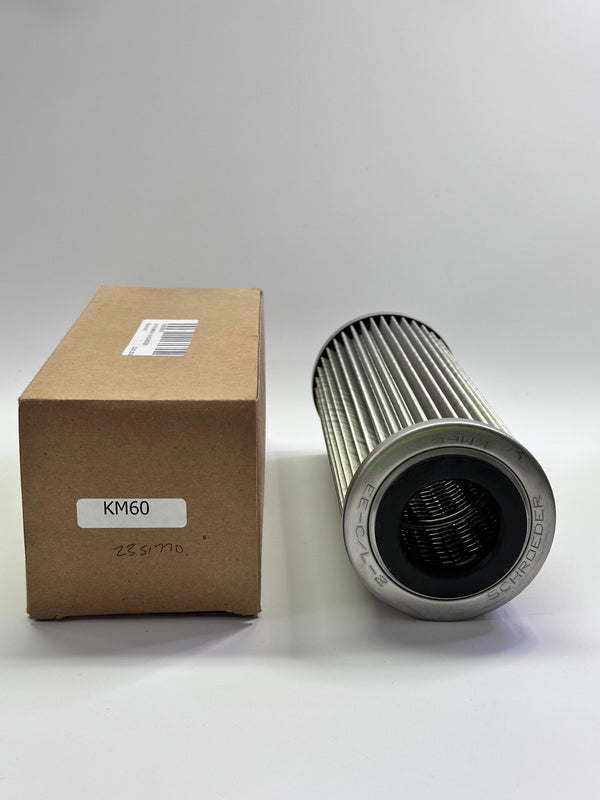

Schroeder KM60 Hydraulic & Lube Filter Element, 60 µm
- SKU
- P-SC-S-0168
$70.00
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | SCHROEDER |
|---|---|
| Product type | FILTERS |
| SKU | P-SC-S-0168 |
| Weight | 2.0 kg |
Description
Schroeder KM60 K-series hydraulic and lube filter element with metal-mesh media and a source-listed nominal rating of 60 µm.
Source-listed specifications
| Type | Hydraulic and lube filter element |
|---|---|
| Series | K |
| Media | Metal mesh |
| Nominal filter rating | 60 µm |
| Connection type | Seal |
| Seal material | Buna |
| Beta ratio | 1000, as recorded |
| Efficiency | 99.9%, as recorded |
| Maximum operating pressure | 10.3 bar / 150 psi, as labelled in the source |
| Minimum operating temperature | −29°C / −20°F |
| Maximum operating temperature | 107°C / 225°F |
| Weight | 0.54 kg / 1.2 lb |
| For use with | Schroeder filter housing |
| Outer diameter | 3.9 in / 99 mm |
| Inner diameter | 1.6 in / 41 mm |
| Height | 9.1 in / 231 mm |
The source does not state test conditions or a particle size for the beta/efficiency figures. Do not treat the nominal rating as an absolute filtration rating; confirm the element and housing limits for the application.
Source-listed cross references
| Donaldson | P173781 |
|---|---|
| CARQUEST | 84845 |
| FLEETGUARD | HF8023 |
| FLUITEK | PS03909360R7 |
| HYDAC/HYCON | 02059808, 02064086, 50309D74W, HK025W |
| NAPA | 7845 |
| PARKER | 926475 |
| SCHROEDER | JM60, KM60 |
| VMC | HF173781 |
| WESTERN FILTER | E4051B3Z60 |
| WIX | 57845 |
Additional source tag references: KM-60, km60 EE-C/L-2, 7630762, BI-B/H and SH70025. Cross references are retained catalogue information, not independently verified equivalents. Confirm fit and seal compatibility before ordering; a housing is not included by this element listing.
