SCHNEIDER ELECTRIC

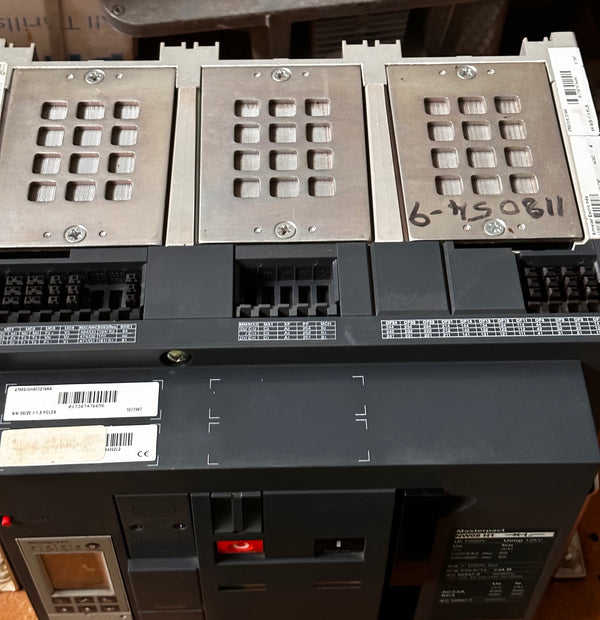

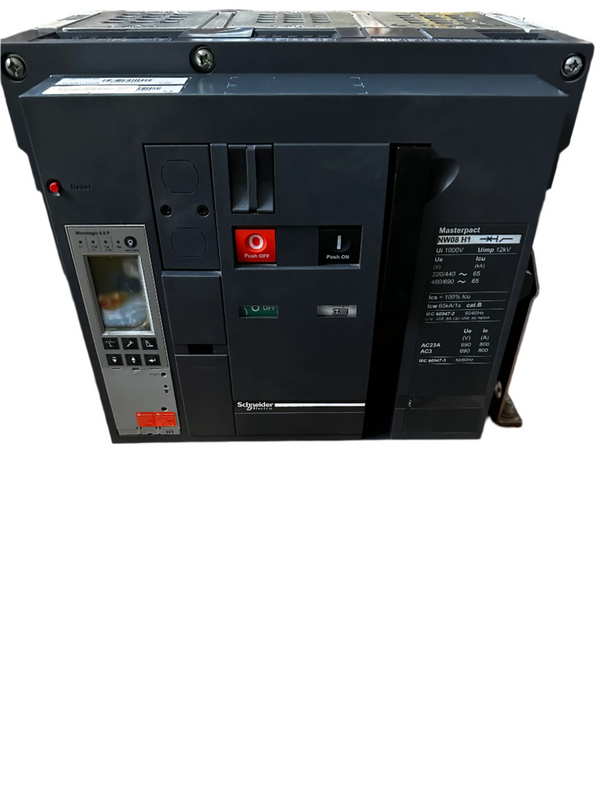

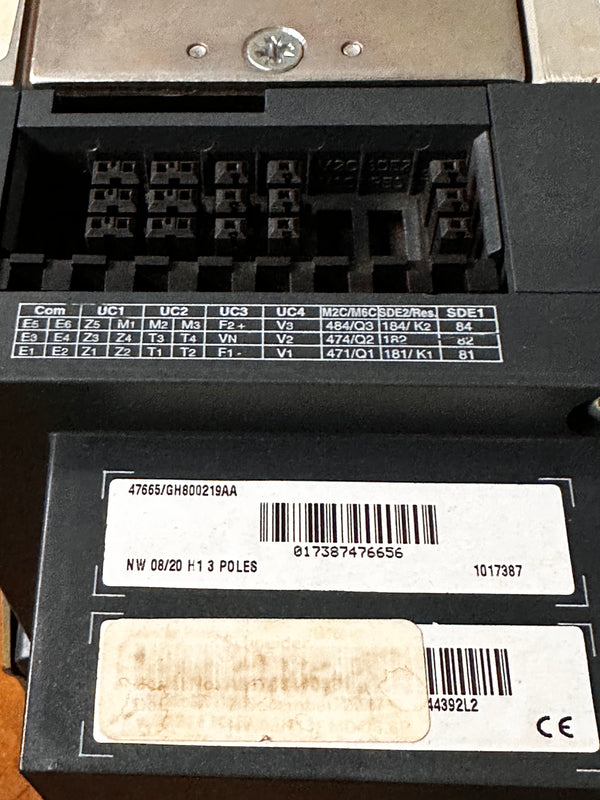

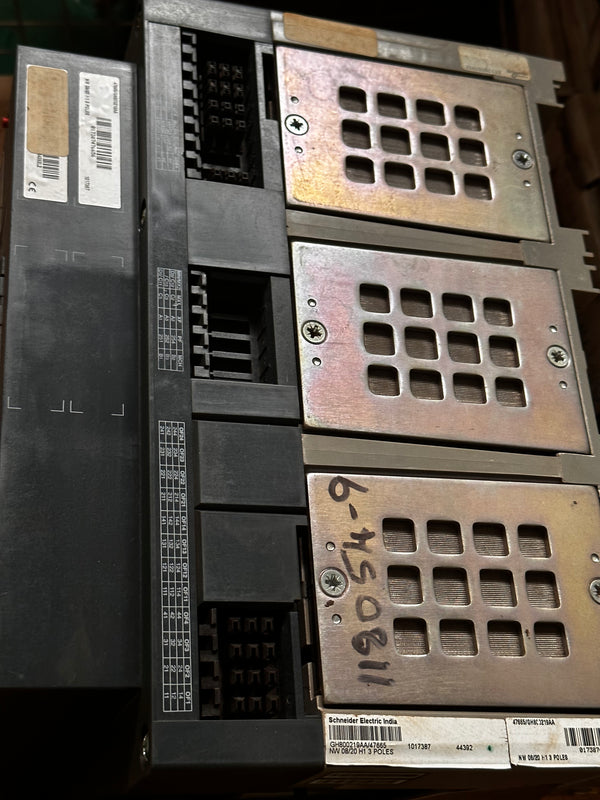

Schneider MasterPacT NW08H1 800A 3-Pole Drawout Breaker Frame — No Control Unit
- SKU
- P-SC-S-2453
- Weight
- 20.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SC-S-2453 |
| Weight | 20.0 kg |
Description
Schneider Electric MasterPacT NW08H1 circuit breaker frame: 800A, 3 poles, drawout mounting, 65kA/440VAC 50/60Hz ultimate short-circuit breaking capacity (Icu).

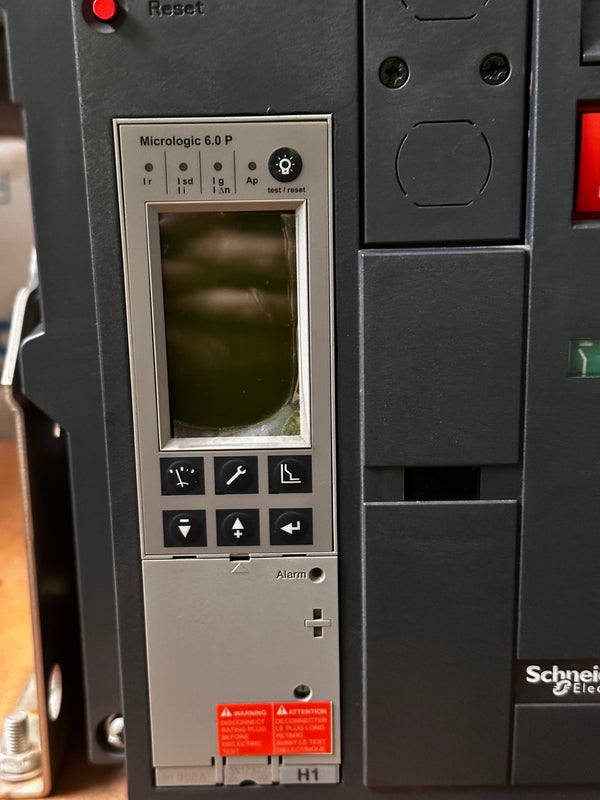

Supplied without a control unit. The original listing describes the item as new and still bolted to a pallet. Additional cost may apply to overseas shipping.
Weight requires confirmation: the original listing states a total weight of 50kgs, while its specification table states a net weight of 90 kg. Contact MIS for verified item and packed weights before arranging transport.
Original specification tables
These source specifications are retained for identification. Confirm the installed configuration, sensor rating and any required control unit; table options do not establish which accessories are supplied.

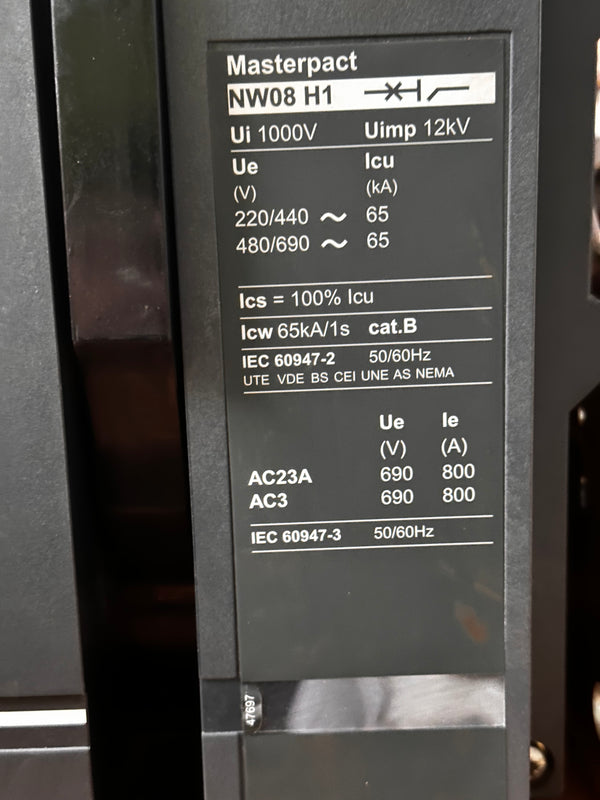

| Range | MasterPacT |
|---|---|
| Product name | MasterPact NW |
| Circuit breaker name | MasterPact NW08H1 |
| product or component type | Circuit breaker |
| device application | Power distribution protection |
| Poles description | 3P |
| Control unit | Without control unit |
| [In] rated current | 800 A at 40 °C |
| Performance type | H1 65 kA 440 V AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Selectivity category | Category B |
| Control type | Push-button |
| mounting mode | Drawout |
| [Icu] rated ultimate short-circuit breaking capacity | 65 kA at 220/415 V AC 50/60 Hz 65 kA at 440 V AC 50/60 Hz 65 kA at 525 V AC 50/60 Hz 65 kA at 690 V AC 50/60 Hz |
|---|---|
| [Ics] rated service breaking capacity | 65 kA at 220/415 V AC 50/60 Hz 65 kA at 440 V AC 50/60 Hz 65 kA at 525 V AC 50/60 Hz 65 kA at 690 V AC 50/60 Hz |
| [Icw] rated short-time withstand current | 65 kA 1 s 36 kA 3 s |
| [Icm] rated short-circuit making capacity | 143 kA 220/415 V AC at 50/60 Hz 143 kA 440 V AC at 50/60 Hz 143 kA 525 V AC at 50/60 Hz 143 kA 690 V AC at 50/60 Hz |
| Sensor rating | 400 A 800 A |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| Power dissipation in W | 100 W |
| Maximum breaking time | 25 ms |
| Maximum closing response time | 70 ms |

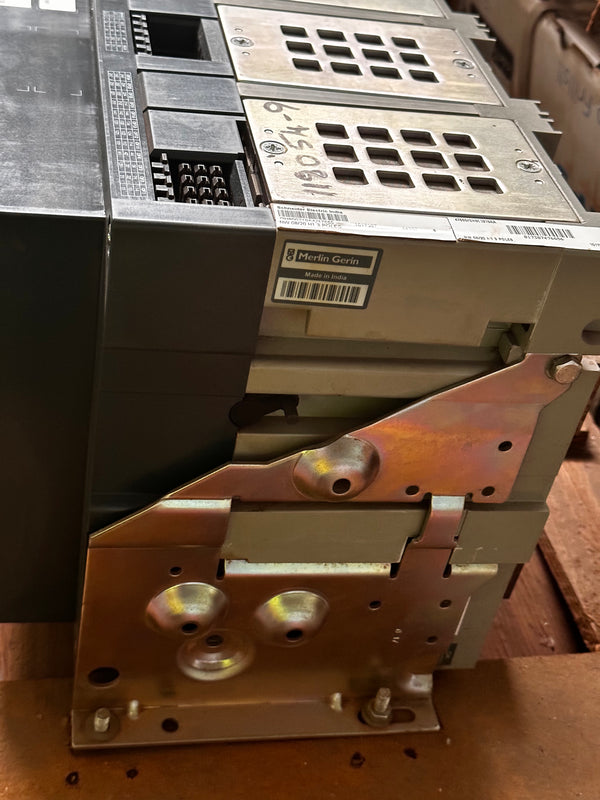

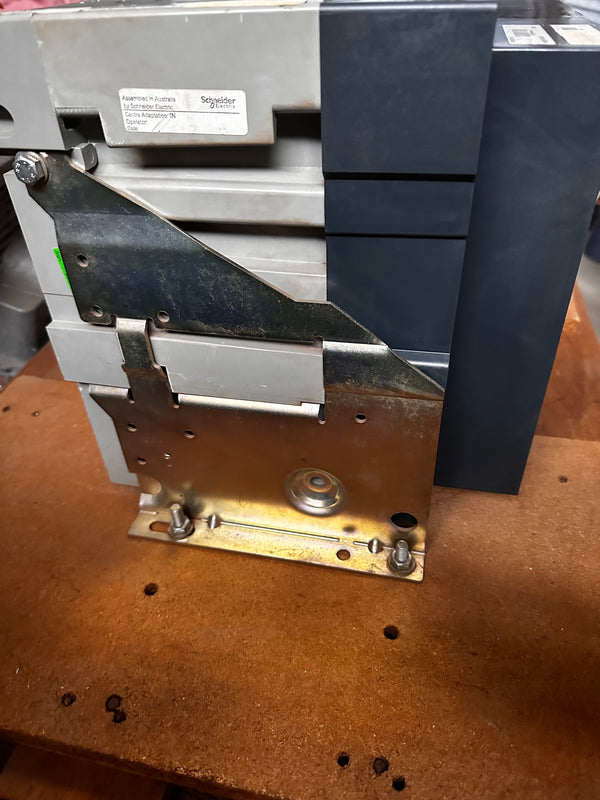

| mounting support | Backplate Rails |

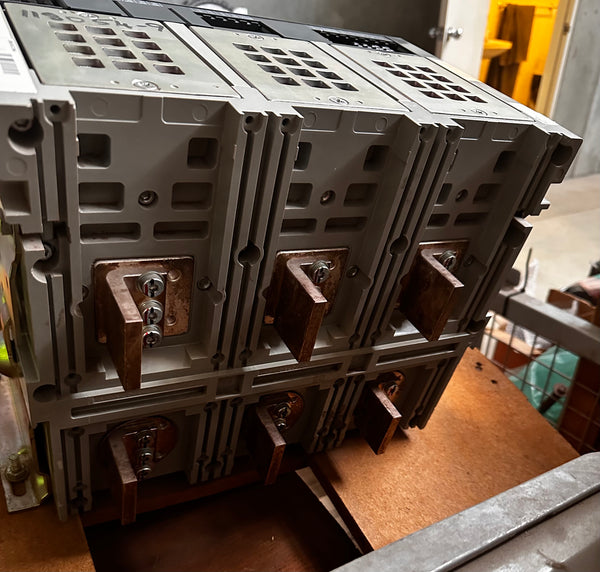

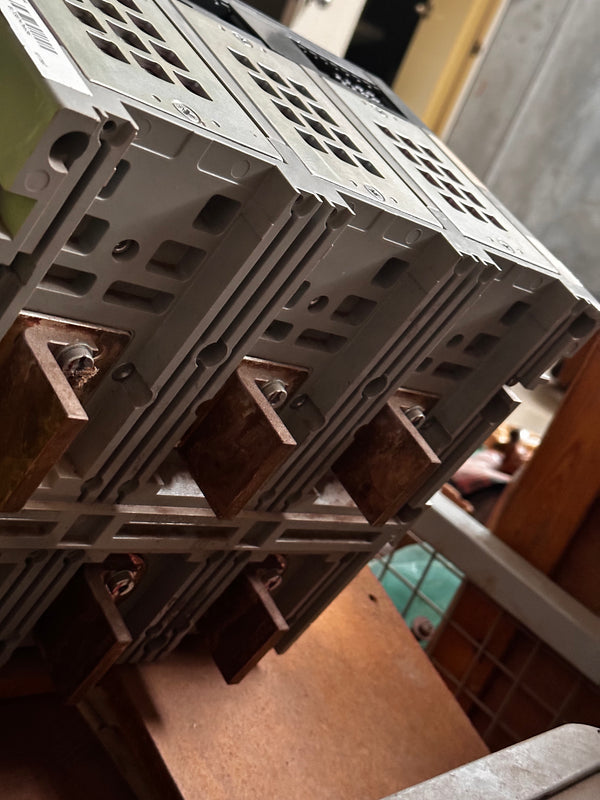

| Upside connection | Front Rear |
| Downside connection | Front Rear |
| Connection pitch | 115 mm |
| Mechanical durability | 12500 cycles without maintenance 25000 cycles with maintenance |
| Electrical durability | 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 AC-23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 |
| Height | 439 mm |
| Width | 441 mm |
| Depth | 395 mm |
| net weight | 90 kg |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 |
| Product certifications | CE CCC EAC |
| IP degree of protection | IP30 conforming to IEC 60529 |
|---|---|
| Pollution degree | 4 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |

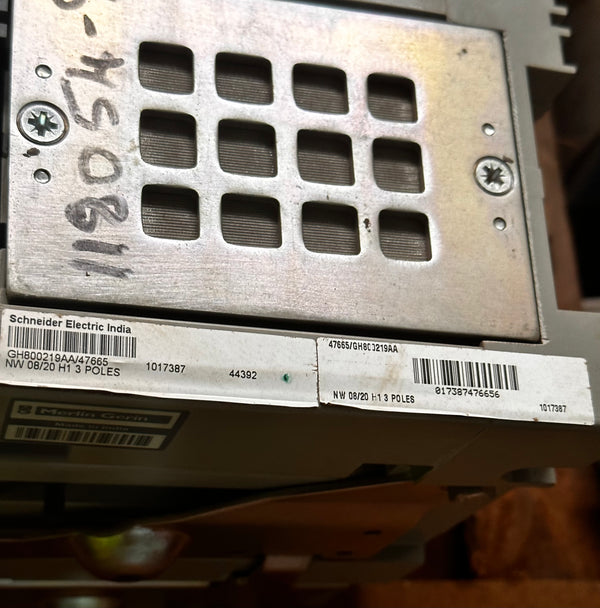

Additional catalogue references: 48231 and GH800219AA. Original brand/context tags SQUARE D and Merlin Green are retained here as source wording, not independent identity or certification verification. Have the applicable markings, ratings and installation requirements checked for the intended system.
