SCHNEIDER ELECTRIC

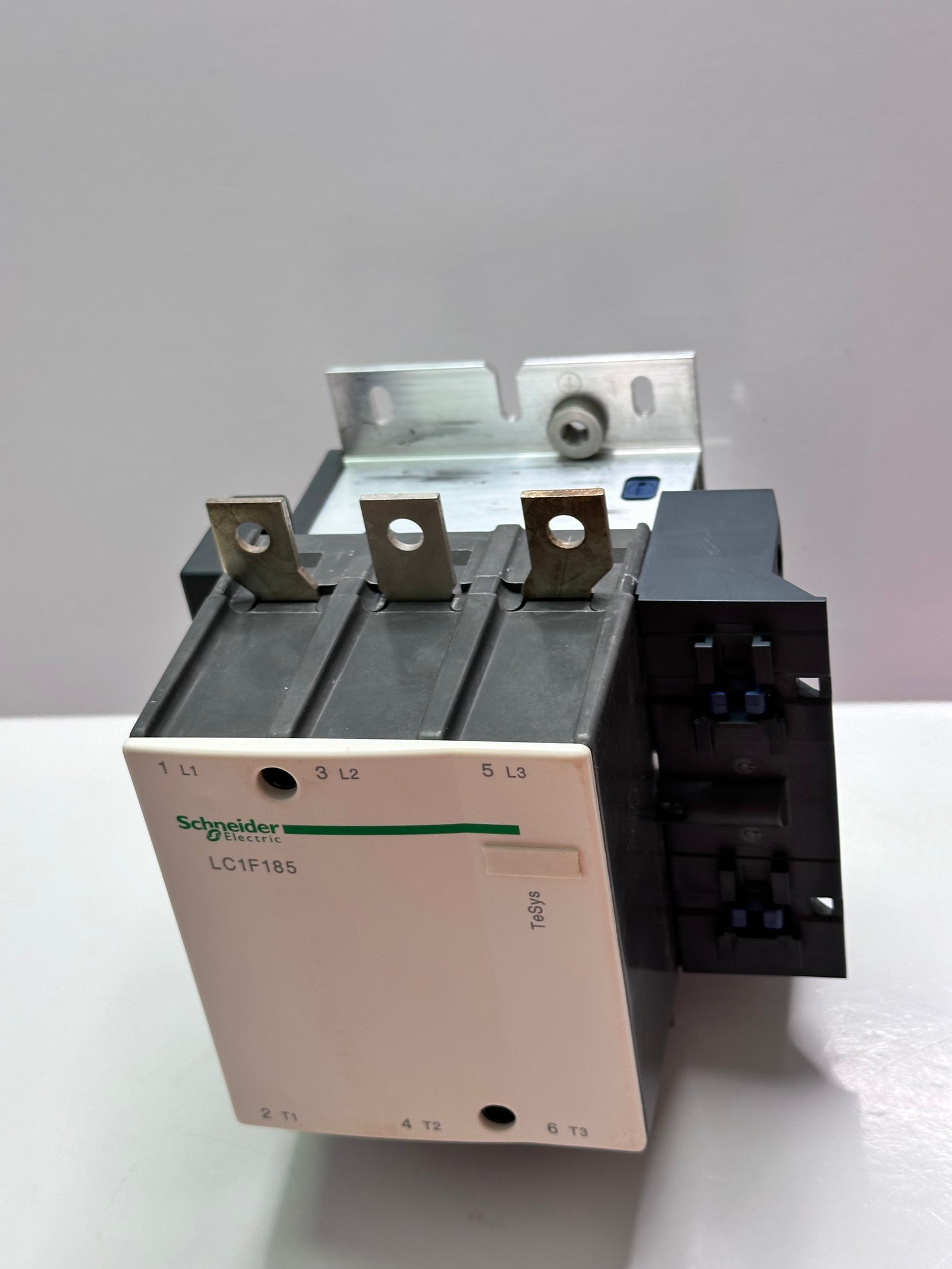

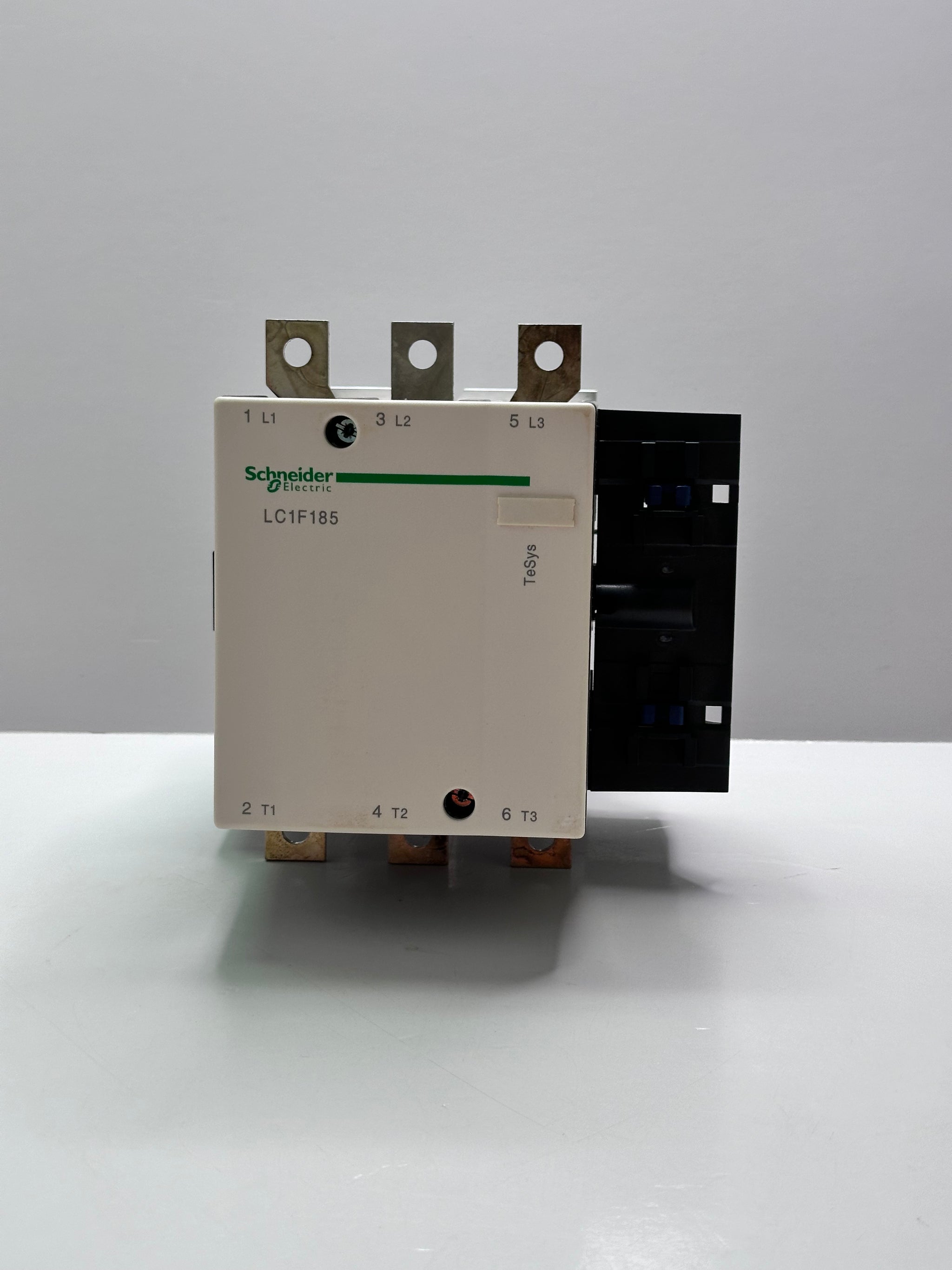

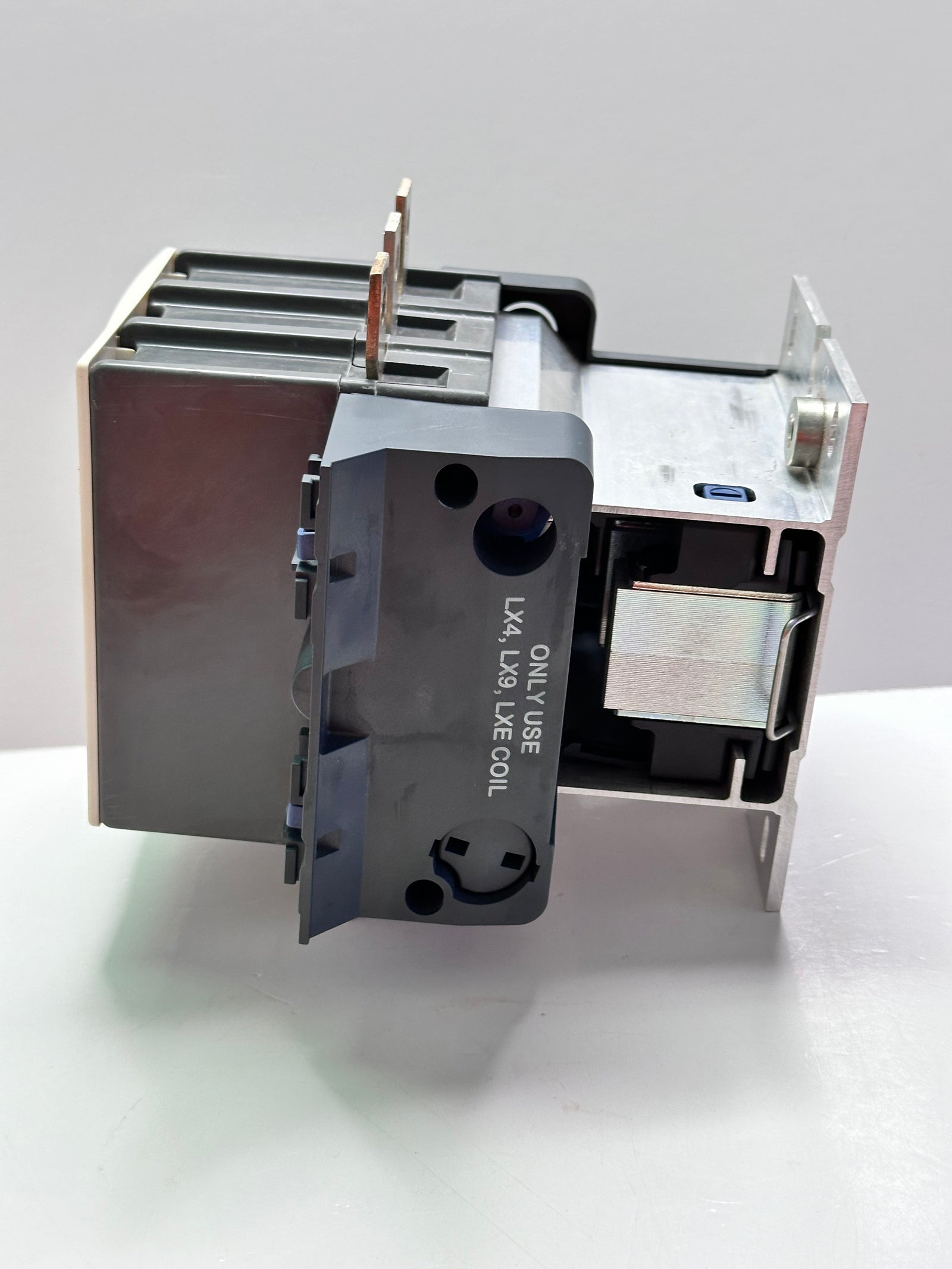

Schneider LC1F185 TeSys F Contactor — 3P 3NO, 185A AC-3, Without Coil
- SKU
- P-SC-S-5686
$900.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SC-S-5686 |
| Weight | 5.0 kg |
Description
Main
Range TeSys
Product name TeSys F
Product or Component Type Contactor
Device short name LC1F
contactor application Resistive load, Motor control
Utilisation category AC-3, AC-4, AC-1
poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage <= 690 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
275 A 104 °F (40 °C)) <= 440 V AC-1
185 A 131 °F (55 °C)) <= 440 V AC-3
Motor power kW
100 kW at 415 V AC 50/60 Hz (AC-3)
100 kW at 440 V AC 50/60 Hz (AC-3)
110 kW at 500 V AC 50/60 Hz (AC-3)
90 kW at 380...400 V AC 50/60 Hz (AC-3)
55 kW at 220...240 V AC 50/60 Hz (AC-3)
110 kW at 660...690 V AC 50/60 Hz (AC-3)
33 kW at 400 V AC 50/60 Hz (AC-4)
